Carter-Hoffmann (Middleby) PH1825 Heated Cabinets & Holding Shelves
Carter-Hoffmann (Middleby) PH1825 Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Carter-Hoffmann (Middleby) PH1825 Heated Cabinets & Holding She...
Description

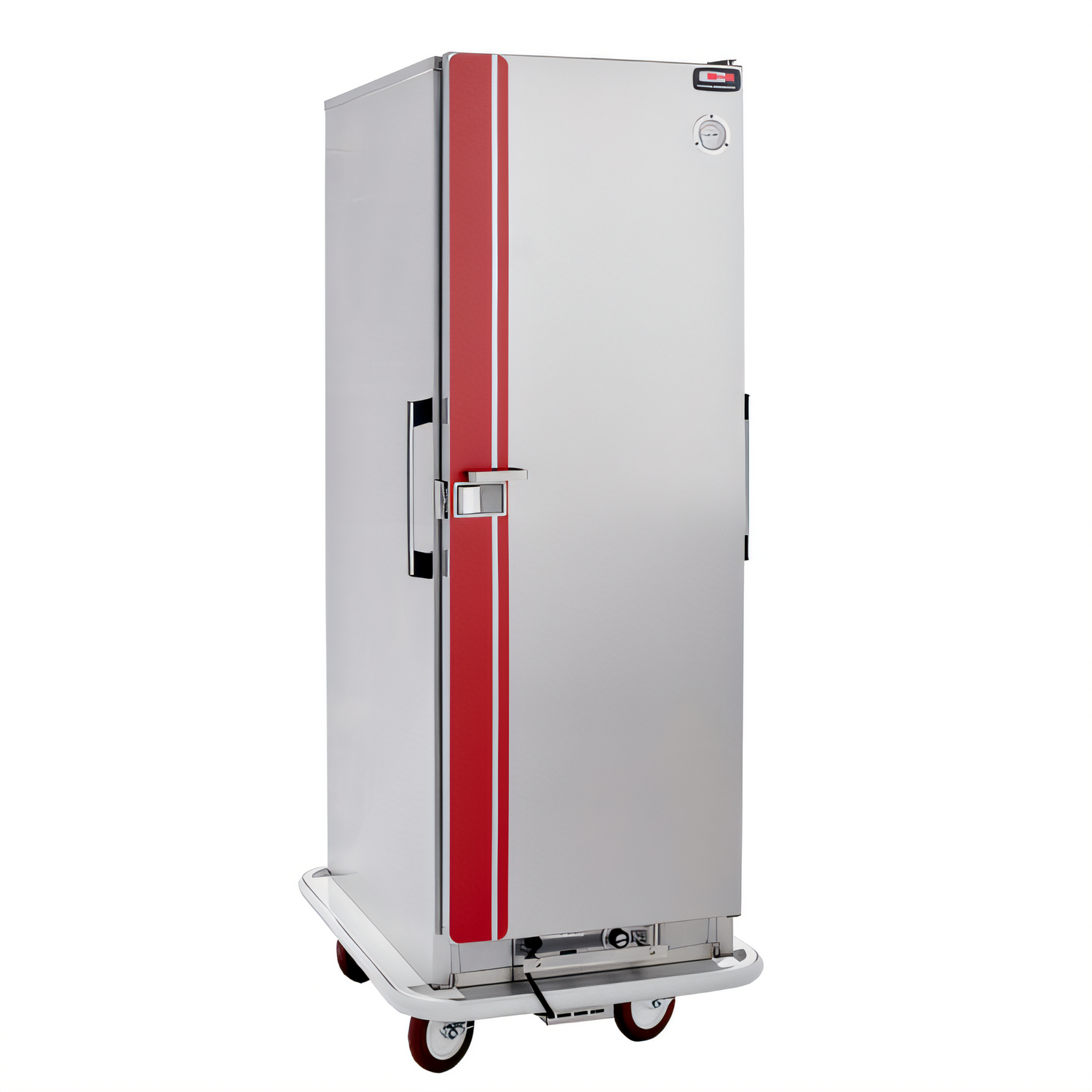

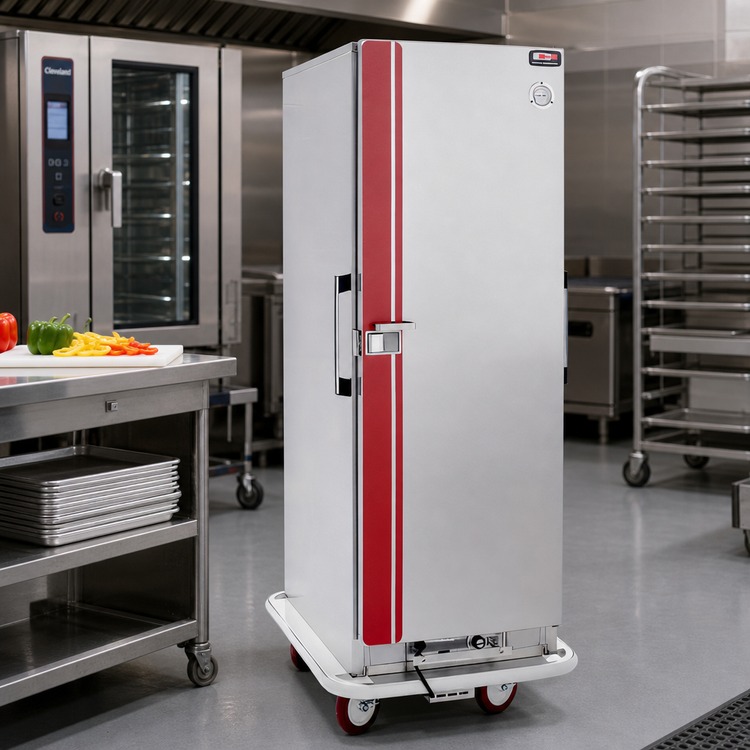

Carter-Hoffmann PH1825 Mobile Heated Transport Cabinet
36-Pan • Bottom-Mount Forced-Air Heat • 120 VKeep bulk food orders hot, safe and ready to serve anywhere on-site or across town. The PH1825 combines Carter-Hoffmann’s legendary transport-ready construction with a powerful, removable heating module—delivering even heat circulation, quick recovery and unmatched durability for banquets, catering, healthcare and more.
Key Features

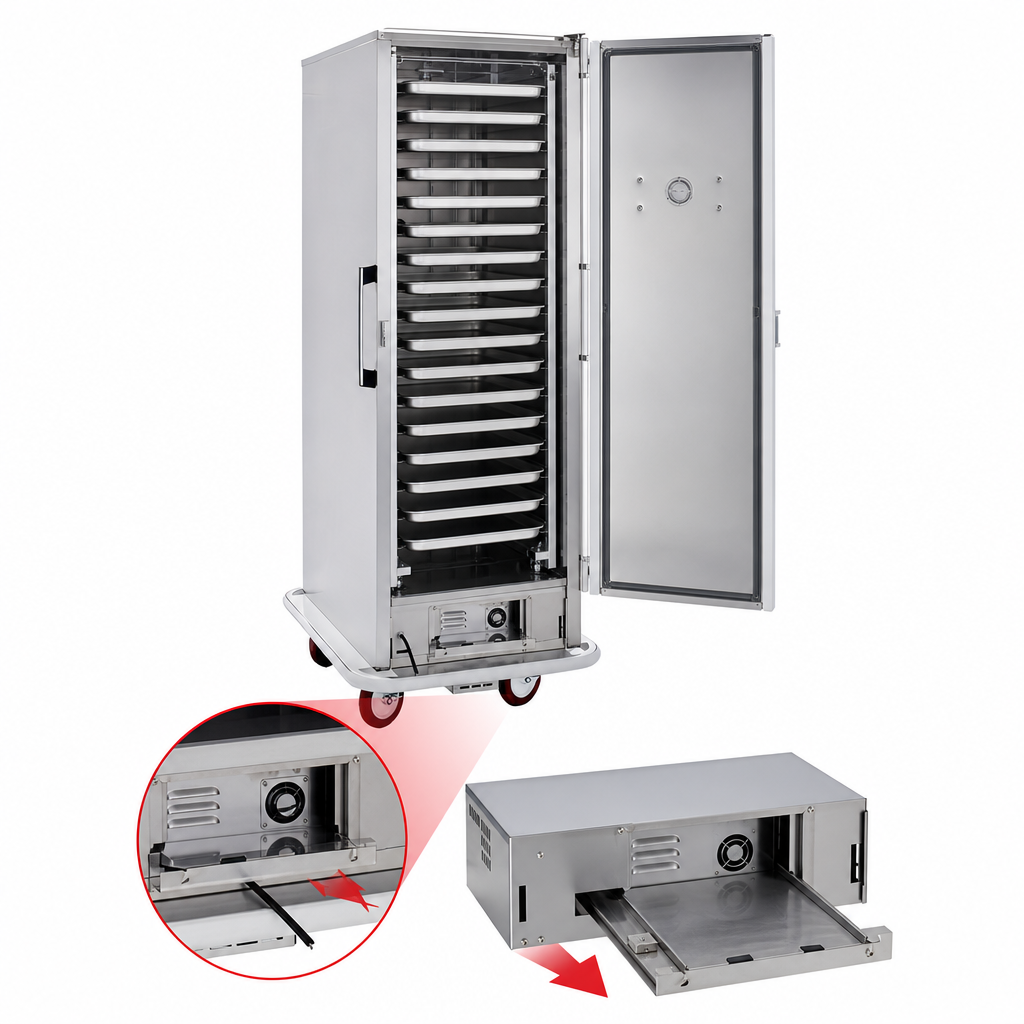

- Bottom-mounted 1 650 W convection heater lifts out for easy cleaning & service.
- Pre-heats to 160 °F (71 °C) in ≈25 min; adjustable up to 200 °F (93 °C).

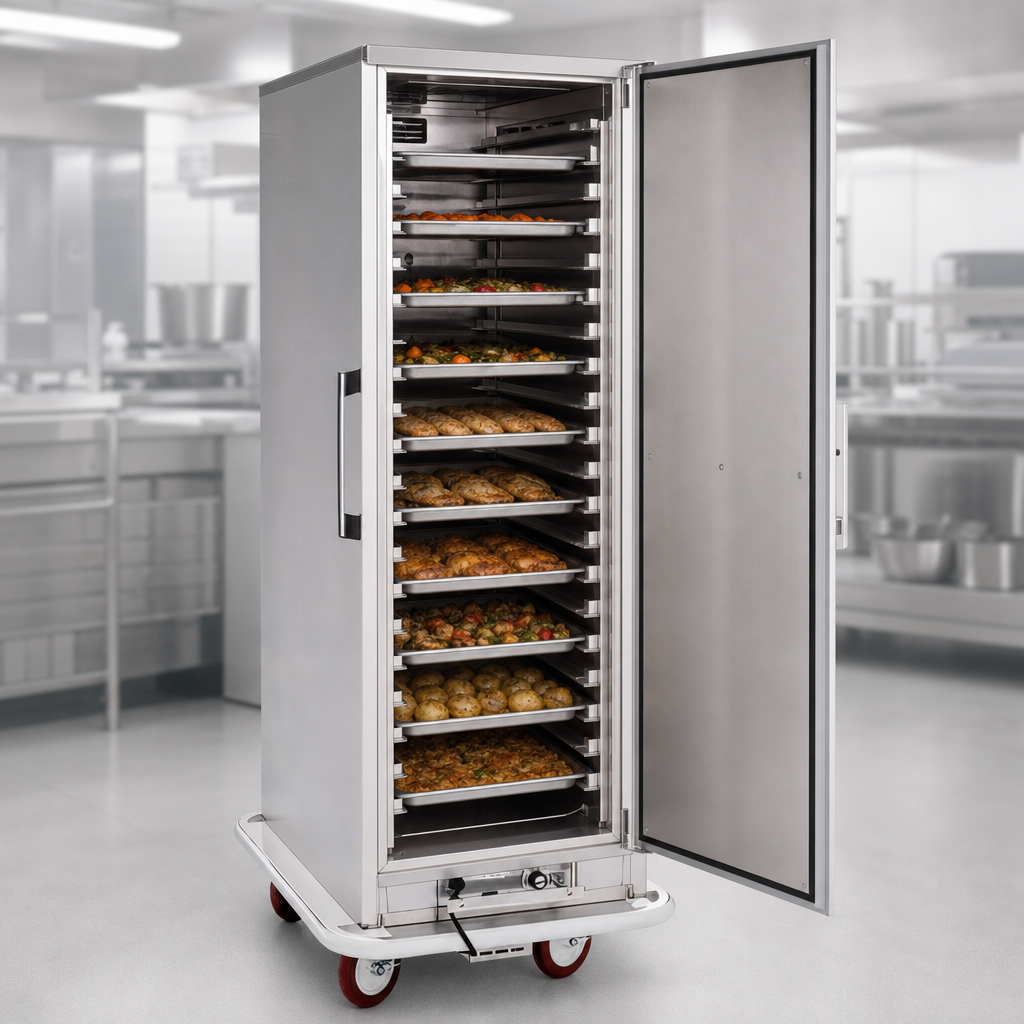

- Holds 36 full-size sheet pans (18" × 26") on removable channel slides set 1.5" apart.
- All-welded, turned-in seam stainless steel cabinet with 1" fiberglass insulation.
- Double-wall door with high-temperature magnetic gasket & 270° concealed pin hinge.
- Flush sliding transport latch & dial thermometer with remote sensing bulb.
- Wrap-around, non-marking vinyl bumper in heavy-duty extruded aluminum frame.
- Wheel-ahead caster pattern with four 5" all-swivel polyurethane casters (2 locking) for smooth rolling over thresholds.
- Dual heavy-duty extruded aluminum push handles—ergonomic & field-replaceable.
- cULus listed & UL EPH sanitation certified.
Built to Move. Made to Last.
- Even heat, every shelf: integral blower forces hot air throughout the cavity for consistent holding.
- Rugged transport design: welded unibody, recessed hardware and “floating” bumper protect your investment during daily moves.
- Easy maintenance: lift-out heater, removable rack system and stainless interior speed up clean-up.
- Fast service access: front-mounted controls and corded, plug-in heater minimize downtime.
Technical Specifications
| Pan capacity | 36 ea. 18" × 26" sheet pans (1.5" spacing) |
|---|---|
| Exterior dimensions | 27 7/8" W × 36" D × 71" H (708 × 914 × 1 803 mm) |
| Interior working height | 57 1/4" (1 454 mm) |
| Electrical | 120 V / 60 Hz / 1 Ph, 1 650 W, 13.7 A, 10 ft cord, NEMA 5-15P |
| Heater type | Forced-air, removable convection module with dial thermostat |
| Casters | 4 × 5" all-swivel polyurethane (2 braking) in wheel-ahead pattern |
| Construction | All-welded 18-ga stainless steel; double-wall door with 1" fiberglass insulation |
| Certifications | cULus, UL EPH (ANSI/NSF 4) |
| Warranty | 1-year parts & labor |
| Shipping weight | 328 lb (149 kg) |
Popular Options & Accessories
- Menu card holder
- Polycarbonate thermometer cover
- Top-mounted transport latch with padlock hasp
- Locking paddle-style door latch
- Rack or heater hold-down device
- Alternate caster sizes & types
- Removable canned-fuel holder
Contact us to add options when ordering.
Pans and food trays shown in images are for demonstration only and are not included.
