Carter-Hoffmann (Middleby)  |  SKU: PH1815

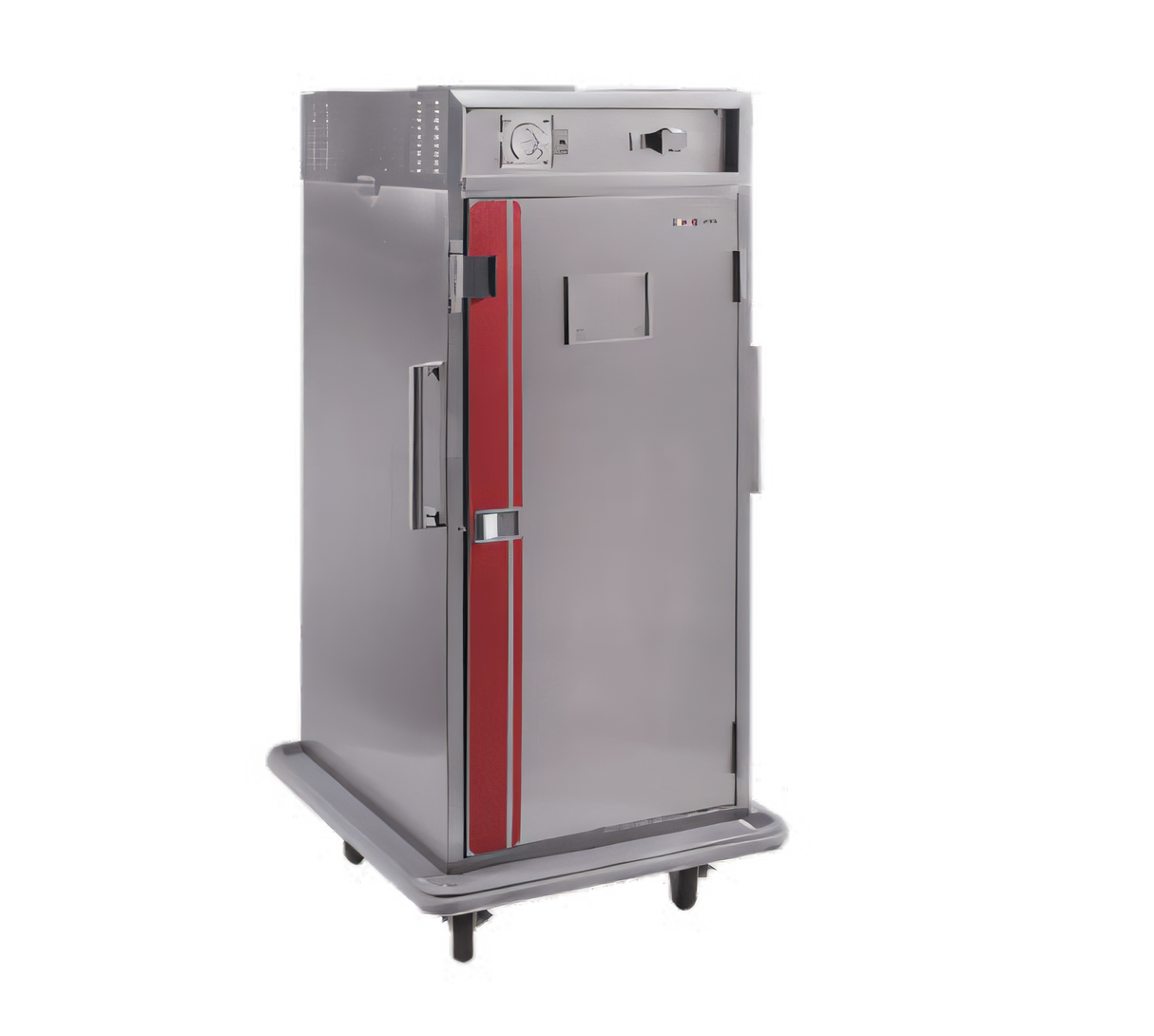

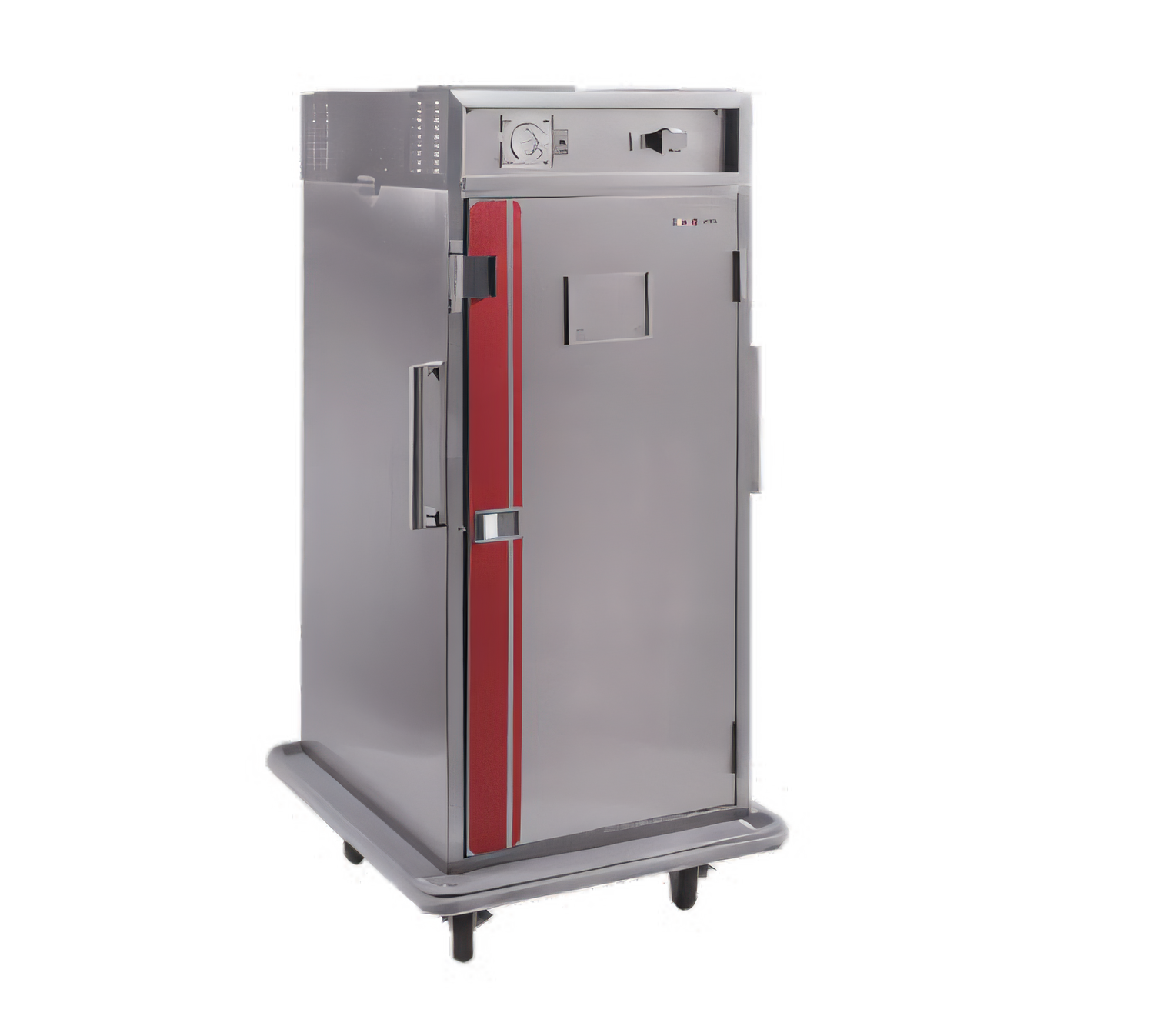

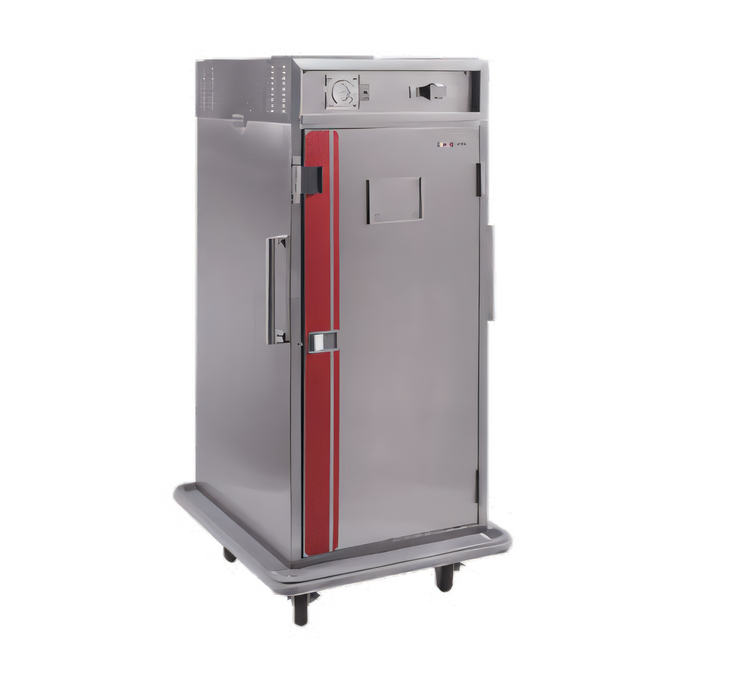

Carter-Hoffmann (Middleby) PH1815 Heated Cabinets & Holding Shelves

$7,421.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Brochure Terms & conditions
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Carter-Hoffmann PH-Series Mobile Heated Cabinet

Top-Mount Forced-Air Heat • Universal Slides • 120 V Plug-and-Play

Deliver hot, fresh and food-safe meals anywhere on your property. Built for the rigors of transport, this fully-insulated stainless-steel cabinet keeps entrées, sides and baked goods at serving temperature while protecting them from bumps, drops and cold drafts en route.

Why You’ll Love It

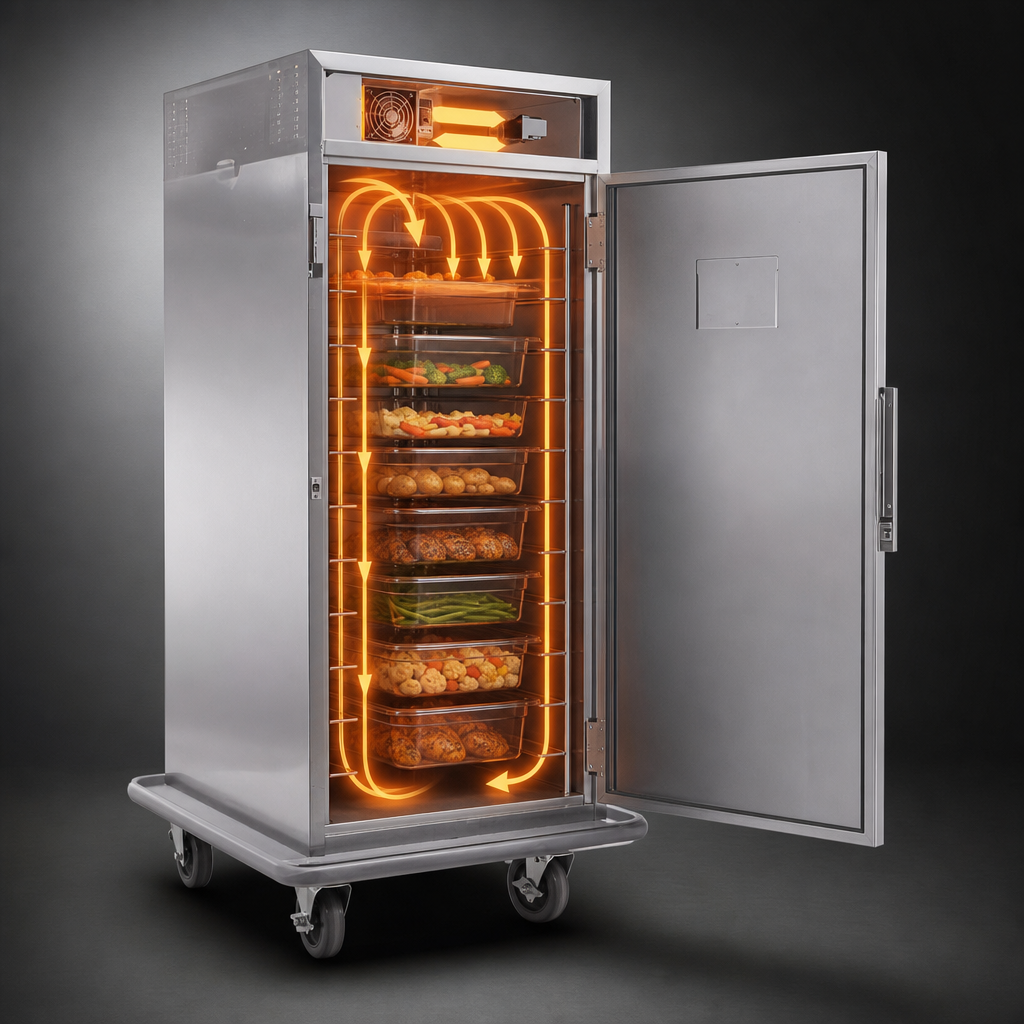

  • Even, FAST heat – top-mounted convection blower heats evenly; pre-heats to 160 °F in ≈25 min and tops out at 200 °F.
  • Universal capacity – holds 10 × 18″×26″ sheet pans or 20 × 12″×20″ steam-table pans.

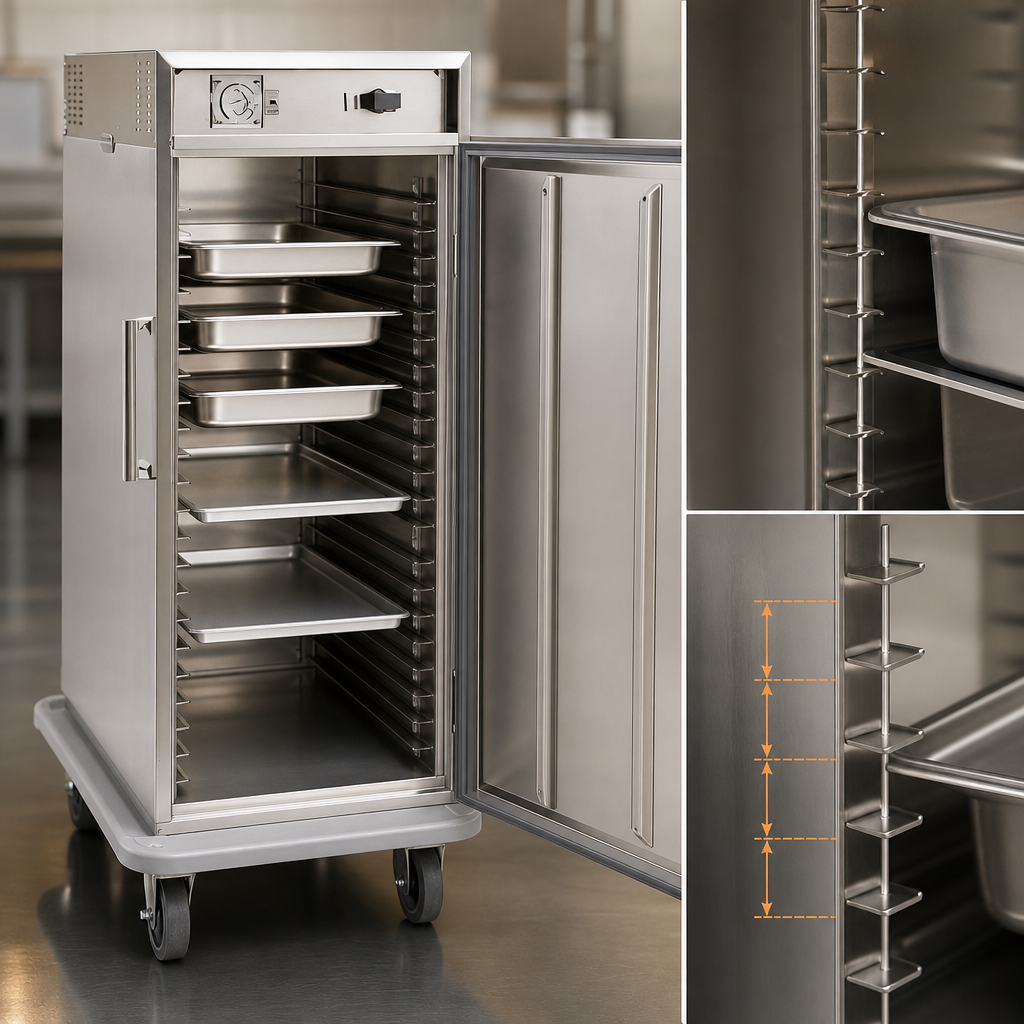

  • Flexible spacing – slides set at 3.5″, adjustable every 1.75″ to fit oversize or covered pans.
  • All-welded, double-wall stainless construction with high-density insulation for unbeatable durability.
  • Heavy-duty door – double panel, edge-mounted latch and field-adjustable hinges keep heat locked in.
  • “Wheel-ahead” 6″ polyurethane casters (2 locking) glide over thresholds without tipping.
  • Wrap-around non-marking vinyl bumper shields walls, doors and the cabinet itself from impact.
  • Dual side push handles with reinforced back-up plates give crews confident control.
  • Dial thermometer with remote bulb plus thermostat knob for simple, accurate control.
  • cULus listed & UL EPH Classified for sanitation; built to comply with the latest food-safety codes.

At-a-Glance Specs

Pan Capacity 10 × 18″×26″ sheet pans  |  20 × 12″×20″ hotel pans
Slide Spacing Standard 3.5″ (89 mm); adjustable in 1.75″ (44 mm) increments
Temperature Range Ambient to 200 °F (93 °C)
Pre-Heat Time* 160 °F (71 °C) in approx. 25 min
Heat System Lift-off, top-mounted convection (forced-air) heater with remote-bulb dial thermometer
Construction All-welded, turned-in seam, double-wall stainless steel; 14-ga caster bolsters
Door Insulated double panel with heavy-duty edge latch & adjustable hinges
Casters (4) × 6″ swivel; 2 with brakes – offset “wheel-ahead” pattern
Electrical 120 V / 60 Hz / 1-ph, 1 500 W, 13 A – 10 ft cord, NEMA 5-15P plug
Certifications cULus, UL EPH Classified
Warranty 1 year parts & labor

*Pre-heat time taken with an empty cabinet at 70 °F ambient. Allow at least 2″ clearance from walls and 36″ in front of the door for safe operation.

Popular Factory Options (contact us for pricing)

  • Locking or side-mounted transport latch
  • Menu card holder & polycarbonate thermometer shield
  • Close-fit or marine bumper packages
  • Alternate casters or electrical configurations
  • Correctional package with tamper-resistant hardware

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

cULus, UL EPH Classified

Height

61.5in

Width

31.5in

Depth

38.0in

Shipping Weight

425.0lbs

Door Type

solid

Size

1 compartment

Section

1 section

Door Style

full door(s)

Height

61" - 66"

Slide Centers

adjustable on 1-3/4"

Full Size Sheet Pan Capacity

(12) 18" x 26" pans

Heater

top mounted

Full Size Hotel Pan Capacity

(24) 12" x 20" pans

Exterior Finish

all stainless steel exterior

Insulation

insulated

Specifications

Heated Cabinet, mobile, insulated, top mount forced-air heat system, universal slides hold (20) 12"x20" or (10) 18"x26" pans, 3-1/2" spacing, slides adjustable in 1-3/4" increments, stainless steel construction, wrap-around bumper, 6" swivel casters, cULus, UL EPH Classified
