Carter-Hoffmann (Middleby)

Carter-Hoffmann PH1810 Mobile Heated Transport Cabinet, 13 Full-Size Sheet Pan Capacity, Electric Bottom Heat

SKU: PH1810
$7,417.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Carter-Hoffmann (Middleby) Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets New Arrivals Restaurant Equipment

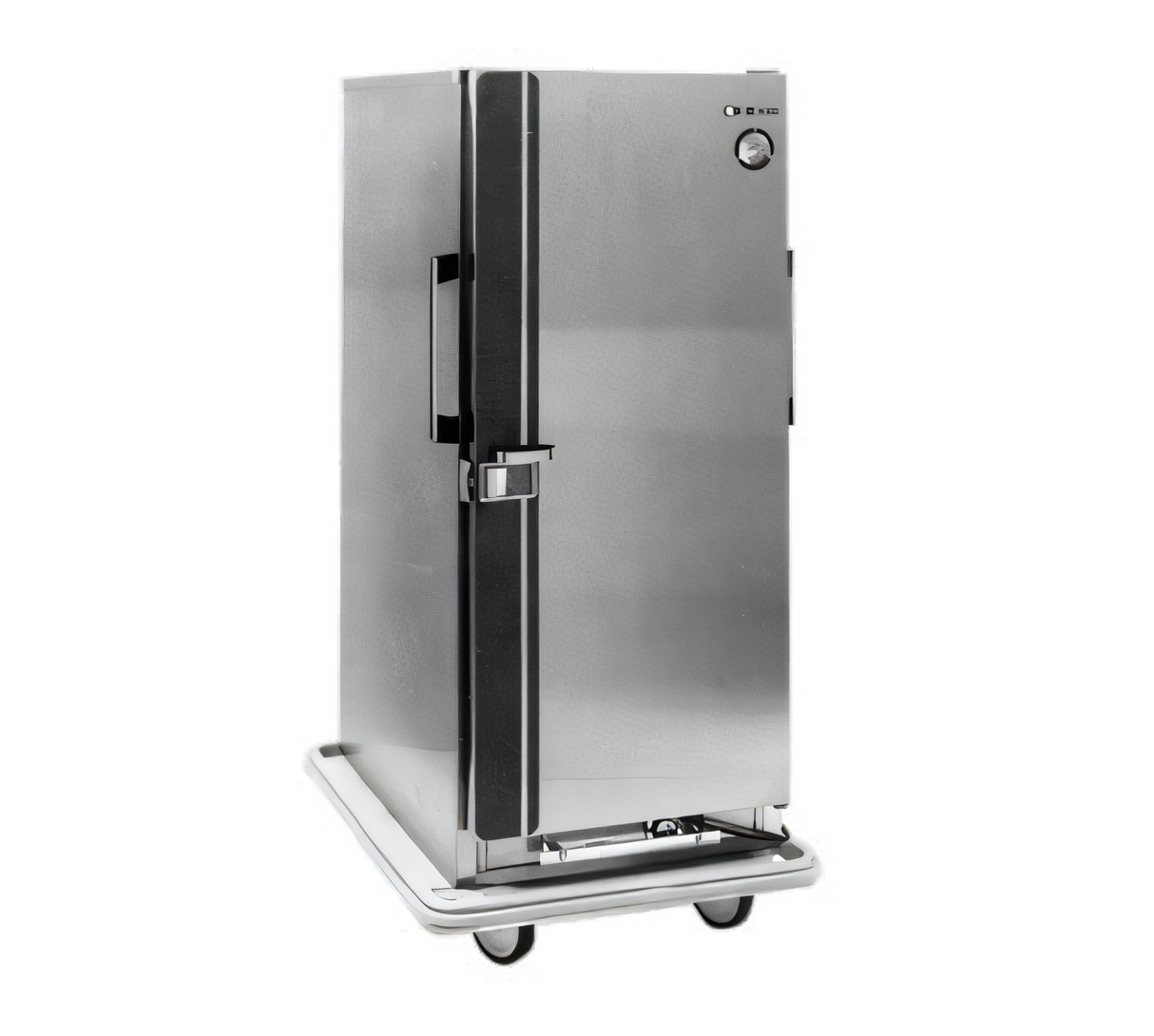

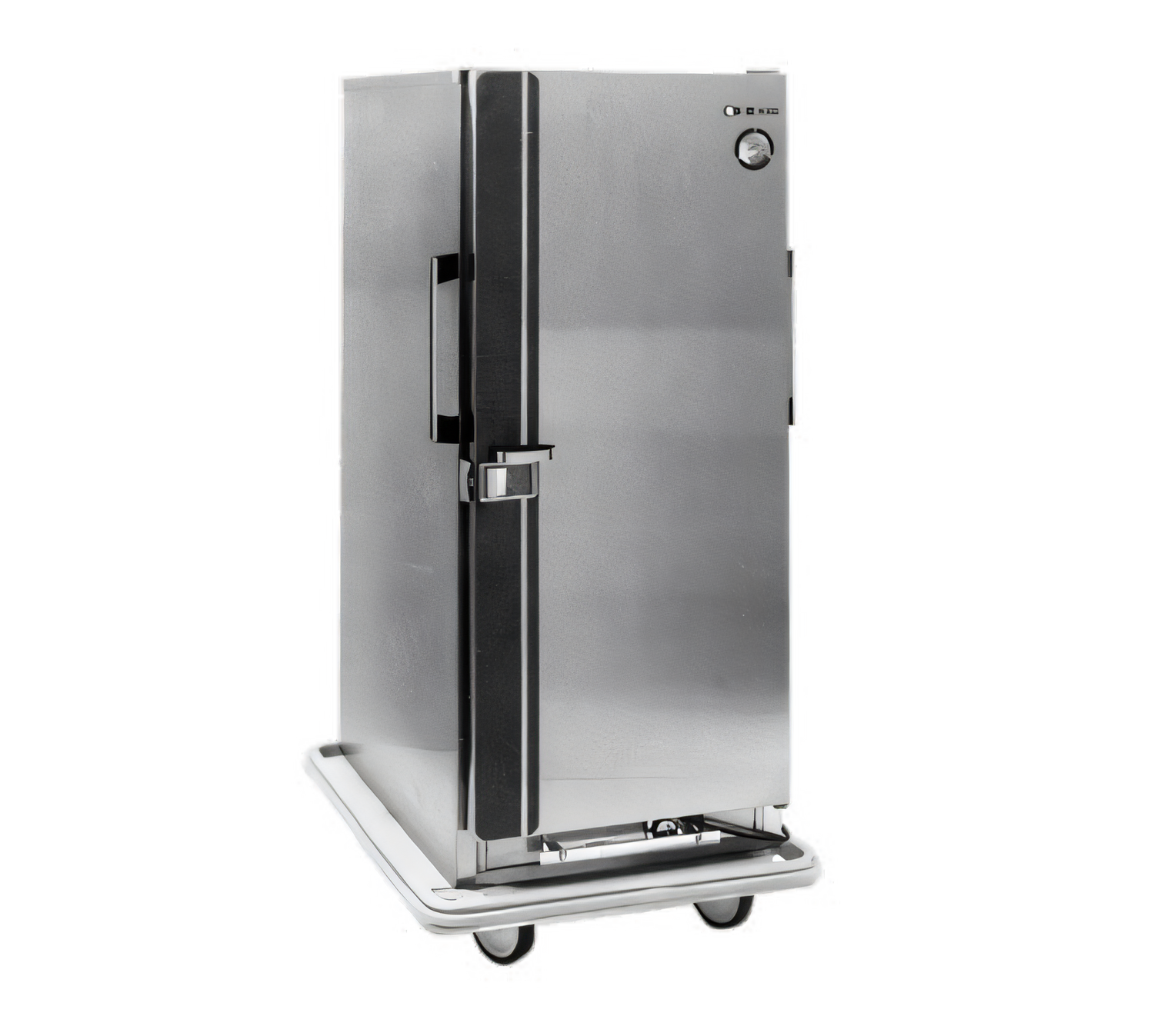

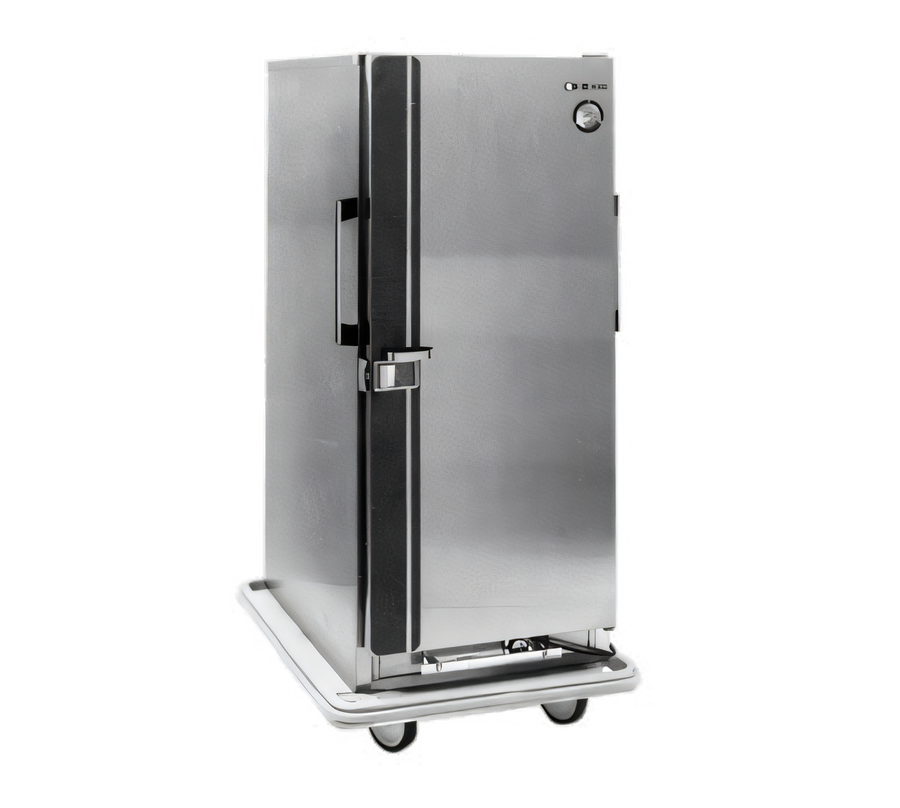

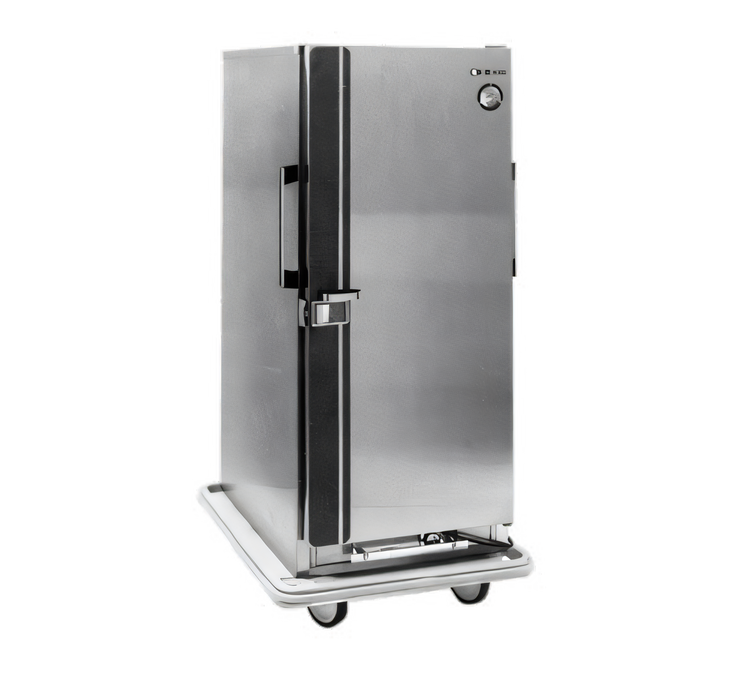

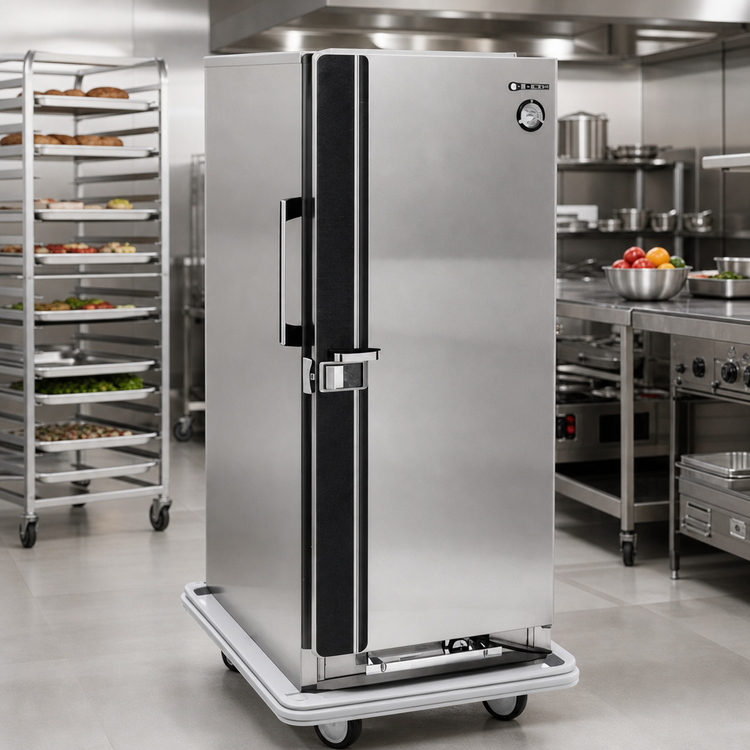

Carter-Hoffmann PH1810 Mobile Heated Transport Cabinet, 13 Full-Size Sheet Pan Capacity, Electric Bottom Heat

Insulated Stainless Steel, 120V, 1-Phase, 5-Inch Swivel Casters

Keep cooked food hot and service-ready with a rugged mobile cabinet that uses bottom-mounted forced-air heat and adjustable universal slides for flexible pan loading.

  • Mobile heated transport cabinet designed for holding and moving hot food safely.
  • Bottom-mounted removable convection heater with blower delivers even heat throughout the cabinet.
  • Preheats to 160°F in about 25 minutes and can hold food up to 200°F.
  • Universal adjustable tray slides on 1.75-inch centers fit 18 x 26 sheet pans, 12 x 20 pans, and more.
  • Stainless steel construction, insulation, wrap-around bumper, and 5-inch swivel casters stand up to daily transport.
  • 120V, 1-phase electrical connection with NEMA 5-15P plug simplifies setup.

Overall Dimensions:

30.63"W x 36.0"D x 58.0"H

Product Weight:

385.0 lb

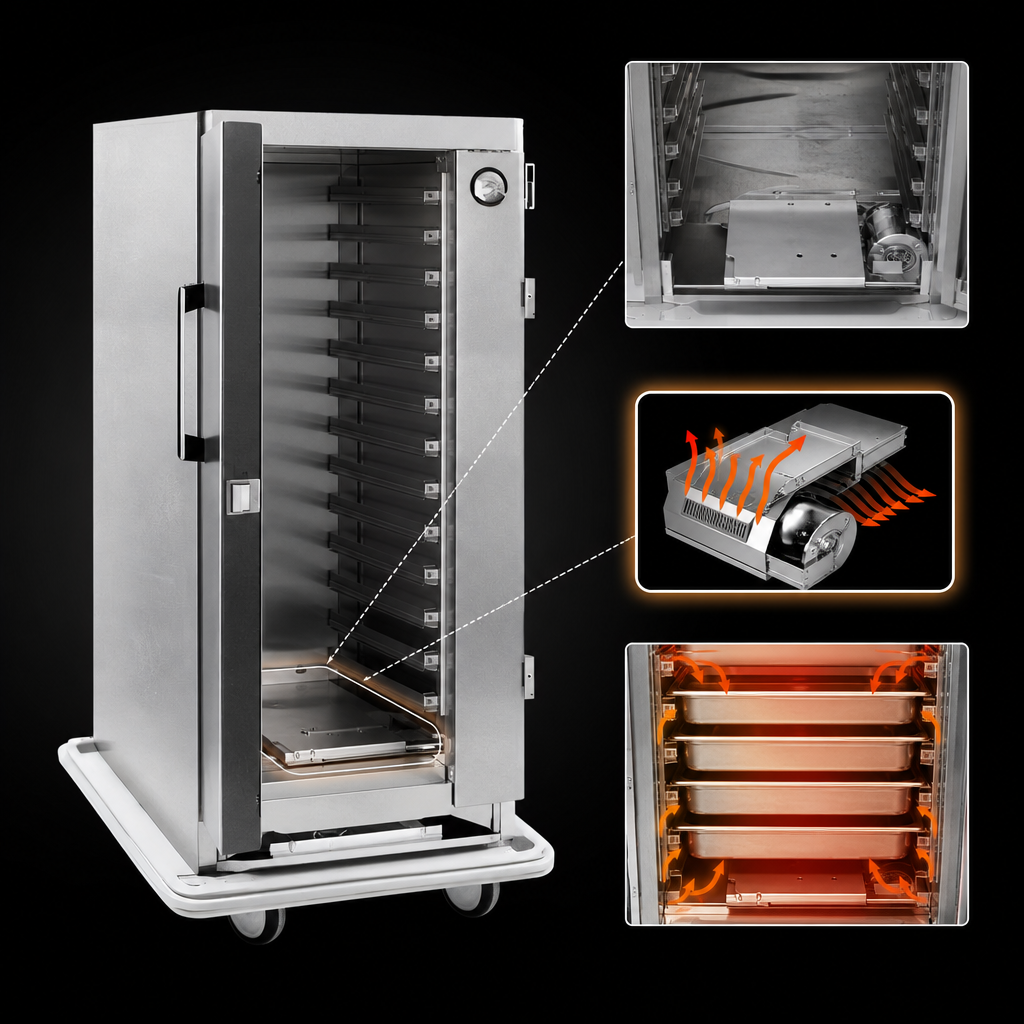

Bottom-Mounted Convection Heat System

A removable lift-out heater with blower-assisted airflow distributes heat evenly throughout the cabinet.

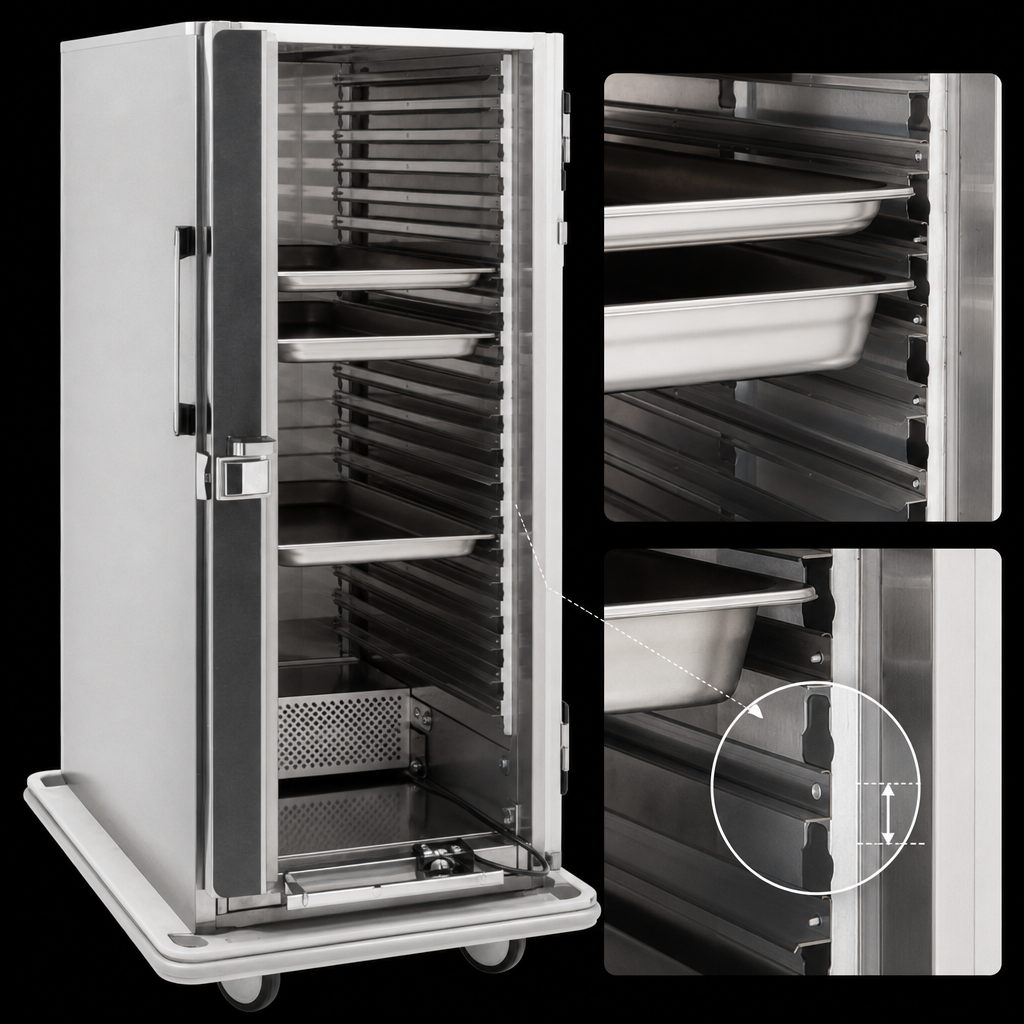

Adjustable Universal Tray Slides

Stainless steel slides adjust in 1.75-inch increments with 3.5-inch pan spacing for flexible loading.

Temperature Performance

Cabinet preheats to 160°F in approximately 25 minutes and can hold temperatures up to 200°F.

Stainless Steel, Insulated Construction

All-welded stainless steel construction with turned-in seams and high-density fiberglass insulation helps retain heat and improve durability.

Insulated Solid Door

Double-panel door includes a vinyl gasket, concealed stainless steel pin hinge, and 270° swing for easier loading and unloading.

Transport-Ready Mobility

5-inch all-swivel polyurethane casters, two with brakes, plus a wheel-ahead caster pattern make transport easier and more stable.

Protective Wrap-Around Bumper

A non-marking gray vinyl bumper set in a heavy-duty aluminum frame helps protect the cabinet during movement.

Multi-Pan Compatibility

Accommodates 18 x 26 sheet pans, 12 x 20 steam table pans, GN 1/1 and GN 2/1 pans, and 20 x 20 glass racks.

Dial Thermometer

A dial thermometer with remote sensing bulb helps monitor cabinet temperature without opening the door.

Type Heated Transport Cabinet
Style Mobile
Installation Type Freestanding
Compartments 1
Material Stainless Steel
Finish All Stainless Steel Exterior
Insulation Insulated
Pan Capacity 13 18 x 26 Pans / 26 12 x 20 Pans
Controls Dial
Temperature Range 160°F to 200°F
Caster Diameter 5 Inches
Voltage 120 Volts
Watts 1.65 kW
Amps 13.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Shipping Width 31 Inches
Shipping Depth 36 Inches
Shipping Height 58 Inches
Shipping Weight 385 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Brochure PDF Download PDF Terms & conditions PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It uses universal adjustable slides and can hold 13 18 x 26 sheet pans or 26 12 x 20 steam table pans. It also accommodates GN 1/1, GN 2/1, and 20 x 20 glass racks.
The cabinet operates on 120 Volts, 60 Hz, 1-Phase power and draws 1650 watts / 13.7 amps. It includes a 10-foot cord with a NEMA 5-15P plug.
It can preheat to 160°F in approximately 25 minutes and hold food up to 200°F.
Yes. It has 5-inch all-swivel polyurethane casters, two with brakes, plus a wrap-around bumper and wheel-ahead caster pattern.
The cabinet includes a one-year warranty for parts and labor.
It is built with sanitary stainless steel construction, turned-in seams, and insulation for heat retention and durability.
