Description

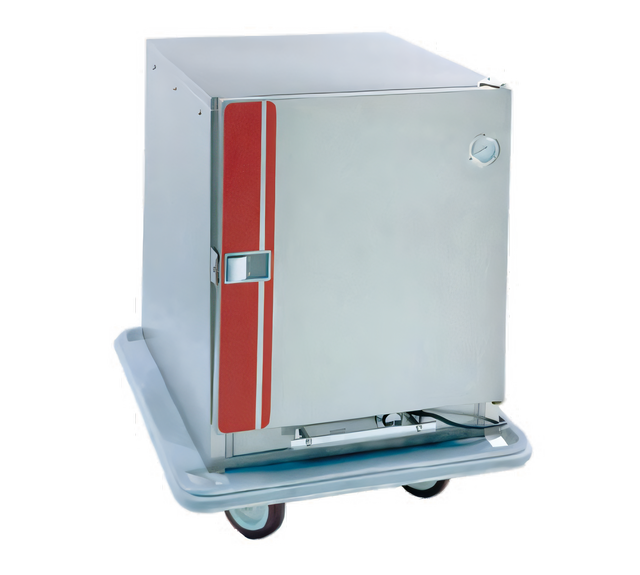

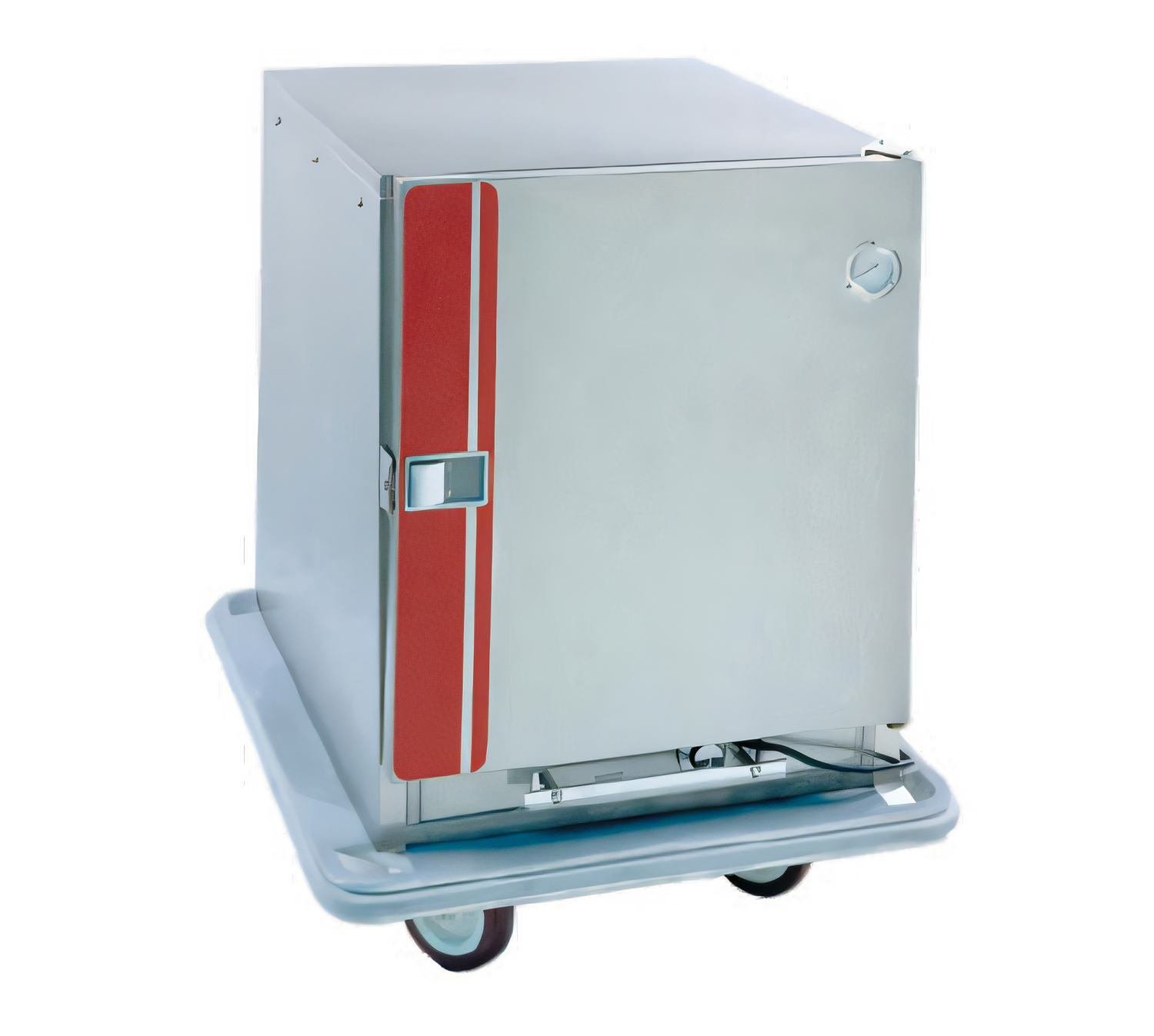

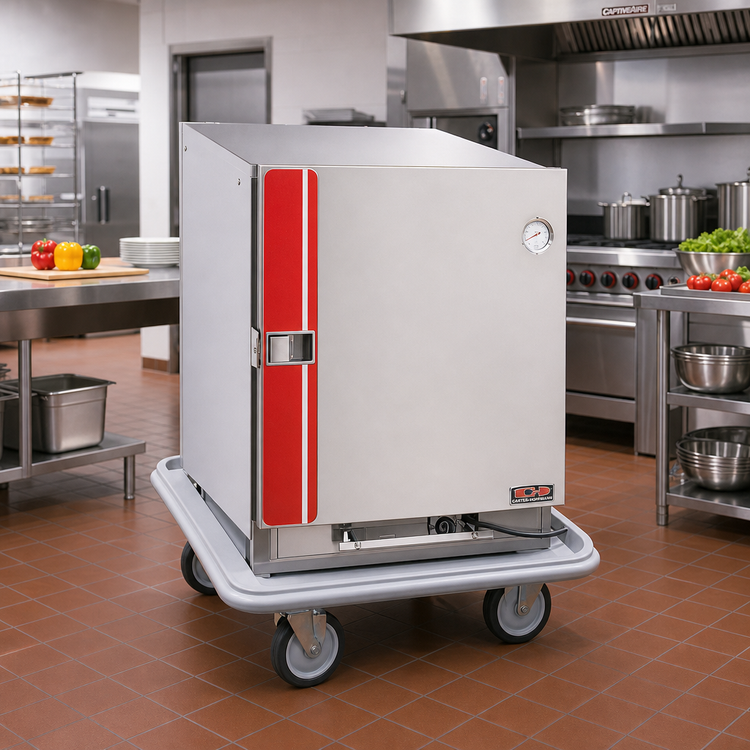

Carter-Hoffmann PH181 Mobile Heated Transport Cabinet

Holds 6 full-size sheet pans | 12 steam-table pans | 120 V bottom-mounted heat

Rugged enough for the loading dock yet refined for front-of-house service, the PH181 keeps cooked food hot, fresh and safe while you move it from kitchen to buffet, banquet room or off-site venue.

Key Features

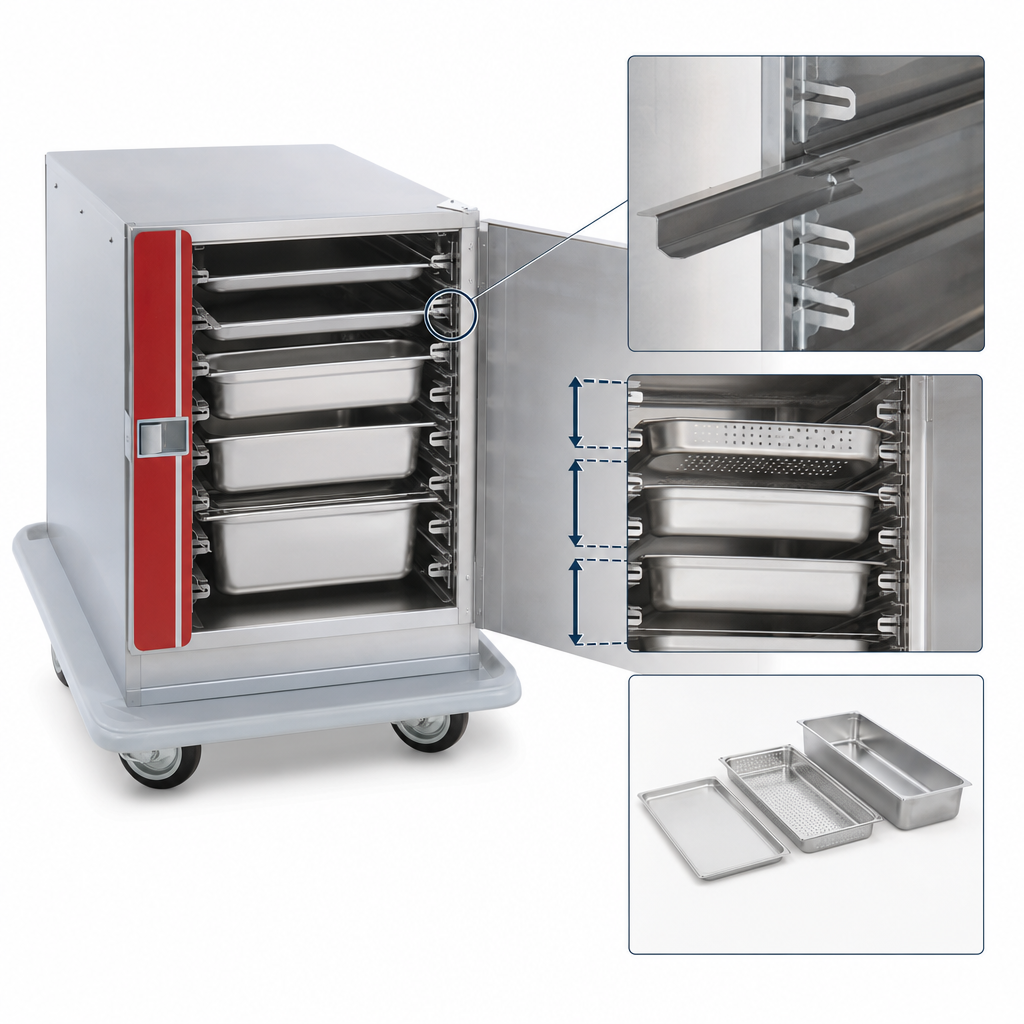

  • Universal slides with 3.5" fixed spacing accept (6) 18" × 26" sheet pans or (12) 12" × 20" steam-table pans; slides adjust on 1.75" centers for custom configurations.

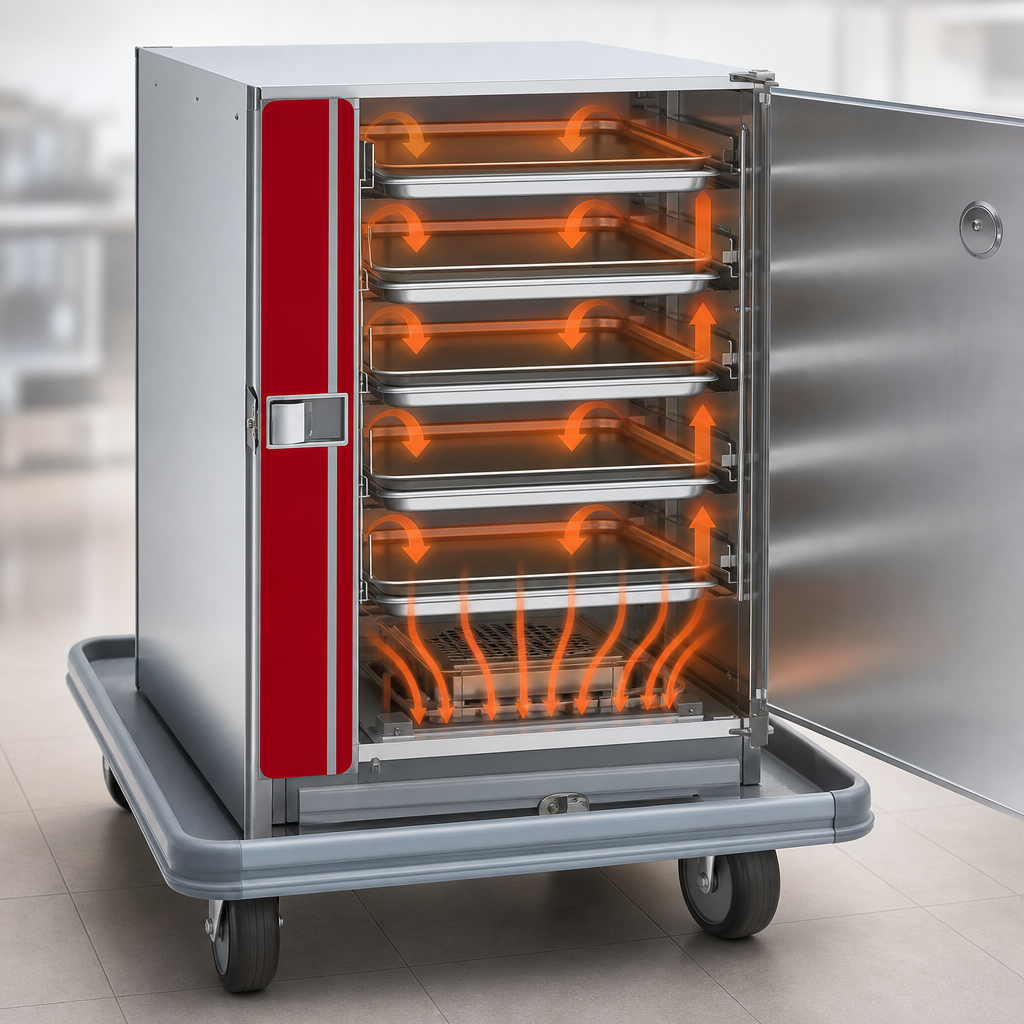

  • Lift-out, bottom-mounted forced-air convection heater delivers even airflow and cleans easily outside the cabinet.
  • Heats to 160 °F (71 °C) in about 25 minutes; thermostat adjustable to 200 °F (93 °C).
  • All-welded stainless-steel cabinet with 1.5" high-density fiberglass insulation for exceptional heat retention.
  • Double-panel door with 270° swing, high-temperature magnetic gasket and flush sliding transport latch for a tight seal and damage-free transport.
  • Transport-ready design: full-perimeter wrap-around vinyl bumper, heavy-duty 5" all-swivel polyurethane casters (2 braking) in wheel-ahead pattern, and dual reinforced push handles.
  • Easy-read dial thermometer with remote sensing bulb monitors internal temperature at a glance.
  • cULus, UL EPH Classified and CE listed for worldwide code compliance.
  • One-year parts & labor warranty backed by Carter-Hoffmann’s nationwide service network.

Specifications

Pan capacity (6) 18" × 26" sheet pans
(12) 12" × 20" steam-table pans @ 3.5" spacing
Inside working height 23-1/5" / 597 mm
Overall dimensions (H × W × D) 36-1/8" × 30-5/8" × 36" (918 × 730 × 914 mm)
Caster diameter 5" / 127 mm, all-swivel (2 with brakes)
Electrical 120 V, 1650 W, 13.7 A, 60 Hz, 1-Ph
10 ft (3 m) cord, NEMA 5-15P plug
Temperature range Ambient to 200 °F (93 °C)
Construction All-welded 304 stainless steel; 14 ga caster bolsters; 1" × 1" × 14 ga perimeter tube frame
Door Double wall with vinyl gasket, stainless pin hinge, 270° swing, sliding latch
Shipping weight Approx. 240 lb / 109 kg

Perfect For

  • Hotel & convention banquets
  • Catering & off-site events
  • Healthcare tray lines
  • School & university foodservice

Looking for a different capacity? Carter-Hoffmann’s PH Series offers additional sizes from 5 to 52 pan counts.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

CE, UL EPH

Height

36.13in

Width

30.63in

Depth

36.0in

Shipping Weight

240.0lbs

Size

1 compartment

Height

31" - 36"

Slide Centers

adjustable on 1-3/4"

Exterior Finish

all stainless steel exterior

Door Style

full door(s)

Full Size Sheet Pan Capacity

(6) 18" x 26" pans

Heater

bottom mounted

Section

1 section

Door Type

solid

Full Size Hotel Pan Capacity

(12) 12" x 20" pans

Insulation

insulated

Specifications

Heated Cabinet, mobile, insulated, bottom mount forced-air heat system, universal slides hold (12) 12"x20" or (6) 18"x26" pans at 3-1/2" spacing, slides adjustable in 1-3/4" increments, stainless steel construction, wrap-around bumper, 5" swivel casters, cUL, UL EPH, CE
