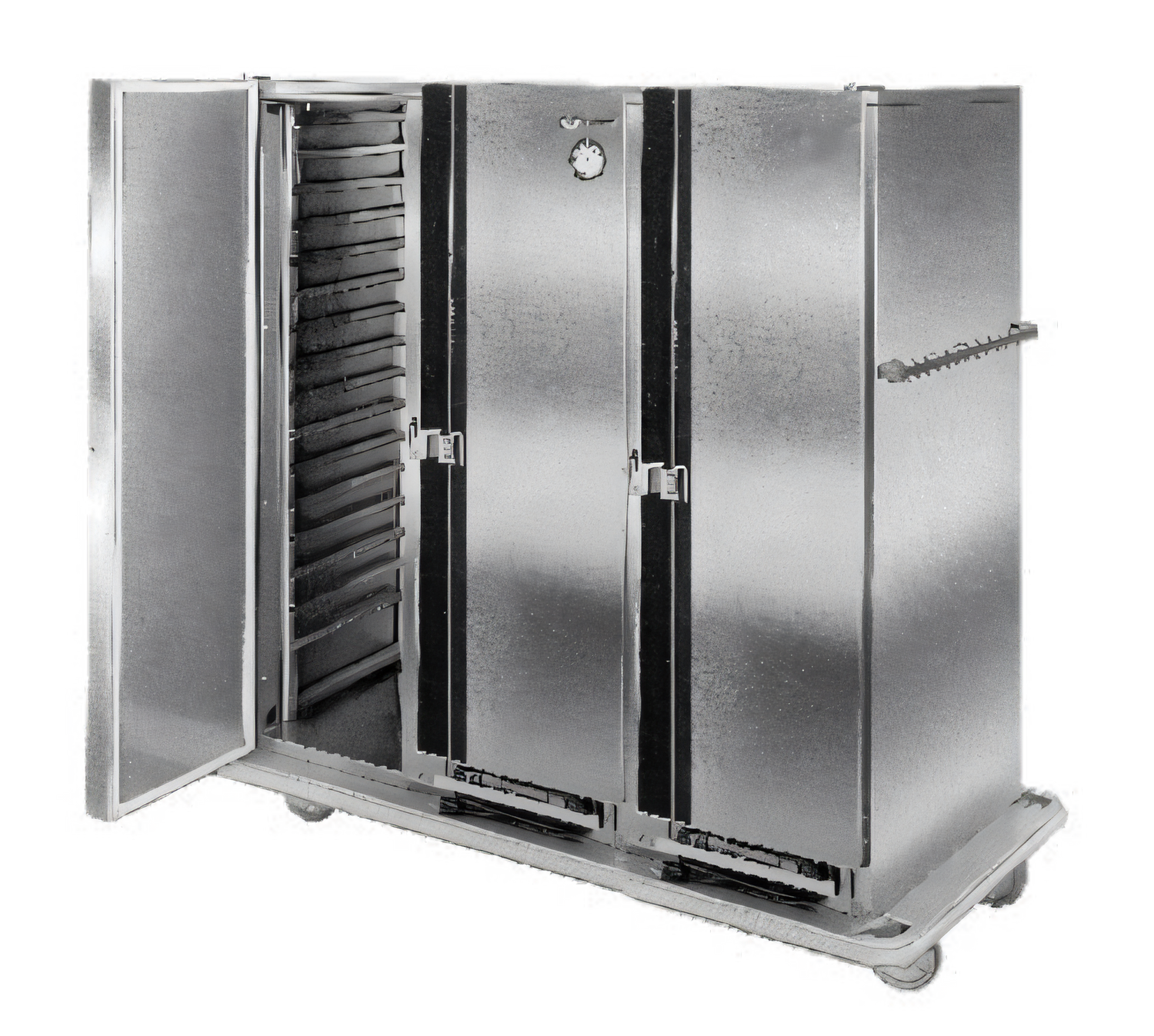

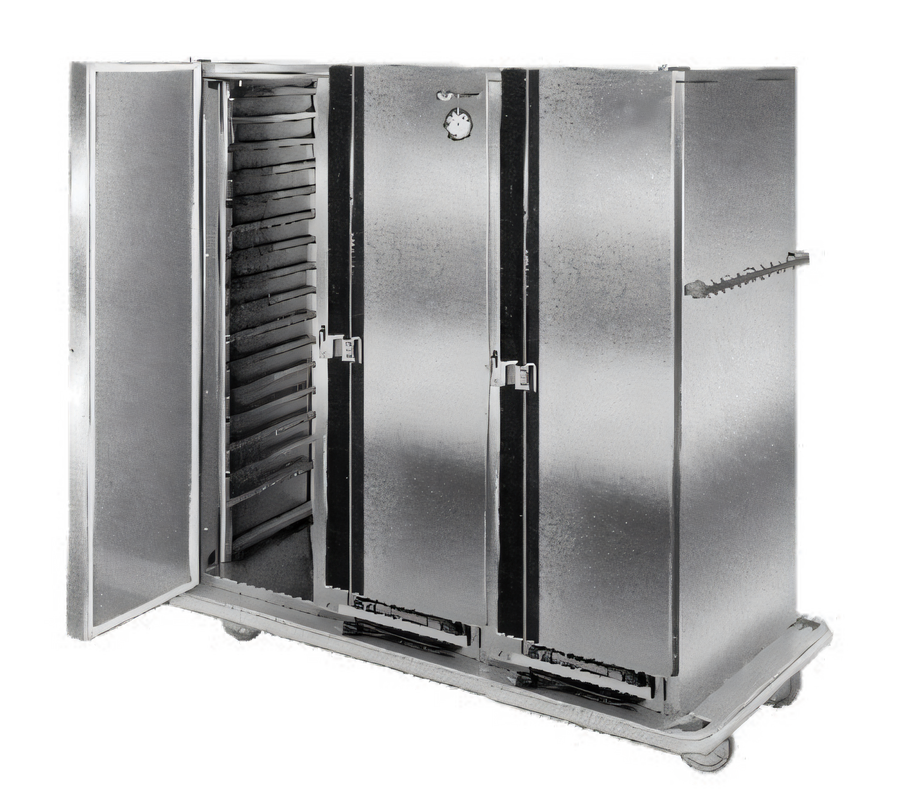

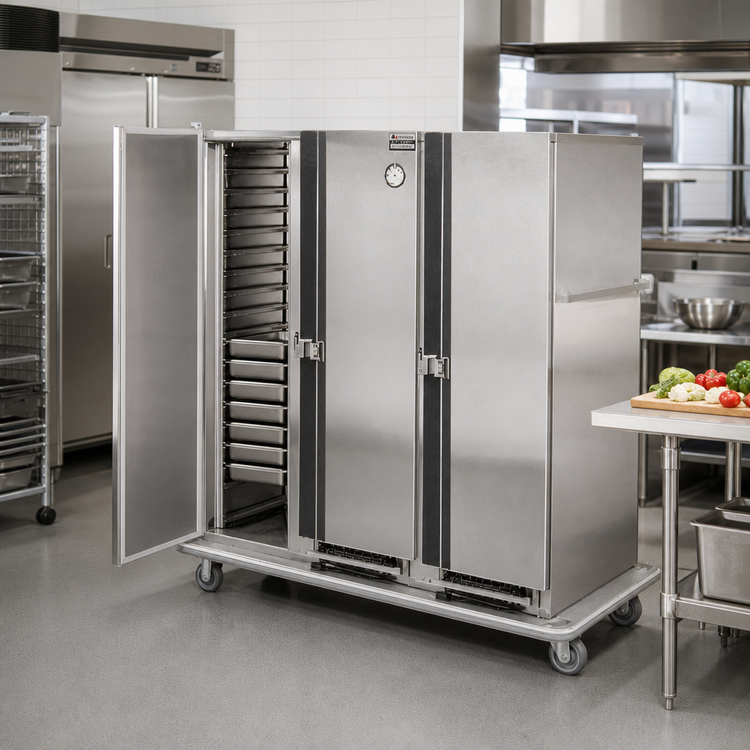

Carter-Hoffmann PH1250 Mobile Heated Holding Cabinet for Food Transport, 3-Door, 50 Pan Capacity

Insulated stainless steel, bottom-mounted forced-air heat, 120V

Built for bulk food transport and holding, this insulated stainless steel cabinet keeps up to 50 pans hot with even bottom-mounted forced-air heat.

  • Holds up to 50 12" x 20" pans for high-volume service, banquets, and catering.
  • Bottom-mounted lift-out forced-air heating system helps maintain even temperatures throughout the cabinet.
  • All-welded, insulated stainless steel construction supports heat retention and durability.
  • Three solid doors, removable tray racks, and 2.75-inch slide spacing simplify loading and access.
  • Wrap-around bumper, side push handles, and 5-inch casters support easy movement and help protect the unit.
  • 120V, 1-phase electric operation with a 10-foot grounded cord and NEMA 5-15P plug.

Overall Dimensions:

65.25"W x 28.0"D x 42.0"H

Product Weight:

450.0 lb

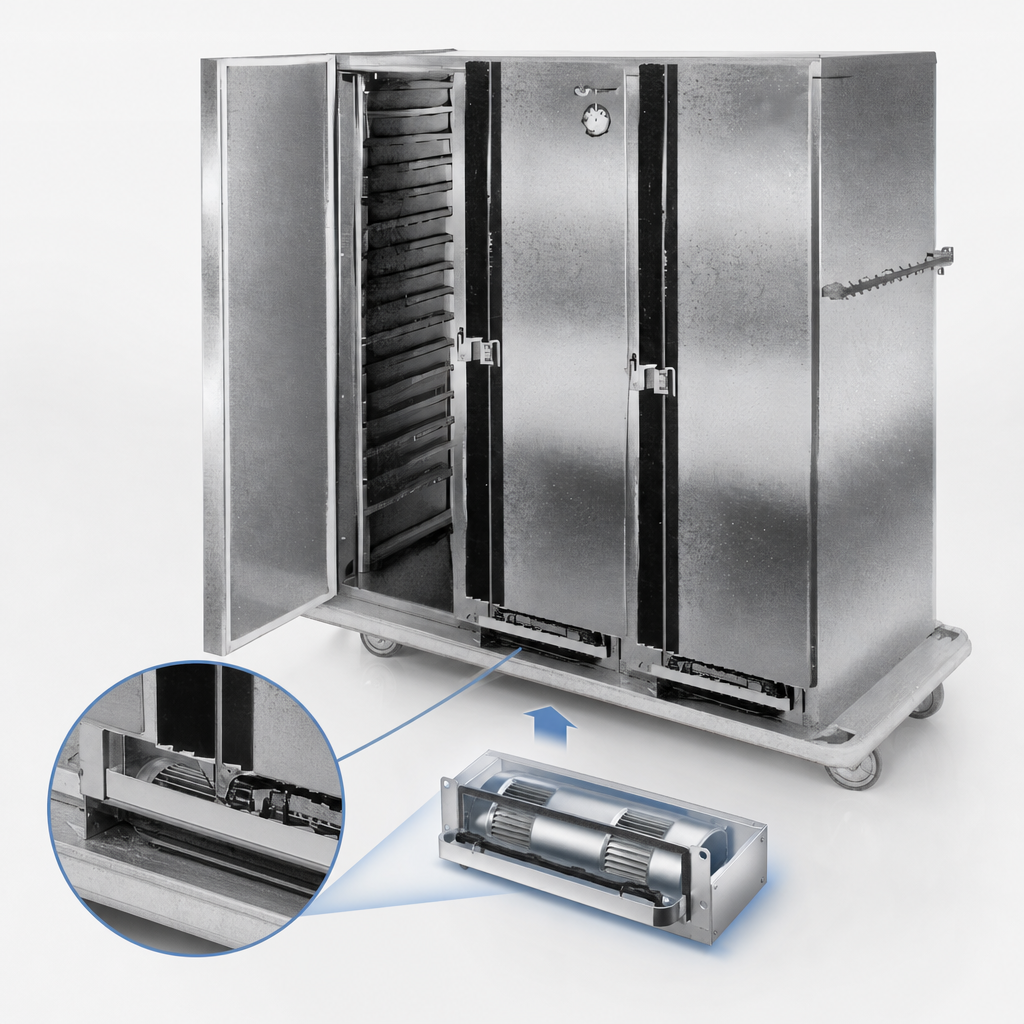

Bottom-Mounted Lift-Out Heater

Removable forced-air heating system with blower heat provides even airflow throughout the cabinet.

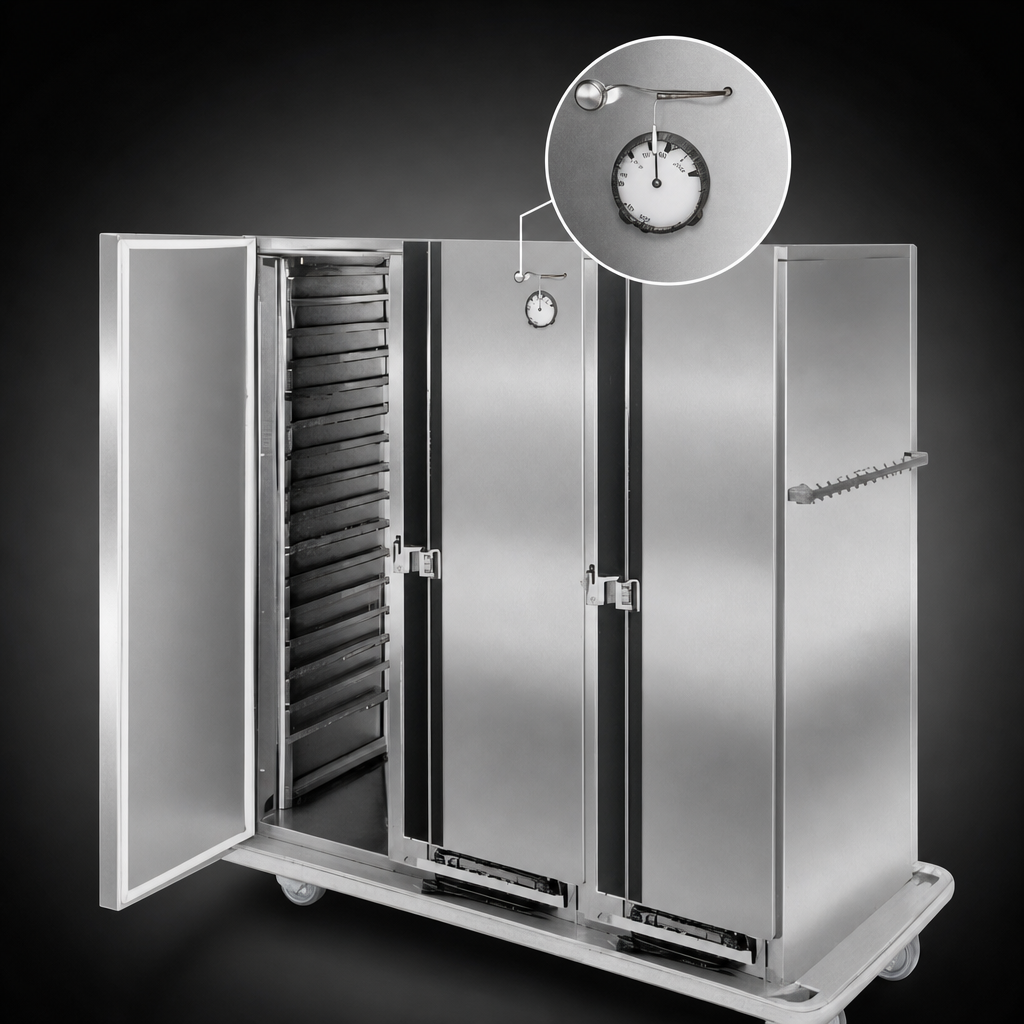

Full-Range Thermostat Control

Dial controls with a remote sensing bulb make temperature adjustment and monitoring straightforward.

50-Pan Steam Table Capacity

Accommodates up to fifty 12" x 20" pans for bulk holding and transport.

Removable Pan Slides

Stainless steel tray racks with channel slides on 2.75-inch centers make loading flexible.

Insulated Stainless Steel Construction

All-welded, double-wall construction with turned-in seams and insulated doors helps retain heat.

Three Solid Doors

Three-door access with concealed stainless steel pin hinges supports loading and service.

Transport-Ready Mobility

5-inch casters in a wheel-ahead pattern, side push handles, and a wrap-around bumper make movement easier.

120V Electric Service

Operates on 120 volts, 1650 watts, 13.7 amps, 60 Hz, single phase, with a 10-foot cord and NEMA 5-15P plug.

Heat Performance

Maximum temperature is 200°F (93°C), and the cabinet preheats to 160°F (71°C) in about 25 minutes.

Type Heated Holding Cabinet
Style Mobile
Installation Type Floor Model
Door Count 3
Pan Capacity 50 12 x 20 Pans
Pan Size 12 x 20 Inches
Slide Centers 2.75 Inches
Caster Diameter 5 Inches
Caster Configuration 2 Swivel, 2 Rigid
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Controls Dial Thermostat
Temperature Range Up To 200 °F (93 °C)
Voltage 120 Volts
Amps 13.7 Amps
Watts 1.65 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Shipping Weight 450 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Brochure PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It holds up to 50 12" x 20" steam table pans on removable slides.
It uses 120 volts, 13.7 amps, 1650 watts, 60 Hz, single phase, with a 10-foot cord and NEMA 5-15P plug.
The cabinet reaches a maximum temperature of 200°F (93°C) and preheats to 160°F (71°C) in about 25 minutes.
Yes. It has insulated, double-wall stainless steel construction and insulated doors with vinyl gaskets.
Allow at least 2 inches from walls or combustible materials and 36 inches at the front to open the doors.
The unit includes a one-year warranty for parts and labor.
