Carter-Hoffmann (Middleby)  |  SKU: PH1200

Carter-Hoffmann (Middleby) PH1200 Heated Cabinets & Holding Shelves

$6,191.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Terms & conditions Middleby financial flyer Brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

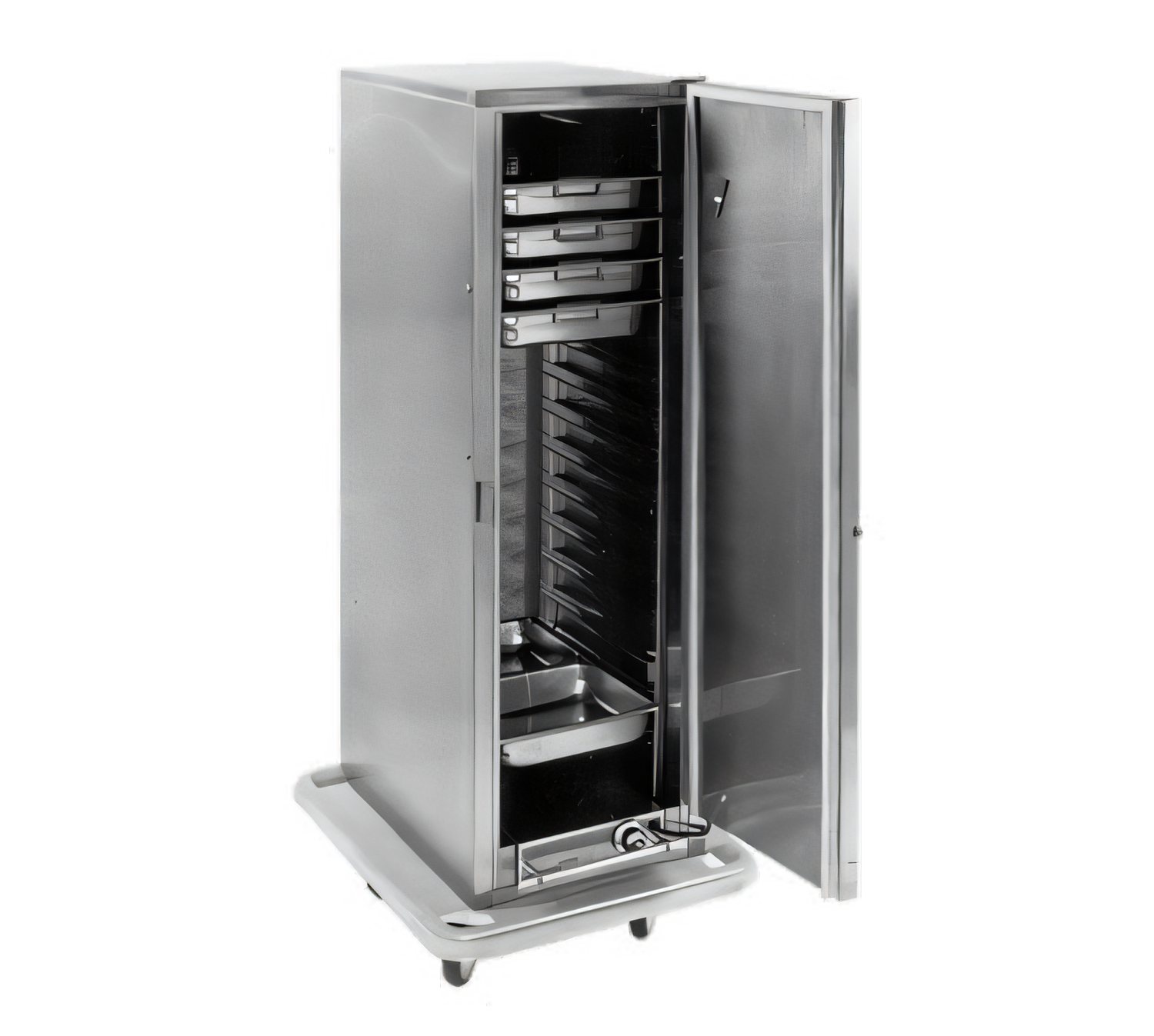

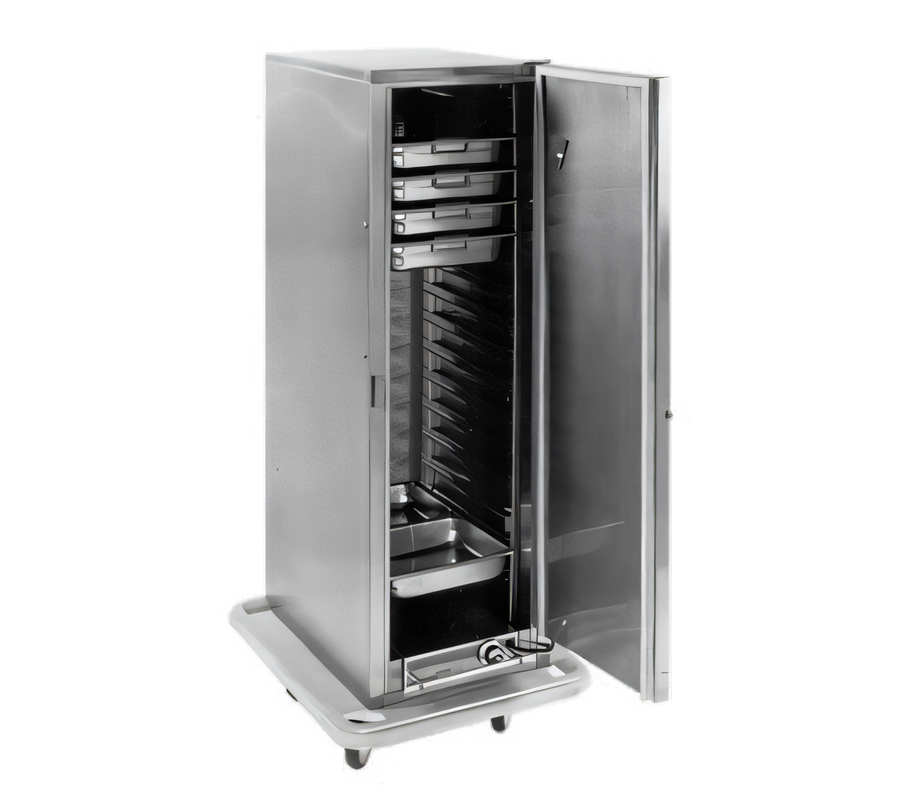

PH1200 Mobile Heated Transport Cart

16 × 12" × 20" Pan Capacity • 1 Door • 120 V Electric

Built for the rigors of transport, the Carter-Hoffmann PH1200 keeps cooked food hot, fresh and food-safe from the kitchen all the way to the serving line. A removable bottom-mounted convection heater, double-wall stainless construction and a wrap-around bumper make this cart the go-to solution for catering, banquets, healthcare tray service and satellite kitchens.

Why You’ll Love It

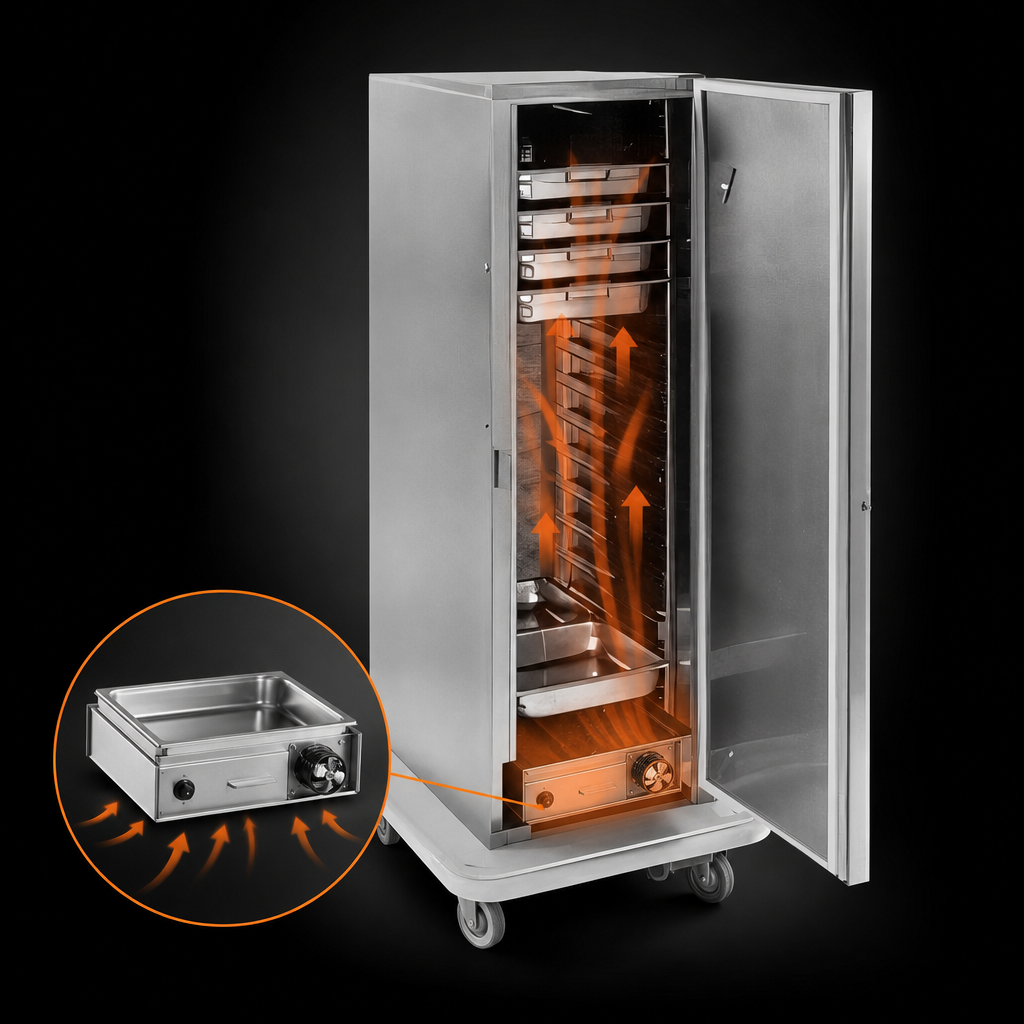

  • Removable forced-air heating system lifts out for easy cleaning & service.
  • Full-range thermostat with remote-bulb dial thermometer; pre-heats to 160 °F in ≈25 min and holds up to 200 °F (93 °C).
  • All-welded, turned-in seam double-wall stainless steel cabinet for maximum durability.
  • Insulated, double-panel door with concealed stainless pin hinges and 270° swing for easy loading.

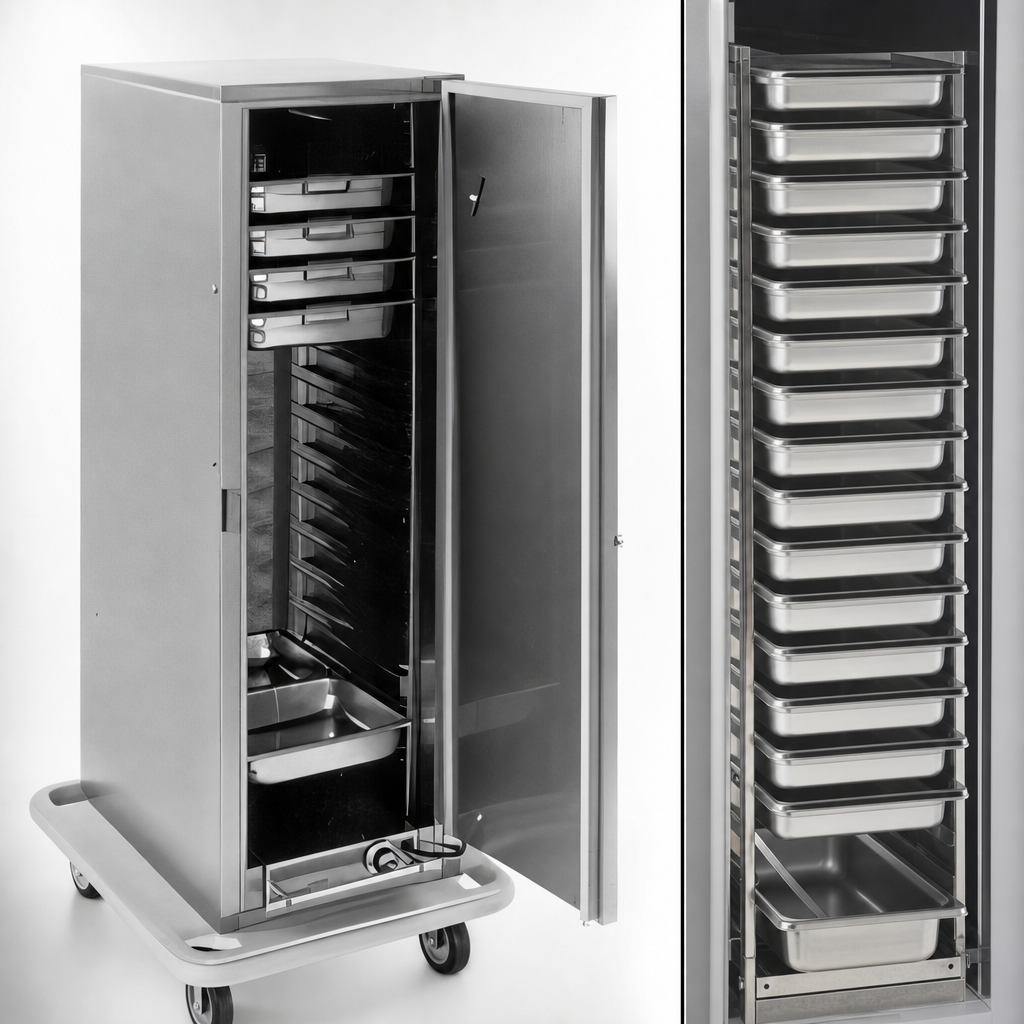

  • Channel slides on 2.75" centers hold 16 standard 2.5"-deep 12" × 20" steam table pans.
  • Ergonomic sliding latch with finger grip and heavy-duty vinyl door gasket for a tight seal.
  • Offset “wheel-ahead” pattern with four 5" polyurethane swivel casters (2 w/ brakes) for smooth rolling over thresholds.
  • Non-marking gray vinyl wrap-around bumper protects walls, furniture and the cart itself.
  • Two heavy-duty aluminum push handles, bolted on with reinforced back-up plates.
  • 10 ft power cord with NEMA 5-15P plug—no hard-wiring required.

Technical Specifications

Pan Capacity 16 × 12" × 20" pans (2.5" deep)
Pan Spacing 2.75" / 70 mm
Temperature Range Ambient to 200 °F  (93 °C)
Electrical 120 V / 1 Ph / 60 Hz, 1,530 W, 12.8 A  (NEMA 5-15P)
Exterior Dimensions (H × W × D) 58" × 23 7/8" × 29 1/2"  (1473 × 606 × 743 mm)
Inside Working Height 46" / 1168 mm
Clearances 2" from walls; 36" front clearance to open door
Casters 4 × 5" swivel (2 locking) polyurethane
Shipping Weight 280 lb / 127 kg
Certifications cULus, UL EPH Classified, CE
Warranty 1 year parts & labor

Popular Options & Accessories

  • Menu card holder
  • Locking door latch with key or padlock hasp
  • Alternate casters or lift-up pull handle
  • Rack or heater hold-down devices (correctional package)
  • Polycarbonate thermometer cover
Installation Reminder: Maintain at least 2" clearance from any combustible surface and allow 36" in front of the door for safe operation and service access.

Need flexible payment options? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

CE, UL EPH

Height

58.0in

Width

24.0in

Depth

28.0in

Shipping Weight

280.0lbs

Size

1 compartment

Section

1 section

Heater

bottom mounted

Door Type

solid

Height

55" - 60"

Exterior Finish

all stainless steel exterior

Door Style

full door(s)

Slide Centers

removable on 2-3/4"

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Insulation

insulated

Specifications

Heated Cabinet, mobile, 1 door, insulated, removable bottom mounted forced-air heating system, removable slides for (16) 12"x 20" pans, slides on 2-3/4" centers, stainless steel construction, wrap-around bumper, 5" swivel casters, cUL, UL EPH, CE
