Description

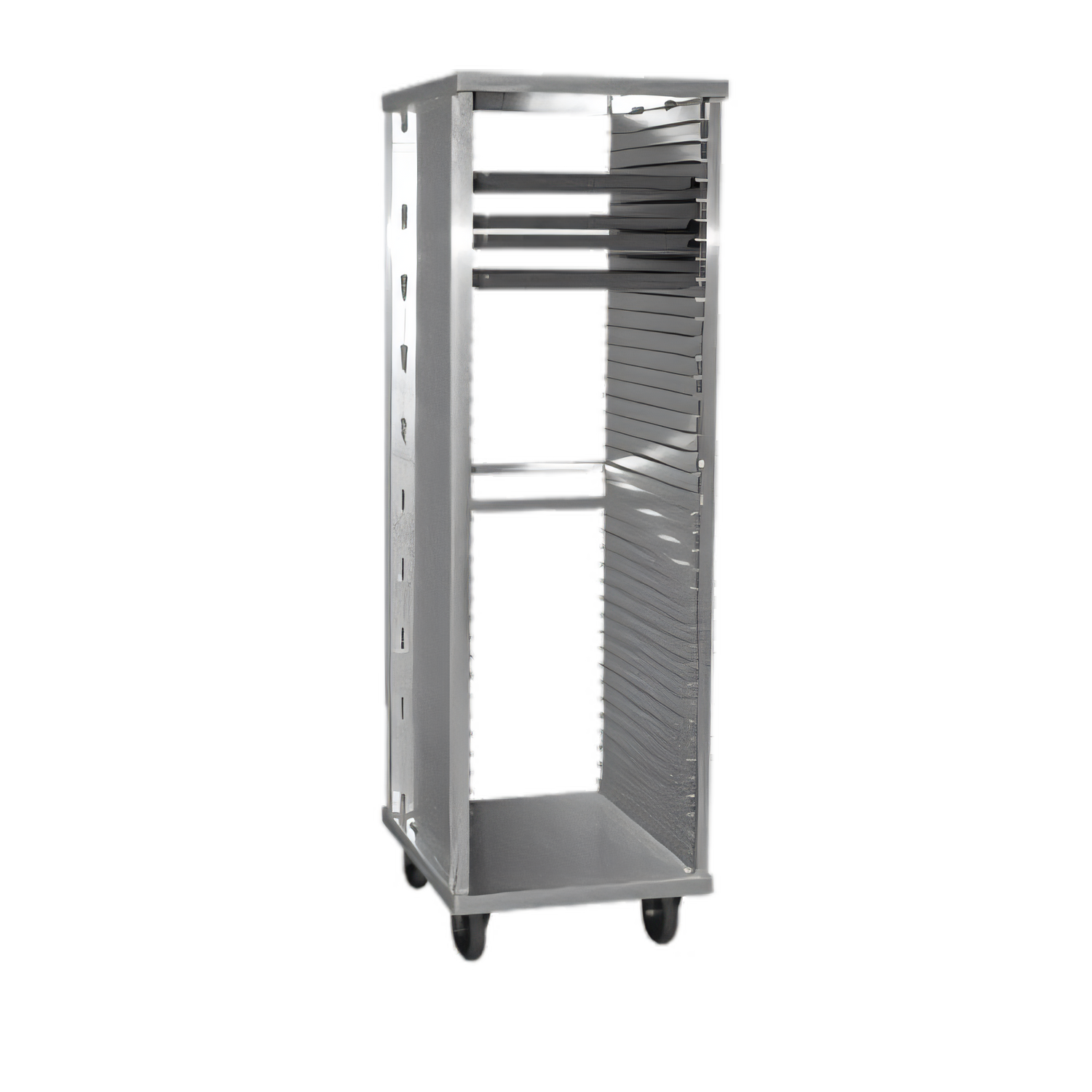

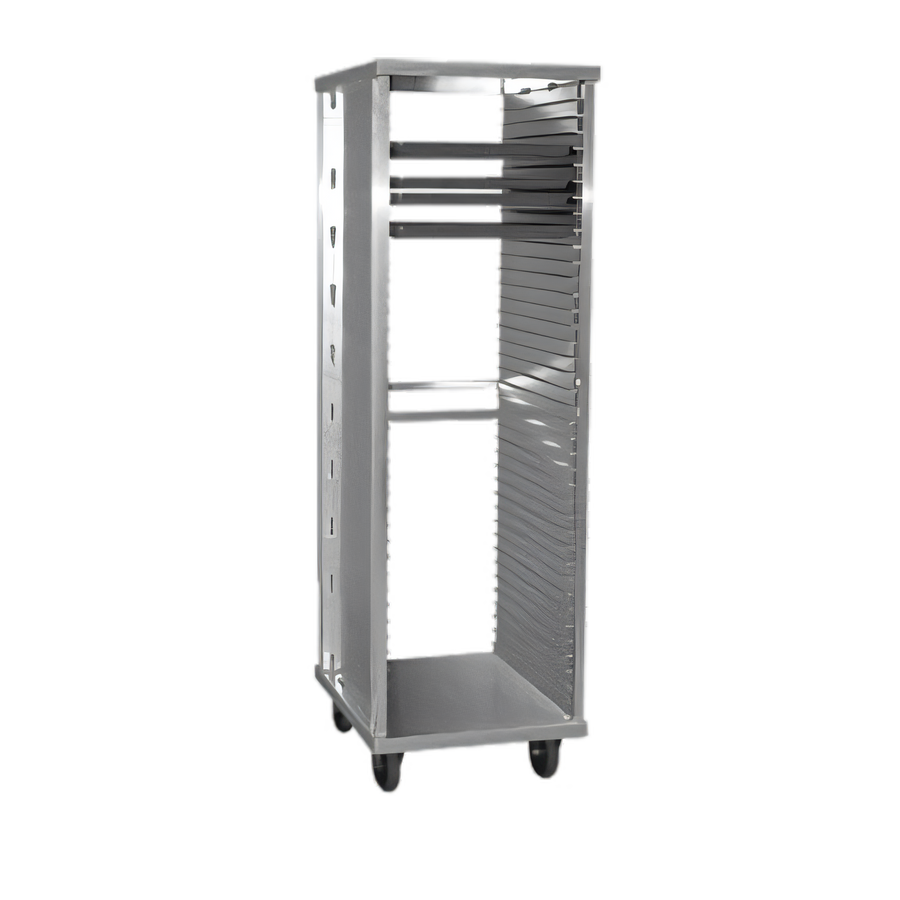

Carter-Hoffmann O8619 Extruded Side-Panel Pan Rack

19-Sheet Capacity • End Loading • 20 ½" W × 26 ¼" D × 39 7⁄16" H

Designed for everyday abuse in high-volume kitchens, the O8619 keeps 18" × 26" pans organized, mobile and protected in a compact, low-profile footprint.

Key Features

  • Holds (19) full-size sheet pans on 1 ½" centers for maximum capacity without sacrificing airflow.

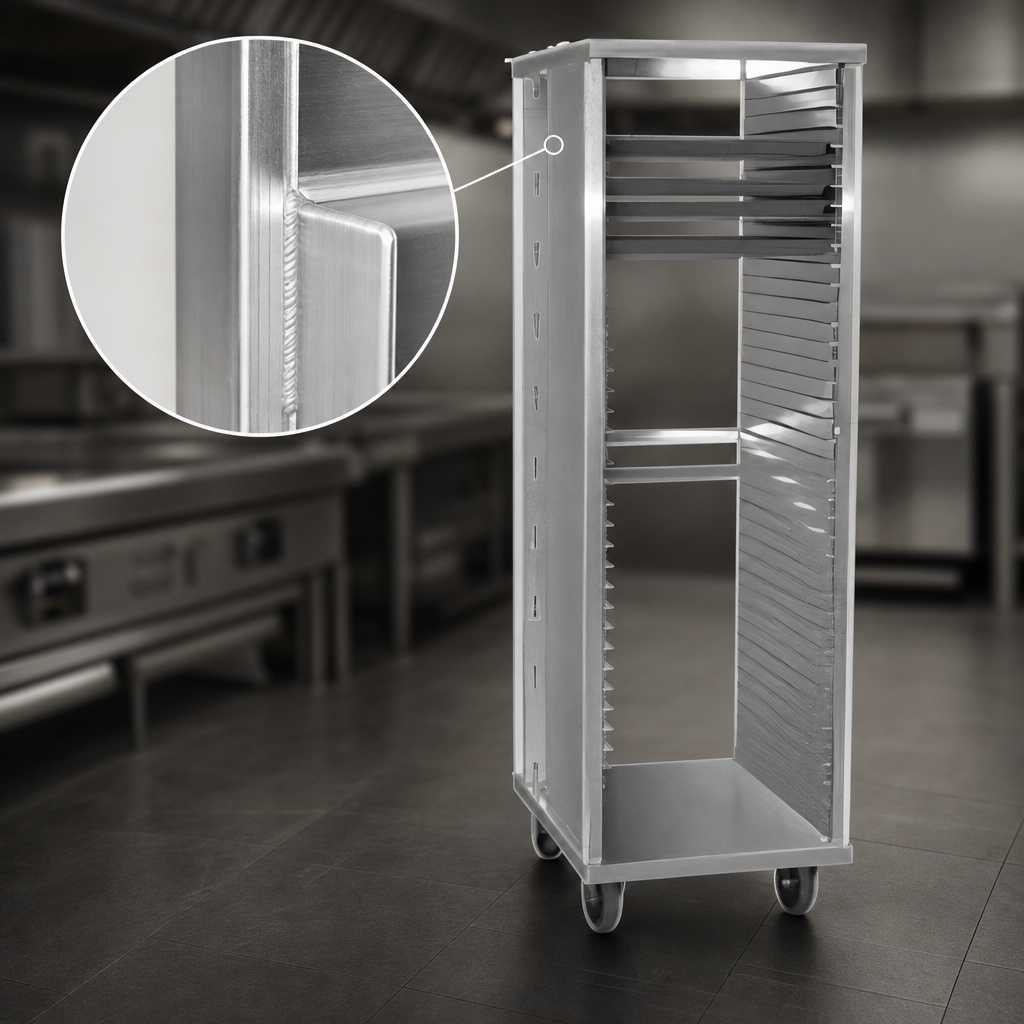

  • All-welded, high-tensile 6463-T5 extruded aluminum frame—corrosion-proof, lightweight and built to last.
  • Interlocking wall-type angle slides with ½" ledges permanently welded to uprights; no screws to loosen or trap food soil.
  • Compact 39 7⁄16" height rolls easily under standard worktables or into walk-ins.
  • Reinforced bottom frame with internal tubular cross members prevents twist and sag under heavy loads.
  • Four 5" all-swivel platform casters with sealed ball bearings and non-marking tread for silent, omnidirectional movement.
  • End-loading design speeds up pan access in narrow aisles or crowded prep areas.
  • Factory options available: caster locks, corner bumpers or a full perimeter bumper.

Specifications

Model O8619
Pan Capacity 19 full-size (18" × 26") sheet pans
Slide Spacing 1 ½" (38 mm)
Orientation End loading
Overall Dimensions (W × D × H) 20 ½" × 26 ¼" × 39 7⁄16" (521 × 667 × 1 003 mm)
Caster Diameter 5" (127 mm) – all swivel, non-marking
Construction All-welded extruded aluminum
Shipping Weight 43 lb (20 kg)

Looking for a larger capacity or side-loading configuration? Check out the other models in Carter-Hoffmann’s O8600 Series.

Specifications are subject to change without notice.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Height

39.44in

Width

20.5in

Depth

26.5in

Shipping Weight

43.0lbs

Height

37" - 42"

Sides

closed sides

Ships

assembled / welded

Top

solid top

Loading

end loading

Pan Capacity

16 - 20

Centers

1 to 1-3/4" centers

Construction

aluminum

Specifications

Pan Rack, 20-1/2"W, 26-1/2"D x 39-7/16"H, extruded side panels, (19) 18" x 26" trays, 1-1/2" spacing, aluminum construction, end loading, 5" casters
