Carter-Hoffmann (Middleby)  |  SKU: MZ223GS-2T

Carter-Hoffmann (Middleby) MZ223GS-2T Heated Cabinets & Holding Shelves

$5,747.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Middleby financial flyer Owner's manual
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

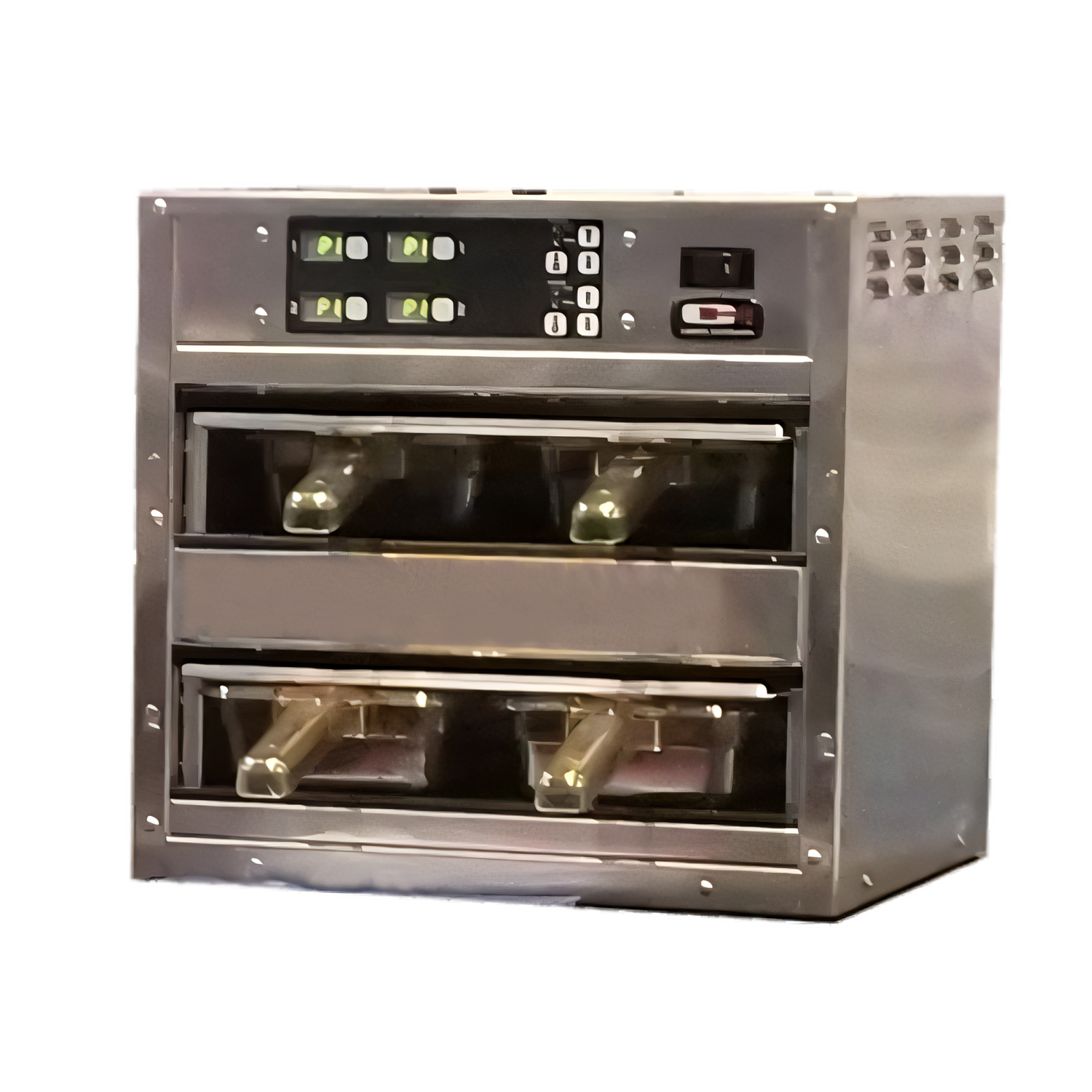

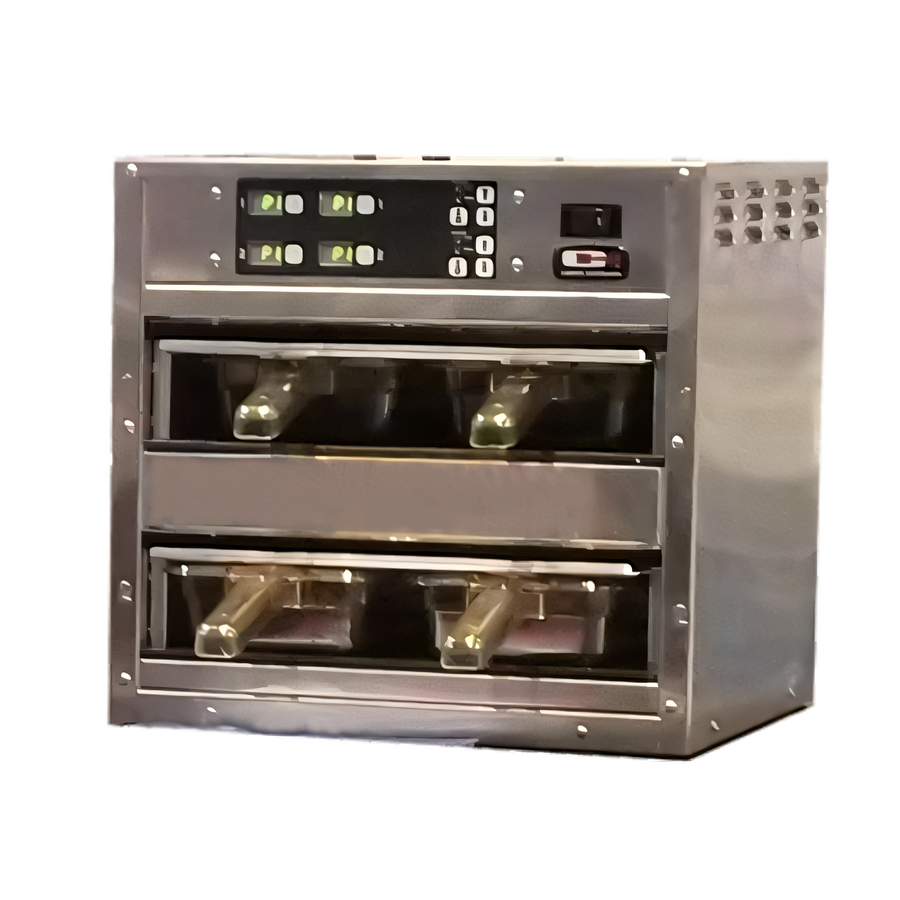

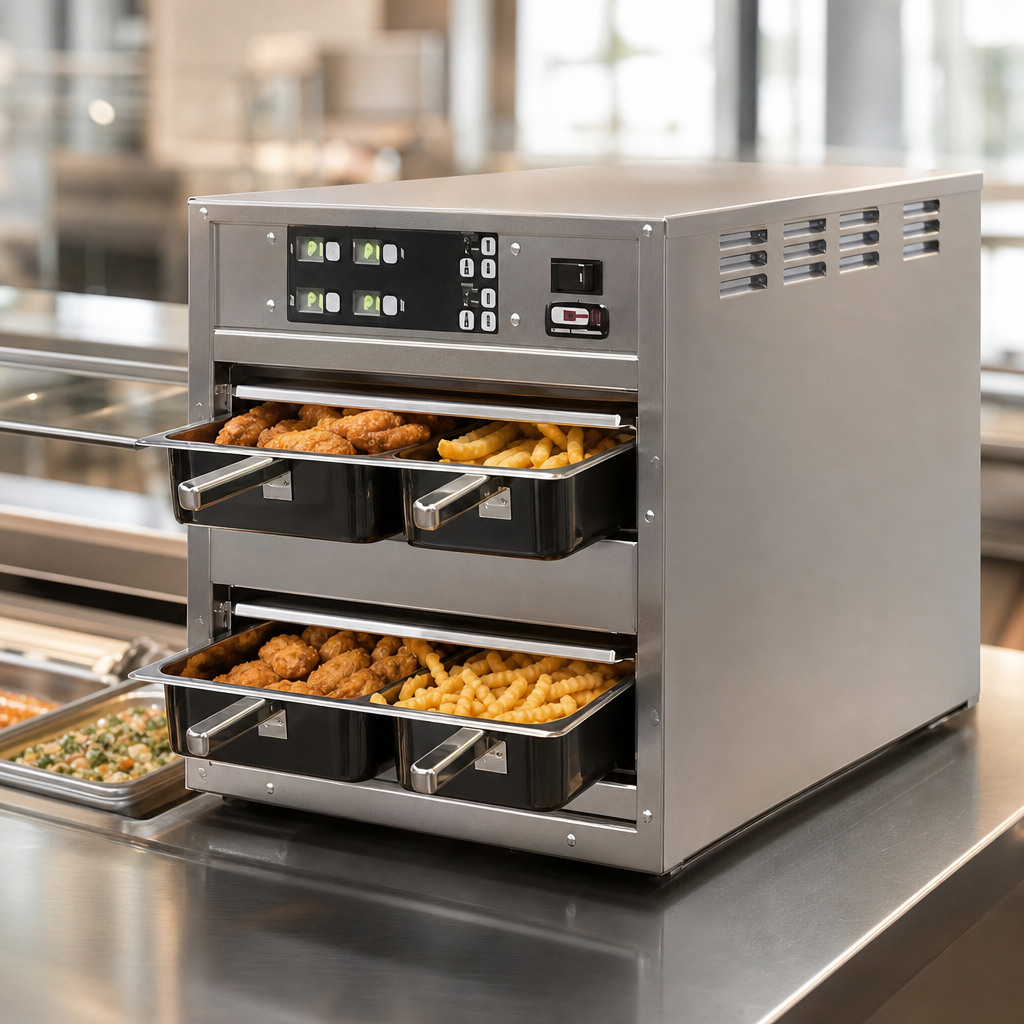

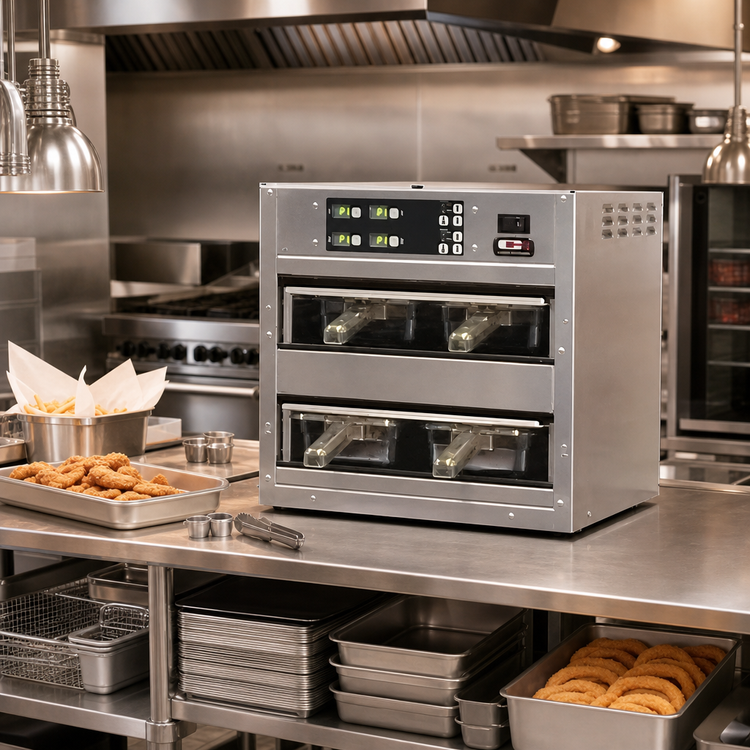

Carter-Hoffmann MZ223GS-2T Modular Holding Cabinet

Single-sided access | 4 pan timers | 2-½" pan depth

Purpose-built for high-volume fried food programs, the Carter-Hoffmann MZ223GS-2T keeps product hot, crispy and table-ready without sacrificing texture or flavor. Independent top & bottom heaters, programmable timers and a space-saving modular footprint give you precise control and all-day holding confidence.

Why you'll love it

  • Two heating zones per shelf – set upper & lower temperatures independently (up to 250 °F / 121 °C).
  • 4 individual pan timers with audio/visual alarms for perfect batch rotation.
  • Side-loaded pan cavity holds either (2) 12" × 10" half-size pans or (4) 12" × 6" third-size pans.
  • Integrated removable lids seal in moisture – pop them out instantly for crispy items or easy cleaning.
  • All-stainless construction with no moving parts for long service life and quick wipe-downs.
  • Compact, lightweight design sits on any countertop—perfect for make-lines, drive-thru windows or expo stations.
  • Certified cULus, NSF & CE for worldwide food-safety compliance.

At-a-glance specifications

Capacity (2) 12" × 10" pans OR (4) 12" × 6" pans | 2-½" pan depth (pans not included)
Timers 4 independent countdown timers & alarms (up to 9 hr 59 min, 1-min increments)
Temperature range Ambient to 250 °F (121 °C) in 1° increments (separate top & bottom control)
Heating system Two 250 W silicone pad heaters per shelf (top & bottom) vulcanized to anodized aluminum plate
Exterior material 20-ga. stainless steel, double-wall cabinet
Dimensions (H × W × D) 17 7/16" × 16 3/4" × 15 7/8"  (443 mm × 425 mm × 403 mm)
Electrical 120 V / 60 Hz / 1 ph  |  1,000 W  |  8.3 A  |  NEMA 5-15P, 6 ft cord
Shipping weight 52 lb (24 kg)
Certifications cULus, NSF, CE

Pans are shown for illustration purposes and are sold separately.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

NSF, CE

Height

17.19in

Width

16.75in

Depth

15.63in

Shipping Weight

52.0lbs

Exterior Finish

all stainless steel exterior

Controls

programmable controls

Specifications

Modular Holding Cabinet, single sided access, for fried food, 2-1/2" pan depth, (2) 12" x 10" or (4) 12" x 6" pan capacity (not included), side-loaded, electronic temperature control, (4) timers, stainless steel construction, cUL, NSF, CE
