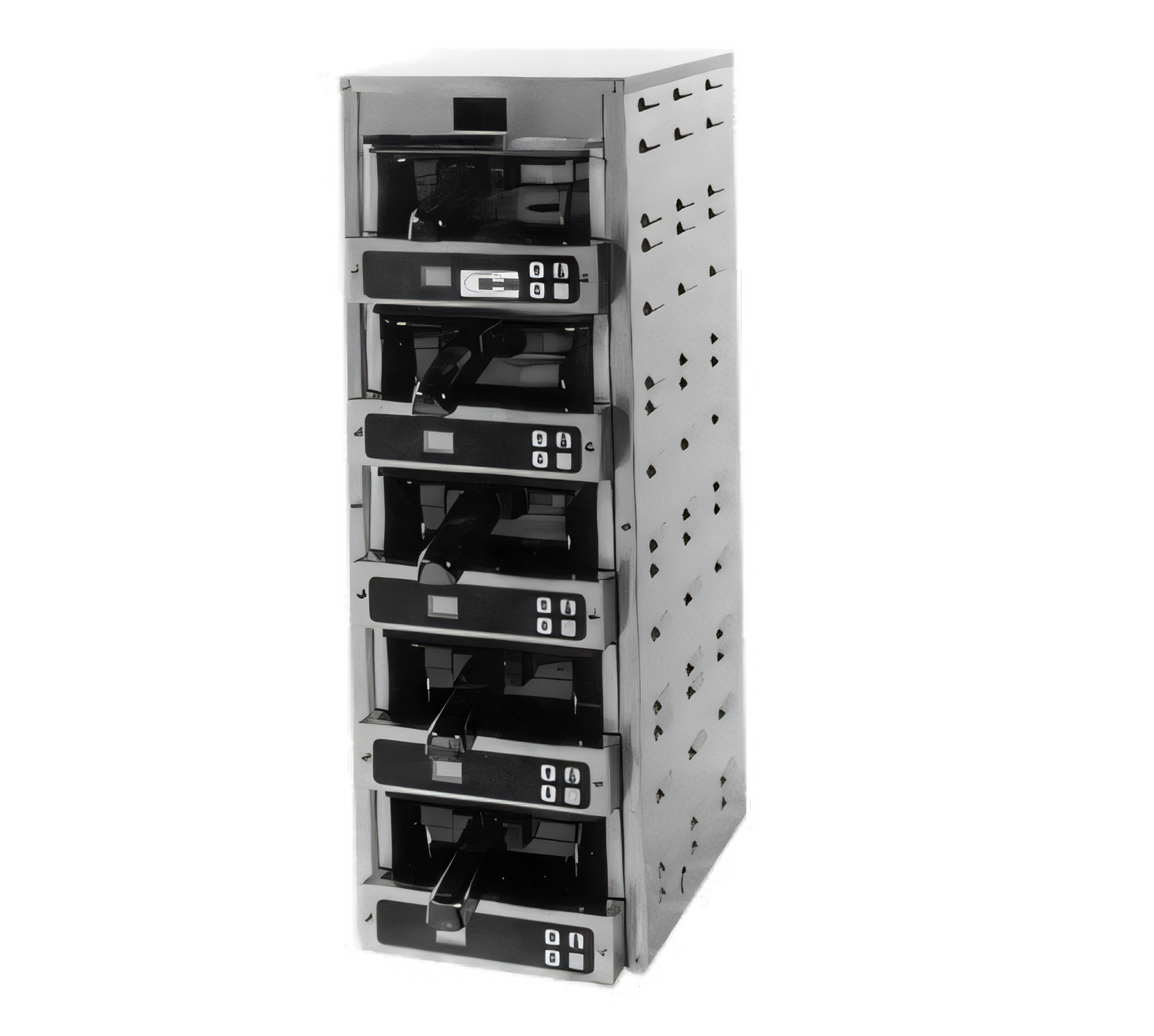

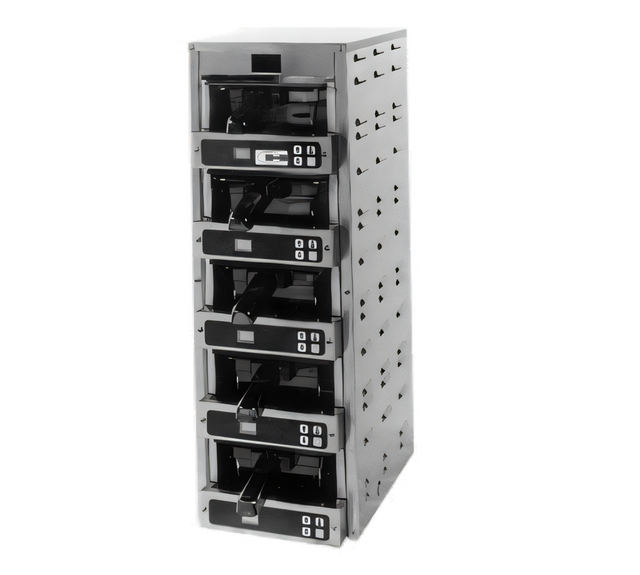

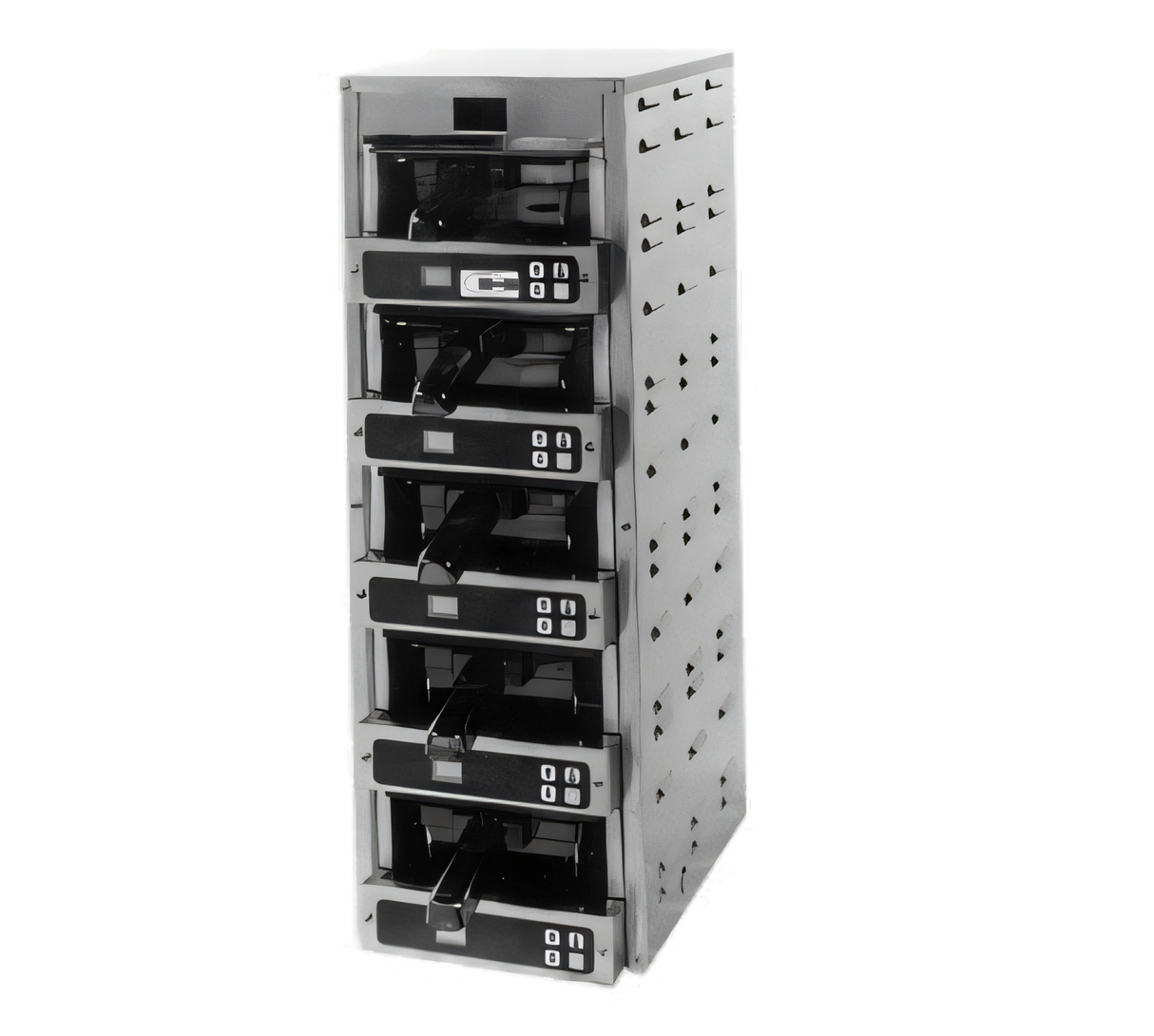

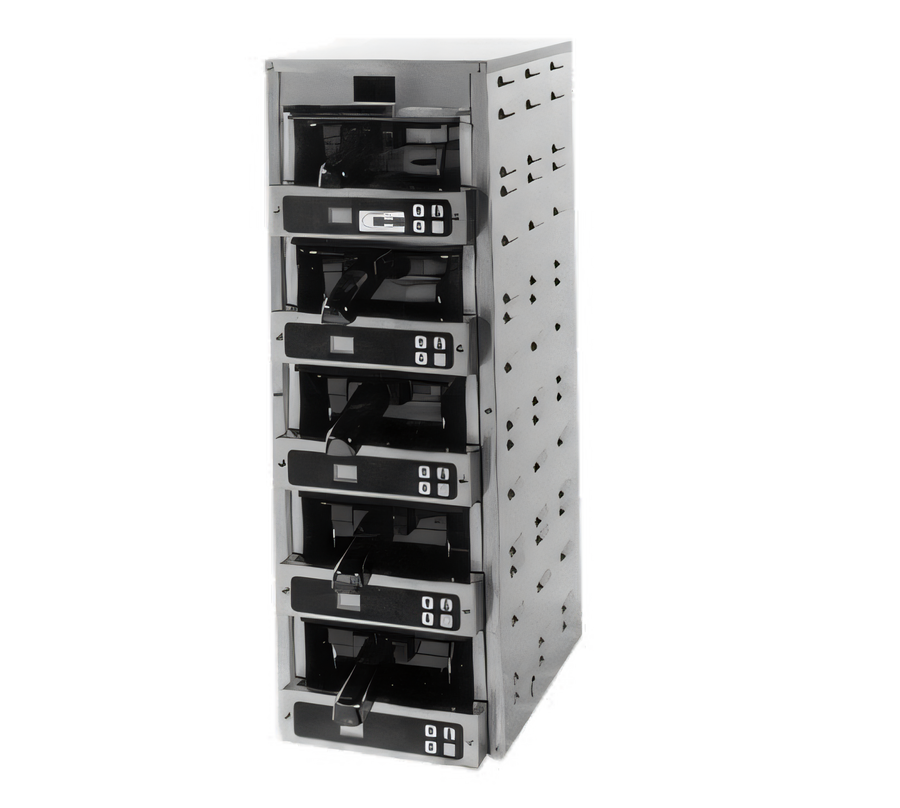

Carter-Hoffmann MC1W5H Modular Holding Cabinet
5 individually controlled 1/3-size pan modules • cULus, NSF & CE listedKeep high-volume menu items hot, fresh and ready for service without sacrificing quality. The MC1W5H gives you five fully independent holding zones in a space-saving footprint—perfect for quick-service lines, catering stations or any operation that thrives on speed and consistency.
Why it stands out
- All stainless-steel, double-wall cabinet resists dents, corrosion and daily wear-and-tear.
- Five separate electronic controllers let you fine-tune temperature (to 195 °F) and hold time (up to 9 h 59 m) for each pan.
- Integrated stainless-steel lids with spring tension minimize moisture loss and extend hold life—remove them for drier foods or easy cleaning.
- 200 W silicone pad heater per zone delivers direct, even heat with minimal recovery time.
- Rapid pre-heat: reach 180 °F in under 10 minutes so you’re always ready for the rush.
- Pass-thru design provides access from front or back, improving work-flow (single-side access available on request).
- Compact 9.5" width saves counter space and allows stacking or modular expansion as your menu grows.
- Audio/visual alarm signals end-of-hold cycle to prevent over-holding and waste.
Technical specifications
| Model | MC1W5H |
|---|---|
| Pan capacity | 5 × 1/3-size pans, 2.5 in (65 mm) deep (pans not included) |
| Temperature range | Ambient to 195 °F (91 °C) |
| Pre-heat time | < 10 min to 180 °F (82 °C) |
| Controller | Five independent electronic controls, 1 °F increments, six programmable presets, countdown timer with alarm |
| Heat source | 200 W silicone pad heater under anodized aluminum plate (per zone) |
| Electrical | 120 V / 60 Hz / 1-ph • 1,000 W total • 8.3 A • 10 ft cord, NEMA 5-15P plug |
| Dimensions (H × D × W) | 26 5/8" × 15 1/4" × 9 1/2" (676 × 387 × 241 mm) |
| Shipping weight | 64 lb (29 kg) |
| Construction | Nickel-bearing stainless steel cabinet, hard-coat anodized aluminum heat plate, 2 mm insulation |
| Certifications | cULus, NSF, CE |
Need a different capacity? Explore models MC1W3H (3-pan) or MC1W4H (4-pan), or contact us for custom configurations.
