Description

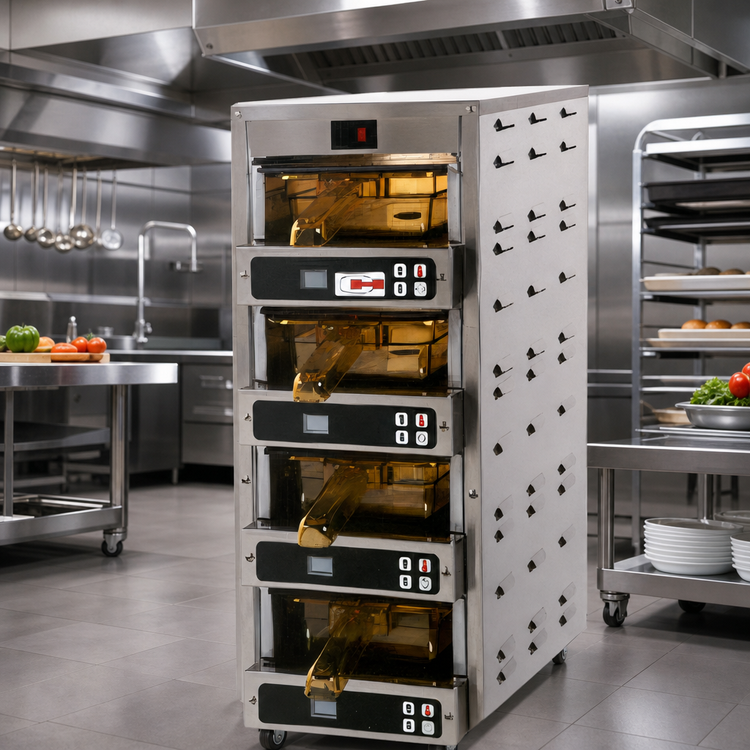

Carter-Hoffmann MC1W4H Modular Holding Cabinet
4-Zone | 1/3-Size Pans | cULus, NSF & CE ListedCreate a compact, high-performance hot holding station anywhere in your kitchen. The MC1W4H gives you four independently controlled pan cavities in a footprint just 9½ inches wide—ideal for keeping proteins, sides and toppings at perfect serving temperature without sacrificing counter space.
Key Features

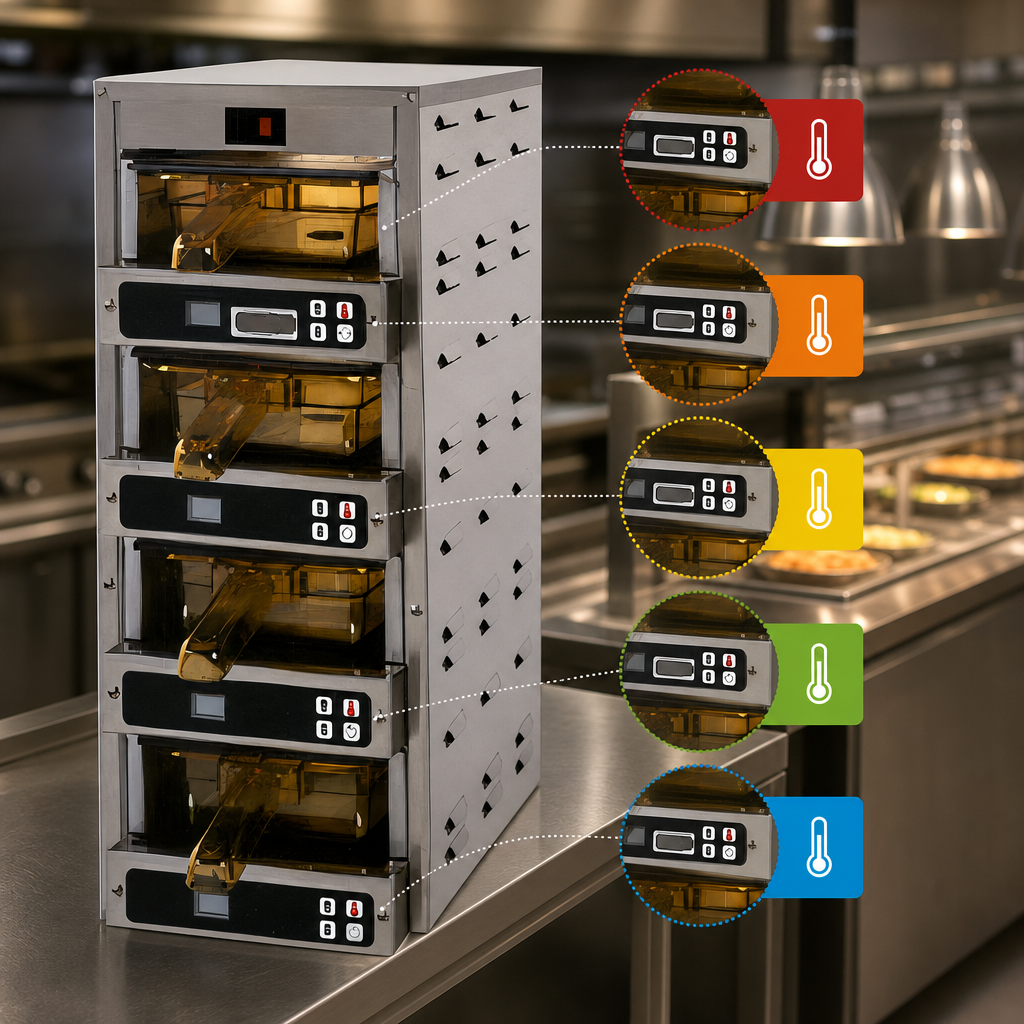

- 4 individual heating zones—set each cavity’s temperature (up to 195 °F) and hold-time (up to 9 hr 59 min) independently.
- Pass-thru design for easy front or rear access—seamless loading, plating and service.
- Removable stainless-steel pan lids help lock in moisture and extend hold times; lift off for crispy menu items.
- Direct-contact 200 W silicone pad heaters under anodized aluminum plates deliver fast, even heat with minimal loss.
- Preheats to 180 °F in less than 10 minutes—perfect for high-volume, quick-turn operations.
- All-stainless, double-wall cabinet with no moving parts—durable, lightweight and easy to sanitize.
- Certified safe for commercial kitchens: cULus, NSF and CE.
Perfect For
- QSR & fast-casual service lines
- Ghost kitchens & food trucks with limited space
- Catering, banquets and grab-and-go stations
- Breakfast proteins, taco fillings, sides, garnishes and more
Technical Specifications
| Model | MC1W4H |
|---|---|
| Pan capacity | 4 × 1/3-size pans, 2 ½ in deep (pans not included) |
| Overall dimensions (H × W × D) | 21 ⅝ in × 9 ½ in × 15 ¼ in (543 × 241 × 387 mm) |
| Electrical | 120 V / 60 Hz / 1 ph, 200 W per zone (800 W total); 10 ft cord, NEMA 5-15P |
| Temperature range | Ambient to 195 °F (91 °C) |
| Controller | Programmable electronic control, 6 presets, countdown timer with audio/visual alarm |
| Construction | Double-wall stainless cabinet; scratch-resistant polymer cavity floors; anodized aluminum heat plates |
| Shipping weight | 58 lb (26 kg) |
| Certifications | cULus, NSF, CE |
Pans and optional 1/3-size amber pans with handles are sold separately.
