Carter-Hoffmann MC1W3H Modular Holding Cabinet
3-Zone | 1/3-Size Pans | Individually ProgrammableKeep cooked items hot, fresh and service-ready with the MC1W3H—Carter-Hoffmann’s compact, plug-and-play holding solution built for quick-serve lines, convenience stores, catering stations and anywhere speed of service is critical. Three fully independent cavities let you hold multiple menu items at their ideal temperature and moisture level without flavor transfer.
Key Features

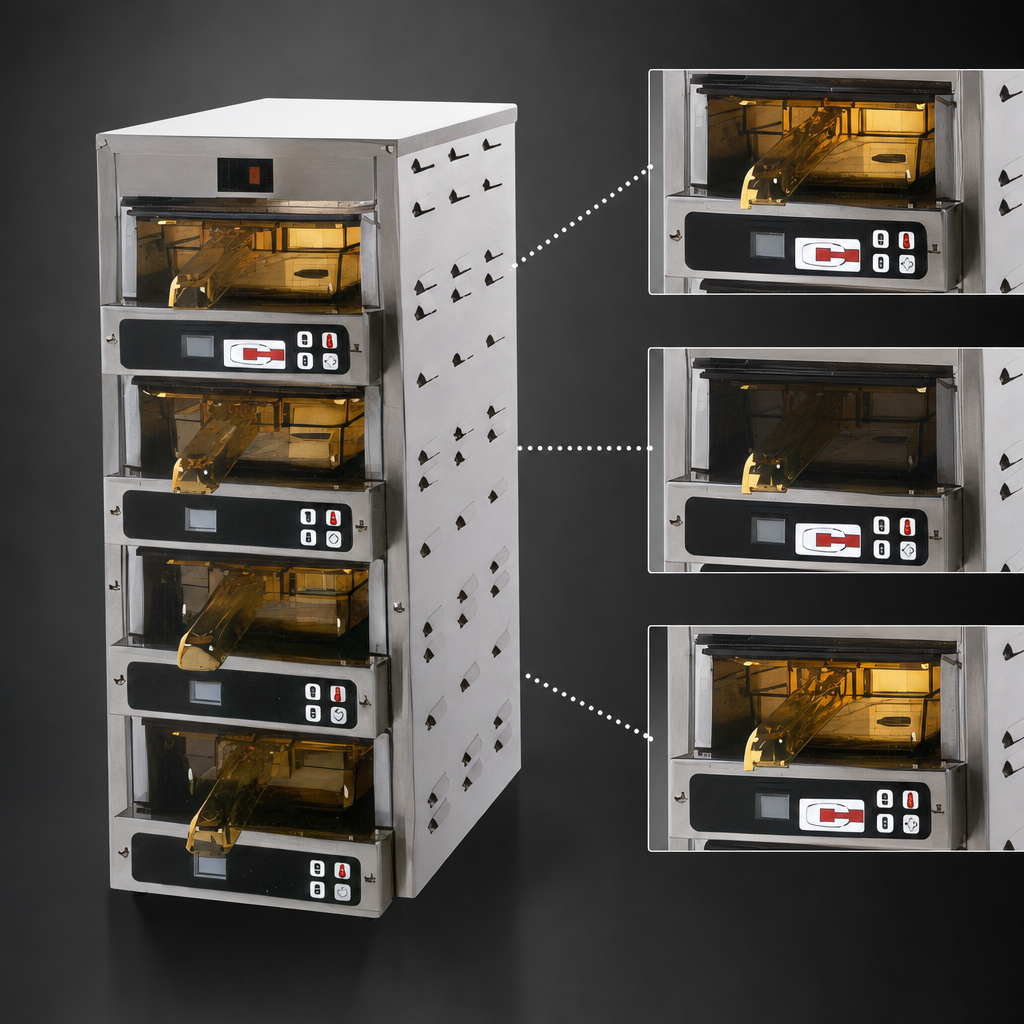

- 3 individually controlled modules—perfect for staggered cook cycles or varied menu items
- Holds (3) 1/3-size pans up to 2 ½" deep (pans sold separately)
- Pass-thru access from front or back for streamlined assembly lines
- Programmable digital controller per cavity • 195 °F (91 °C) max • six presets • countdown timer up to 9 hr 59 min with audio/visual alarm
- Integrated, removable stainless-steel pan covers to lock in moisture or lift off for drier foods
- Direct-to-product heating via 200 W silicone pad under a hard-coat anodized aluminum plate—preheats to 180 °F in under 10 minutes
- All stainless-steel double-wall construction with scratch-resistant polymer lower surface—built for busy kitchens
- Lightweight modular footprint (only 9 ½" W) mounts on counters, under shelves or inside merchandisers
- cULus, NSF & CE listed for global compliance
- 10 ft cord & NEMA 5-15P plug—just plug in and hold
Specification Sheet
Pan capacity | (3) 1/3 GN pans, 2 ½" (65 mm) deep |
---|---|
Module control | Independent digital controls & timers per cavity |
Temperature range | Ambient to 195 °F (91 °C) |
Warm-up time | <10 min to 180 °F (82 °C) |
Electrical | 120 V / 60 Hz / 1-Ph — 200 W per zone (600 W total) — NEMA 5-15P |
Exterior dimensions | 16 ⅝" H × 15 ¼" D × 9 ½" W (422 mm × 387 mm × 241 mm) |
Shipping weight | 42 lb (19 kg) approx. |
Construction | All stainless steel cabinet, black rubber feet, 2 mm millboard insulation |
Certifications | cULus, NSF, CE |
Looking for a larger or smaller footprint? Carter-Hoffmann also offers 4- and 5-zone models in the same MC1W series.
