Description

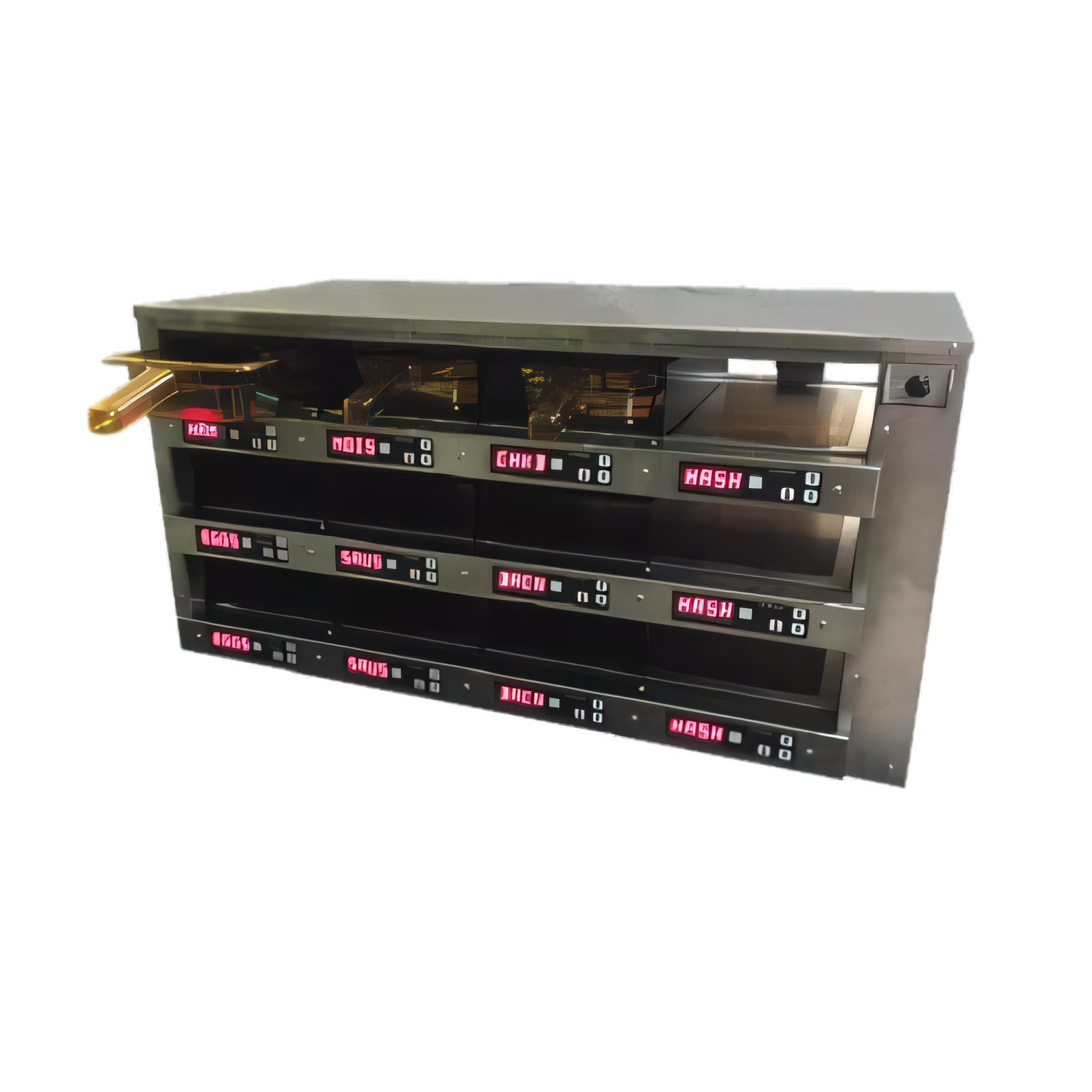

Carter-Hoffmann M343S-2T Modular Holding Cabinet

12-Pan • Single-Sided Access • Individually Controlled Top & Bottom Heat

Built for high-volume service lines, the M343S-2T keeps finished food hot, fresh and ready to serve. Each of its twelve 1/3-size pan cavities has independent electronic controls for top and bottom heaters, giving you menu-by-menu precision from a single, intuitive interface—or via quick USB uploads across multiple stores.

Key benefits

  • Individual pan control—program up to 25 menu items per cavity with 1 °F temperature accuracy.
  • Dual heating zones—300 W silicone pad bottom heater + 75 W top heater eliminate cold spots.
  • Rapid start-up—preheats to 180 °F (82 °C) in under 10 minutes.
  • Removable covers—built-in lids retain moisture, protect quality and prevent flavor transfer.
  • USB data port—upload or download entire menus in seconds; perfect for chain rollouts.
  • All-stainless construction with zero moving parts for exceptional durability and easy cleaning.
  • Compact countertop footprint with non-skid rubber feet; no hard installation required.

Perfect for holding

  • Fried chicken, tenders & wings
  • Breakfast proteins & tortillas
  • Vegetable sides & toppings
  • Hand-held pastries or baked goods

Specifications

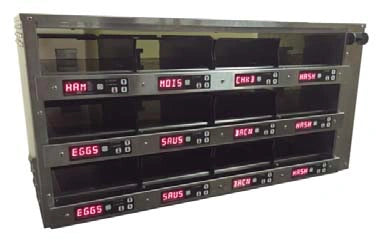

Model M343S-2T
Pan capacity 12 × 1/3-size pans (12" × 6"), 2.5" deep — pans not included

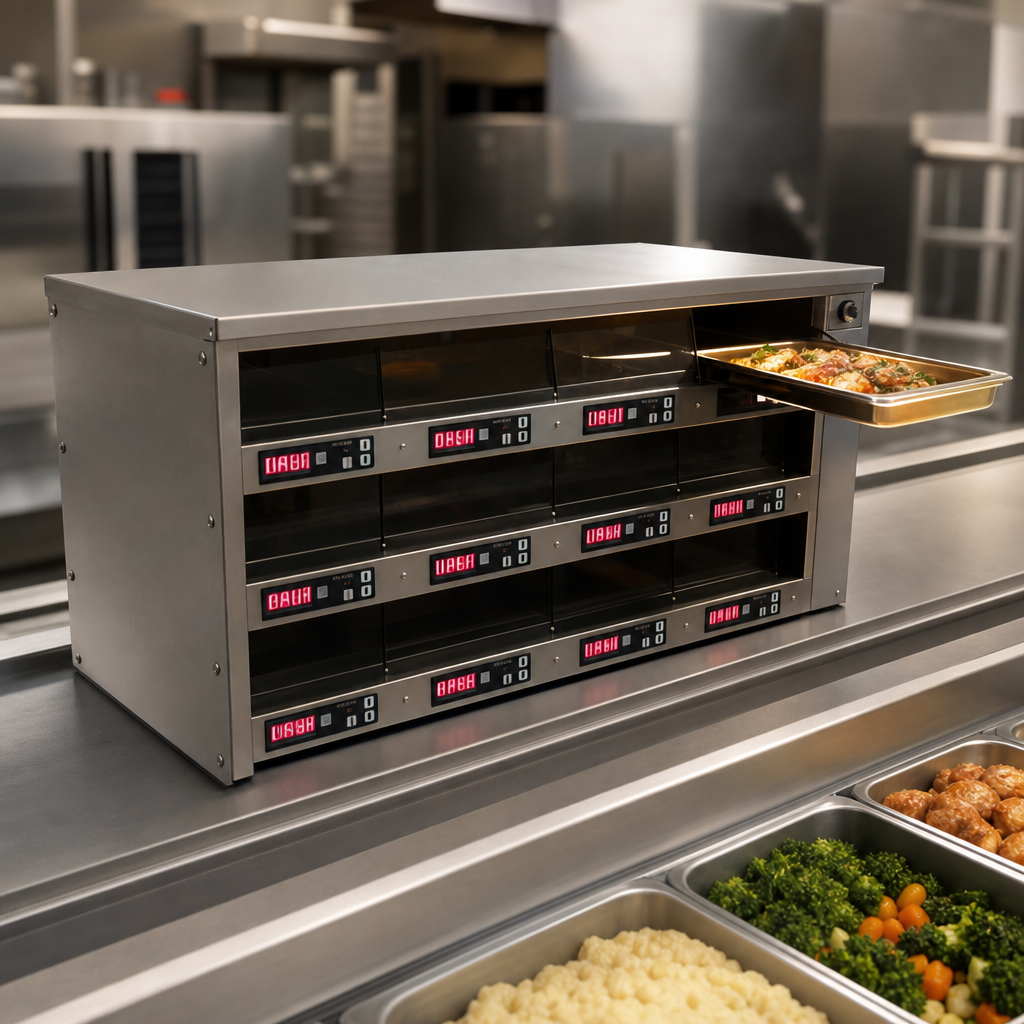

Access Single-sided
Control interface Alphanumeric display with individual timer & audio/visual alarm per pan
Temperature range Bottom up to 225 °F (107 °C) • Top up to 290 °F (144 °C)
Factory presets Top 240 °F / Bottom 195 °F; 30-min (covered) & 20-min (uncovered) timers
Overall dimensions 16 ⅛" H × 33 ⅜" W × 16 ⅞" D
Electrical 120 V / 60 Hz / 1 Ø, 1800 W, 15 A, NEMA 5-20P, 6-ft cord
Construction 20-ga stainless steel, insulated heater assemblies, scratch-resistant polymer lower surfaces
Certifications cULus, UL EPH Classified
Shipping weight Approx. 125 lb (57 kg)

Smart holding, simplified

Modular design means you can stack additional units, mix single-sided and pass-through models, or swap lids for wire grates—giving your kitchen unmatched flexibility as menus evolve.

Important: Use only 1/3-size pans with a maximum 2.5" depth to ensure proper heating and lid clearance.

Images may show optional accessories. Pans are sold separately.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

cULus, UL EPH Classified

Height

16.13in

Width

33.38in

Depth

16.44in

Shipping Weight

125.0lbs

Exterior Finish

all stainless steel exterior

Controls

programmable controls

Specifications

Modular Holding Cabinet, single-sided access, individually controlled top & bottom heat, 2-1/2" pan depth, individual pan covers, electronic temperature control with USB port for uploading/downloading menu settings, capacity: (12) 12" x 6" pans (not included), stainless steel construction, cULus, UL EPH Classified
