Carter-Hoffmann (Middleby) M223S-2T Heated Cabinets & Holding Shelves
Carter-Hoffmann (Middleby) M223S-2T Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Carter-Hoffmann (Middleby) M223S-2T Heated Cabinets & Holding S...
Description

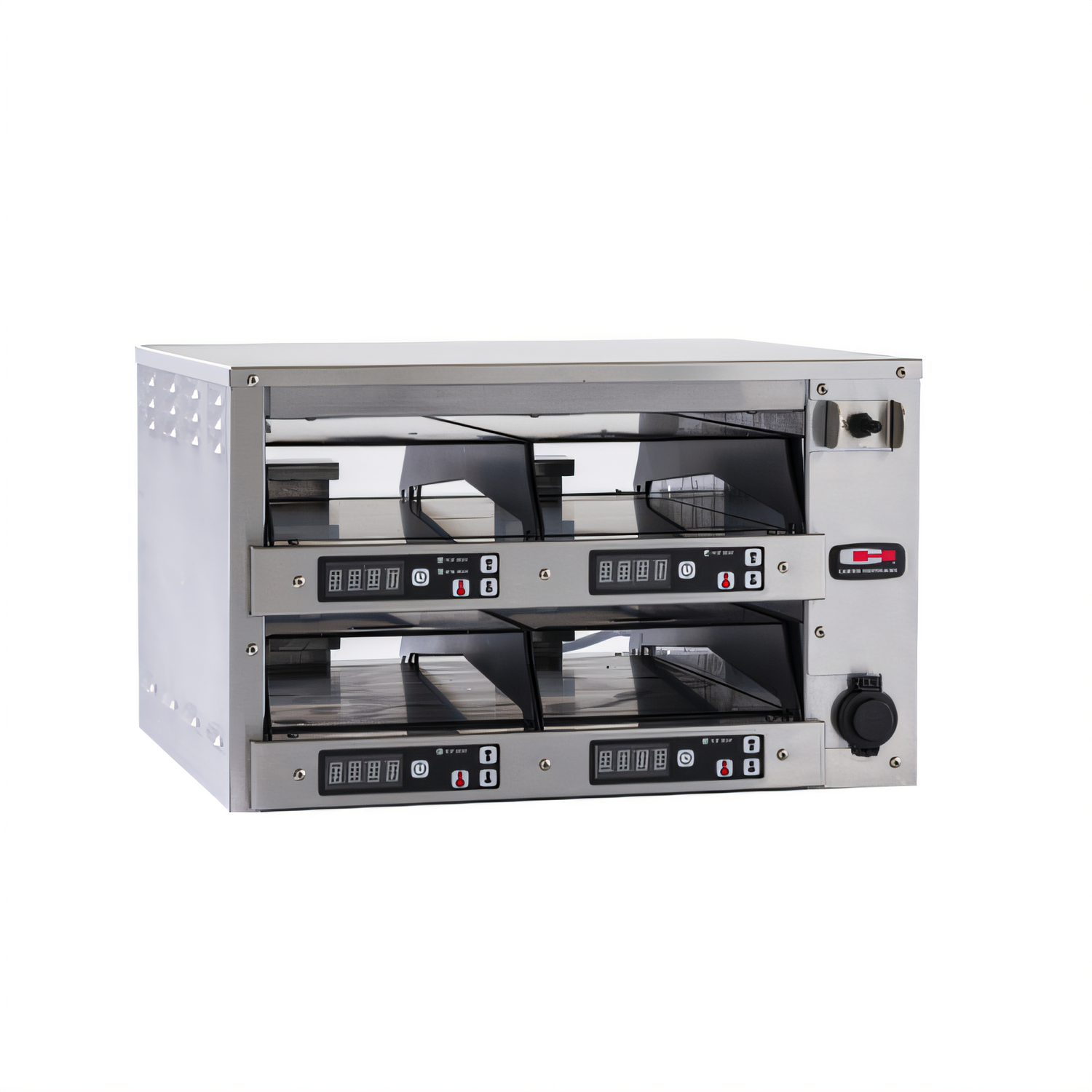

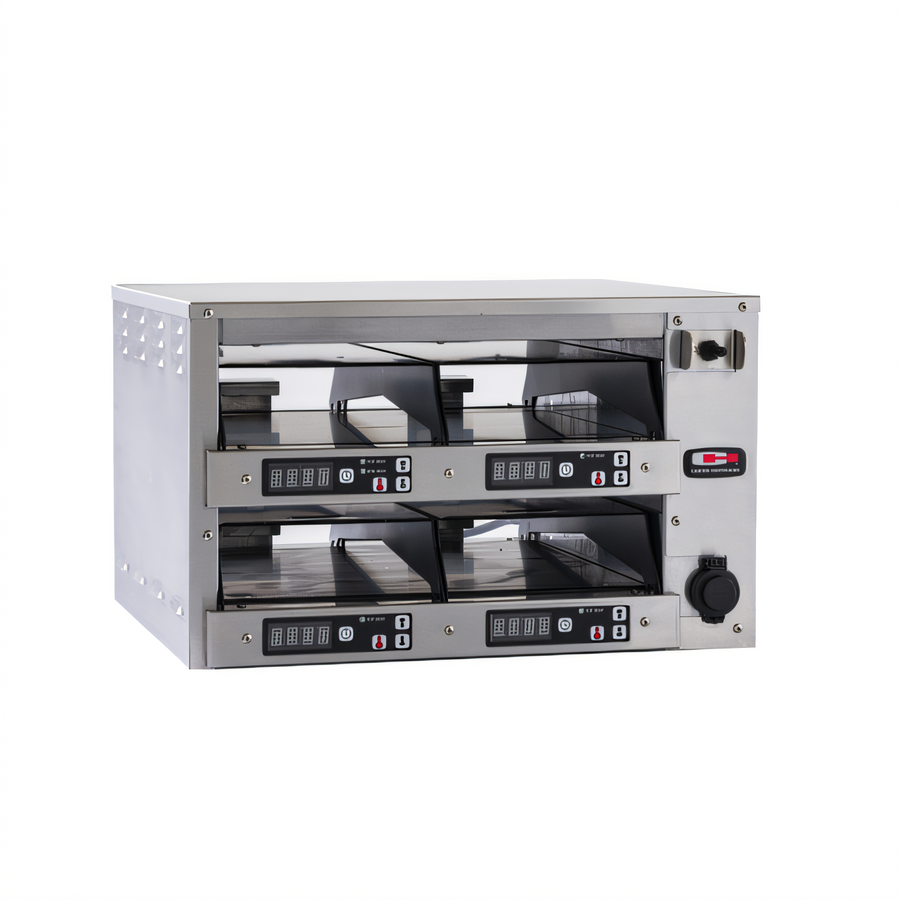

Carter-Hoffmann M Series Modular Holding Cabinet
4-Pan • Single-Sided • Top & Bottom Heat
Keep cooked food at its peak texture, temperature and taste—right on the service line. This compact 4-pan cabinet gives every menu item its own climate-controlled zone, with USB-programmable recipes that let staff hit “heat & hold” perfection at the touch of a button.
Key Features & Benefits- Capacity for four 1/3-size pans (12 × 6 in, 2-½ in deep).
- Individually controlled top (75 W) & bottom (300 W) heaters for each cavity.
- Digital alpha-numeric controller stores 25 menu items per pan with countdown timer & audio/visual alarm.
- Rear-mounted USB port makes uploading/downloading menu settings fast and fool-proof.
- Factory-preset temps & timers right out of the box; fully adjustable in 1 °F/°C increments up to 290 °F.
- Integrated, removable pan covers minimize moisture loss and prevent flavor transfer.
- Double-wall 20-gauge stainless steel body with scratch-resistant polymer pan decks—built to survive the rush.
- Preheats to serving temperature (180 °F) in less than 10 minutes, saving valuable prep time.
- Rubber feet keep the unit stable and protect countertops.
- cULus listed & UL EPH Classified for food-safe operation.
| Pan Capacity | (4) 1/3-size pans, 12 × 6 in, 2-½ in deep (pans sold separately) |
|---|---|

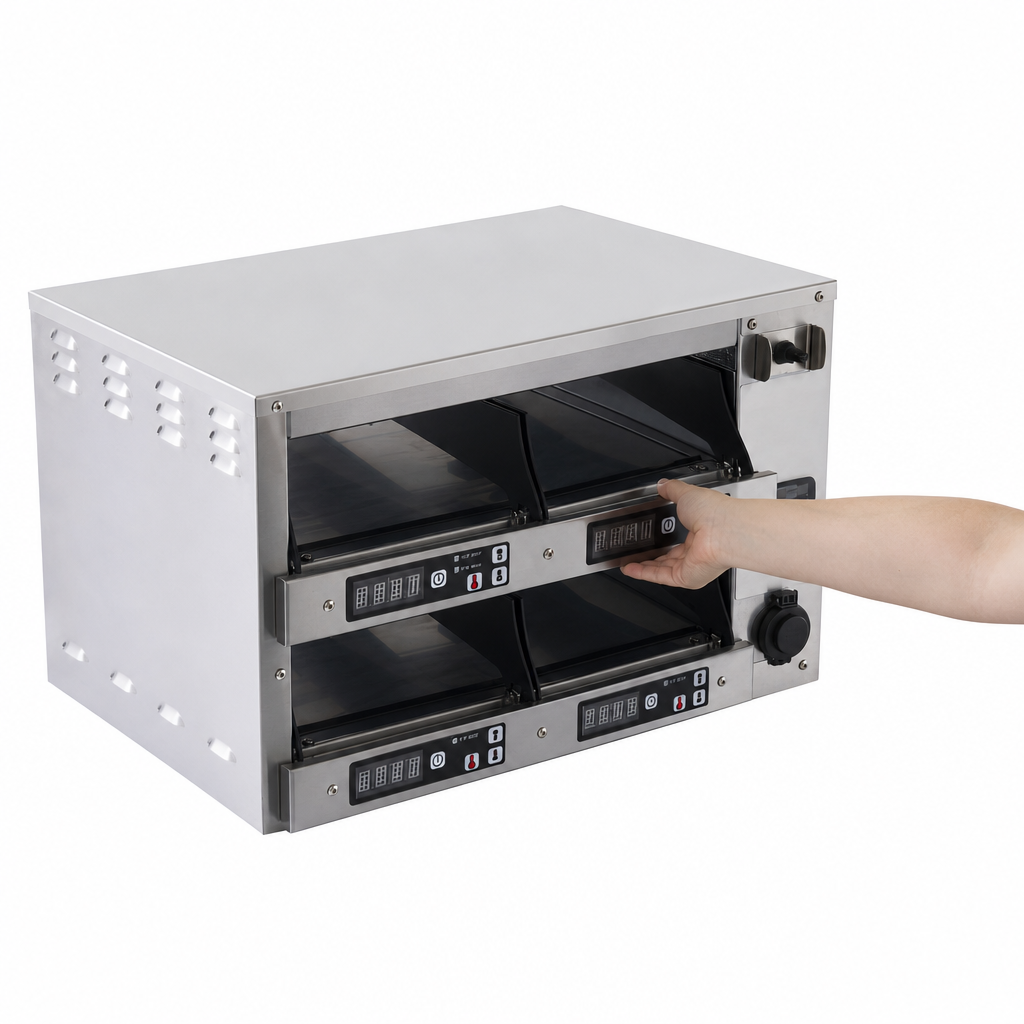

| Access | Single-sided |
| Temperature Range | Bottom heaters: up to 225 °F (107 °C) Top heaters: up to 290 °F (144 °C) |
| Controller | Digital alpha-numeric, 25 presets per pan, 0–99 min timer, audible/visual alarm |
| Programming | Manual entry or USB upload/download |
| Construction | 20-ga stainless steel, double-wall; black hard-coated aluminum heat plates |
| Exterior Dimensions | 18 ⅞ W × 16 ⁷⁄₁₆ D × 11 ½ H in (479 × 408 × 292 mm) |
| Electrical | 120 V / 60 Hz / 800 W / 6.7 A, NEMA 5-15P, 6 ft cord |
| Shipping Weight | ≈ 55 lb (25 kg) |
| Certifications | cULus, UL EPH Classified |
