Carter-Hoffmann (Middleby)  |  SKU: M223P-2T

Carter-Hoffmann (Middleby) M223P-2T Heated Cabinets & Holding Shelves

$7,663.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Middleby financial flyer
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Modular Holding Cabinet – 4-Pan Pass-Through

Carter-Hoffmann model M223P-2T

Give every item the perfect finish-hold. With individually controlled top & bottom heat, USB-programmable menus and true pass-through access, the Carter-Hoffmann M223P-2T keeps up to four 1/3-size pans hot, fresh and ready for lightning-fast service.

Built for speed, quality & consistency

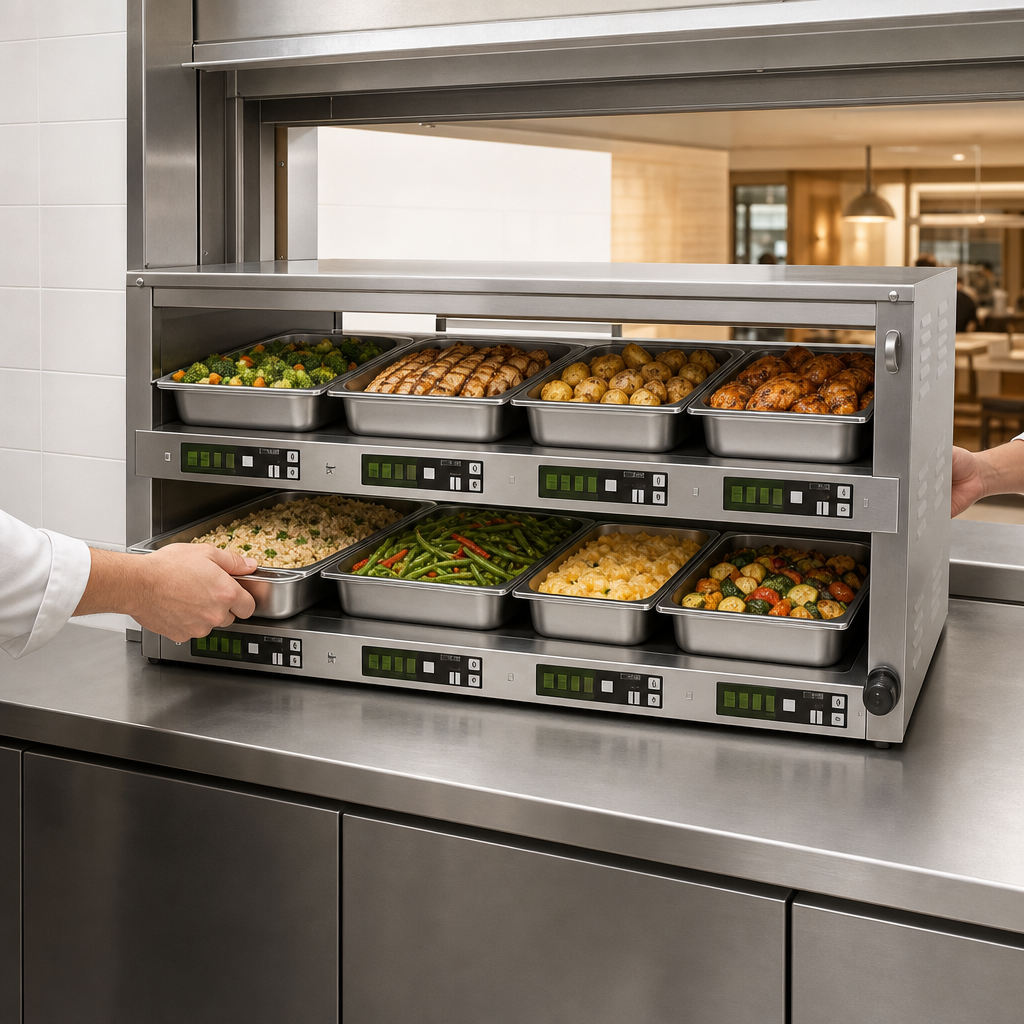

  • Pass-through design lets front- and back-of-house load or pull product from either side to improve workflow.
  • One controller per cavity – set time & temperature independently for every pan (up to 25 menu presets each).
  • Dual heat sources – 75 W top heater + 300 W silicone-pad bottom heater deliver even, moisture-friendly warmth.
  • USB port for quick uploading / downloading of menu settings across multiple units.
  • Removable pan covers seal in moisture, reduce shrinkage and help prevent flavor transfer.
  • Compact, all-stainless chassis with no moving parts – easy to clean and built to last in tough kitchen environments.
  • Audio/visual countdown timer (up to 99 min) with automatic seconds display under 60 s.
  • Fast heat-up – reaches 180 °F (82 °C) in less than 10 minutes.

Specifications

Pan capacity (4) 1/3-size pans – 12 in × 6 in (65 mm / 2 ½ in deep) – pans not included
Access Pass-through (dual-sided) with rear temperature & timer displays
Temperature range Top heaters: 80 °F – 290 °F (27 °C – 144 °C)
Bottom heaters: 80 °F – 225 °F (27 °C – 107 °C)
Timer range 1 – 99 minutes (auto-switches to seconds under 1 minute)
Overall dimensions 11 ½ in H × 18 ⅞ in W × 16 ⅞ in D (292 mm × 479 mm × 408 mm)
Shipping weight Approx. 55 lb (25 kg)
Electrical 120 V / 60 Hz / 800 W / 6.7 A, 6-ft cord & NEMA 5-15P plug
Construction 20-ga stainless steel, double-wall insulation, rubber feet
Certifications cULus listed, UL EPH Classified (sanitation)

Ideal for

  • Quick-service & fast-casual restaurants
  • Convenience stores & grab-and-go kiosks
  • Catering lines, stadium & concession stands
  • Ghost kitchens needing compact, menu-flexible holding

Pans and inserts sold separately. Specifications subject to change without notice.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

cULus, UL EPH Classified

Height

11.5in

Width

18.88in

Depth

16.44in

Shipping Weight

30.0lbs

Controls

programmable controls

Exterior Finish

all stainless steel exterior

Specifications

Modular Holding Cabinet, pass-through access, individually controlled top & bottom heat, 2-1/2" pan depth, individual pan covers, electronic temperature control with USB port for uploading/downloading menu settings, capacity: (4) 12" x 6" pans (not included), stainless steel construction, cULus, UL EPH Classified
