Carter-Hoffmann (Middleby) HP42 Warming Shelves
Description

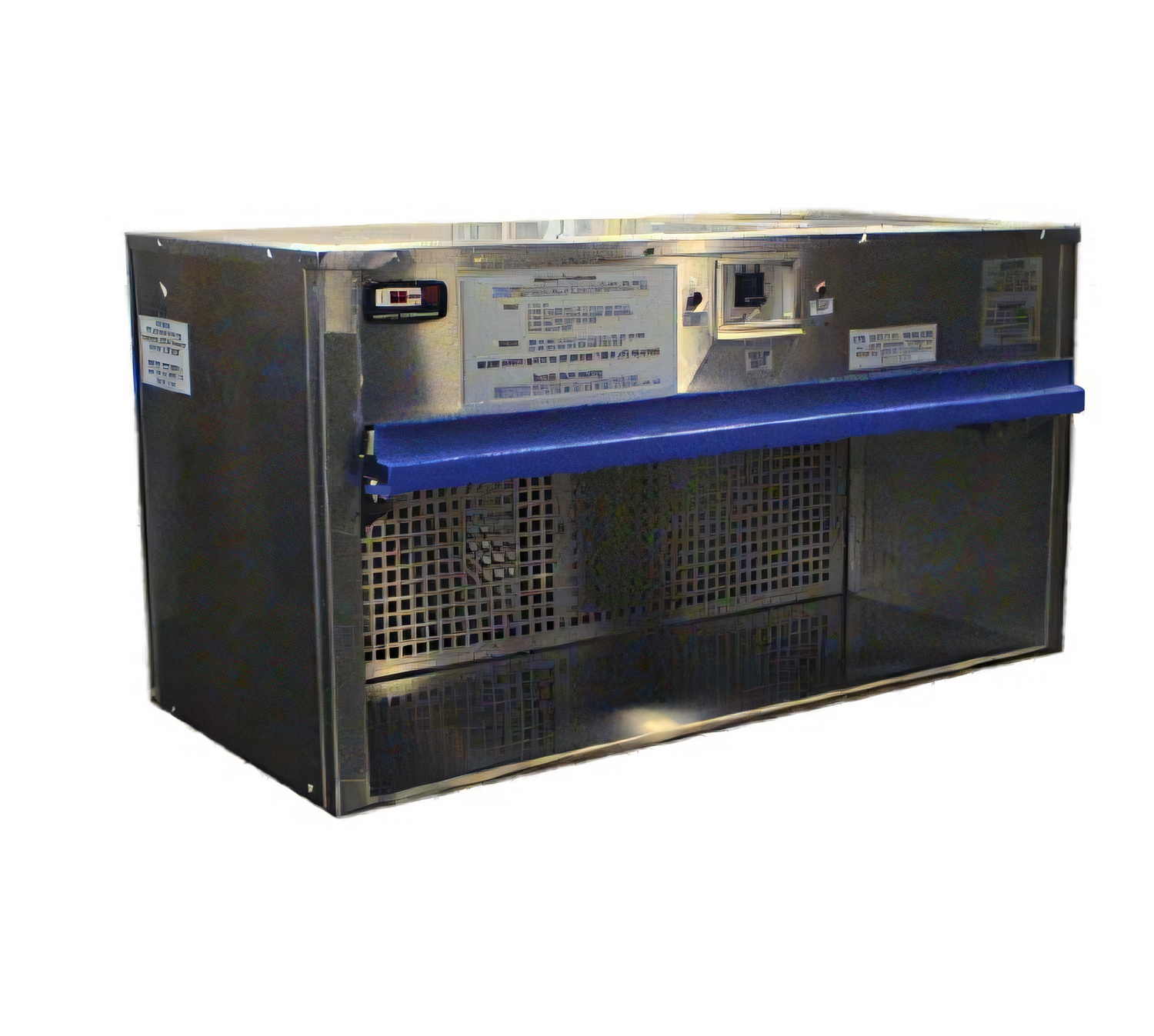

Carter-Hoffmann HP42 Shelf-Mounted Plate Warmer
42" W • 203 lb plate capacity • cULus & NSF listedThe HP42 puts a constant supply of perfectly warmed dinnerware exactly where your cooks and servers need it. Engineered for busy grill, sauté and plating stations, this powerful 120 V unit holds plates up to 12 ¾" in diameter at a precise 120 – 185 °F, ensuring every dish leaves the pass at the ideal serving temperature.
Key advantages
- High-performance convection heat – top-mounted Incoloy elements and blower deliver fast pre-heat and even temperature throughout.

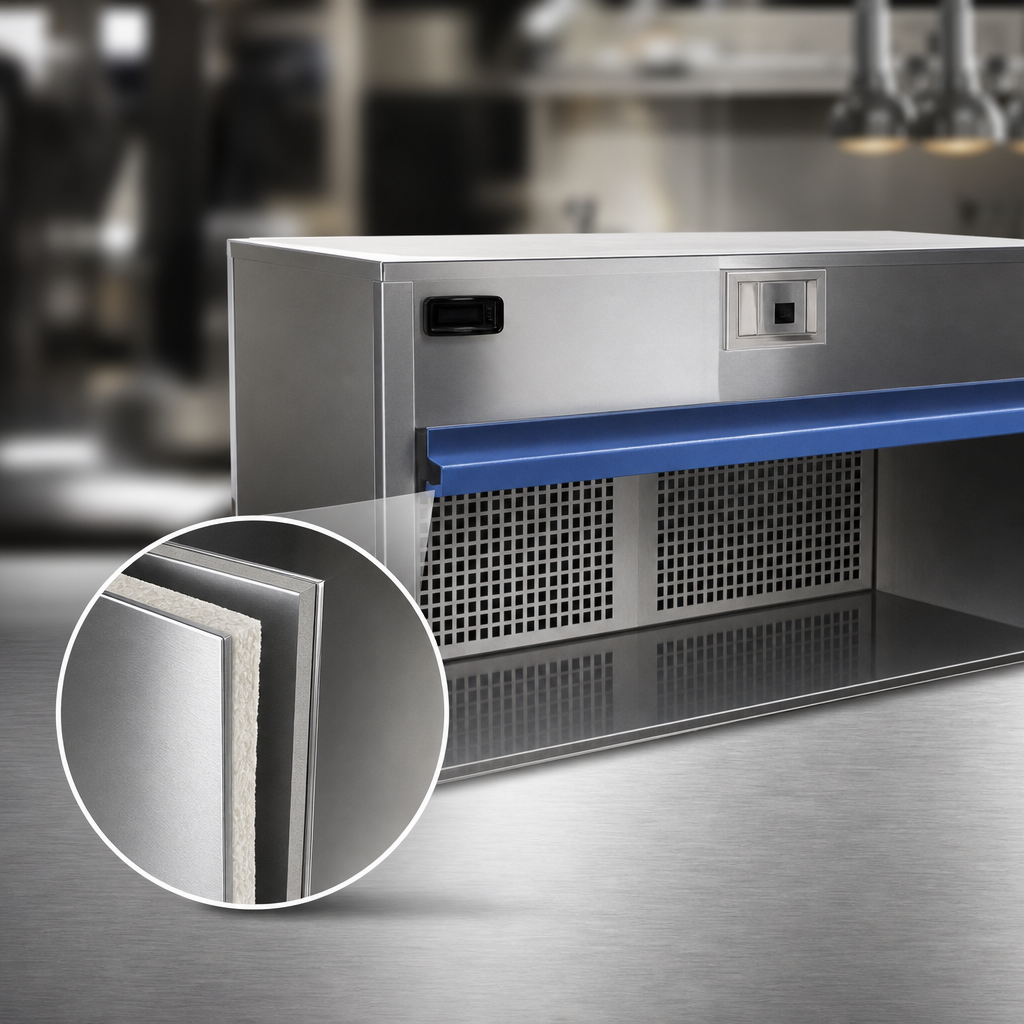

- Double-wall stainless cabinet – 20 ga polished exterior & 16 ga base stand up to the busiest kitchens and wipe clean easily.
- Blue flip-up door – powder-coated aluminum door lifts into a recessed track for unobstructed plate access and features a built-in menu card holder.
- Removable grease filters – two-piece, pull-out filters protect internal components and are dishwasher-safe for effortless maintenance.
- Simple, intuitive controls – recessed rocker switch with power light plus low-temperature indicator & auto-reset high-limit safety.

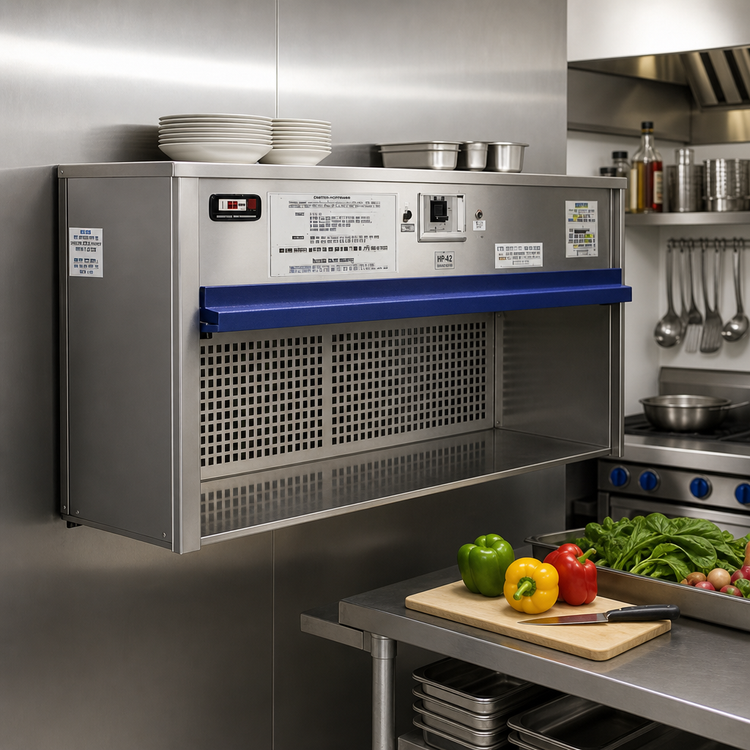

- Shelf-mount design – ships with mounting clips and hardware; perfect for installing above a grill or sauté line to free up valuable counter space.
Technical specifications
| Model | HP42 |
|---|---|
| Plate capacity * | 203 lb / 92 kg (varies with plate thickness) |
| Maximum plate size | 12 ¾ in Ø |
| Temperature range | 120 °F – 185 °F (factory-set 155 °F) |
| Inside (H × D × W) | 10 ¼ in × 14 in × 39 in 260 mm × 356 mm × 991 mm |
| Overall (H × D × W) | 22 in × 18 ½ in × 42 in 560 mm × 470 mm × 1067 mm |
| Electrical | 120 V / 60 Hz / 1-ph / 16 A / 1 920 W NEMA 5-20P, 6 ft cord (right-hand exit; left-hand optional) |
| Shipping weight | 232 lb / 105 kg |
| Certifications | cULus, NSF |
*Capacity is an approximation and will vary based on the thickness and stacking pattern of the plates.
Installation & clearances
- Mounting hardware for shelf installation included; minimum shelf load rating: 435 lb (197 kg).
- Allow room to flip the door upward into its recessed track for full plate access.
- Connect to a dedicated 20 A, 120 V circuit to ensure proper operation.
Care & maintenance
- Pull out grease filters daily and wash by hand or in a commercial dishwasher.
- Wipe stainless surfaces with a soft cloth and non-abrasive cleaner.
- Inspect power cord periodically; do not operate if damaged.
