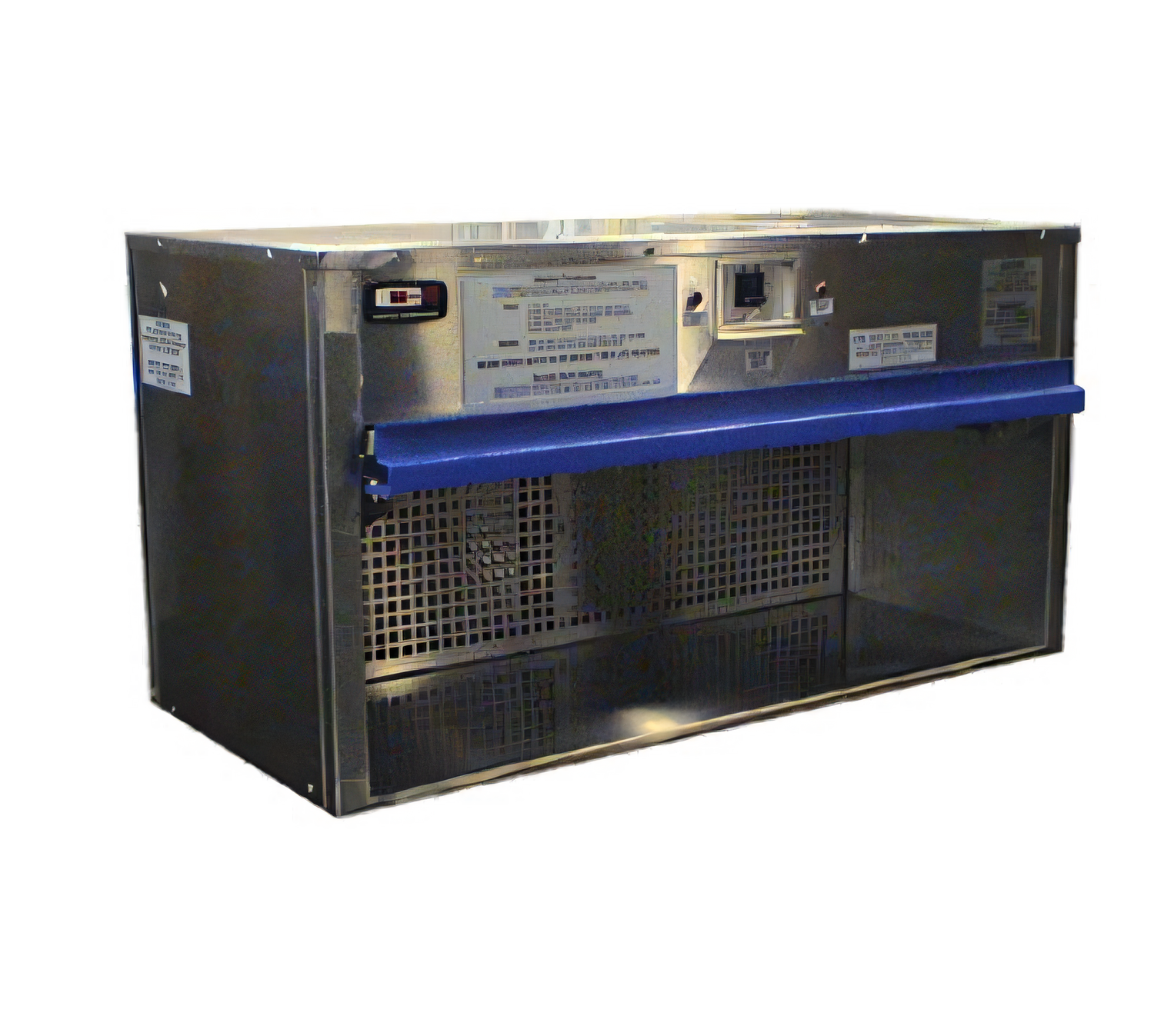

Carter-Hoffmann HP40 Shelf Mounted Heated Plate Warmer, 40-Inch Wide, 193-Lb Capacity

For Plates Up to 12-3/4 Inches, 120°F to 185°F, Flip-Up Door

Keep plates ready at serving temperature with a shelf-mounted warmer that holds up to 193 lb. of dishes and delivers fast, even convection heat.

  • Shelf-mounted design includes stationary clips and hardware for field installation.
  • Holds up to 193 lb. of plates and accommodates plates up to 12-3/4 inches in diameter.
  • Factory preset to 155°F with a 120°F to 185°F operating temperature range.
  • Stainless steel cabinet with a blue powder-coated aluminum flip-up door and menu card holder.
  • Removable two-piece grease filters are washable and dishwasher safe.
  • 120V electrical package includes a 6-foot cord and NEMA 5-20P plug.

Overall Dimensions:

40.0"W x 18.5"D x 22.0"H

Product Weight:

221.0 lb

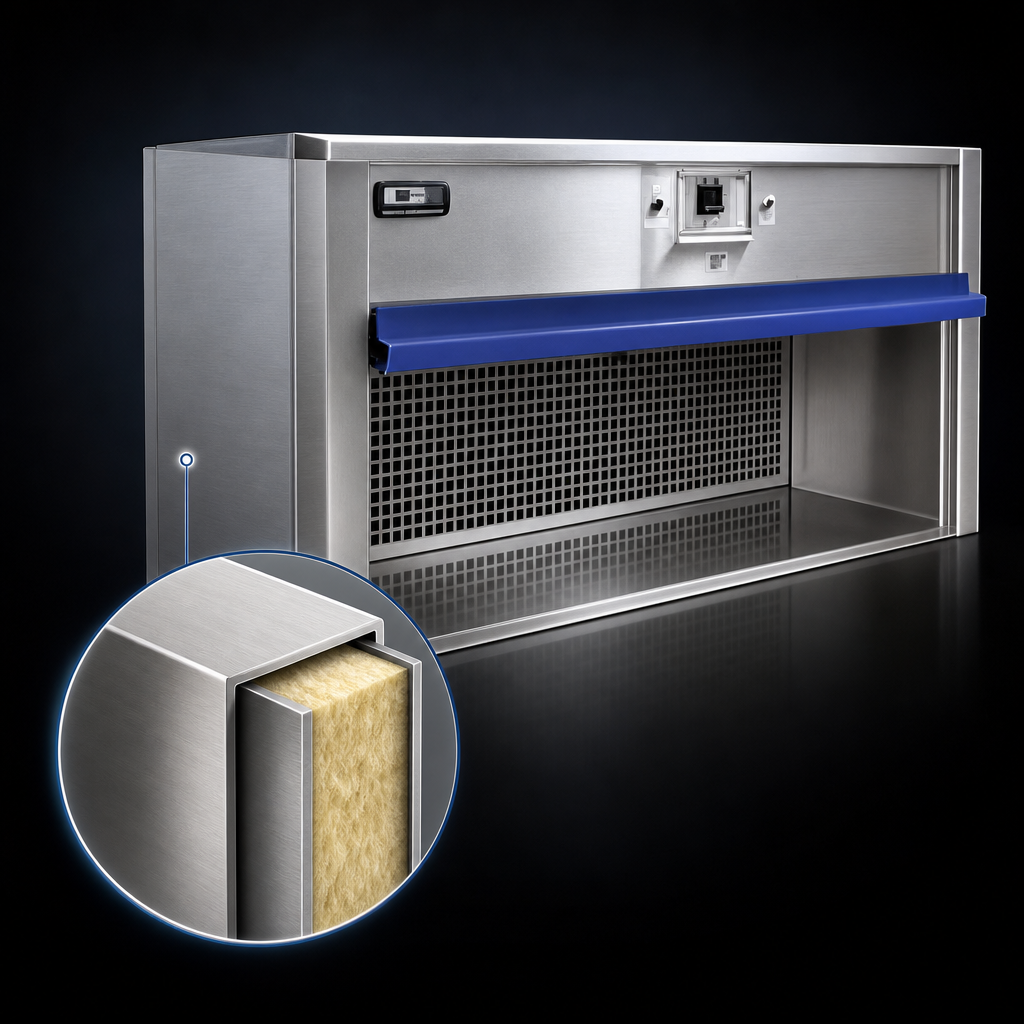

Double-Wall Stainless Steel Construction

Completely welded cabinet construction with high-density fiberglass insulation for durability and heat retention.

Shelf Mounting Provisions

Stationary clips and hardware are provided for shelf mounting in the field; HP40 requires a minimum shelf load of 415 lb.

Top-Mounted Convection Heating

Blower-assisted heating system provides fast heat-up, quick recovery, and even heat distribution throughout the cabinet.

Flip-Up Door with Menu Card Holder

Blue powder-coated aluminum door opens upward into a recessed track for easy plate access and includes a built-in menu card holder.

Removable Washable Grease Filters

Two-piece pull-out grease filters help protect the heating components and can be washed by hand or in a dishwasher.

Simple Control Package

Recessed on/off switch, power-on light, and low-temperature indicator light support easy operation and monitoring.

120-Volt Electrical Package

Operates on 120 volts, 60 Hz, single-phase power with 1920 watts, 16 amps, a 6-foot cord, and a NEMA 5-20P plug.

Type Heated Plate Warmer
Style Shelf Mounted
Capacity 193 Pounds
Controls On/Off Switch
Temperature Range 120°F to 185°F
Material Stainless Steel
Color Blue
Finish Powder Coated
Voltage 120 Volts
Amps 16 Amps
Watts 1.92 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 6 Feet
Shipping Width 40 Inches
Shipping Depth 19 Inches
Shipping Height 22 Inches
Shipping Weight 221 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Terms & conditions PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It accommodates plates up to 12-3/4 inches in diameter.
The unit holds up to 193 lb. of plates, depending on plate thickness and total plate weight.
It operates on 120 volts, 60 Hz, single-phase power, draws 16 amps, and includes a 6-foot cord with a NEMA 5-20P plug.
Stationary clips and mounting hardware are provided for shelf installation in the field.
Yes. The two-piece grease filters are removable, washable, and dishwasher safe.
