Carter-Hoffmann (Middleby) HL9-5 hotLOGIX Heated Cabinets & Holding Shelves

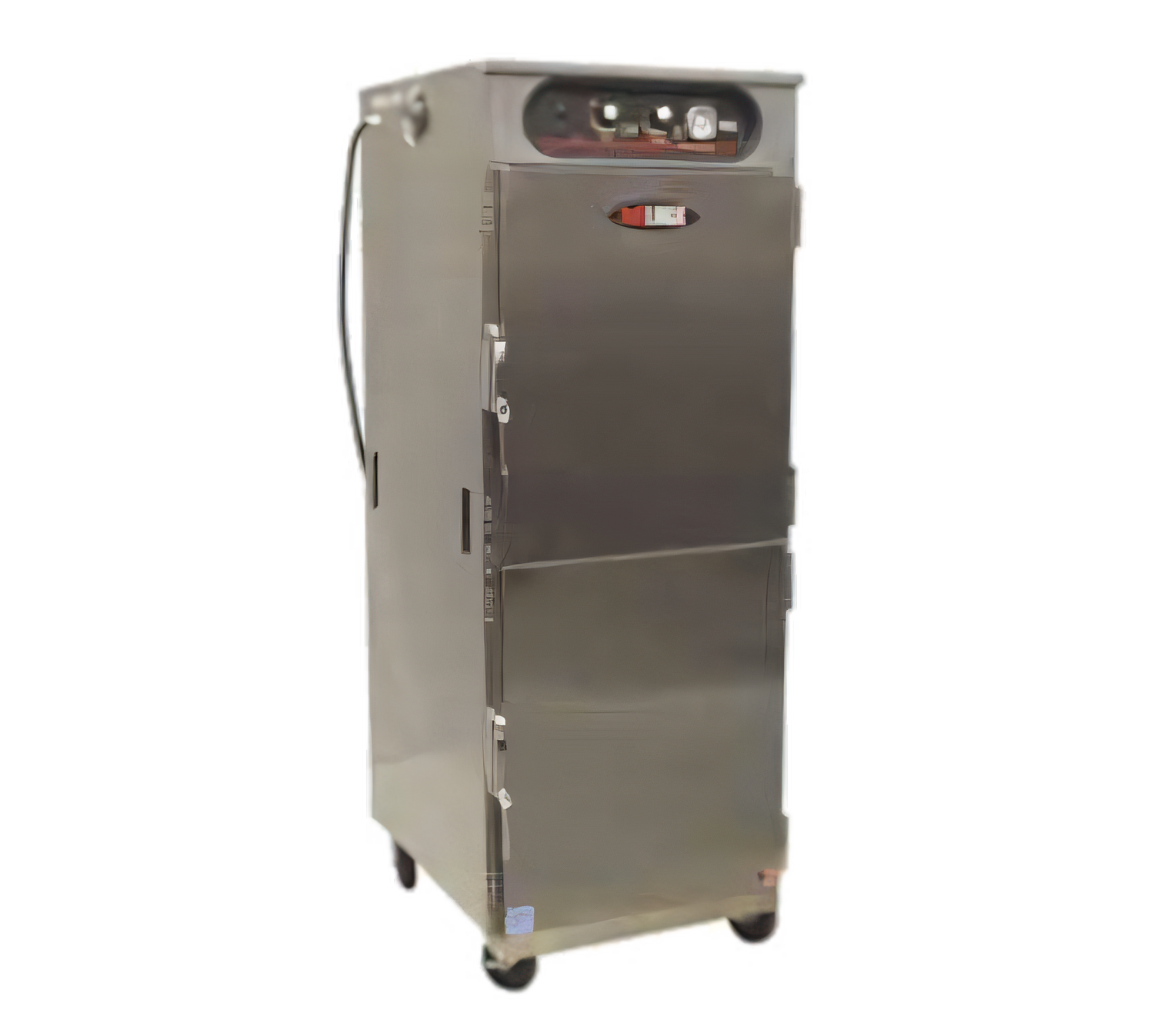

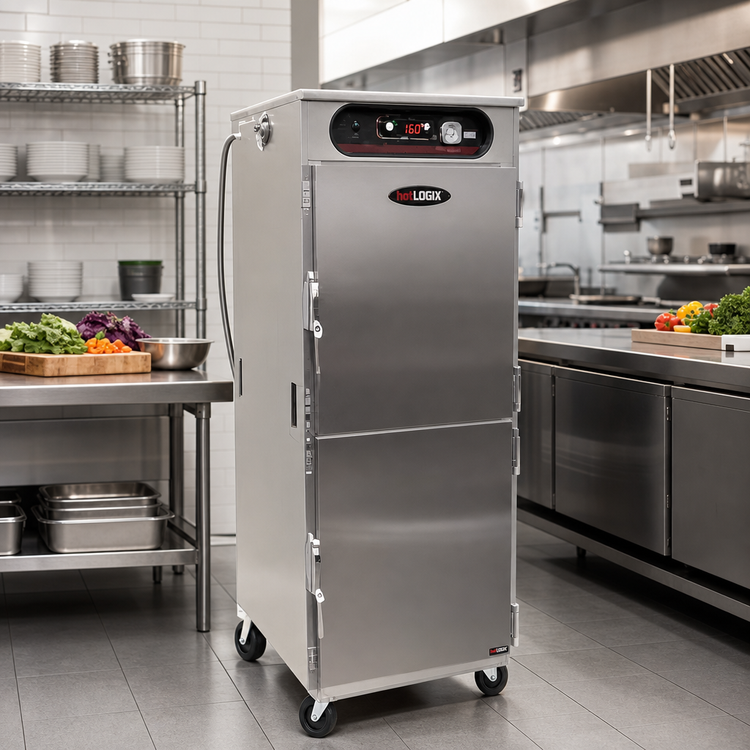

Carter-Hoffmann hotLOGIX HL9-5 Humidified Undercounter Holding Cabinet

Keep entrées, sides and baked goods tasting “just-made” long after the cook cycle ends. The hotLOGIX HL9-5 slides neatly under a counter yet delivers the same precise heat and humidity control as full-size cabinets—so every plate leaves the pass hot, fresh and food-safe.

Top Benefits

• Active humidification—maintains up to 90 % humidity and 200 °F (93 °C) for maximum hold time.
• Rapid 25-minute pre-heat to 160 °F (71 °C) with a 1 000 W forced-air heater.

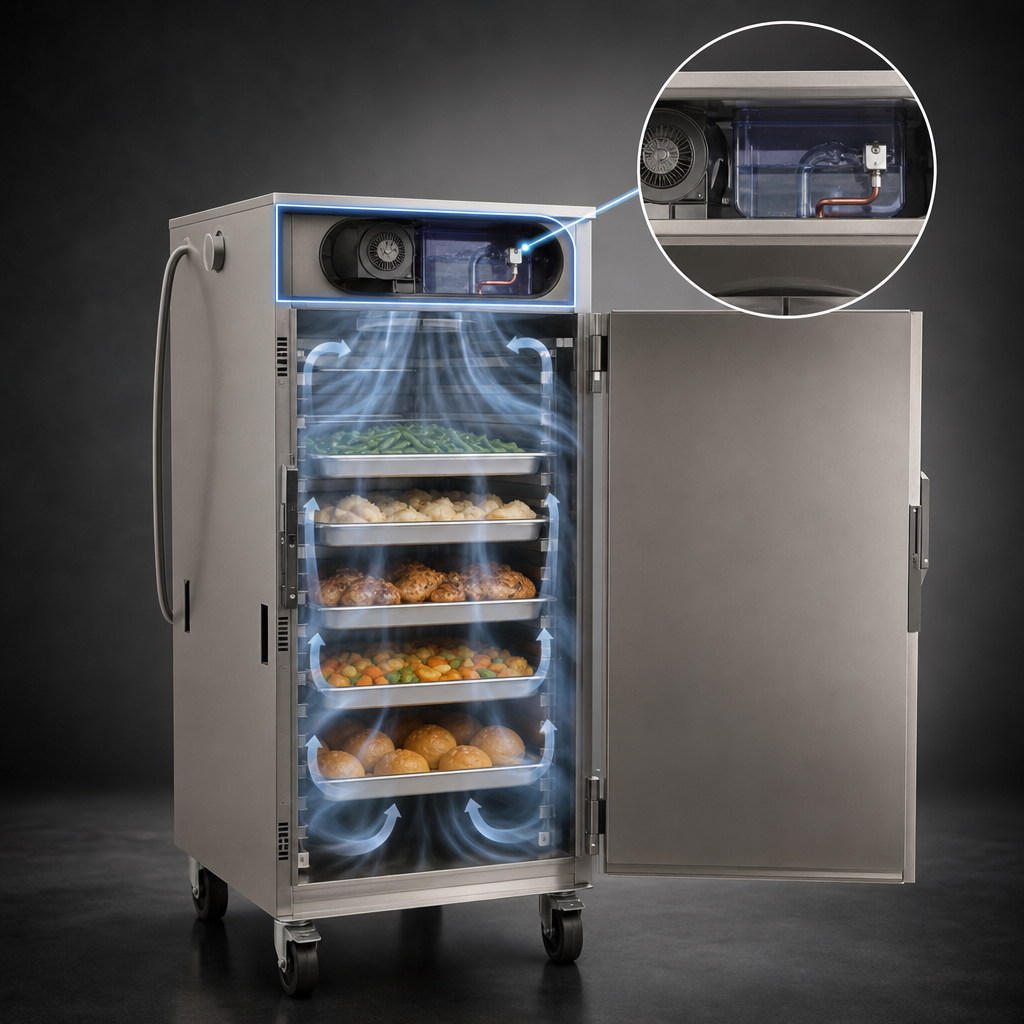

• Separate 1 000 W water reservoir is top-mounted for easy filling and cleaning.

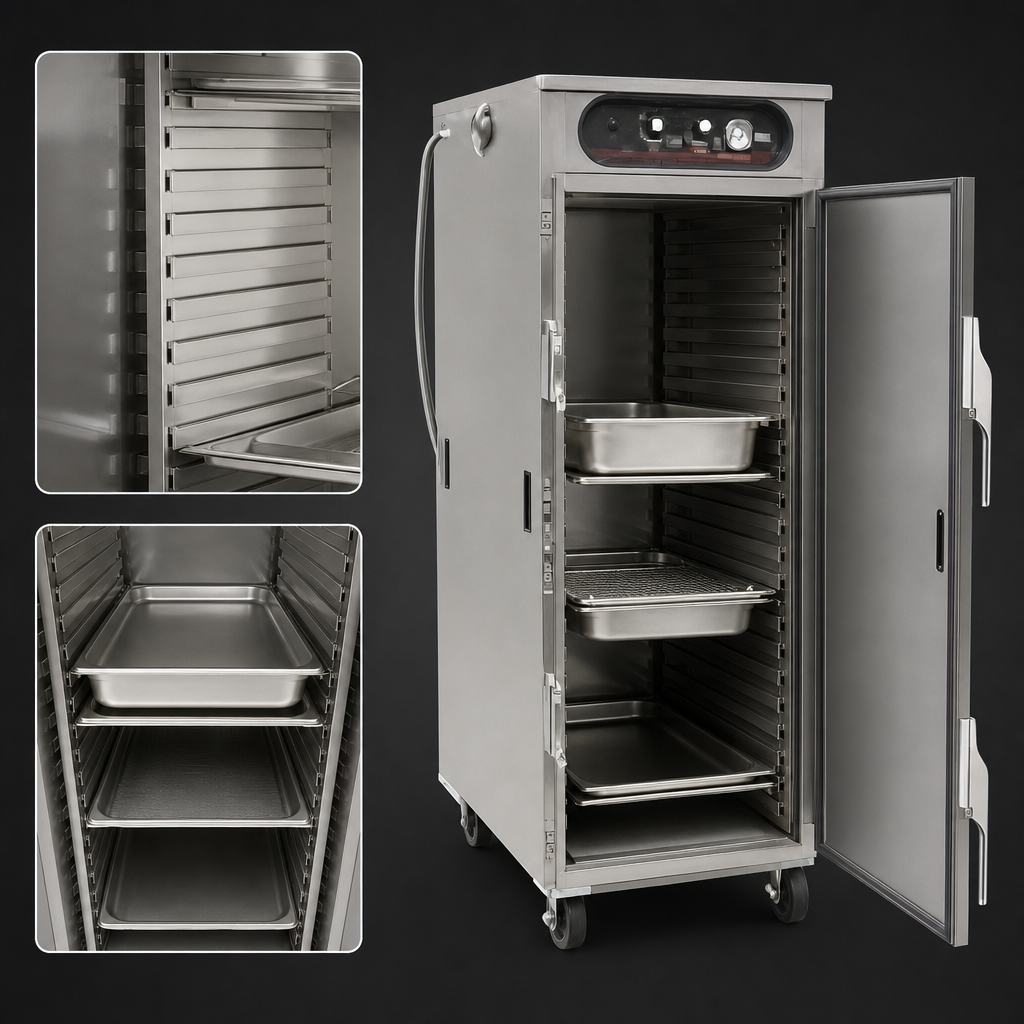

• Universal slides (adjustable on 1.5" centers) accept:
  • (10) 12" × 20" steam-table pans
  • (5) 18" × 26" sheet pans
  • GN 2/1 or 1/2 pans
• Field-reversible, double-panel solid door with heavy-duty latch and high-temp magnetic gasket.
• Sturdy 18 ga stainless interior & 20 ga polished exterior, wrapped in 2" high-density insulation.
• 3" all-swivel casters (2 locking) and full-depth welded caster bolster for rock-solid mobility.
• Low-water indicator light protects the element and signals staff before humidity drops.
• Backed by a 3-year parts & labor warranty and certified cULus, UL EPH & CE.

Engineered for Demanding Kitchens

• Precision side-wall ducting delivers even air flow to every pan position.
• Remote-bulb dial thermometer shows true cabinet temperature at a glance.
• Single 10-ft power cord with NEMA 5-20P—no hard wiring required.

At-a-Glance Specs

Looking for additional capacity? Half, three-quarter and full-height HL9 models are also available.
