Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL9-18

Carter-Hoffmann (Middleby) HL9-18 hotLOGIX Heated Cabinets & Holding Shelves

$9,595.85
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Owner's manual Middleby financial flyer Terms & conditions
Related Searches
Carter-Hoffmann (Middleby) Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

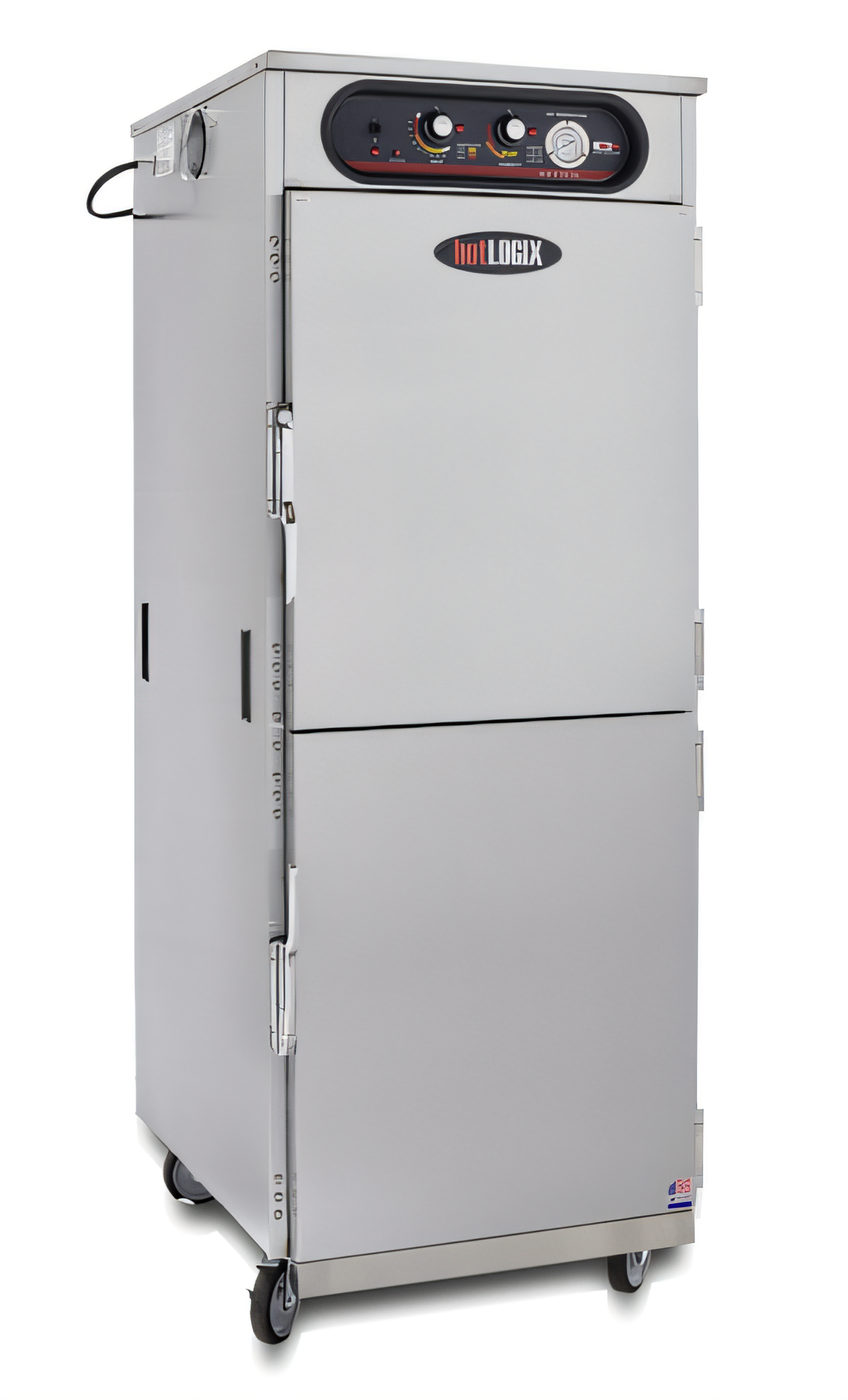

Carter-Hoffmann hotLOGIX HL9-18 Humidified Holding Cabinet

Full-height • Insulated Stainless Steel • 120 V Plug-and-Play

Hold pasta, burgers, vegetables, baked goods—anything that needs to stay hot and moist—at their just-cooked best. The hotLOGIX HL9-18 couples gentle forced-air heat with active humidity so you can prep ahead, serve faster and cut food waste.

Key Features & Benefits

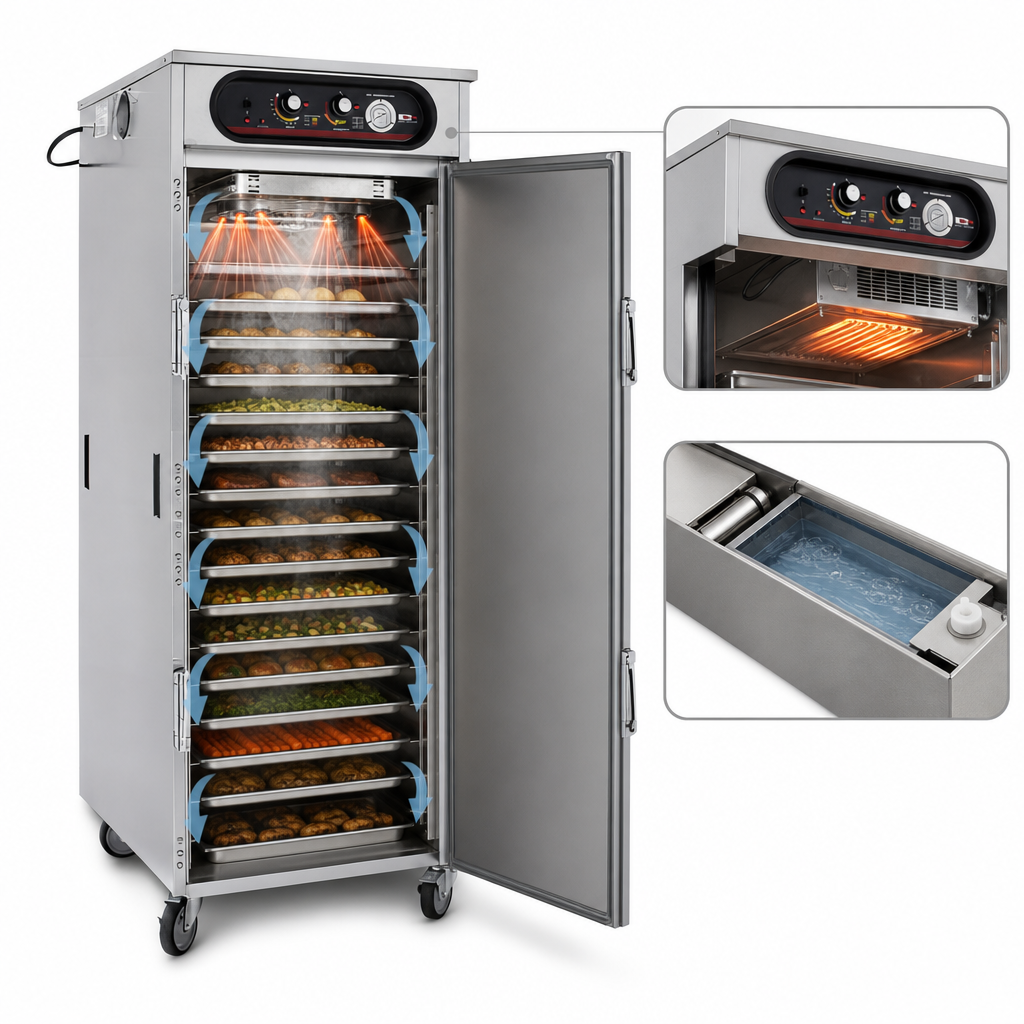

  • Top-mounted forced-air heater (1 kW) + water reservoir (1 kW) reach 200 °F / 90 % RH for premium quality holding.

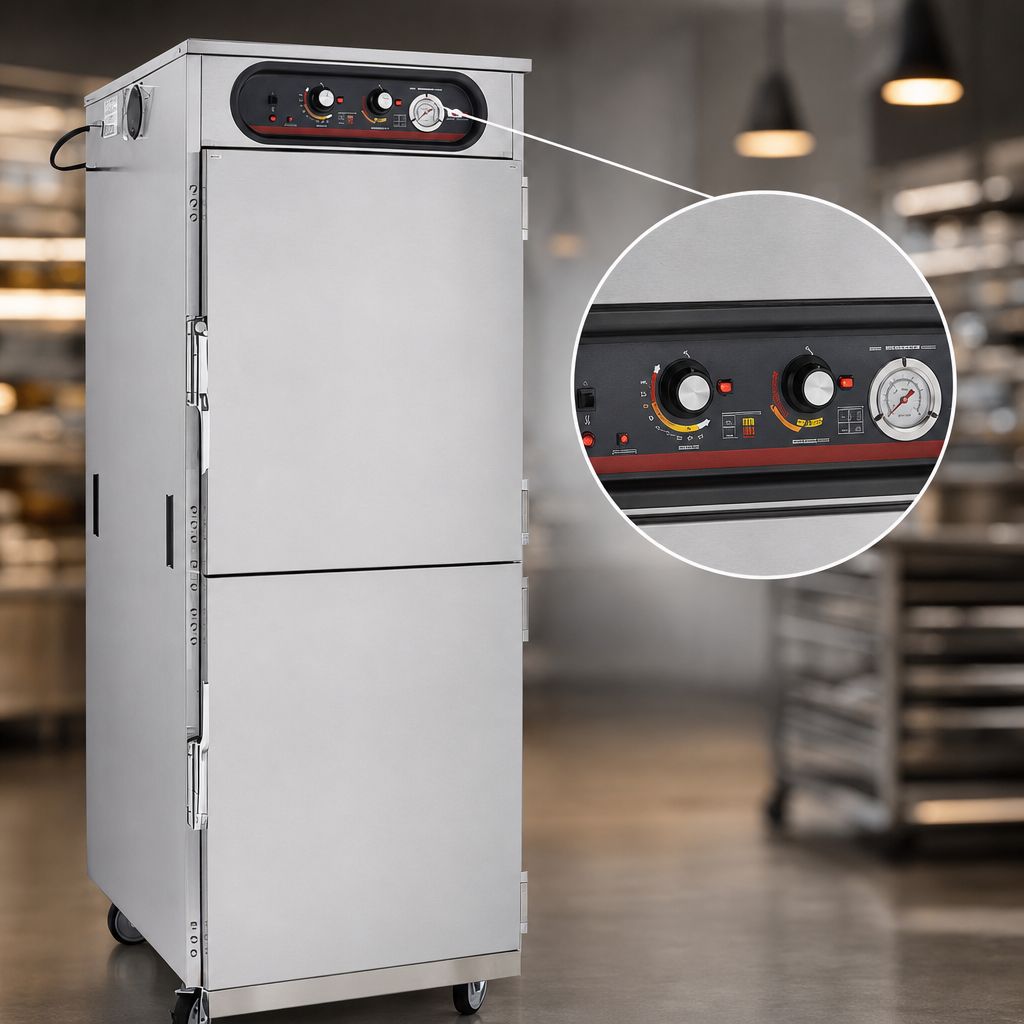

  • Simple mechanical dial controls and dial thermometer—reliable, intuitive, no complicated electronics.

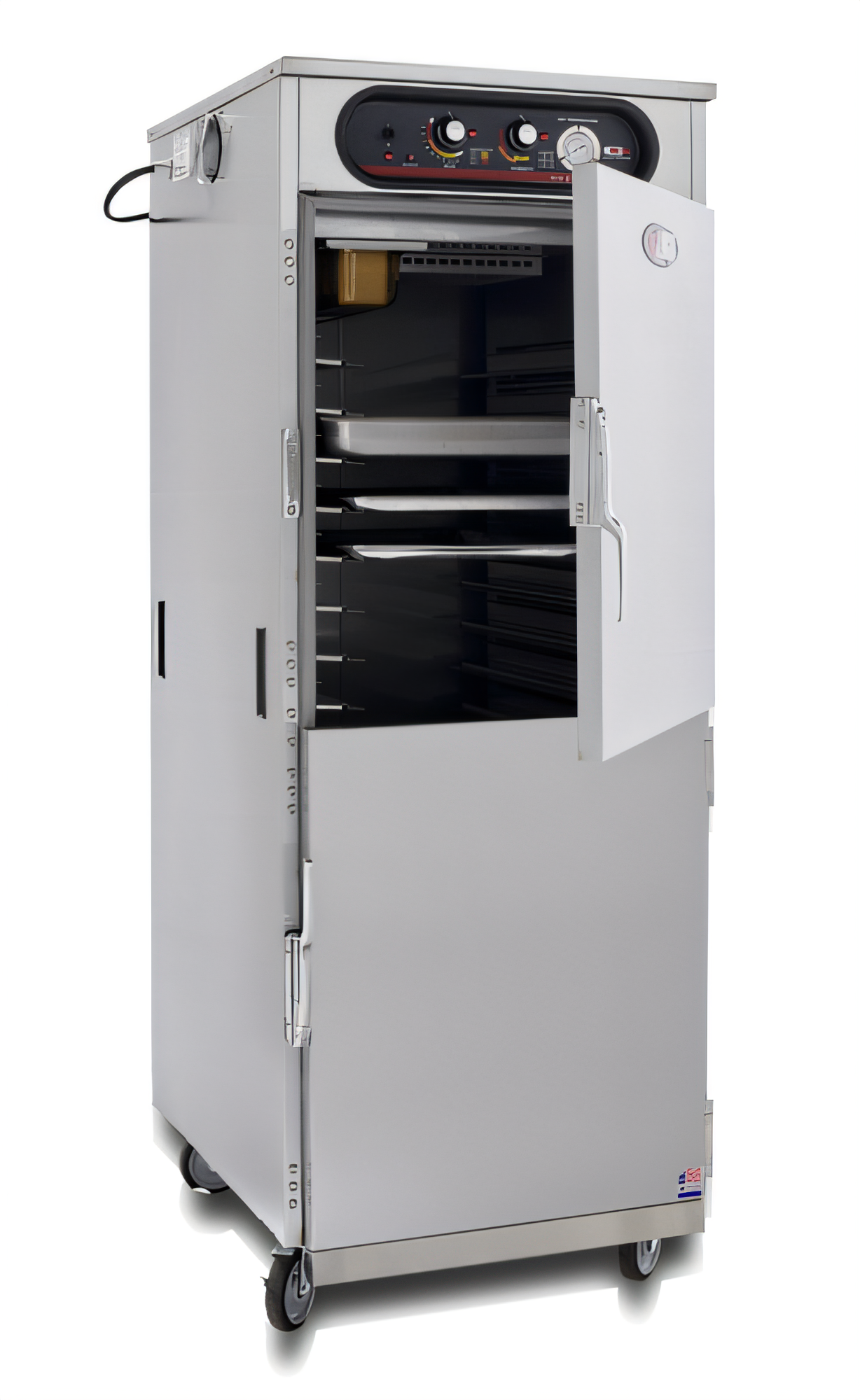

  • Universal slide racks accept 36 × 12" × 20" pans or 18 × 18" × 26" sheet pans; slides adjust on 1.5" centers.
  • All-stainless-steel, double-wall cabinet with 2" high-density insulation—energy-efficient and kitchen-tough.
  • Field-reversible solid door with magnetic latch and high-temp gasket keeps heat and humidity locked in.
  • Four 5" all-swivel casters (2 locking) provide smooth mobility and rock-solid parking.
  • 10-ft cord with NEMA 5-20P plug—no hard-wiring required.
  • Backed by a 3-year parts & labor warranty for worry-free ownership.
At-a-Glance Specifications
Model HL9-18 (full height)
Pan Capacity 36 × 12" × 20" pans • 18 × 18" × 26" sheet pans
Temperature Range Ambient to 200 °F (93 °C)
Humidity Up to 90 % RH (active, top-mounted reservoir with low-water light)
Exterior Dimensions 28" W × 33 1/16" D × 76 3/8" H (711 × 840 × 1940 mm)
Interior Working Height 57 1/2" (1461 mm)
Electrical 120 V, 60 Hz, 1 ph, 2100 W, 17.5 A • 10-ft cord, NEMA 5-20P
Construction 18 ga stainless interior / 20 ga polished stainless exterior, 2" fiberglass insulation
Door Single solid, double-panel, field-reversible with chrome latch & magnetic catch
Casters 4 × 5" rubber tread (all swivel, 2 with brakes)
Shipping Weight 485 lb (220 kg)
Certifications cULus • UL EPH • CE
Warranty 3 years parts & labor
Popular Accessories (Factory-Installed)
  • Dutch doors or pass-through configuration
  • Double-pane tempered glass door
  • Fixed-angle pan racks for 18" × 26" pans
  • Electronic control package
  • Auto-fill water connection
  • Menu card holder
Installation Note: Maintain a minimum 2" clearance from walls and 36" at the front for door swing. Unit must be placed on a solid, level, non-combustible floor.

Looking to spread out the cost? Ask about Middleby Equipment Financing for fast approvals and predictable monthly payments.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

CE, cULus, UL EPH

Height

76.38in

Width

28.0in

Depth

33.06in

Shipping Weight

495.0lbs

Door Type

solid

Door Style

full door(s)

Insulation

insulated

Full Size Hotel Pan Capacity

(36) 12" x 20" pans

Heater

top mounted

Height

73" - 78"

Exterior Finish

all stainless steel exterior

Full Size Sheet Pan Capacity

(18) 18" x 26" pans

Section

1 section

Half Size Sheet Pan Capacity

(36) 13" x 18" pans

Size

1 compartment

Slide Centers

adjustable on 3"

Specifications

hotLOGIX Humidified Holding Cabinet-HL9 Series, one compartment, full height, insulated, (36) 12" x 20" or (18) 18" x 26" pan capacity, universal slides, (1) solid field reversible door, mechanical controls, top-mount forced air heat with water reservoir, stainless steel construction, (4) 5" swivel casters (2 with brakes), cULus, UL EPH, CE
