Description

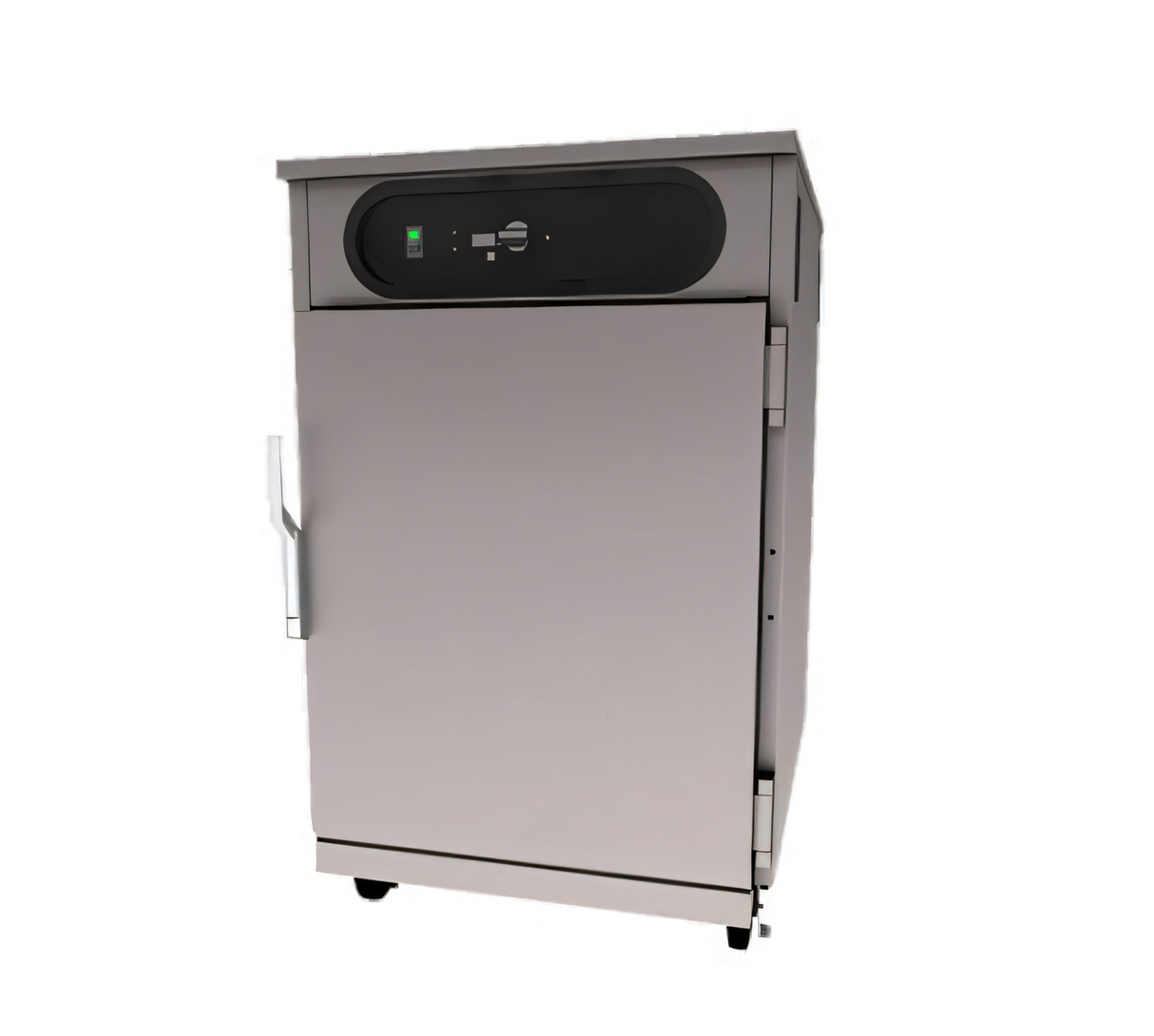

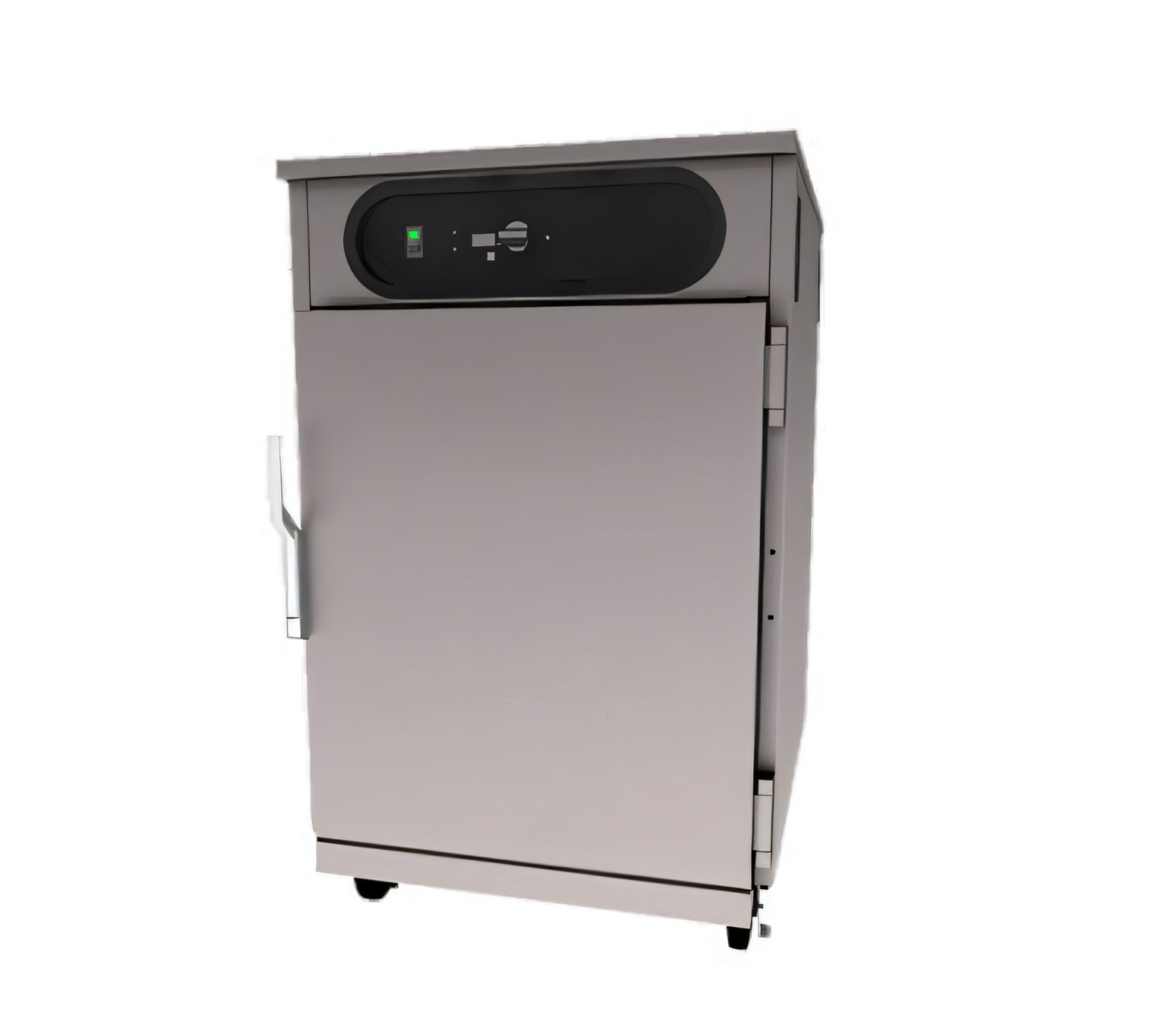

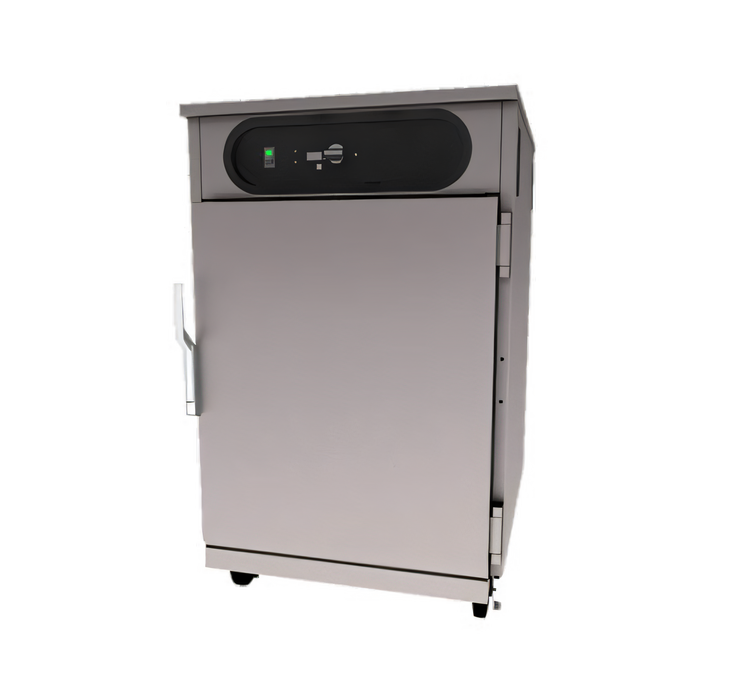

Carter-Hoffmann hotLOGIX HL8-8 Heated Holding Cabinet
½-Height • 16× 12" × 20" or 8× 18" × 26" Pan CapacityKeep finished dishes at precise serving temperature—without sacrificing texture or flavor. The HL8-8 combines Carter-Hoffmann’s legendary build quality with digital, forced-air heat for reliable “just-made” results in any busy kitchen, banqueting corridor, or grab-&-go line.
Key advantages

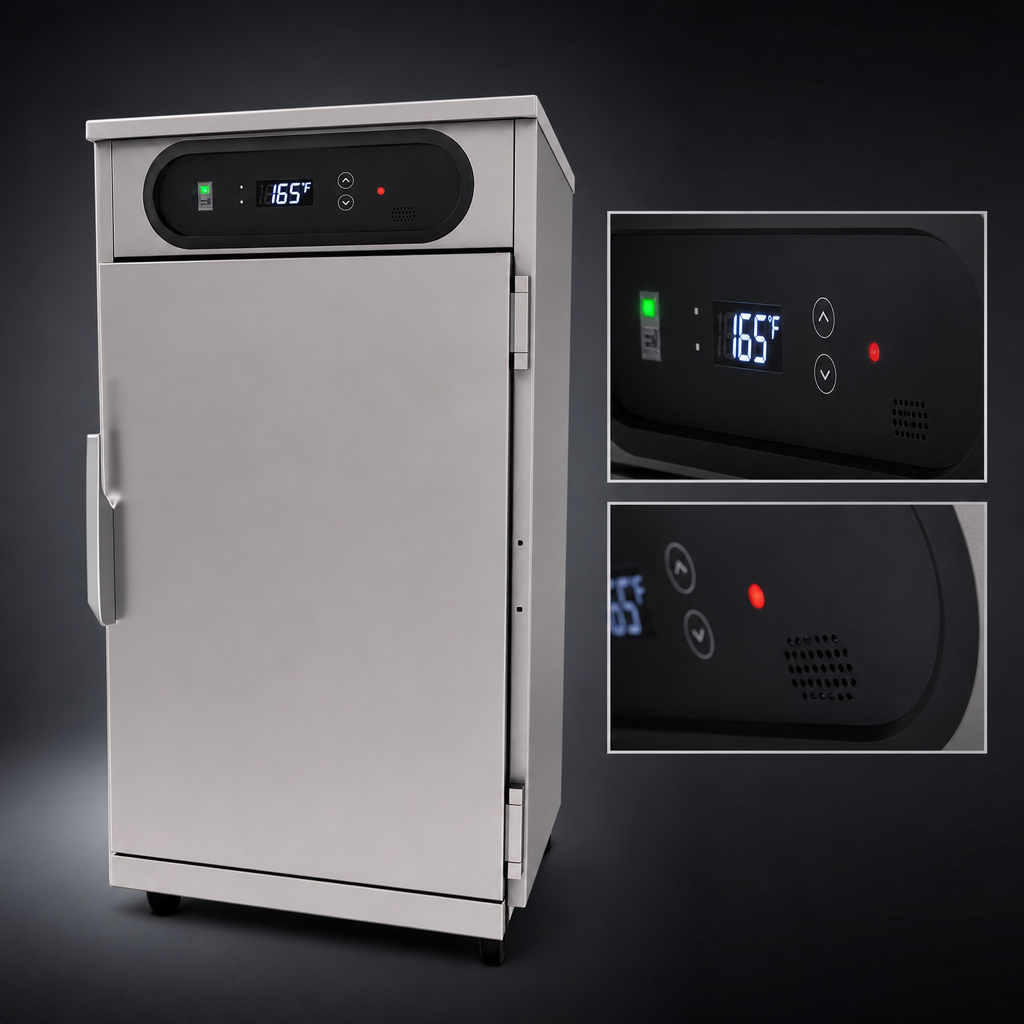

- Digital touchpad with actual-temperature read-out, low-temp alarm & sensor-fault alert

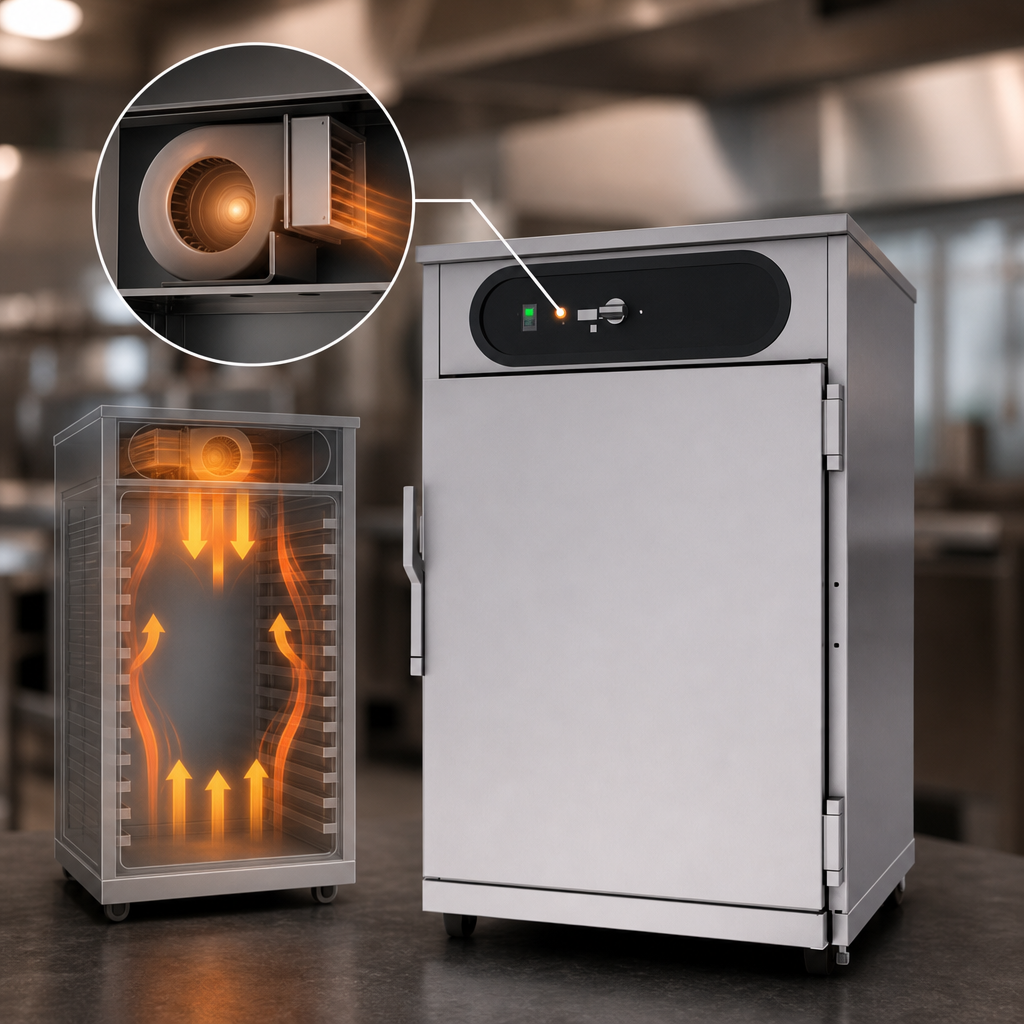

- Top-mounted forced-air heater reaches 200 °F (93 °C); pre-heats to 160 °F in ≈25 min
- Universal stainless slides—standard 3" spacing, adjustable on 1.5" centers
- Heavy-duty, field-reversible solid door with chrome latch & high-temp magnetic gasket
- Double-wall 20 ga. stainless body packed with 2" high-density fiberglass insulation
- 5" all-swivel casters (2 locking) for smooth, stable mobility
- Single 120 V plug; energy draw just 1,150 W (9.2 A) for low operating costs
- cULus & UL EPH Classified for electrical & sanitation safety
- Backed by a 3-year parts & labor warranty
Capacity & performance
| Pan capacity | 16 × 12" × 20" steam-table pans 8 × 18" × 26" sheet pans |
|---|---|
| Temperature range | Ambient to 200 °F (93 °C) |
| Air distribution | Forced-air blower with side-wall ducting for even heat |
| Control system | Digital thermostat & thermometer with remote sensing bulb |
Construction details
| Exterior / interior | 20 ga. stainless steel, polished exterior |
|---|---|
| Insulation | 2" wrap-around high-density fiberglass |
| Door | Solid, double-panel, field-reversible |
| Slide type | Removable universal slides (stainless) |
| Casters | 5" all-swivel rubber tread (2 with brakes) |
| Overall dimensions | Width 28" (711 mm) • Depth 33 ¹⁄₁₆" (840 mm) • Height 45 ½" (1 156 mm) |
| Ship weight | ≈ 312 lb (141 kg) |
Electrical
| Voltage | 120 V / 60 Hz / 1-phase |
|---|---|
| Wattage & amps | 1,150 W • 9.2 A |
| Plug | NEMA 5-15P, 10 ft factory-installed cord |
Need pass-through, Dutch doors, glass doors or correctional-grade options? Carter-Hoffmann builds the HL8-8 to order—contact us for factory-configured upgrades.
