Description

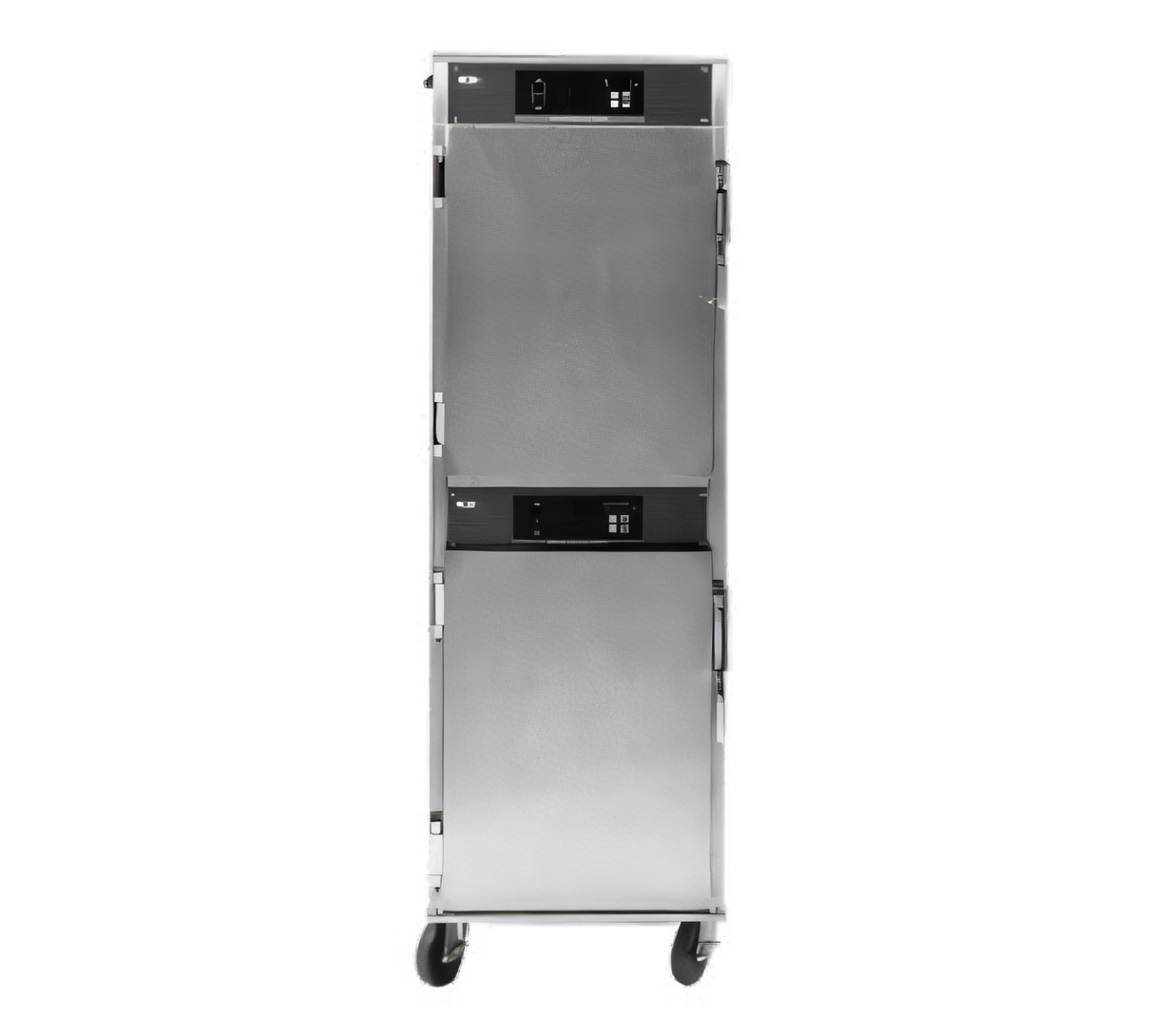

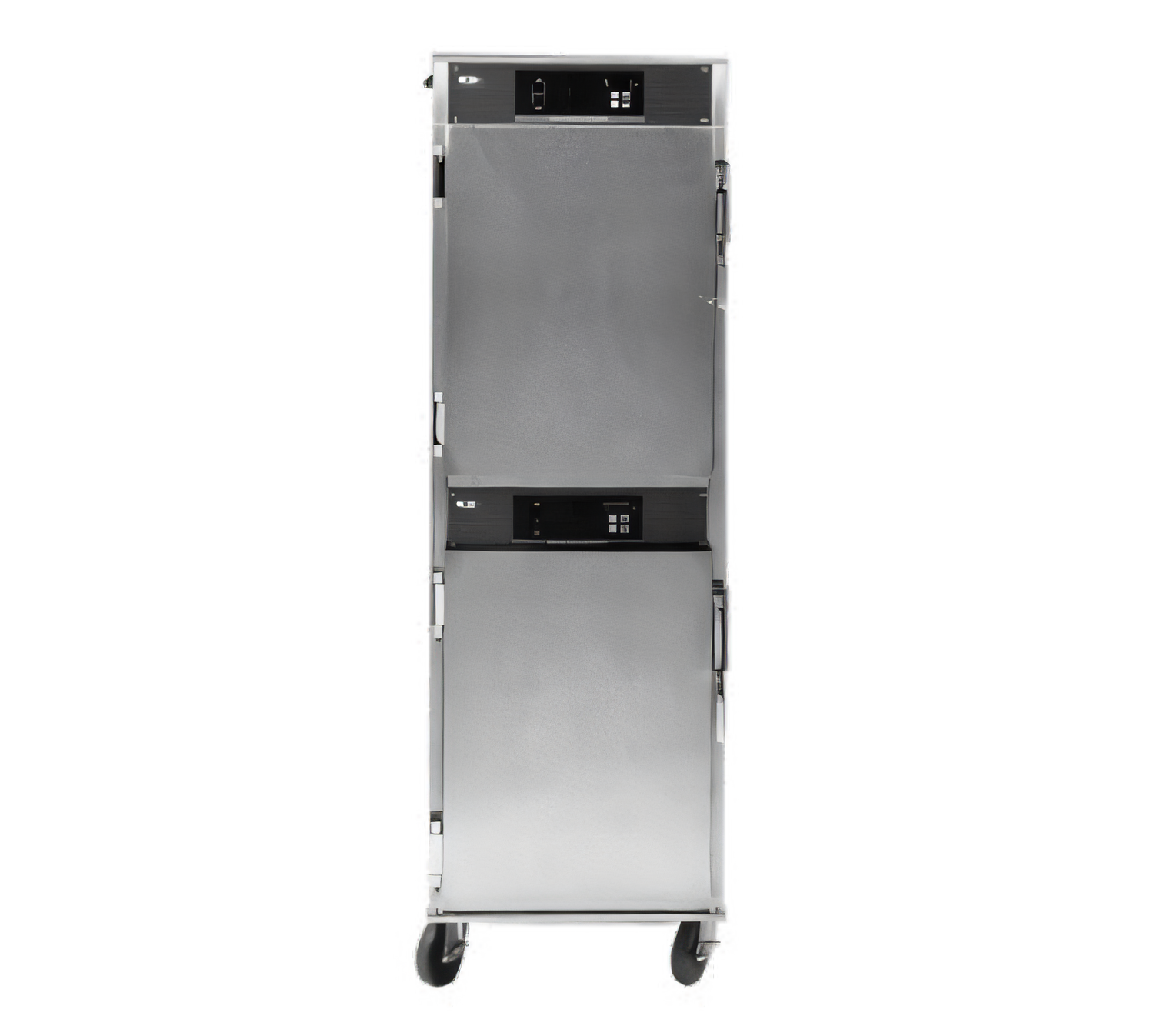

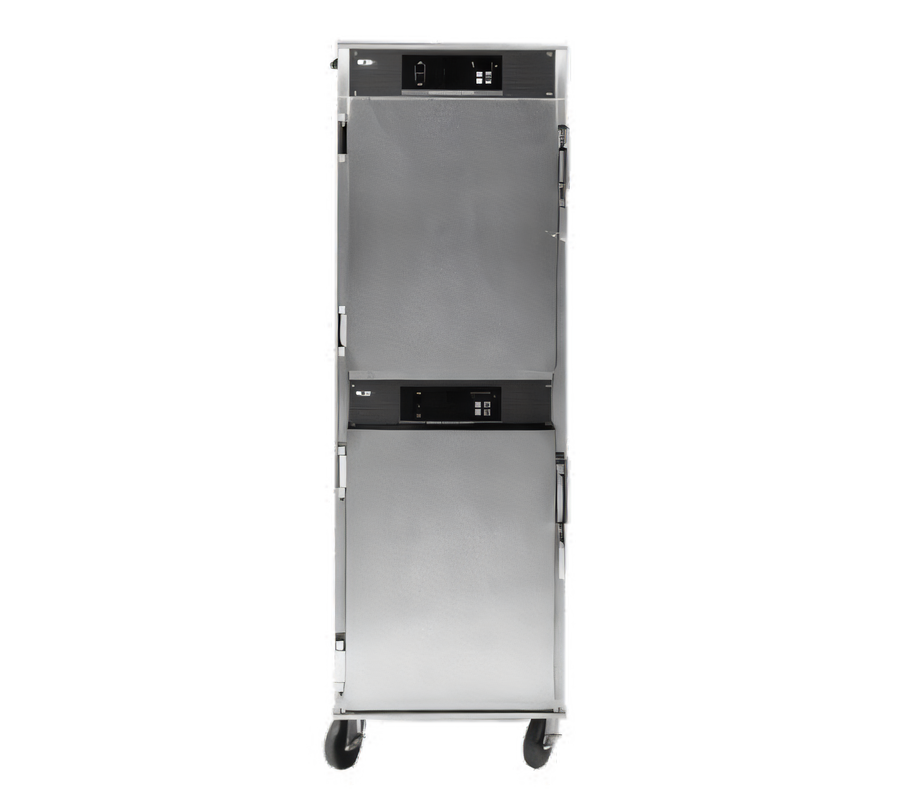

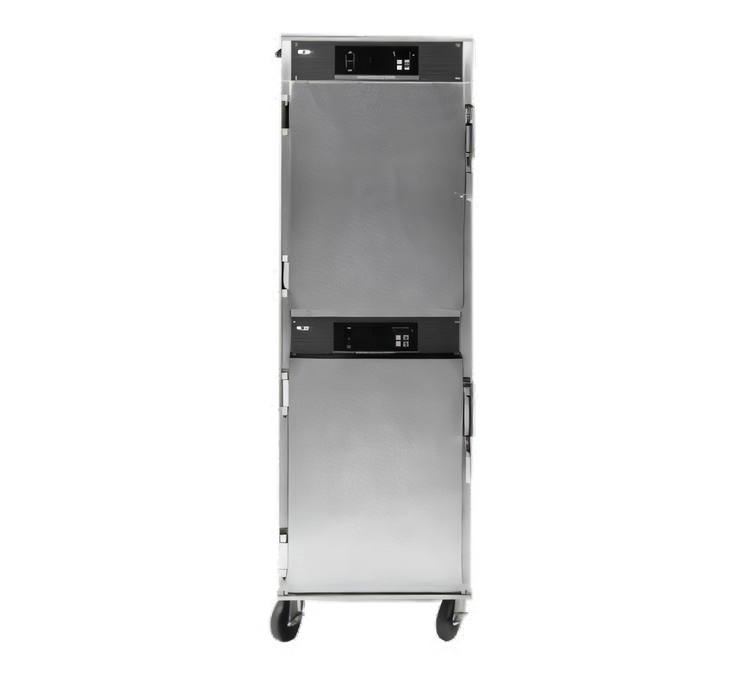

Carter-Hoffmann hotLOGIX HL8-1816 Heated Holding Cabinet

Dual-compartment • Full-height • 16-pan capacity

Give every plate “just-out-of-the-oven” appeal. The hotLOGIX HL8-1816 keeps cooked food hot, safe and service-ready for hours with independent, precision-controlled heat in each compartment — all in a rugged, mobile stainless-steel cabinet built for the demands of commercial kitchens.

Why you’ll love it

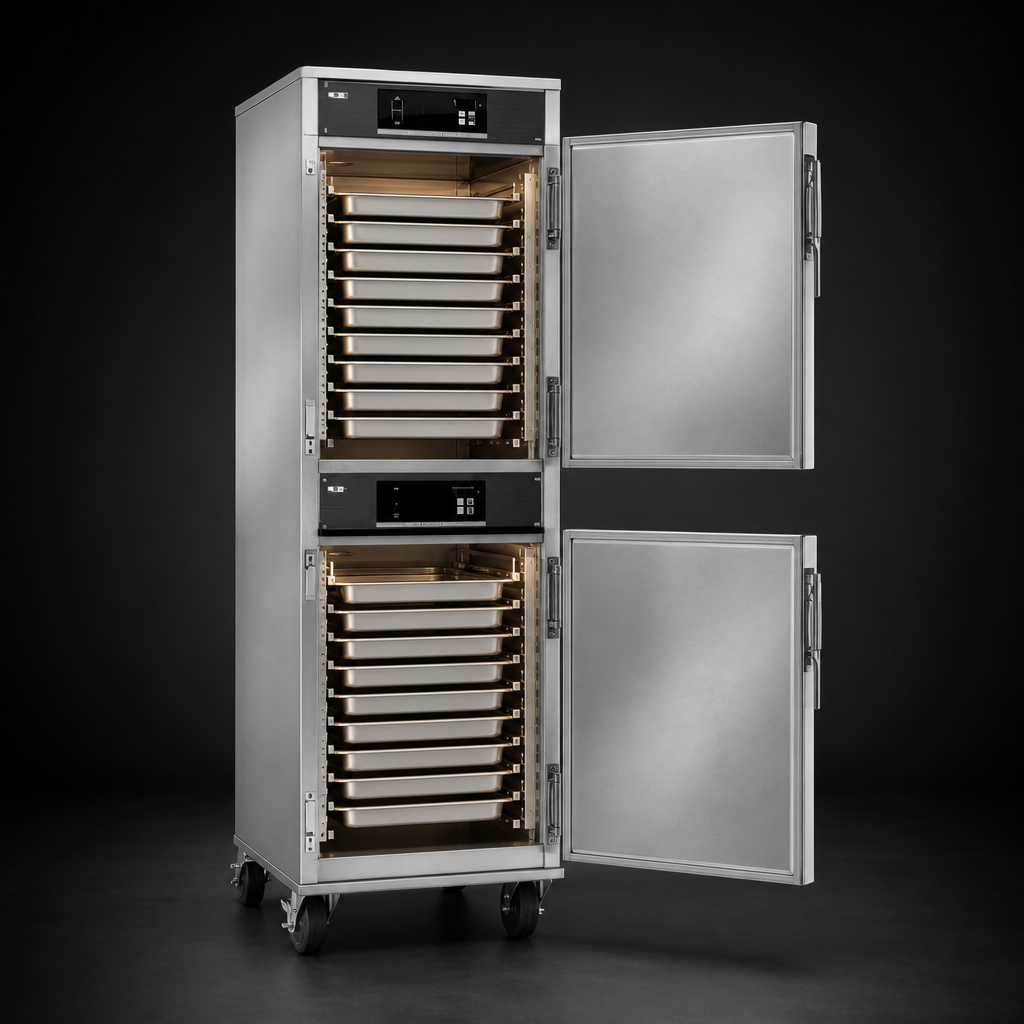

  • Two completely independent compartments with separate heaters & touch-pad controls
  • Fast top-mounted blower system pre-heats to 160 °F (71 °C) in ≈20 min; adjustable to 200 °F (93 °C)
  • Holds up to 16 full-size 18 × 26 in pans on fixed stainless angle slides spaced 2.75 in (70 mm)
  • Digital temperature display plus low-temperature sensor with warning light & audible alarm

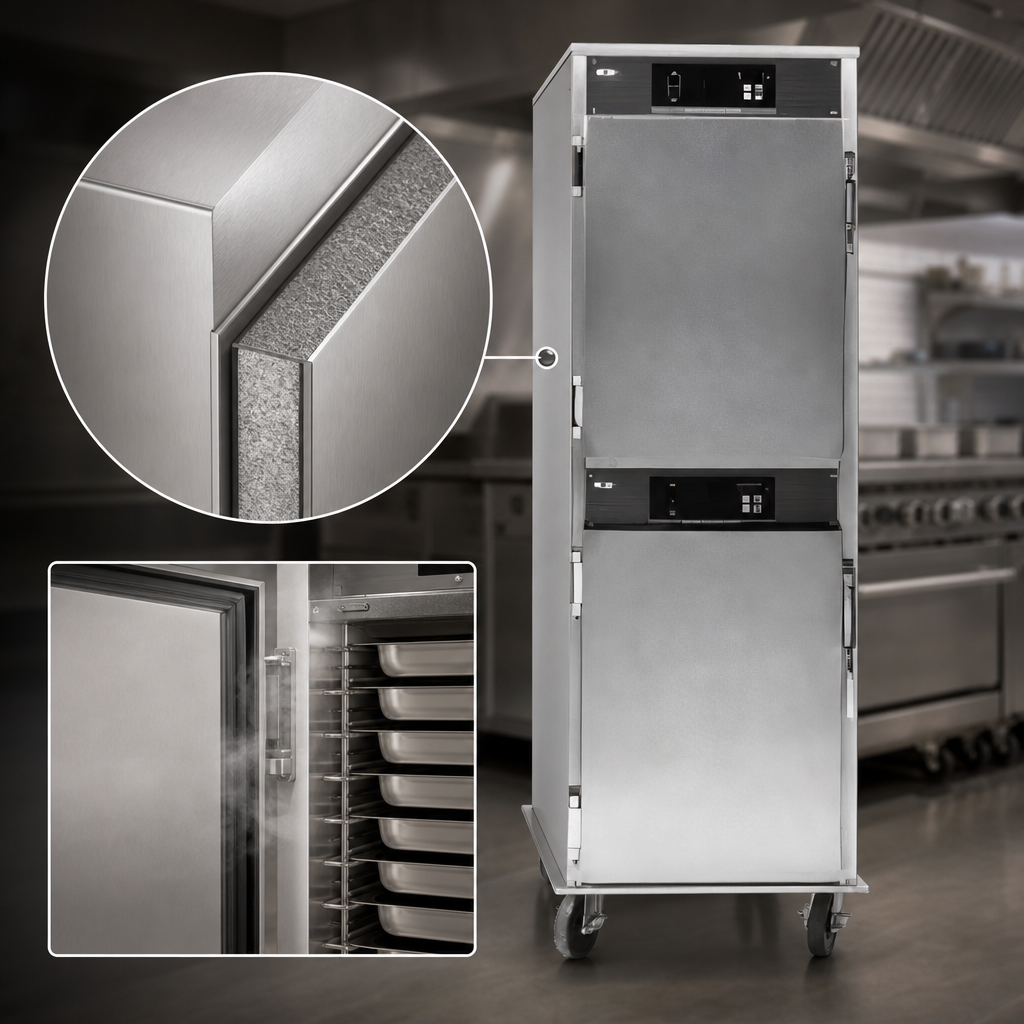

  • Double-wall, 1 in fiberglass insulation for excellent heat retention and energy savings
  • Field-reversible solid doors with heavy-duty chrome latches and magnetic catch
  • 5 in all-swivel rubber casters; front pair lock for rock-solid stability
  • Backed by a 3-year parts & labor warranty

Perfect for

High-volume restaurants, banquets, hospitals, schools, QSR chains, catering operations — anywhere you need to stage fried, roasted or baked items without compromising quality or crunch.

Technical specifications

Model HL8-1816 (dual compartment)
Pan capacity 16 sheet pans 18 × 26 in
Slide spacing 2.75 in (70 mm) fixed stainless angle slides
Temperature range Ambient to 200 °F (93 °C)
Heating system Top-mounted forced-air, 2 kW total
Controls Electronic touch-pad, digital display, low-temp alarm
Construction Stainless steel, double-wall with 1 in (25 mm) high-density fiberglass insulation
Doors 2 solid, field-reversible, insulated; chrome edge-mount latches
Overall dimensions (W × D × H) 23 ¼ × 36 ¾ × 72 ⅝ in (591 × 781 × 1 845 mm)
Electrical 120 V, 16.7 A, 60 Hz, 1 ph, 6 ft cord, NEMA 5-20P
Casters 5 in (127 mm) all-swivel rubber; 2 with brakes
Certifications cULus, UL EPH Classified
Warranty 3 years parts & labor
Installation clearance: Maintain at least 2 in (51 mm) from any wall or combustible surface and 36 in (914 mm) in front of the cabinet for safe door swing and service access.

Specifications are subject to change without notice.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cULus, UL EPH Classified

Height

72.63in

Width

23.25in

Depth

30.75in

Shipping Weight

430.0lbs

Door Style

dutch / split doors

Size

2 compartment

Section

1 section

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Exterior Finish

all stainless steel exterior

Door Type

solid

Heater

top mounted

Insulation

insulated

Height

67" - 72"

Slide Centers

adjustable on 2-3/4"

Specifications

hotLOGIX Holding Cabinet-HL8 Series, two compartment, full height, insulated, insulated, (16) 18" x 26" pan capacity, fixed pan slides on 2-3/4" centers, (1) solid field reversible door per compartment, electronic controls, top-mount forced air heating system, adjustable on 1-3/4" increments, stainless steel construction, 5"casters (2 with brakes), cULus, UL EPH Classified
