Description

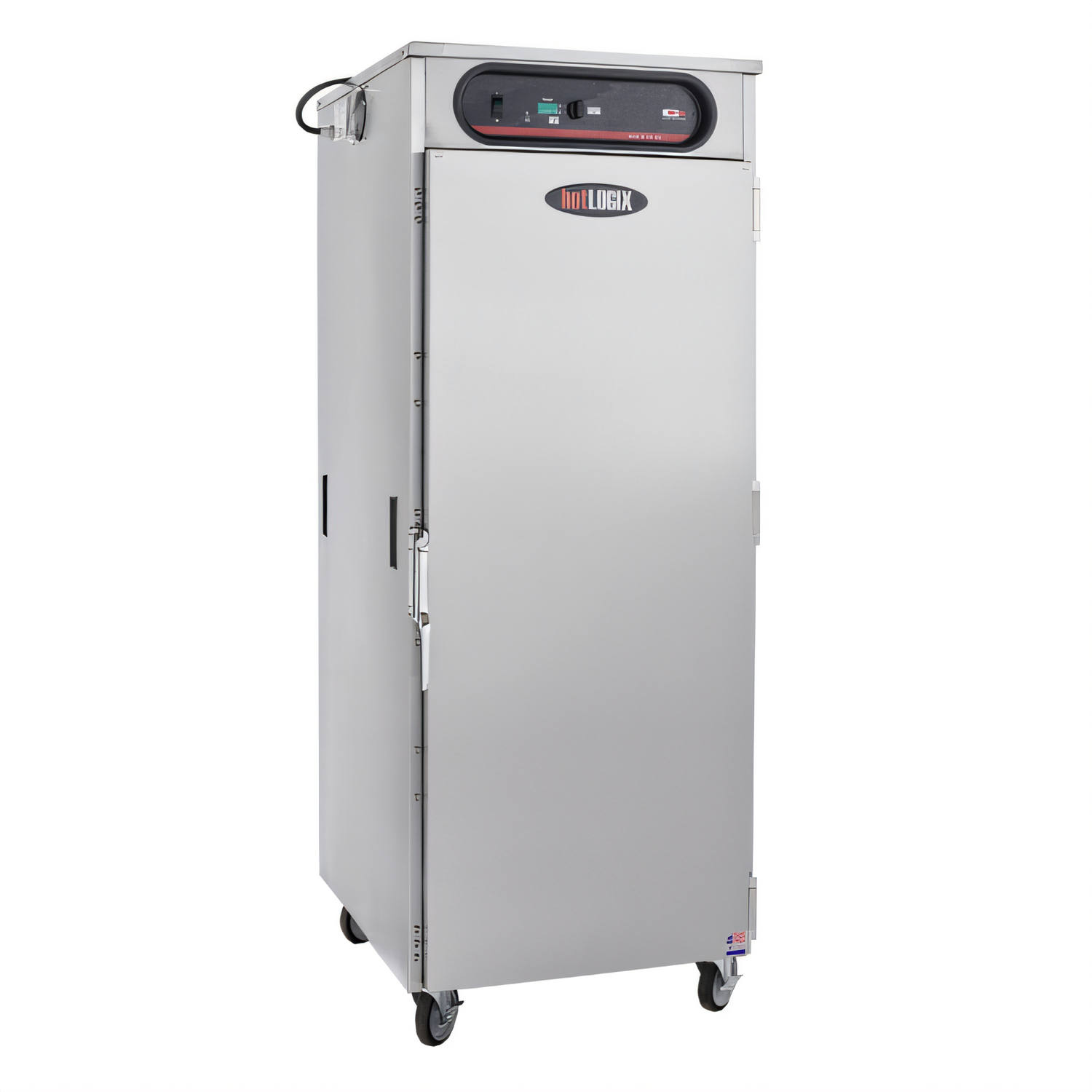

Carter-Hoffmann hotLOGIX HL8-18 Full-Height Heated Holding Cabinet
36 × 12" × 20" pans • 18 × 18" × 26" sheet pans • Digital controlsKeep cooked food hot, safe and “just-made” fresh during peak service times with the hotLOGIX HL8-18. This full-height, insulated holding cabinet pairs gentle, forced-air heat with rock-solid Carter-Hoffmann construction, giving busy kitchens reliable temperature control up to 200 °F (93 °C).
Why you’ll love it

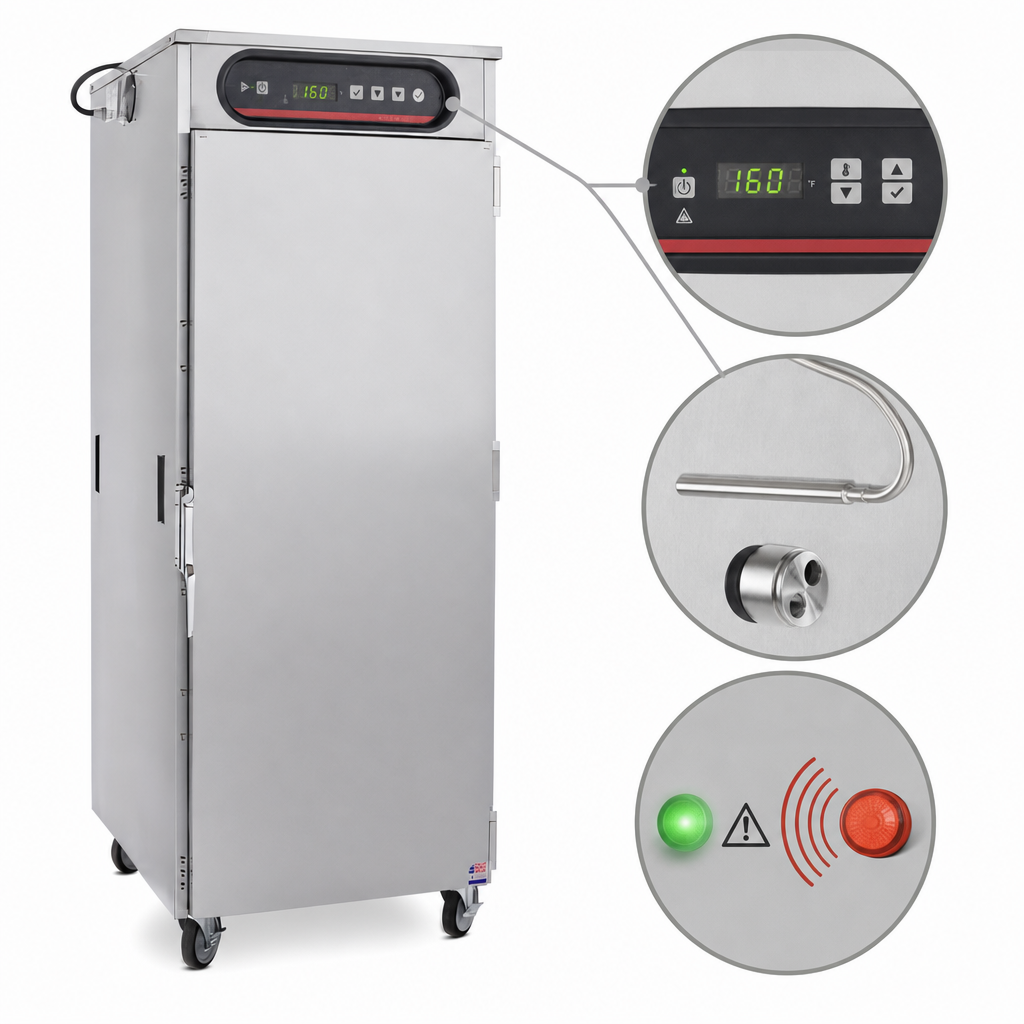

- Precise electronic control – digital touchpad shows actual cavity temperature & sounds an alarm if it drops.

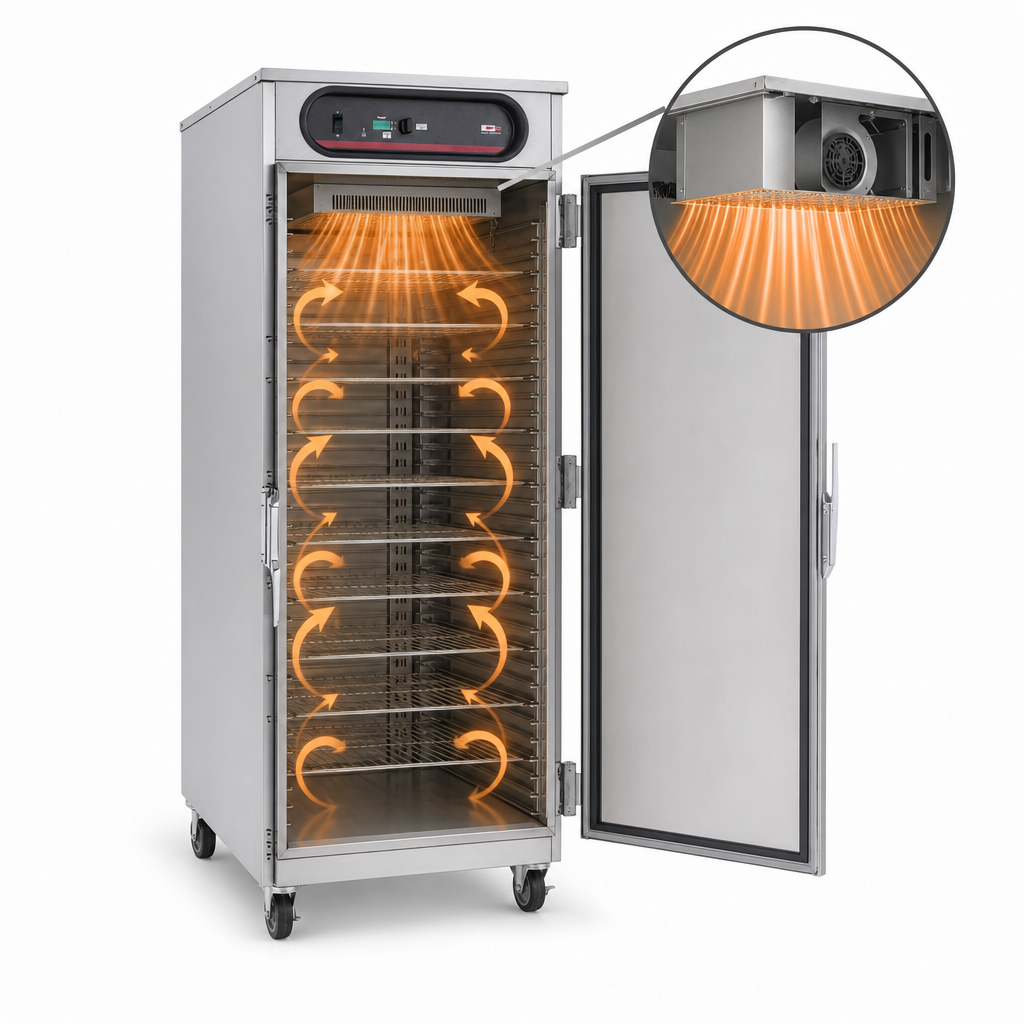

- Fast, even heat – top-mounted blower pre-heats to 160 °F in ≈25 min and circulates air evenly.

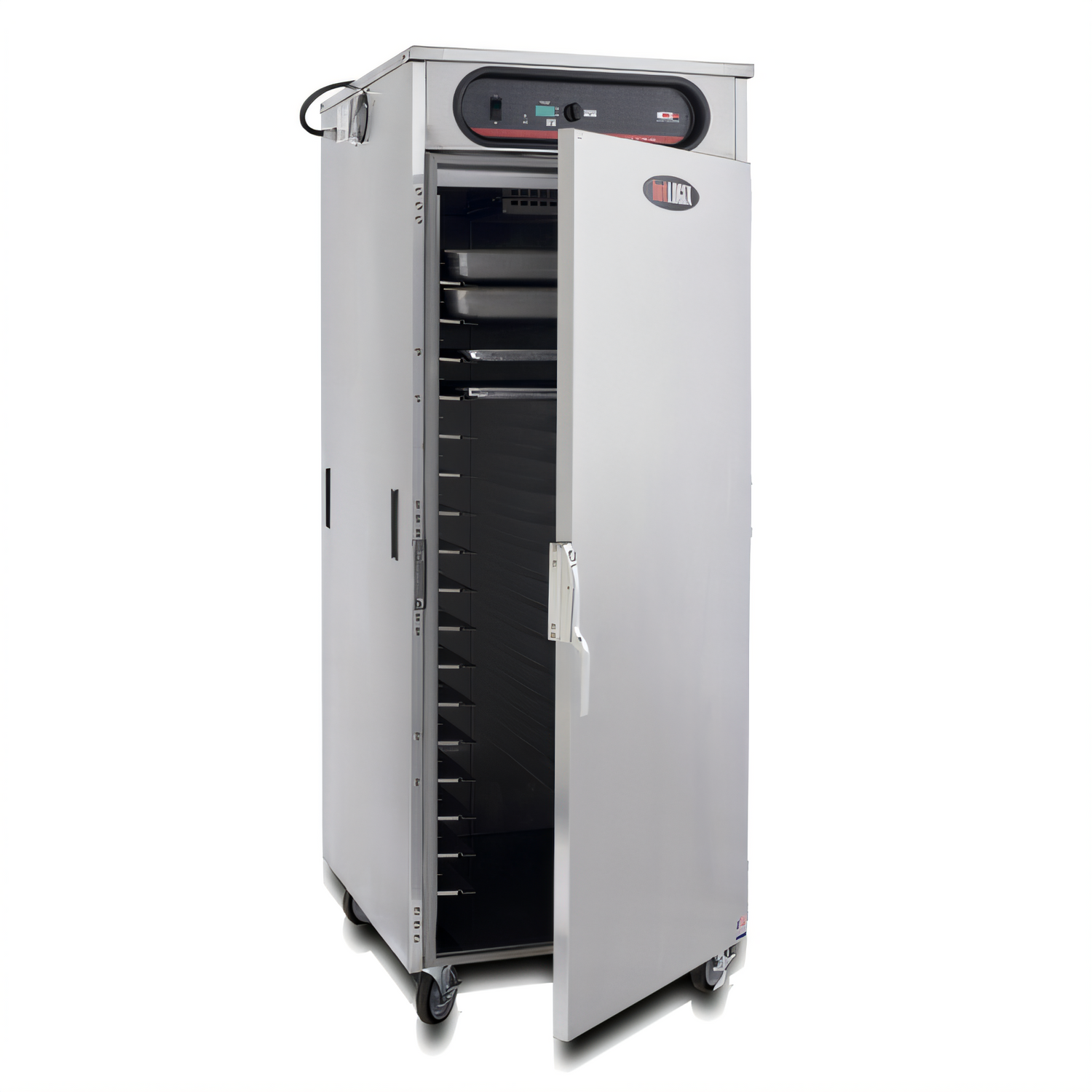

- Big capacity, flexible slides – removable universal slides hold 36 hotel pans or 18 sheet pans; slide spacing adjusts on 1.5" centers.
- Energy-saving insulation – double-wall, 20 ga stainless with 2" fiberglass keeps heat in and utility bills down.
- Field-reversible solid door with high-temp magnetic gasket & heavy-duty latch for a perfect seal.
- Kitchen-tough mobility – 5" all-swivel rubber casters (2 with brakes) and welded perimeter bolster.
- Plug-and-play – 120 V, single phase, 10' cord with NEMA 5-20P; no hard-wiring required.
- Peace of mind – cULus & UL EPH Classified, backed by a 3-year parts & labor warranty.
At-a-glance specs
| Model | HL8-18 (full height, one compartment) |
|---|---|
| Pan capacity | (36) 12" × 20" steam-table pans (18) 18" × 26" sheet pans |
| Temperature range | Ambient to 200 °F (93 °C) |
| Exterior dimensions | 28" W × 33 1⁄16" D × 76 3⁄8" H (711 × 840 × 1940 mm) |
| Interior working height | 57 1⁄2" / 1461 mm |
| Construction | 20 ga stainless steel inside & out; 2" high-density fiberglass insulation |
| Door | Solid, double-panel, field-reversible with chrome edge-mounted latch |
| Controls | Digital touchpad, temperature display, low-temp sensor & audible alarm |
| Electrical | 120 V / 1-ph / 60 Hz, 2100 W, 17.5 A, NEMA 5-20P |
| Casters | (4) 5" all-swivel, 2 locking |
| Certifications | cULus, UL EPH Classified |
| Shipping weight | 485 lb / 220 kg |
| Warranty | 3 years parts & labor |
Allow at least 2" (51 mm) clearance from combustible walls and 36" (914 mm) in front of the door for safe operation.
Popular factory options
- Dutch doors (upper & lower) – suffix “-D”
- Pass-through configuration – suffix “-P”
- Double-pane tempered glass door – suffix “-G”
- Correctional package with tamper-resistant hardware
From banquets and QSRs to school cafeterias, the Carter-Hoffmann hotLOGIX HL8-18 safeguards your culinary creations until the very moment they reach the plate.
