Description

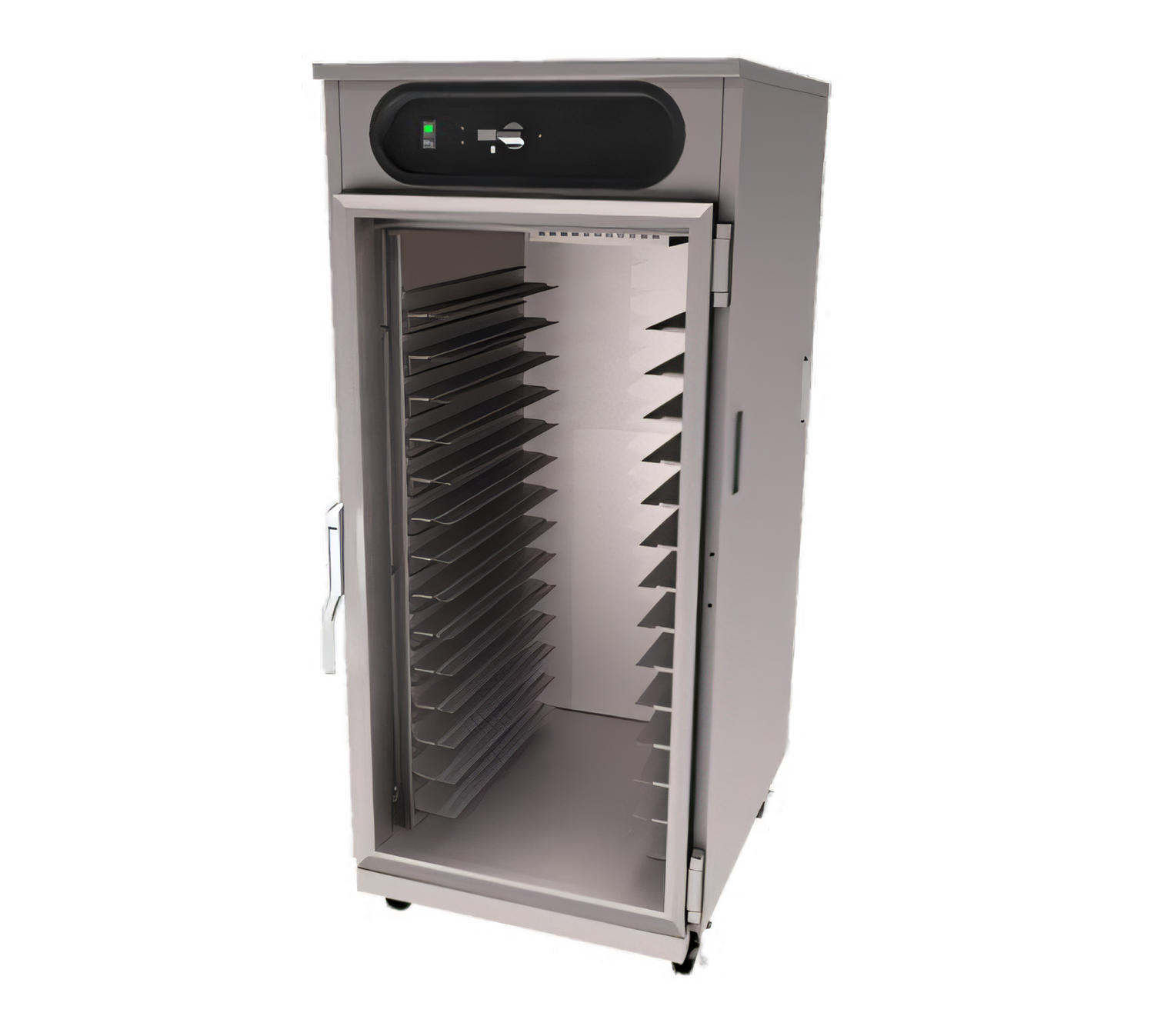

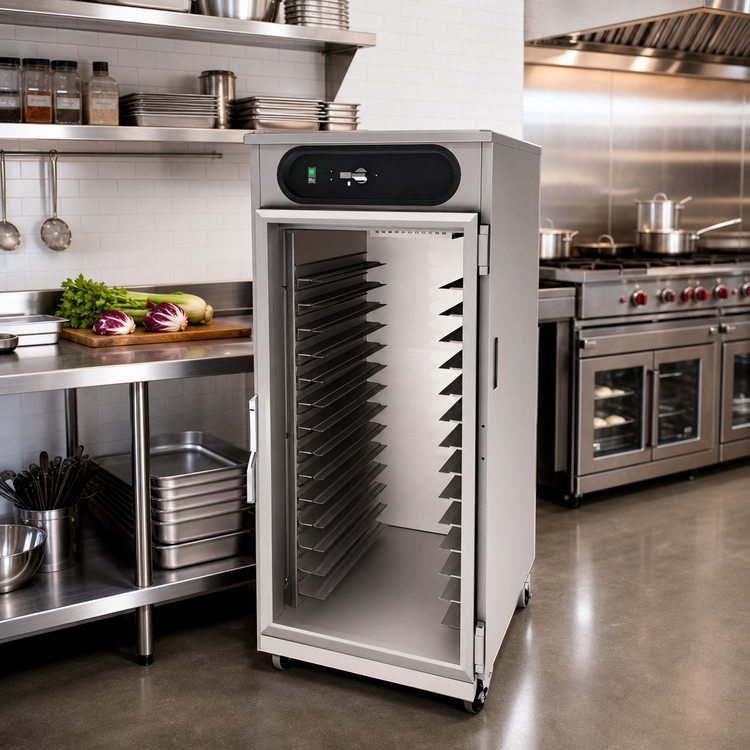

Carter-Hoffmann hotLOGIX HL8-14 Heated Holding Cabinet

3/4-height | 28 hotel pans | Digital precision control

Serve every plate at its flavourful best. The HL8-14 pairs rock-solid stainless-steel construction with top-mounted, forced-air heat—delivering even temperatures up to 200 °F without drying out food. All in a manoeuvrable footprint that fits almost anywhere on the line.

Kitchen-proven advantages
  • Holds 28 × 12" × 20" or 14 × 18" × 26" pans on universal slides (adjustable in 1.5" increments).

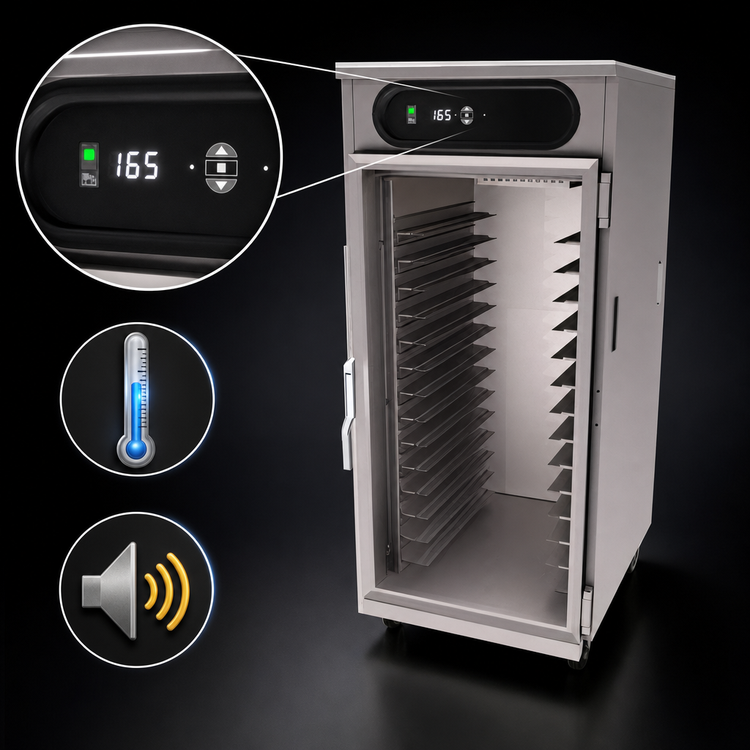

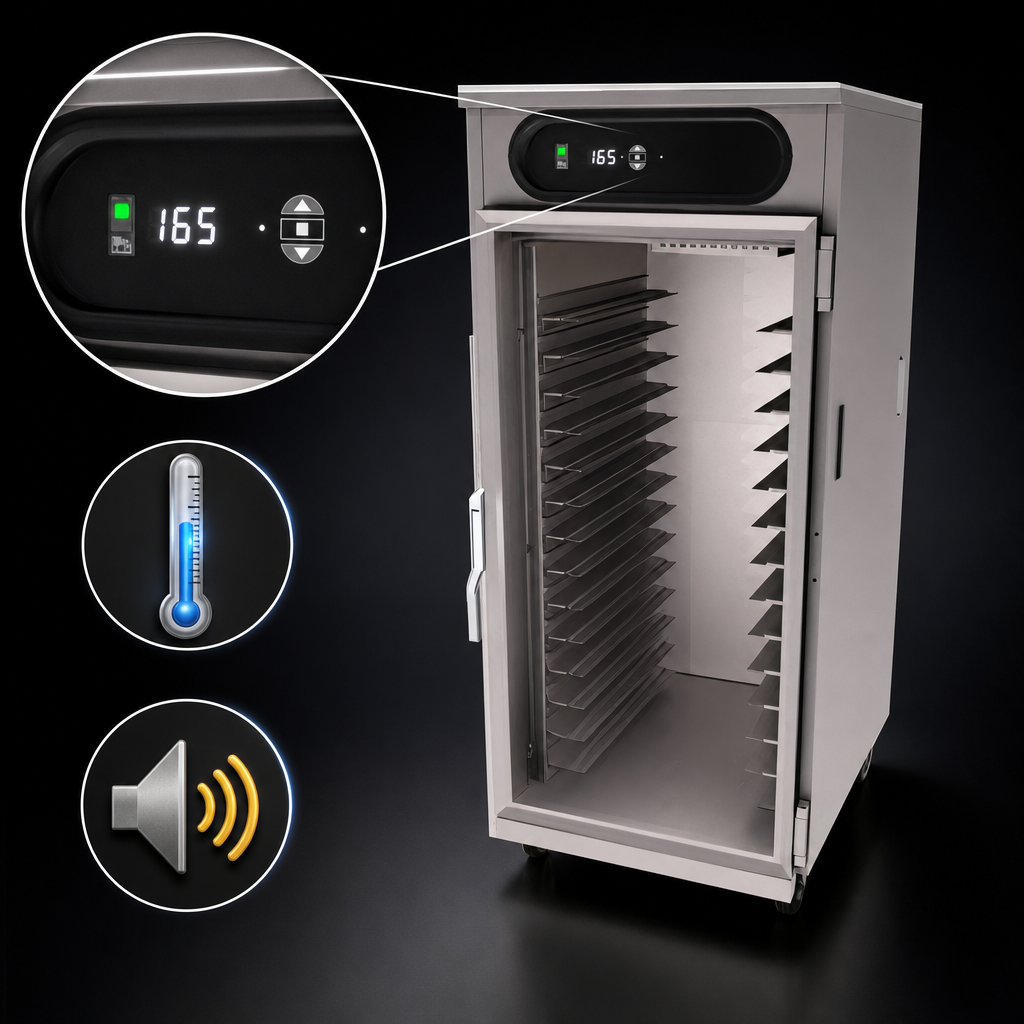

  • Digital touchpad shows actual temperature and triggers an audible alarm if it dips below set-point.

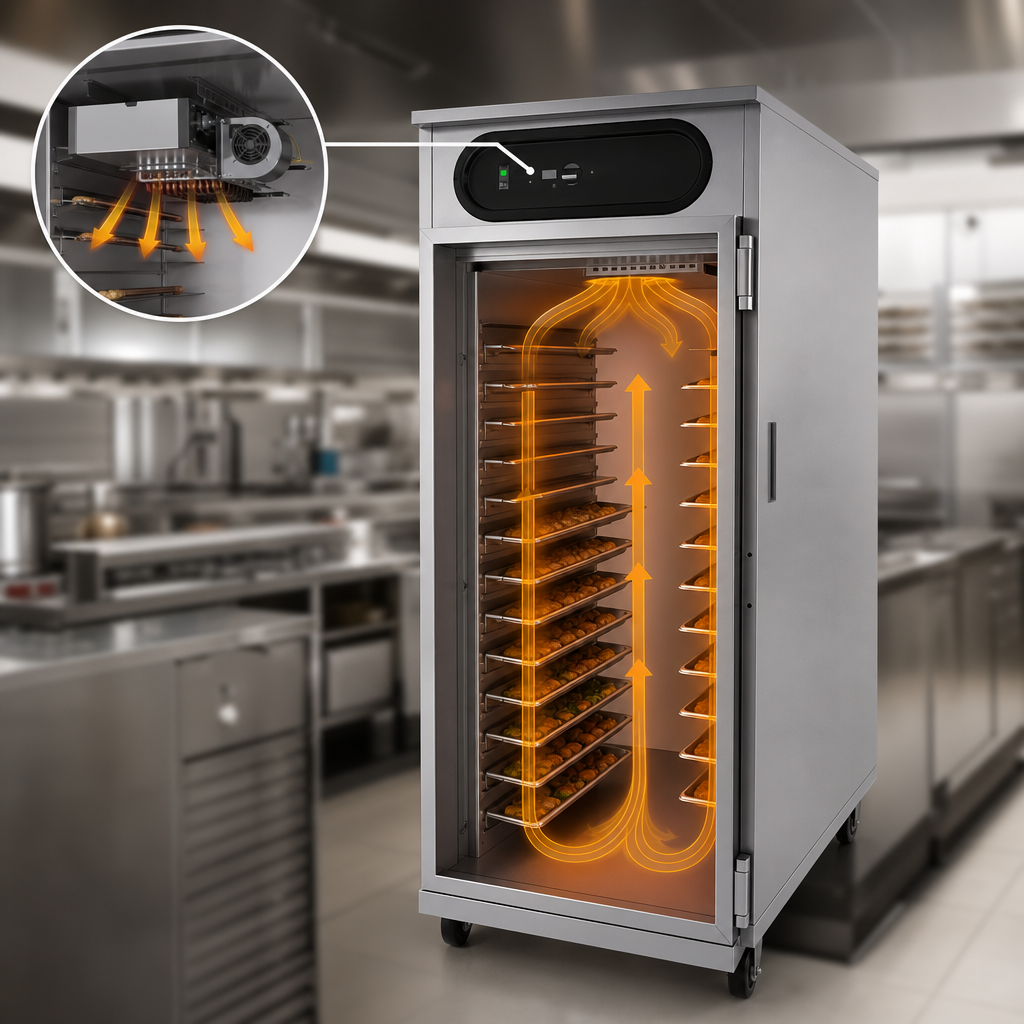

  • Top-mounted blower heater pre-heats to 160 °F in about 25 minutes and circulates gentle, even air to every shelf.
  • Double-wall, 20-ga stainless-steel cabinet packed with 2" high-density insulation for maximum heat retention and energy savings.
  • Field-reversible solid door with heavy-duty chrome latch and high-temp magnetic gasket keeps heat locked in.
  • 5" all-swivel rubber casters—two with brakes—roll smoothly from kitchen to banquet room.
  • cULus & UL EPH Classified and backed by Carter-Hoffmann’s 3-year parts & labour warranty.
Technical specifications
Model HL8-14 (single compartment, 3/4-height)
Pan capacity 28 × 12" × 20" steam-table pans
14 × 18" × 26" sheet pans
Standard 3" spacing (slides adjustable on 1.5" centres)
Temperature range Ambient to 200 °F (93 °C)
Overall dimensions (W × D × H) 28" × 33-1/16" × 64-3/8"  (711 × 840 × 1 635 mm)
Interior working height 45-1/2"  (1 156 mm)
Electrical 120 V / 60 Hz / 1-phase  •  2 100 W  •  17.5 A  •  NEMA 5-20P cord & plug supplied
Construction 20-ga stainless interior & exterior, 2" high-density fibreglass insulation
Door Solid, double-panel, field-reversible; chrome latch with magnetic catch
Casters 5" (127 mm) diameter, all swivel, two brakes
Certifications cULus  •  UL EPH Classified
Warranty 3 years parts & labour
Shipping weight ≈ 413 lb (189 kg)
Installation clearance: Leave at least 2" (51 mm) on all sides from combustible surfaces and 36" (914 mm) in front of the unit for full door swing.

Need a glass door, pass-through design or alternate voltage? Factory options are available on request—contact us for details.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cULus, UL EPH Classified

Height

64.38in

Width

28.0in

Depth

33.06in

Shipping Weight

423.0lbs

Section

1 section

Slide Centers

adjustable on 3"

Door Type

solid

Size

1 compartment

Exterior Finish

all stainless steel exterior

Door Style

full door(s)

Height

61" - 66"

Full Size Sheet Pan Capacity

(14) 18" x 26" pans

Heater

top mounted

Insulation

insulated

Full Size Hotel Pan Capacity

(28) 12" x 20" pans

Specifications

hotLOGIX Holding Cabinet-HL8 Series, one compartment, 3/4 height, insulated, (28) 12" x 20" or (14) 18" x 26" pan capacity, universal pan slides, (1) solid field reversible door, digital controls, top-mount forced air heating system, stainless steel construction, 5" swivel casters (2 with brakes), cULus, UL EPH Classified
