Description
Carter-Hoffmann hotLOGIX HL8-128 Heated Holding Cabinet Stainless Steel • 8-Pan Capacity • Top-Mount Electronic Controls
Keep every plate tasting “fresh-from-the-kitchen” even during your busiest rush. The hotLOGIX HL8-128 gives you precise, consistent heat in a compact footprint that rolls wherever you need it—so finished product stays hot, safe and ready to serve without tying up valuable line space.
Why Operators Love It
- Holds (8) 12" × 20" pans on fixed stainless channel slides—ideal for entrées, sides or to-go orders.

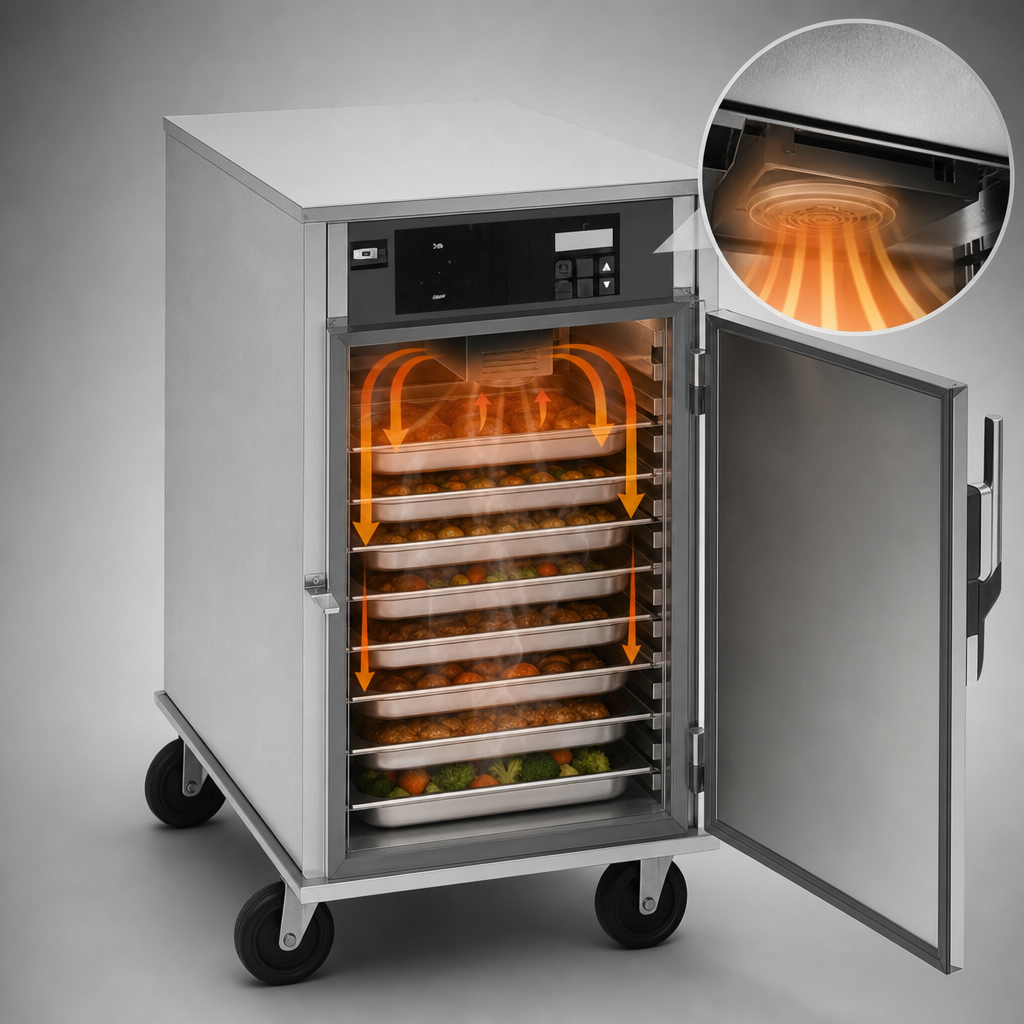

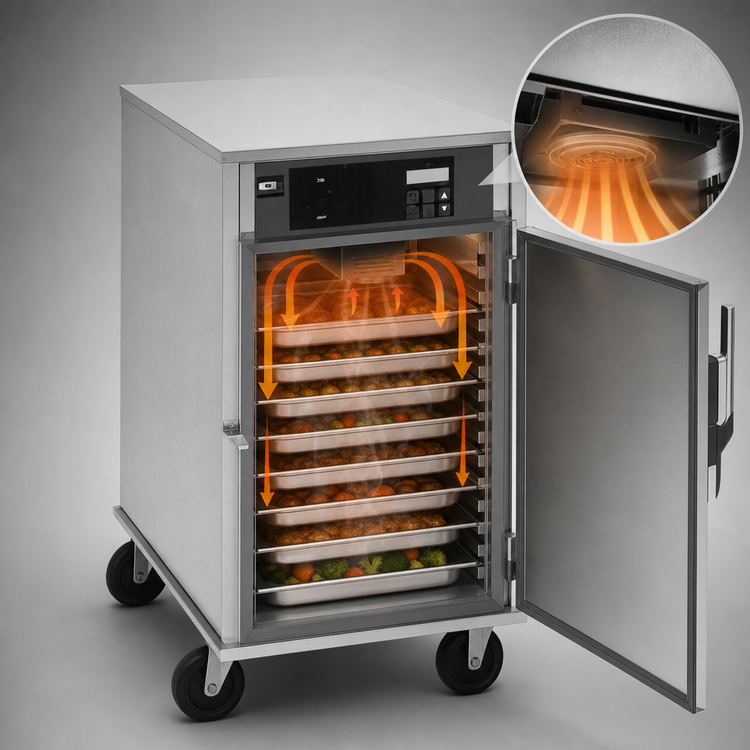

- Top-mount forced-air system preheats to 160 °F in ~20 minutes and maintains up to 200 °F (94 °C).

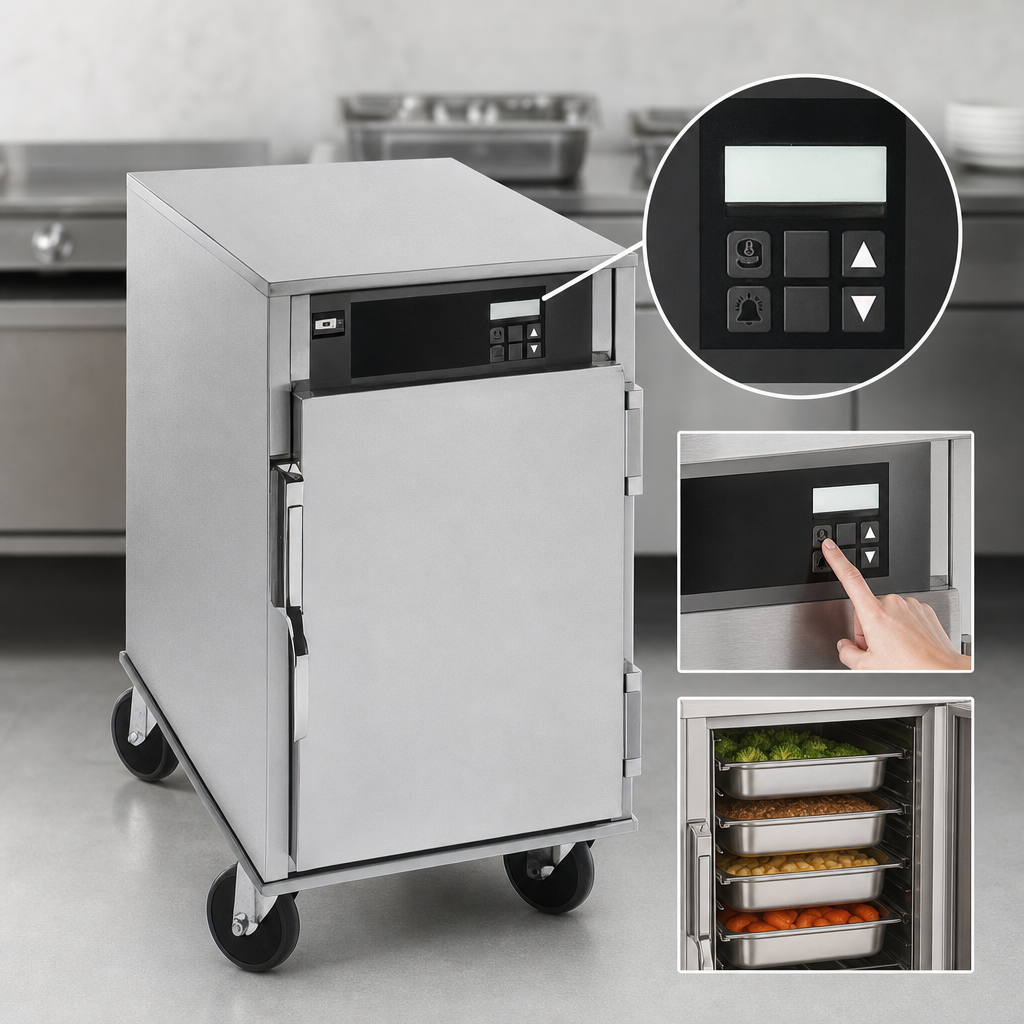

- Solid-state electronic thermostat with bright digital readout and audible low-temperature alarm.
- All-stainless weld-ed cabinet, gasket-less field-reversible door and removable tray racks for easy cleaning.
- 1" wrap-around fiberglass insulation for up to 35 % energy savings over non-insulated units.
- (4) 5" heavy-duty swivel casters—two locking—deliver smooth, stable mobility.
- cULus & UL EPH Classified; NSF/ANSI 4 compliant for safe, commercial food holding.
Technical Specifications
| Pan Capacity | (8) 12" × 20" × 2 1⁄2" hotel pans |
|---|---|
| Temperature Range | Ambient to 200 °F (94 °C) |
| Preheat Time | To 160 °F (71 °C) in approximately 20 minutes |
| Heating System | 1,000 W incoloy-sheathed element with blower (top-mounted) |
| Controls | Electronic thermostat, digital display, on/off switch, power light, low-temp alarm |
| Door | Solid, gasket-less, field-reversible; heavy-duty latch & hinges |
| Construction | Stainless steel exterior (20 ga) & interior (24 ga); welded base frame |
| Insulation | 1" high-density fiberglass—top, bottom, sides & door |
| Dimensions (H × W × D) | 38 7⁄8" × 18 3⁄8" × 24 3⁄4" (987 × 467 × 629 mm) |
| Electrical | 120 V / 60 Hz / 1-ph • 8.3 A • 6' cord with NEMA 5-15P |
| Casters | (4) 5" swivel, rubber tread – 2 locking |
| Shipping Weight | 210 lb (95 kg) |
| Certifications | cULus, UL EPH Classified, NSF/ANSI 4 |
| Warranty | 3-year parts & labor (limited) |
Need a different configuration? Stacking kits, pass-through or glass doors, smaller casters, legs and alternate electricals are factory options—contact us for a custom quote.
