Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL8-125

Carter-Hoffmann (Middleby) HL8-125 hotLOGIX Heated Cabinets & Holding Shelves

$5,385.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Terms & conditions Owner's manual Brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

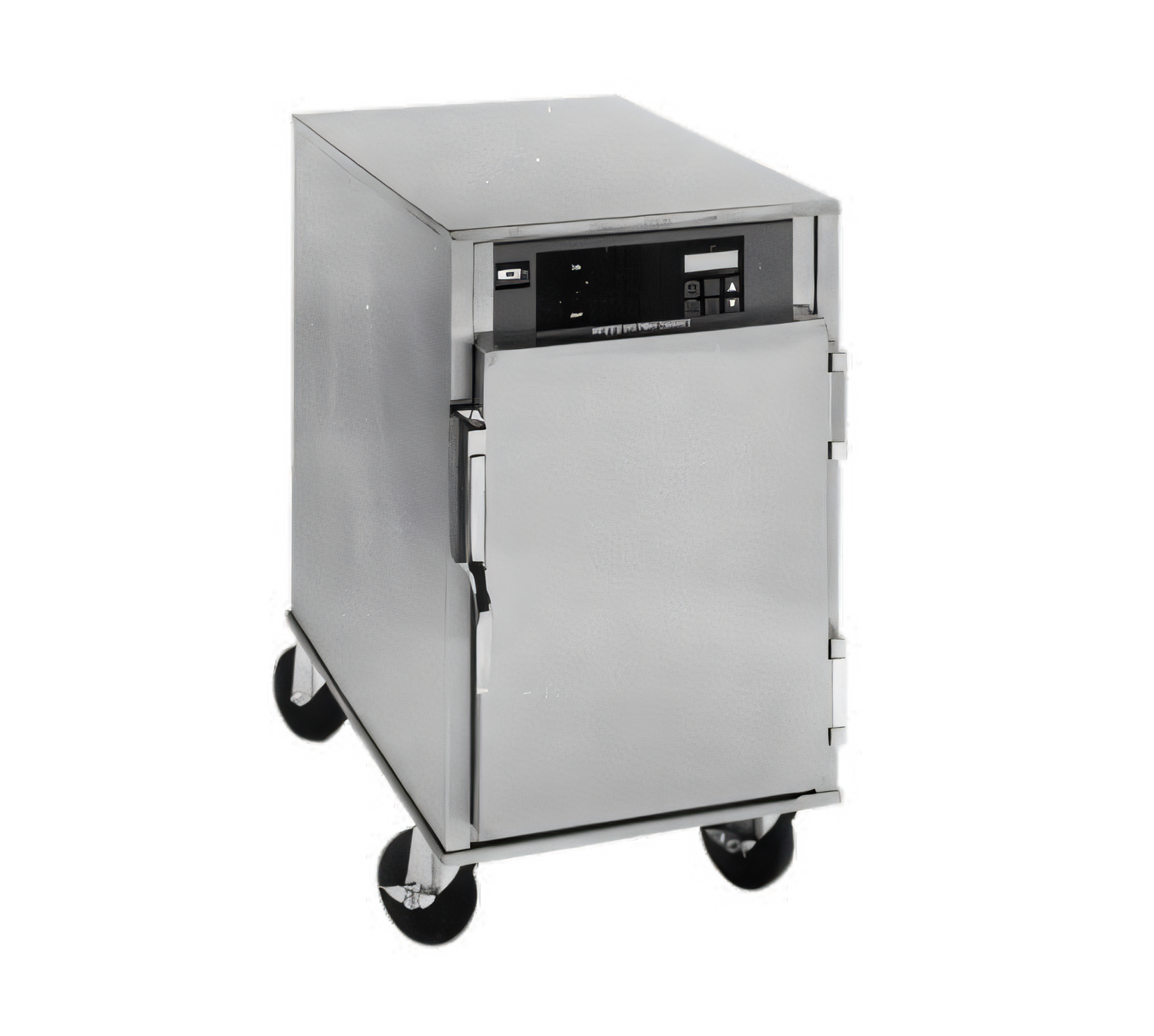

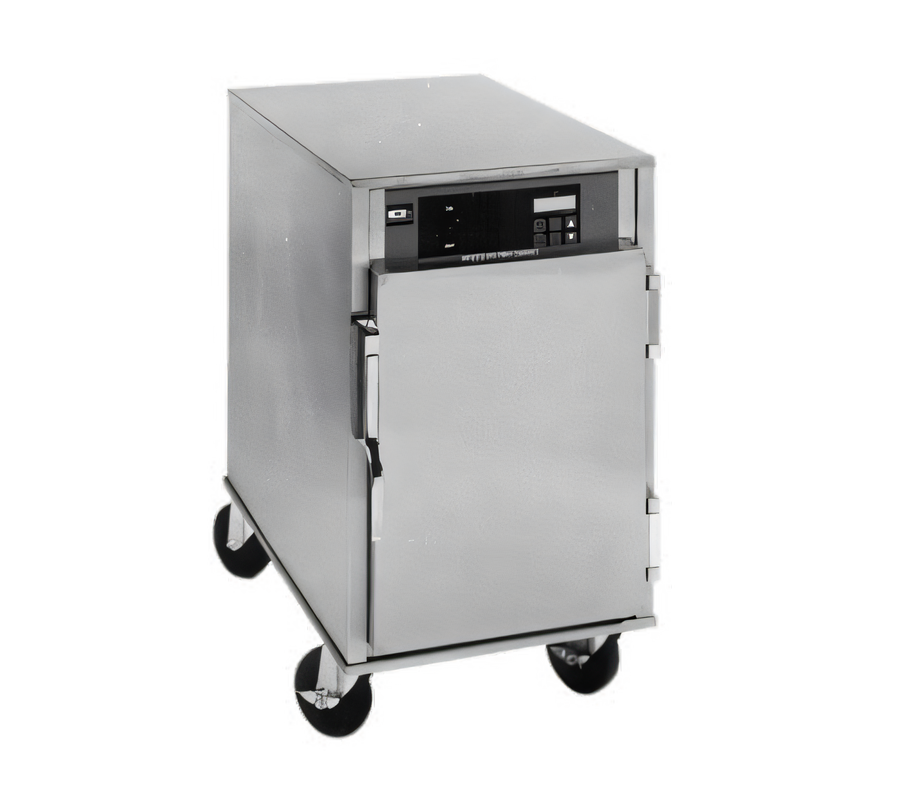

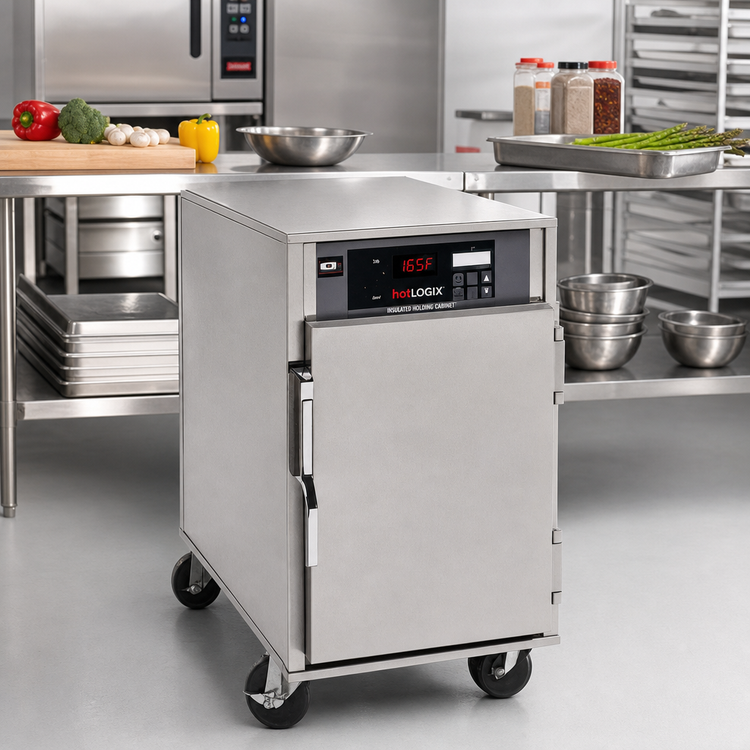

Carter-Hoffmann hotLOGIX HL8-125 Undercounter Heated Holding Cabinet

5-Pan Capacity • Forced-Air Heat • Electronic Controls

Deliver every plate at the perfect serving temperature—without tying up valuable floor space. The HL8-125 fits neatly under a counter yet brings the same rugged performance and precision control that have made hotLOGIX cabinets a food-service staple since 1947.

Highlights

  • Holds up to five 12 × 20 × 2½″ steam-table pans.

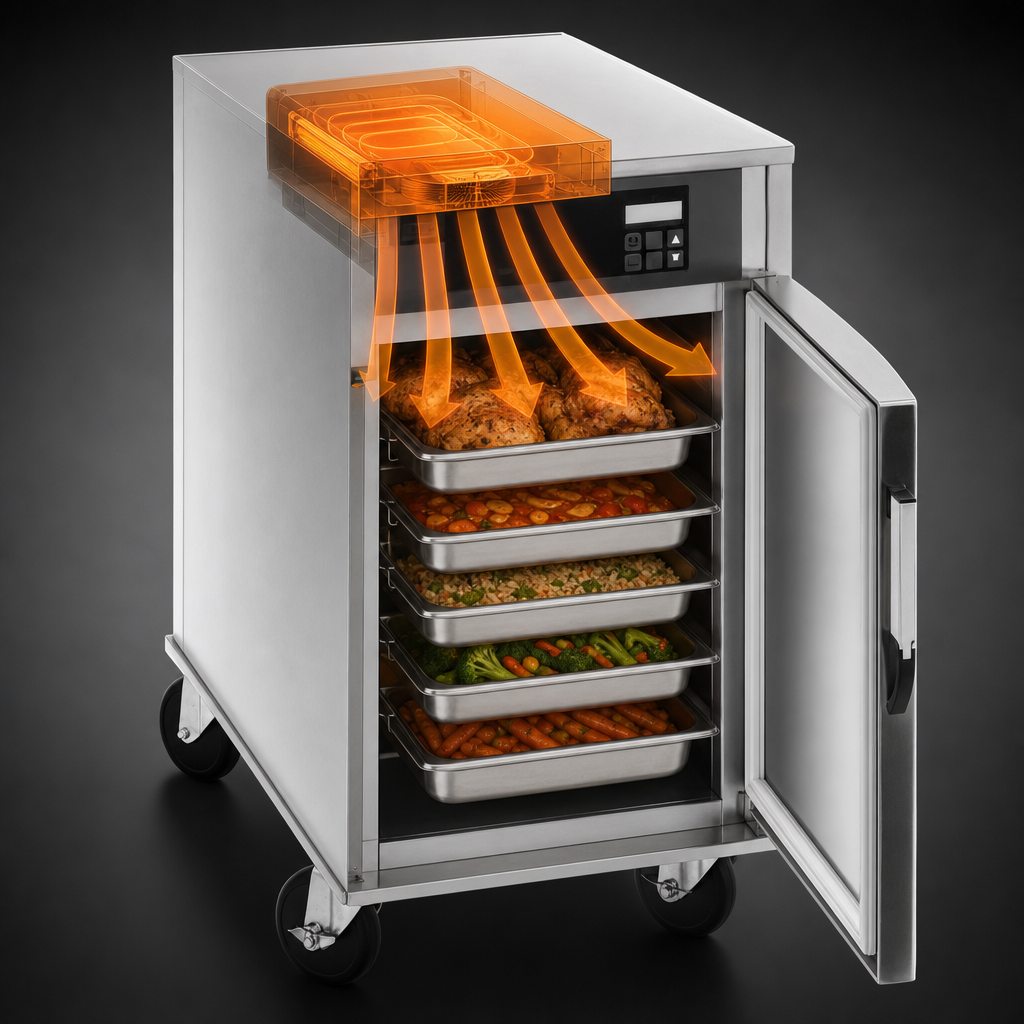

  • Top-mounted forced-air heating system delivers even 200 °F (94 °C) cabinet temperatures.
  • Solid-state electronic controller with digital display and programmable low-temperature alarm.
  • Fully welded stainless-steel interior & exterior with 1″ high-density fiberglass insulation.
  • Field-reversible, gasket-free stainless door with ergonomic handle and magnetic latch.
  • Removable 16-gauge tray racks with fixed channel slides on 2 ¾″ centers for fast clean-up.
  • Four 5″ swivel casters—two locking—for effortless mobility.
  • cULus listed & UL EPH Classified to NSF 4 standards.
  • 3-year parts & labor warranty for worry-free ownership.

Performance

  • Temperature range: ambient to 200 °F (94 °C).
  • Preheats to 160 °F (71 °C) in approximately 20 minutes.

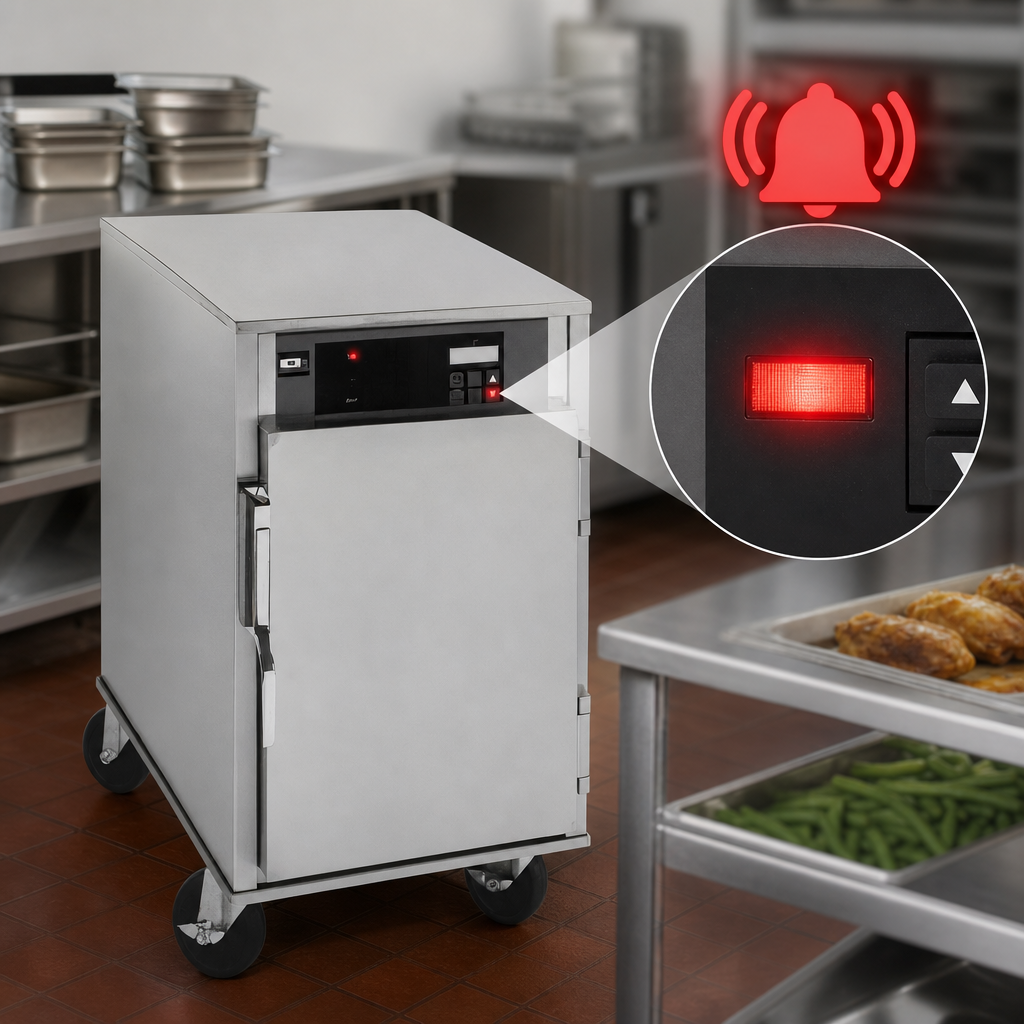

  • Adjustable audible alarm (factory-set at 150 °F / 66 °C) safeguards food quality.

Specifications

Model HL8-125
Pan Capacity 5 × 12″ × 20″ × 2½″
Inside Working Height 15 ¾″ (400 mm)
Overall Dimensions (H × W × D) 30 ⅝″ × 18 ⅜″ × 24 ¾″
(778 × 467 × 629 mm)
Construction 20 ga stainless exterior / 24 ga stainless interior, fully welded
Insulation 1″ high-density fiberglass (sides, top, bottom, door)
Controls Electronic, digital display, temperature alarm, on/off switch
Electrical 120 V, 60 Hz, 1-ph, 1,000 W, 8.3 A, NEMA 5-15P
Casters 4 × 5″ swivel (2 braking)
Shipping Weight 152 lb (69 kg)
Certifications cULus, UL EPH Classified, NSF 4

Pan capacity based on 2½″-deep pans; deeper pans will reduce total count.

Electrical: Ships with a NEMA 5-15P plug and draws 8.3 amps. Use a properly grounded, dedicated 120 V circuit.

Factory Options

  • Stacking kit for double capacity.
  • Pass-through or glass viewing door.
  • 3″ low-profile casters or 4″ stationary legs.
  • Alternate electrical configurations.

From quick-service to banquets, the Carter-Hoffmann HL8-125 keeps your menu hot, safe and ready—right where you need it.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cULus, UL EPH Classified

Height

30.63in

Width

18.38in

Depth

24.75in

Shipping Weight

152.0lbs

Size

1 compartment

Door Type

solid

Full Size Hotel Pan Capacity

(5) 12" x 20" pans

Exterior Finish

all stainless steel exterior

Height

25" - 30"

Section

1 section

Door Style

full door(s)

Slide Centers

removable on 2-3/4"

Heater

top mounted

Insulation

insulated

Specifications

hotLOGIX Holding Cabinet-HL8 Series, one compartment, undercounter, insulated, (5) 12" x 20" pan capacity, fixed channel slides, (1) solid field reversible door, electronic controls, top-mount forced air heating system, stainless steel construction, (4) 5" swivel casters (2 with brakes), cULus, UL EPH Classified
