Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL8-12

Carter-Hoffmann (Middleby) HL8-12 hotLOGIX Heated Cabinets & Holding Shelves

$10,772.85
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Terms & conditions Brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

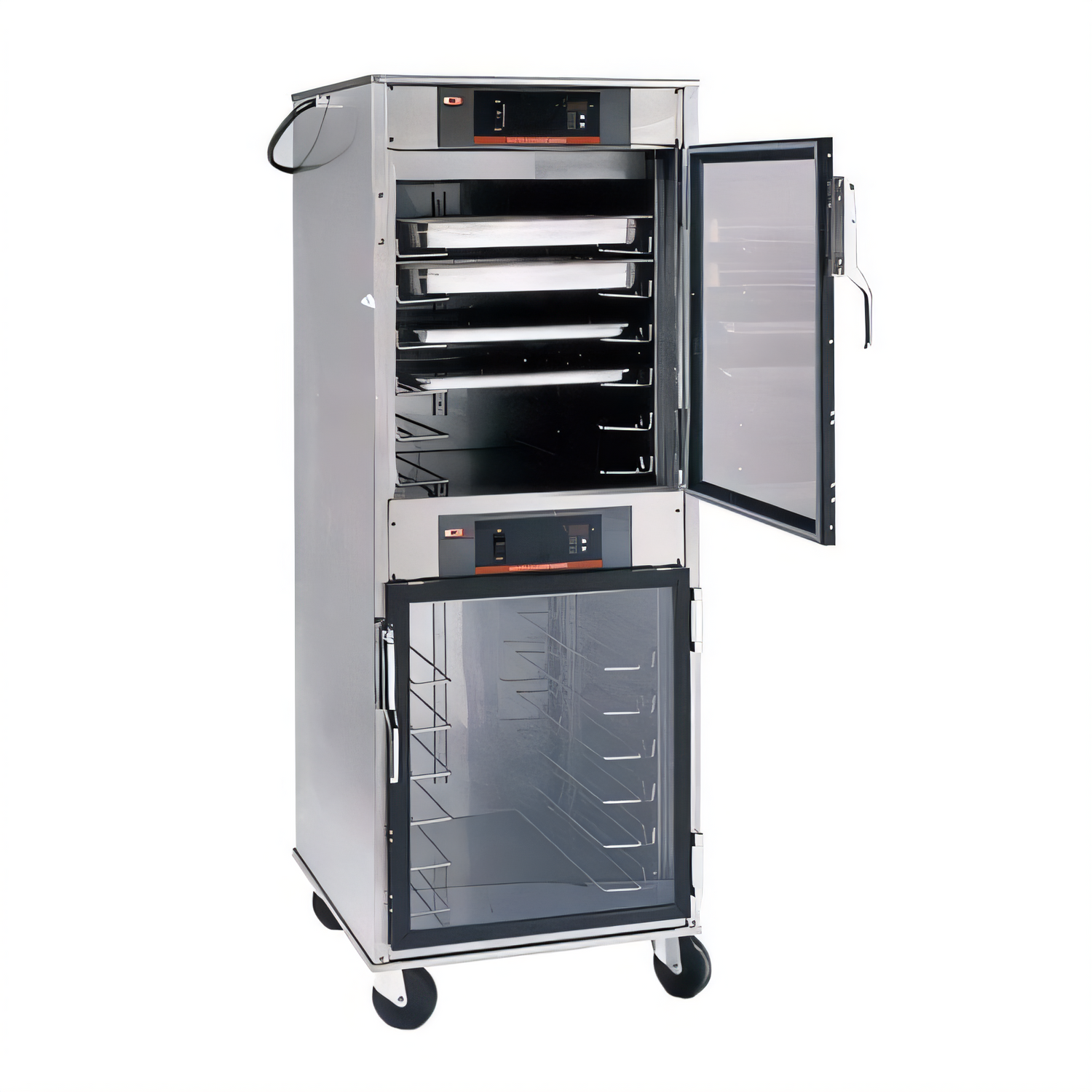

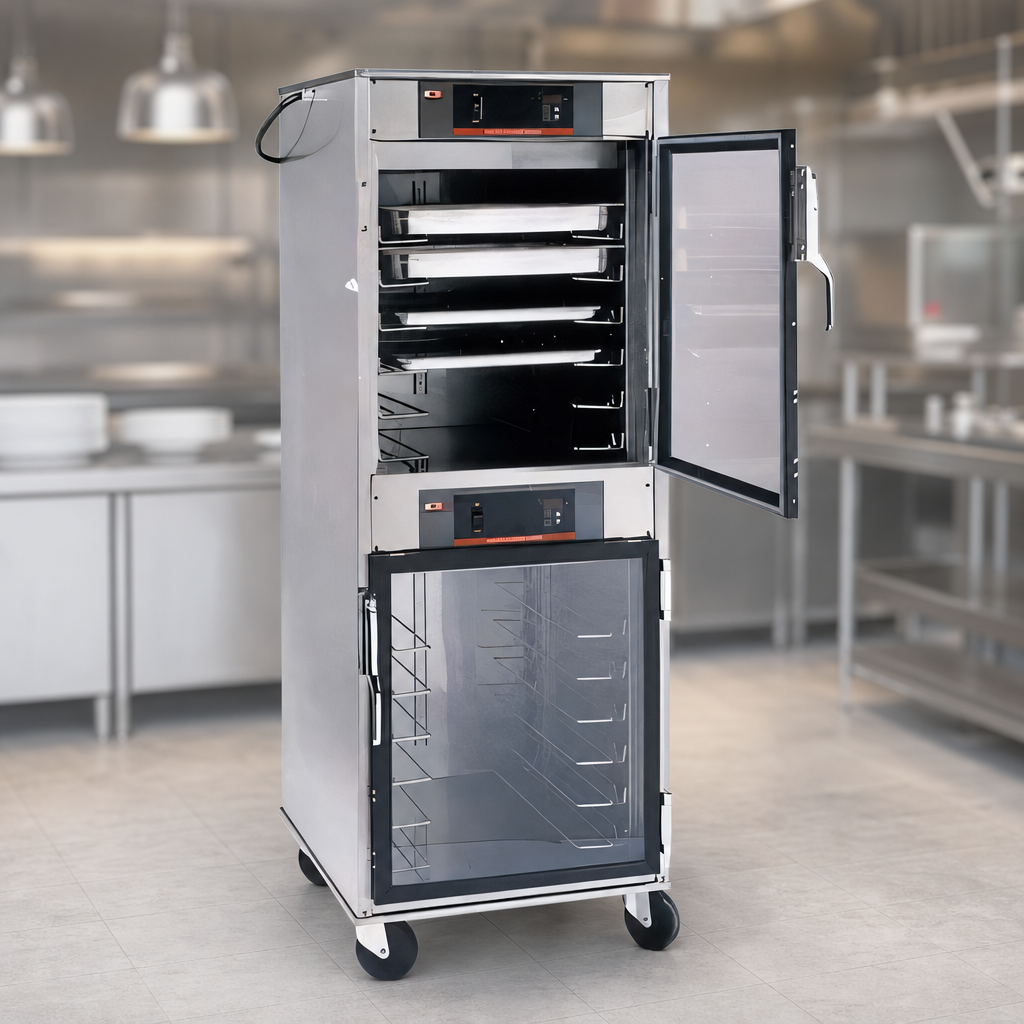

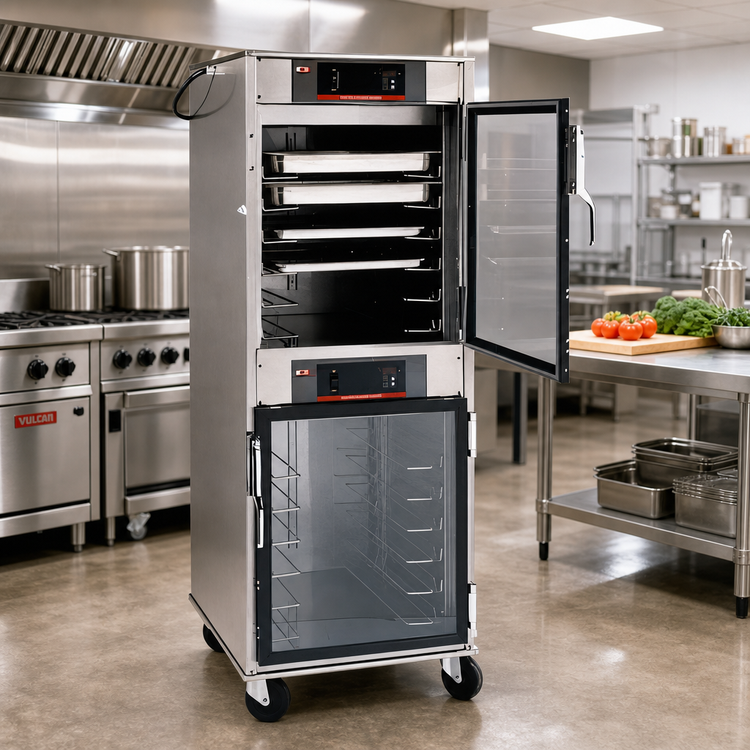

Carter-Hoffmann hotLOGIX HL8-12 Dual-Compartment Heated Holding Cabinet

Full-height • Insulated • Electronic controls

Keep every plate “just-made” fresh, even during your busiest rush. The hotLOGIX HL8-12 combines precision electronic heat with rugged stainless-steel construction, giving high-volume kitchens two independently-controlled holding zones that maintain quality without over-cooking.

Why you’ll love it

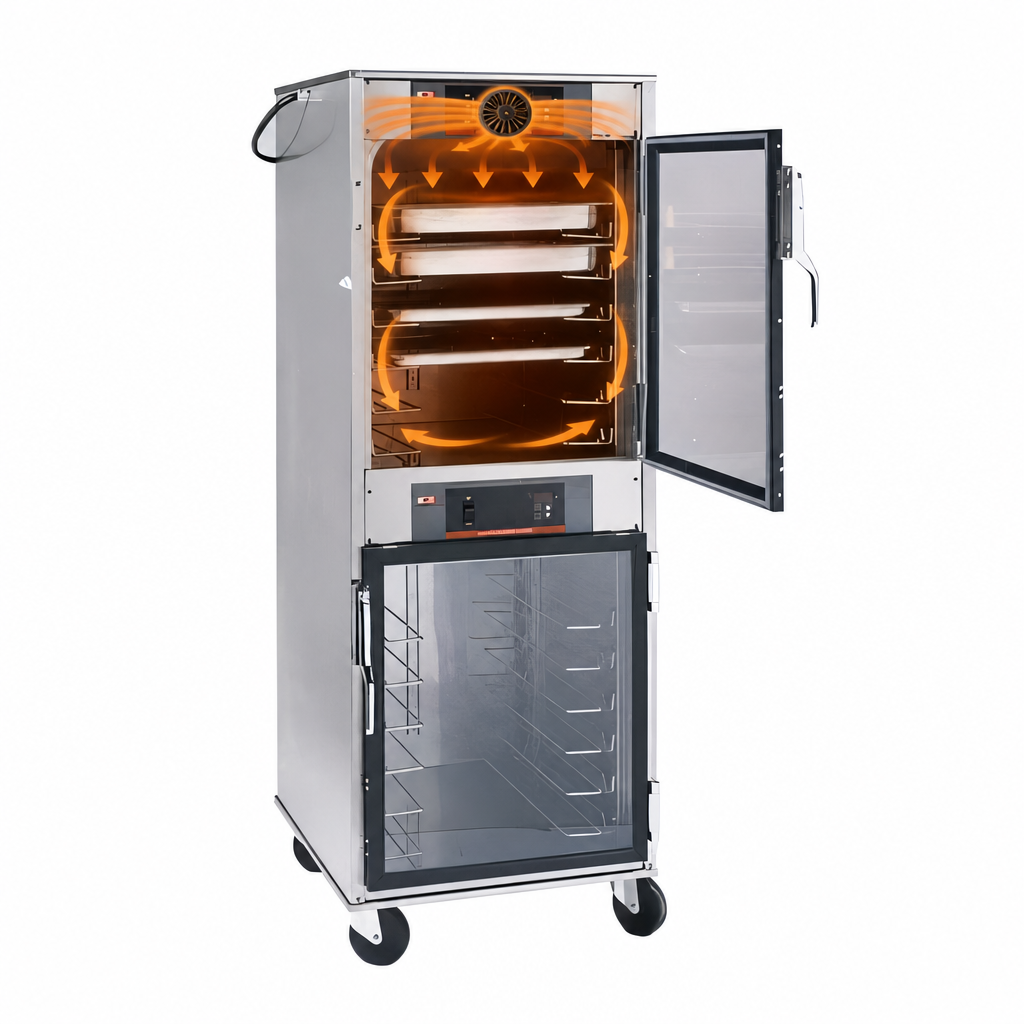

  • Two completely separate compartments, each with its own top-mounted heater, blower and digital controls.
  • Fast recovery — pre-heats to 160 °F (71 °C) in about 20 minutes; holds up to 200 °F (93 °C).
  • Low-temperature alarm (visual & audible) safeguards food safety during service.
  • Universal wire slides adjust on 1 ¾" centers to fit (24) 12" × 20" hotel pans or (12) 18" × 26" sheet pans.
  • Double-wall stainless steel with 1" high-density fiberglass insulation maximizes energy efficiency.
  • Field-reversible, solid stainless doors with heavy-duty latches and magnetic catch for an airtight seal.
  • 5" all-swivel rubber casters (2 with brakes) make maneuvering effortless.
  • Single 120 V connection — plug & play via 6 ft cord and NEMA 5-20P.
  • cULus listed & UL EPH Classified; meets electrical and sanitation standards out of the box.
  • Covered by a 3-year parts & labor warranty for total peace of mind.

Pan capacity

  • (24) 12" × 20" steam-table pans – 3.5" standard spacing
  • (12) 18" × 26" full-size sheet pans

Specifications

Model HL8-12 (Full-height, dual-compartment)
Inside working height
(per compartment)		 22" / 559 mm
Overall dimensions (H × W × D) 72 ⅝" × 26 ⅝" × 36 ¾" (1845 × 676 × 781 mm)
Electrical 120 V / 60 Hz / 1-ph, 2000 W, 16.7 A, NEMA 5-20P
Temperature range Ambient to 200 °F (93 °C)
Clearances 2" from walls; 36" front clearance for full door swing
Construction All-stainless, double-wall, 1" fiberglass insulation
Mobility 5" all-swivel casters (2 locking)
Shipping weight 325 lb / 148 kg
Warranty 3-year parts & labor

Factory options & accessories

  • Pass-through doors for cook-line to service-line flow
  • Clear tempered glass doors for instant product visibility
  • 3" casters or 4" adjustable legs
  • Alternate electrical configurations
  • Temperature display in °C
Heads-up: The HL8-12 is designed for holding hot, fully-cooked food. It is not intended for cooking or rapid reheating.

Looking to spread out the cost? Ask us about Middleby Equipment Financing for fast approvals and fixed monthly payments.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cULus, UL EPH Classified

Height

72.63in

Width

26.63in

Depth

30.75in

Shipping Weight

430.0lbs

Slide Centers

adjustable on 1-3/4"

Size

2 compartment

Door Style

dutch / split doors

Full Size Sheet Pan Capacity

(12) 18" x 26" pans

Door Type

solid

Section

1 section

Full Size Hotel Pan Capacity

(24) 12" x 20" pans

Heater

top mounted

Exterior Finish

all stainless steel exterior

Height

67" - 72"

Insulation

insulated

Specifications

hotLOGIX Holding Cabinet-HL8 Series, two compartment, full height, insulated, (24) 12" x 20" or (12) 18" x 26" pan capacity, universal wire pan slides, (1) solid field reversible door per compartment, electronic controls, top-mount forced air heating system, adjustable on 1-3/4" increments, stainless steel construction, 5"casters (2 with brakes), cULus, UL EPH Classified
