Description

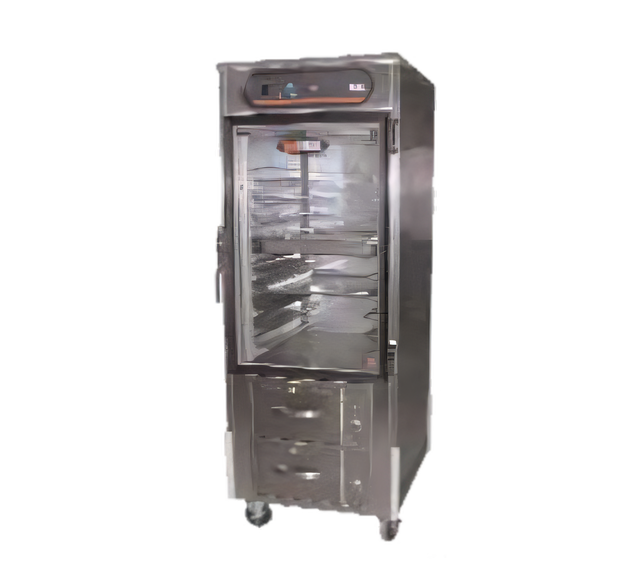

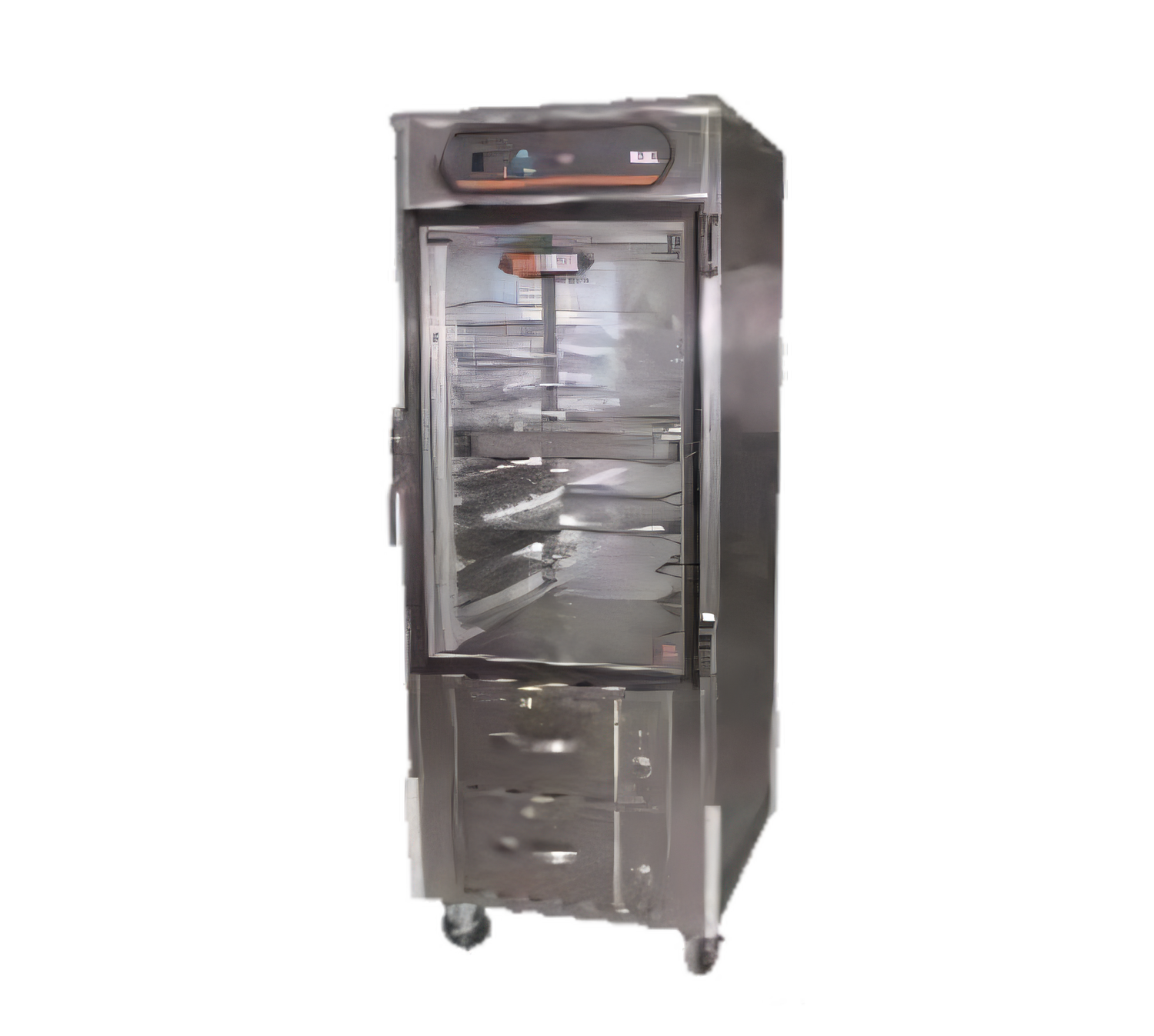

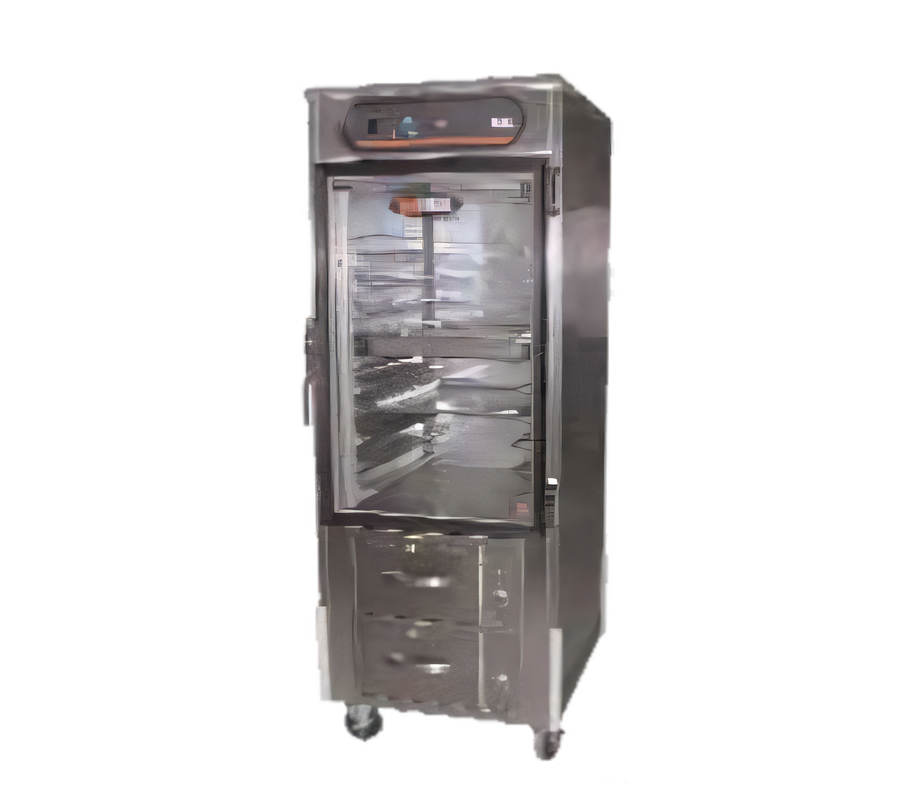

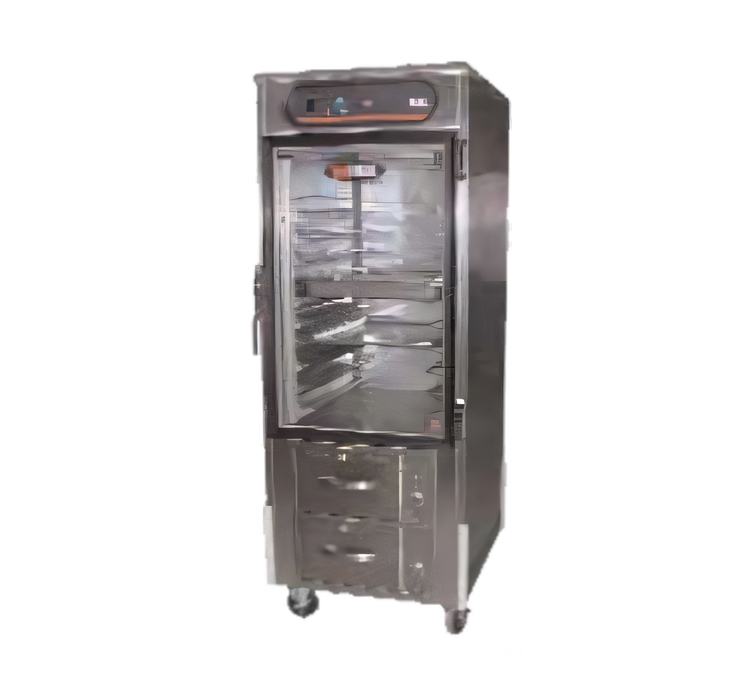

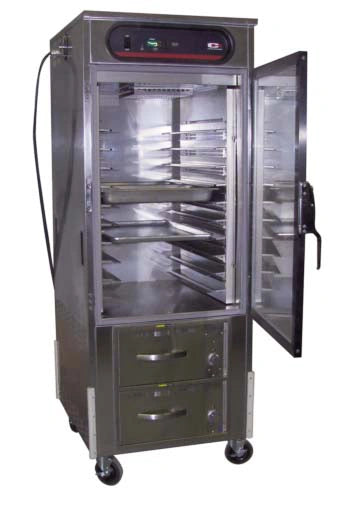

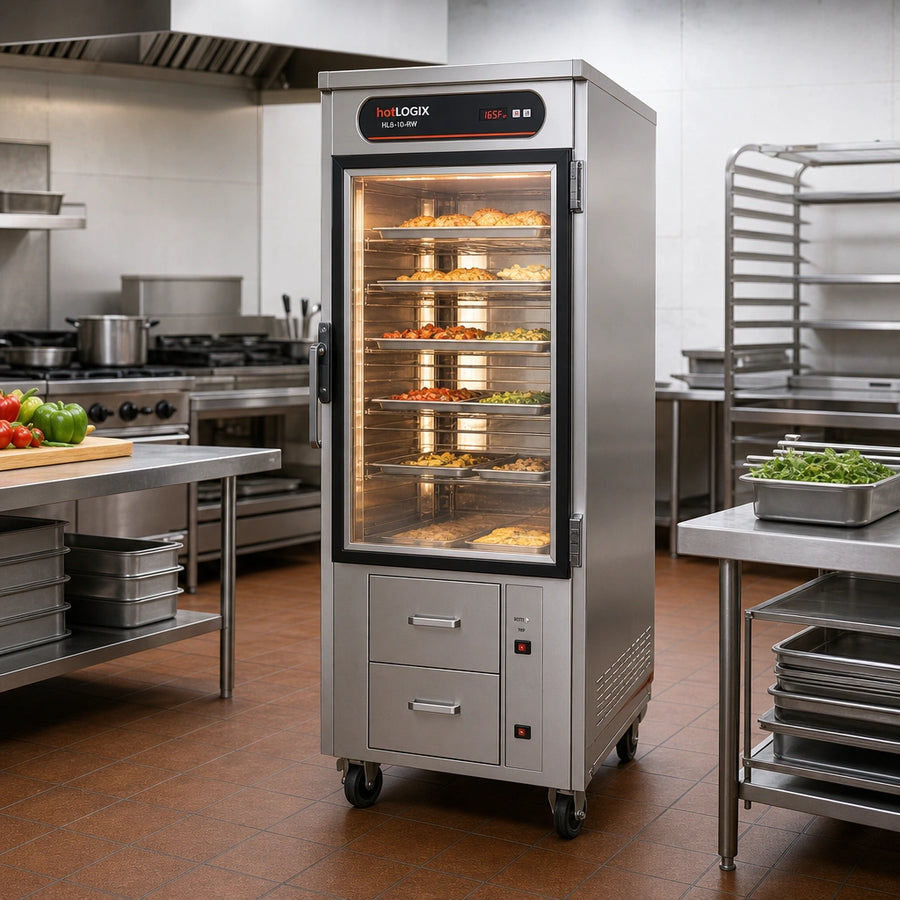

Carter-Hoffmann hotLOGIX HL8-10-RW Heated Holding Cabinet + 2-Drawer Warmer
Full-height | Insulated stainless steel | 120 V plug-and-playServe every order at its prime. The HL8-10-RW unites a high-capacity forced-air holding cabinet with two independent drawer warmers, giving your kitchen the flexibility to keep bulk entrées, sides and à-la-minute items hot, safe and ready—no matter how busy service gets.
Key advantages
- Dual-zone design: 20-pan cabinet for bulk holding, plus two drawers for fast-turn items.
- Top-mounted blower & stainless heat duct deliver < 2 °F stratification from top to bottom.
- Rapid 25-minute preheat to 160 °F and quick recovery after door openings.

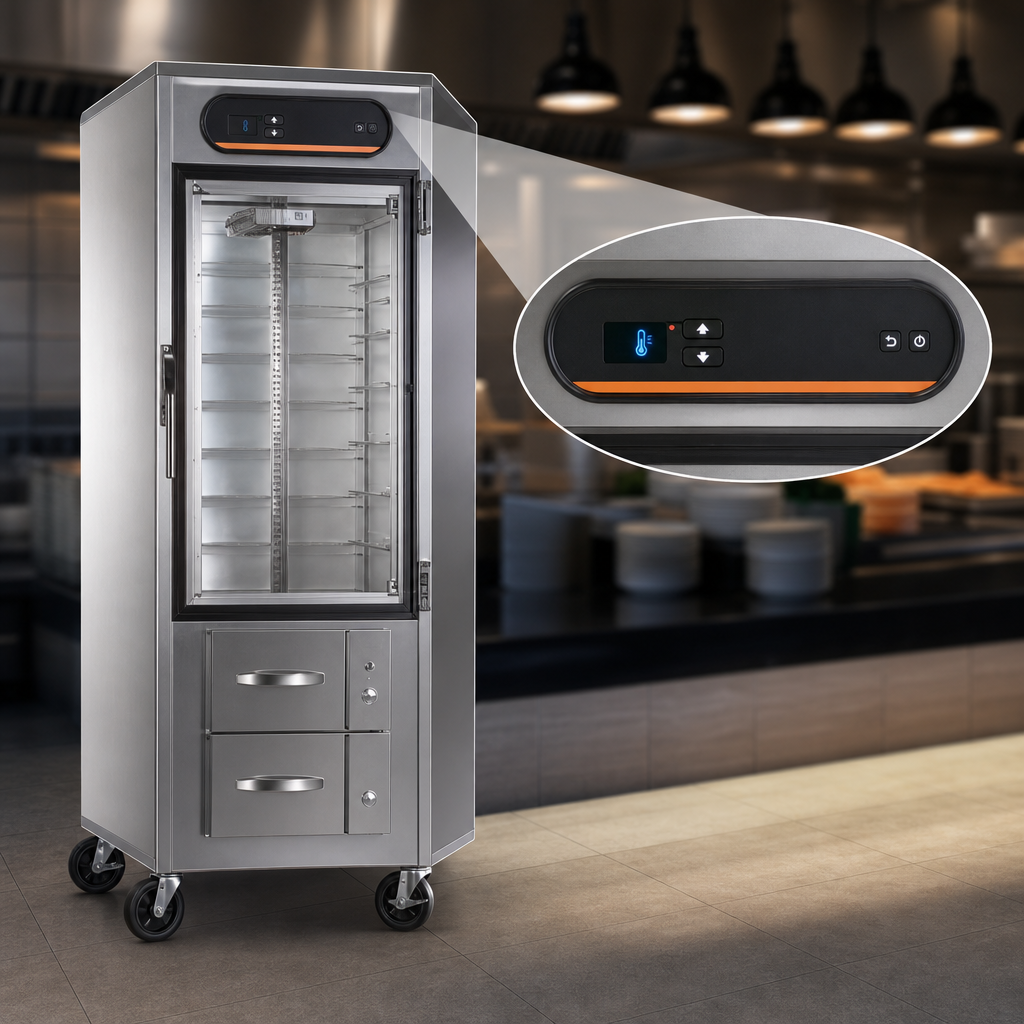

- Digital cabinet controls (85–200 °F) with touch-to-view actual temp and low-temp alarm.
- Individual thermostats on each drawer (90–210 °F) and front vents for precise humidity control—keep chicken crispy in one drawer, vegetables moist in the other.
- Field-reversible, fully-insulated door with heavy-duty hinges and one-touch magnetic latch.
- Adjustable universal slides on 1 ½" centers accept 12" × 20" pans (up to 6" deep) or 18" × 26" sheet pans.

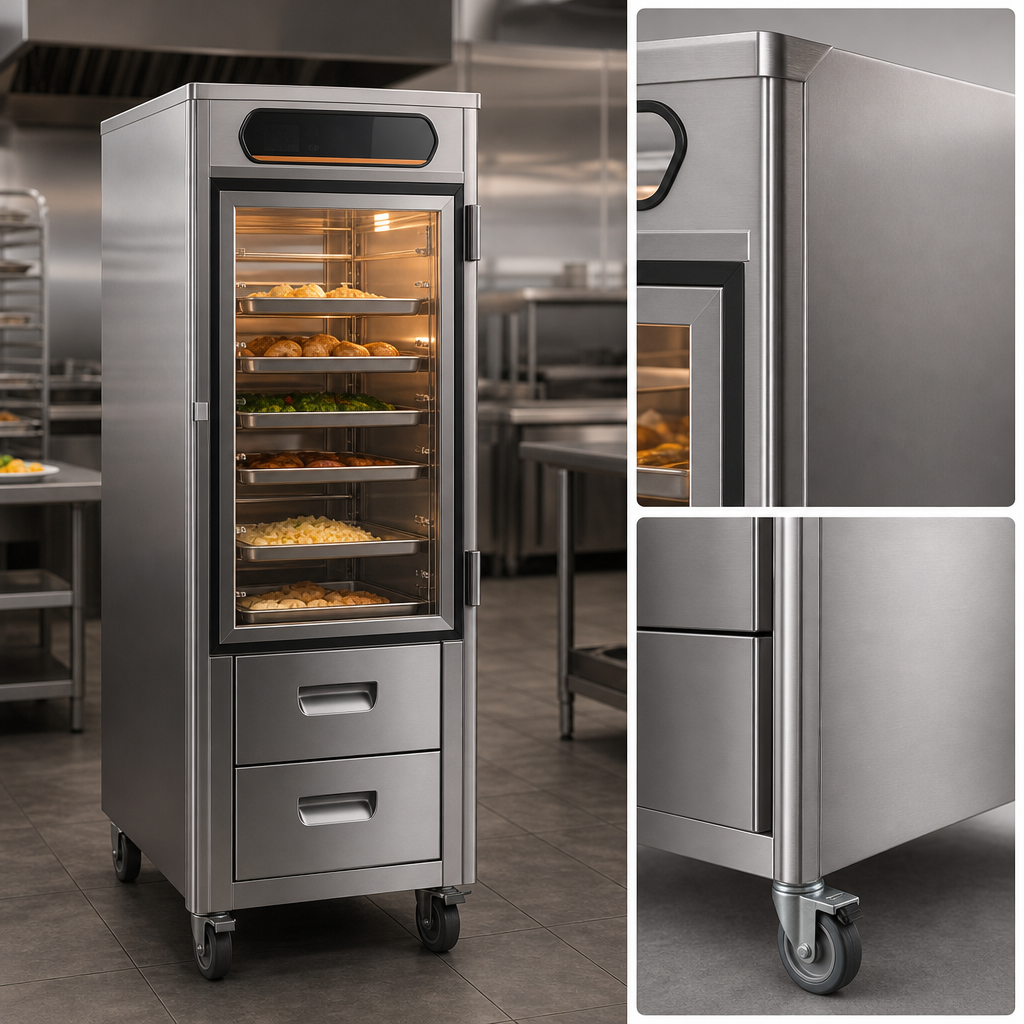

- All-stainless construction, 2" wrap-around fiberglass insulation and 12-gauge base frame built for continuous commercial use.
- Easy mobility on four 5" swivel casters (2 locking, rubber tread).
- Certified safe: ANSI/NSF 4, cULus & UL EPH Classified.
Technical specifications
| Model | HL8-10-RW (hotLOGIX Series) |
|---|---|
| Cabinet capacity | 20 × 12" × 20" hotel pans | 10 × 18" × 26" sheet pans |
| Drawer capacity | 2 drawers – each holds 1 × 12" × 20" pan, up to 6" deep (pans included) |
| Temperature range | Cabinet 85–200 °F | Drawers 90–210 °F |
| Preheat time | ≈ 25 min to 160 °F |
| Dimensions (H × W × D) | 76 ⅜" × 28 ¼" × 32 ⅝" (1940 × 718 × 829 mm) |
| Interior working height | 35 ½" (902 mm) |
| Construction | Polished stainless steel inside & out, 2" fiberglass insulation |
| Electrical | 120 V / 60 Hz / 1-ph, 2000 W, 16.7 A, NEMA 5-20P, 10-ft cord |
| Casters | 4 × 5" swivel (2 braking) |
| Shipping weight | 458 lb (208 kg) |
| Certifications | ANSI/NSF 4, cULus, UL EPH |
Popular options
- Double-pane glass door for instant product visibility.
- Pass-through configuration (suffix “-P”) for line-side loading & serving.
- Additional or fixed-angle slide sets tailor capacity to your menu.
- Menu card holder for quick ID on solid-door units.
Drawer pans are included; cabinet pans sold separately. Alternate voltages and custom slide configurations available—contact us for details.
