Description

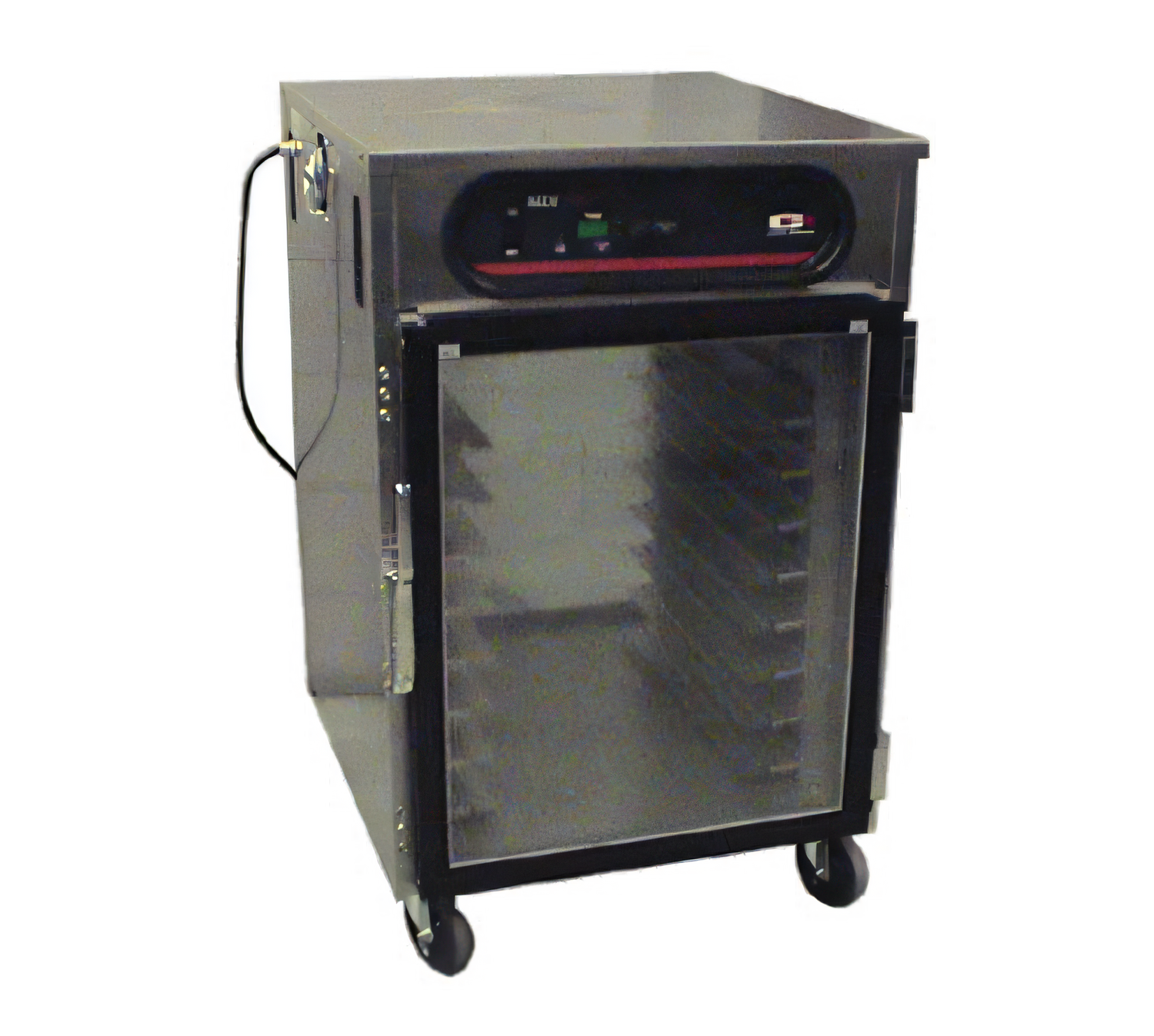

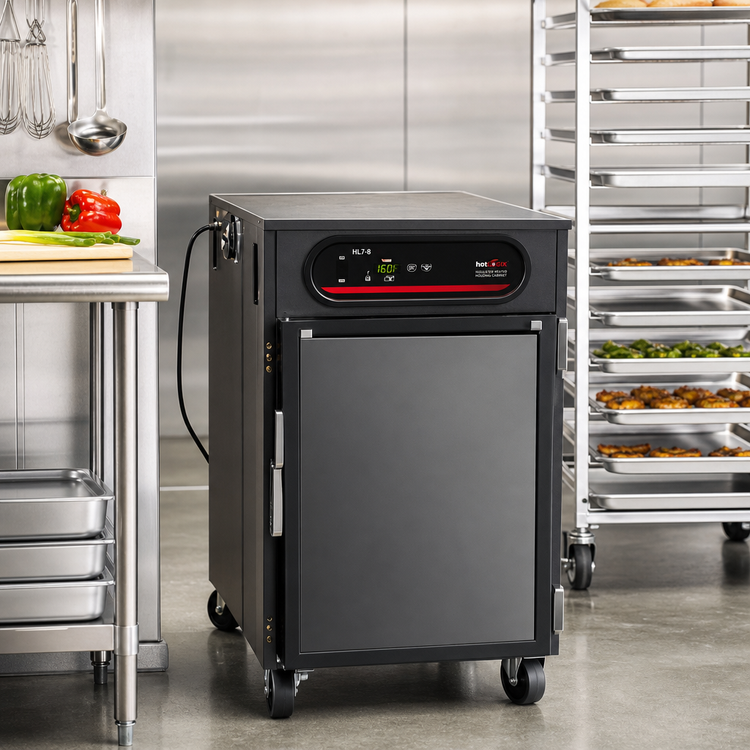

Carter-Hoffmann hotLOGIX® HL7-8 Half-Height Heated Holding Cabinet

16-Pan | Insulated Stainless Steel | Top-Mount Forced-Air Heat

Keep entrées and sides at perfect serving temperature—without sacrificing flavor, texture, or food safety. The HL7-8 is the half-height member of Carter-Hoffmann’s hotLOGIX family, delivering full-size performance in a compact footprint that slides easily under counters or beside cooklines.

Why You’ll Love It

  • Generous capacity, small footprint: Holds (16) 12" × 20" hotel pans or (8) 18" × 26" sheet pans on universal slides.

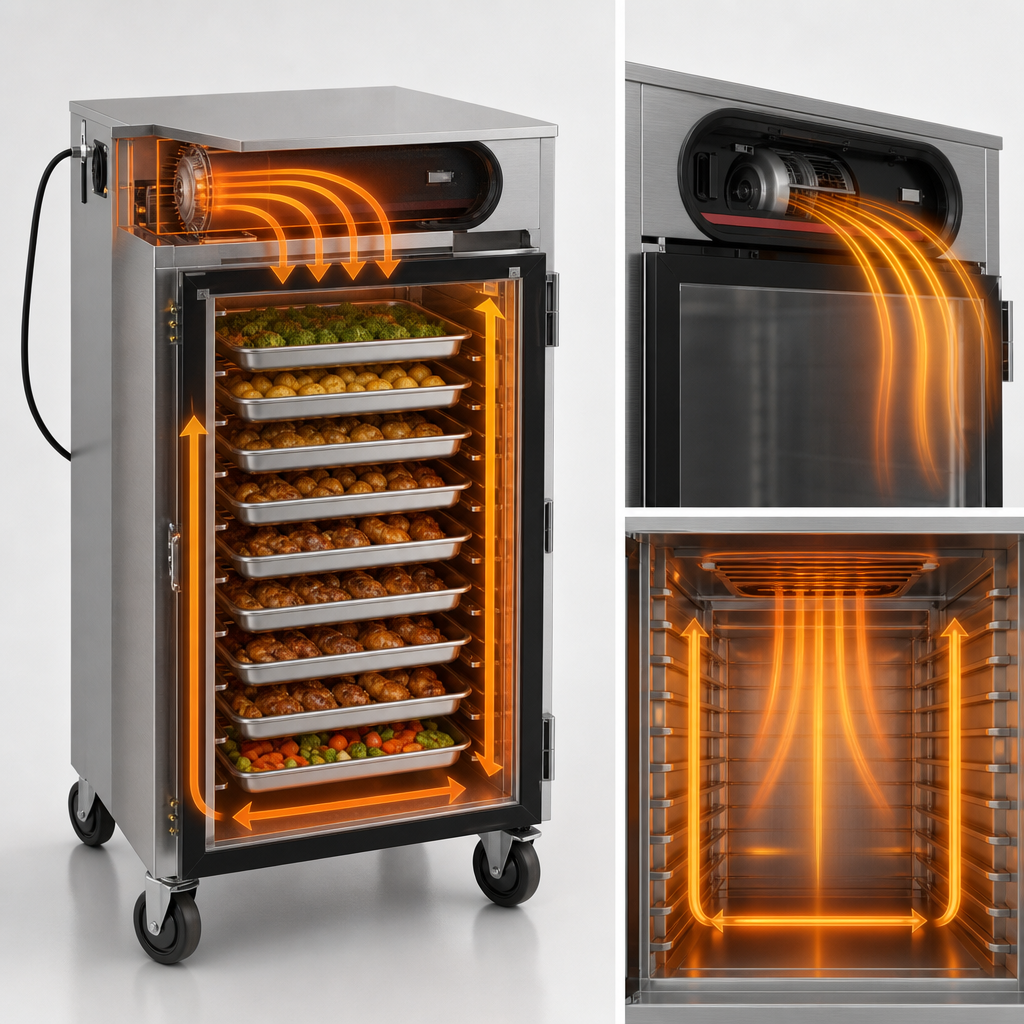

  • Fast & even heat: Top-mounted forced-air system heats to 200 °F (93 °C) and pre-heats to 160 °F (71 °C) in ≈25 minutes.
  • Solid, field-reversible door: Double-panel door with 2" fiberglass insulation, magnetic latch, and high-temp gasket seals in heat.
  • Durable all-stainless build: 20-gauge interior & exterior with full-depth 12-gauge caster bolsters for years of heavy-duty service.

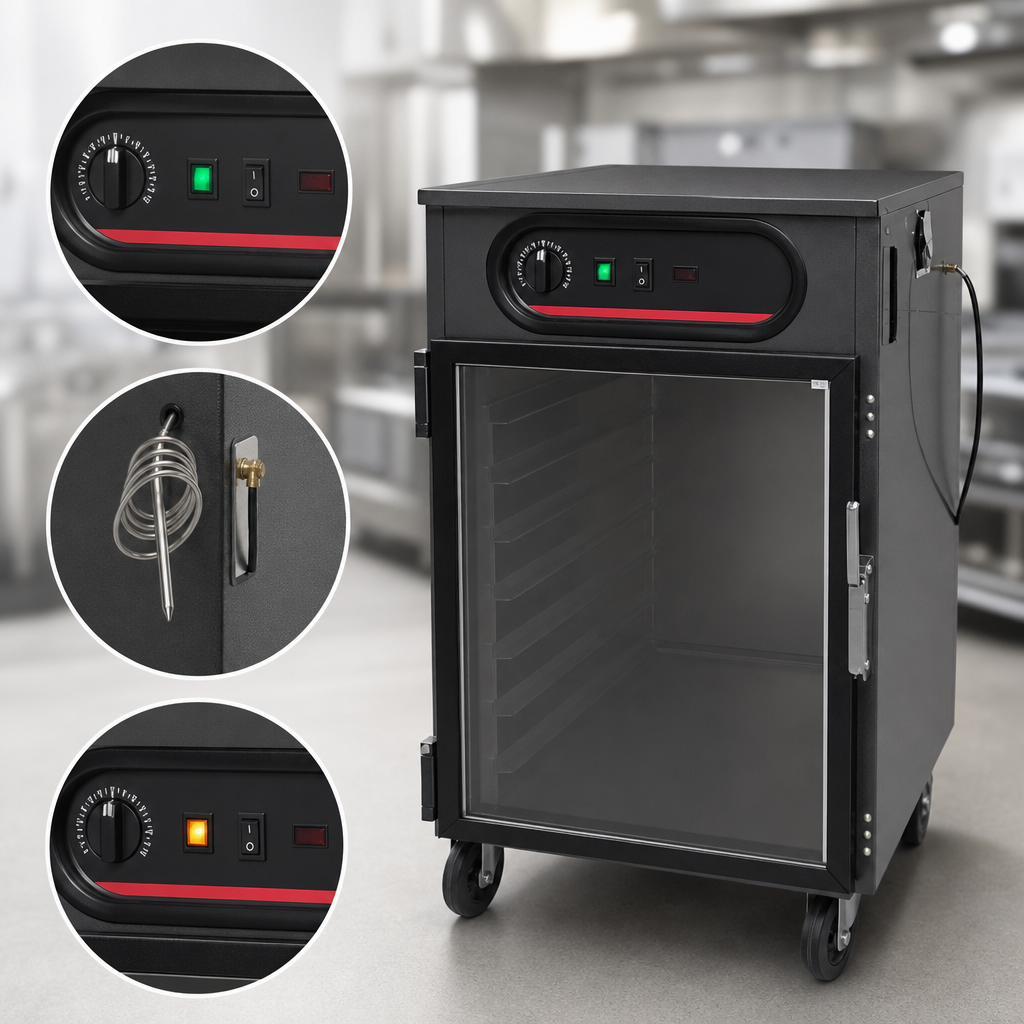

  • Easy mechanical controls: Dial thermostat, remote-bulb thermometer, on/off rocker, and power-on indicator light.
  • Universal adjustable slides: 3" spacing standard, adjustable on 1.5" centers to fit changing menus.
  • Mobility made simple: 5" all-swivel rubber casters (two with brakes) glide across kitchen floors.
  • Safety & compliance: cULus listed and UL EPH Classified for sanitation peace-of-mind.
  • 3-year parts & labor warranty backs your investment.

Specifications

Model HL7-8 (½-height)
Pan Capacity (16) 12" × 20" × 2½" steam-table pans
(8) 18" × 26" sheet pans
Temperature Range Ambient to 200 °F (93 °C)
Overall Dimensions (W × D × H) 28" × 33 ¹⁄₁₆" × 45 ½"
(711 × 840 × 1156 mm)
Interior Working Height 26 9⁄16" (675 mm)
Construction 20-ga. stainless steel interior & exterior, 2" fiberglass insulation
Door Solid, field-reversible, double-panel stainless; chrome edge-mount latch
Electrical 120 V / 1 ph / 9.2 A / 1150 W, NEMA 5-15P, 10 ft cord
Casters (4) 5" all-swivel, 2 locking
Shipping Weight 312 lb (141 kg)

Installation & Clearance

  • Provide at least 2" (51 mm) clearance from combustible walls.
  • Maintain 36" (914 mm) in front for full door swing and safe loading.
  • Place on a solid, level floor for optimal performance.

Three-year parts & labor warranty. Specifications subject to change without notice.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cULus, UL EPH Classified

Height

45.5in

Width

28.0in

Depth

33.06in

Shipping Weight

322.0lbs

Size

1 compartment

Full Size Sheet Pan Capacity

(8) 18" x 26" pans

Slide Centers

adjustable on 3"

Section

1 section

Door Style

full door(s)

Door Type

solid

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Height

43" - 48"

Heater

top mounted

Exterior Finish

all stainless steel exterior

Insulation

insulated

Specifications

hotLOGIX Holding Cabinet-HL7 Series, one compartment, 1/2-height, insulated, (16) 12" x 20" or (8) 18" x 26" pan capacity, universal pan slides, (1) solid field reversible door, mechanical controls, top-mount forced air heating system, stainless steel construction, 5" swivel casters (2 with brakes), cULus, UL EPH Classified
