Description
Carter-Hoffmann hotLOGIX HL7-5 Undercounter Heated Holding Cabinet
10 x 12 ″ × 20 ″ or 5 x 18 ″ × 26 ″ pan capacity • Top-mounted forced-air heat • 3-year warrantyKeep plated meals, sheet-pans or steam-table pans at perfect serving temperature—right under the counter and ready to go. Built for the busiest kitchens, the HL7-5 blends Carter-Hoffmann’s rugged stainless-steel construction with proven hotLOGIX technology that quickly heats to 200 °F (93 °C) and circulates air evenly throughout the cabinet.
Key advantages- Undercounter footprint (only 33 ½ ″ high) maximizes prep-line space without sacrificing capacity.

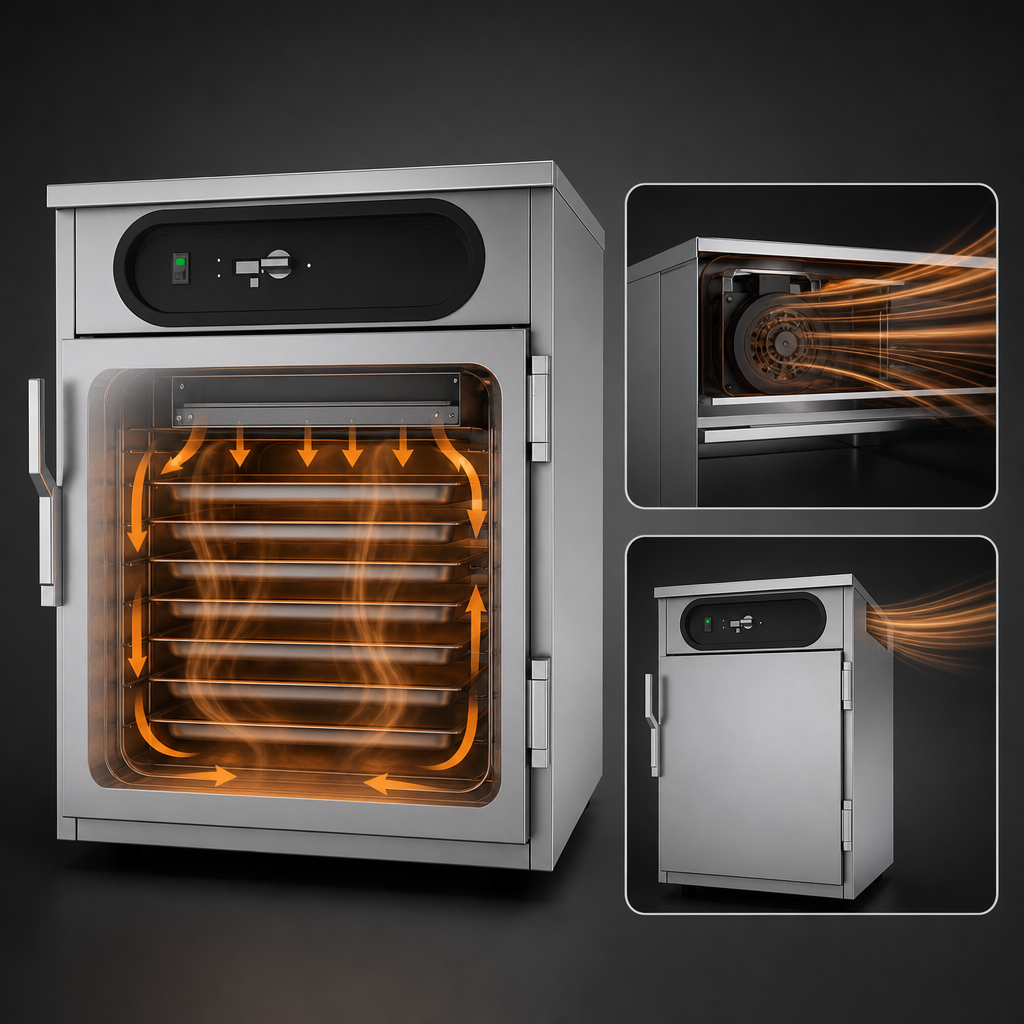

- Top-mounted blower system pre-heats to 160 °F in ≈25 minutes and maintains up to 200 °F.

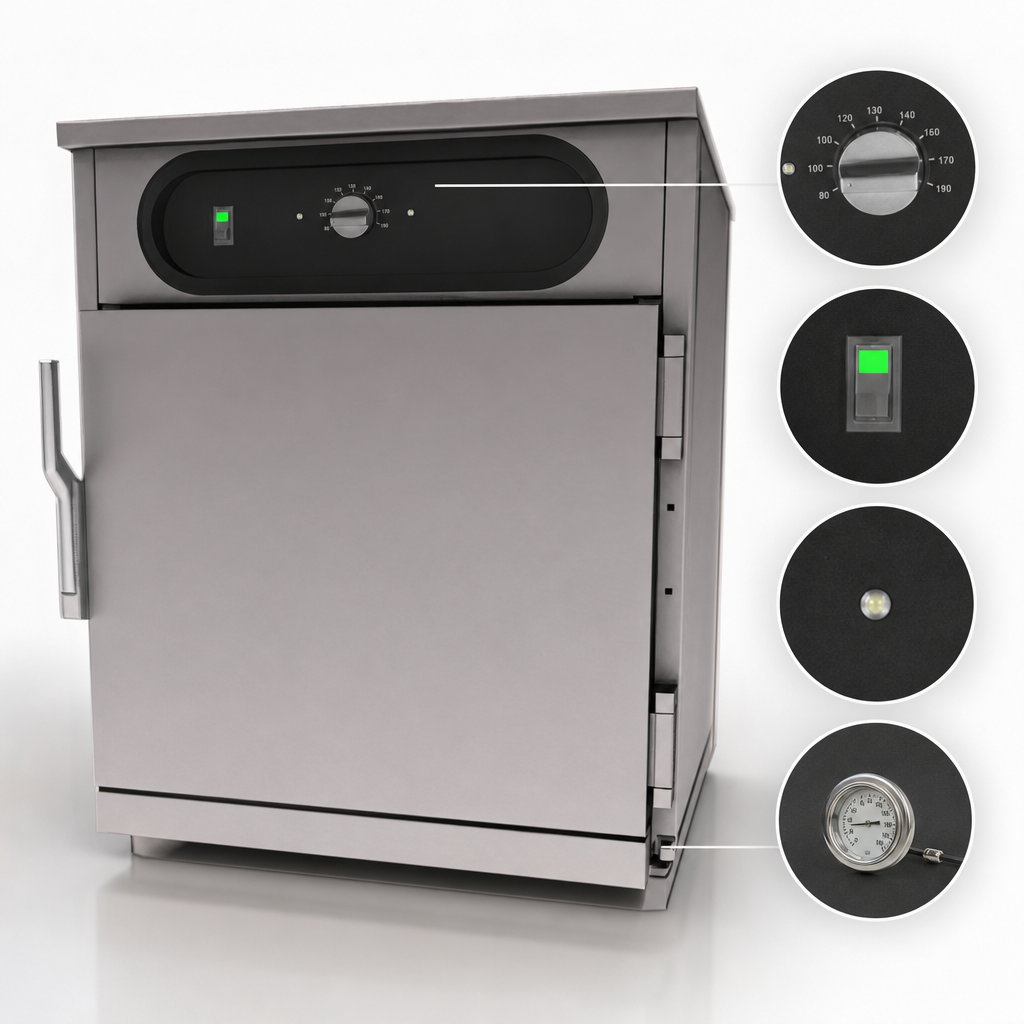

- Dial temperature control with remote-bulb thermometer, power switch and indicator light—simple and reliable.
- Universal stainless-steel slides spaced at 3 ″ (adjustable on 1.5 ″ centers) fit GN 2/1 pans, 18 ″ × 26 ″ sheet pans, or 12 ″ × 20 ″ hotel pans.
- Field-reversible, double-wall door with high-temperature gasket and chrome-plated latch/magnetic catch.
- 2 ″ thick high-density fiberglass insulation in the door and cabinet walls for reduced energy use.
- 3 ″ all-swivel casters (2 with brakes) for effortless movement under counters or during cleaning.
- Single 120 V connection with 10-ft cord and NEMA 5-15P plug—no hard-wiring required.
- cULus & UL EPH Classified for electrical and sanitation safety.
| Pan capacity | 10 × 12 ″ × 20 ″ steam-table pans 5 × 18 ″ × 26 ″ sheet pans |
|---|---|
| Temperature range | Ambient to 200 °F (93 °C) |
| Pre-heat time | To 160 °F (71 °C) in approx. 25 min |
| Controls | Mechanical dial thermostat & dial thermometer, on/off switch, power light |
| Construction | 20 ga stainless interior & exterior, double-wall with 2 ″ fiberglass insulation |
| Door | Solid, insulated; field reversible |
| Slides | Removable universal slides, 3 ″ spacing (adjustable) |
| Overall dimensions | Width 28 ″ (711 mm) × Depth 33 1⁄16 ″ (840 mm) × Height 33 ½ ″ (851 mm) |
| Interior working height | 16 15⁄16 ″ (430 mm) |
| Casters | 3 ″ Ø all-swivel (2 braked) |
| Electrical | 120 V / 60 Hz / 1-ph, 1 150 W, 9.2 A |
| Plug | NEMA 5-15P (attached 10-ft cord) |
| Shipping weight | ≈ 261 lb (118 kg) |
| Certifications | cULus Listed, UL EPH Classified |
| Warranty | 3 years parts & labor |
Looking for a glass door, pass-through configuration or electronic controls? Contact us—additional hotLOGIX options are available to match any workflow.
