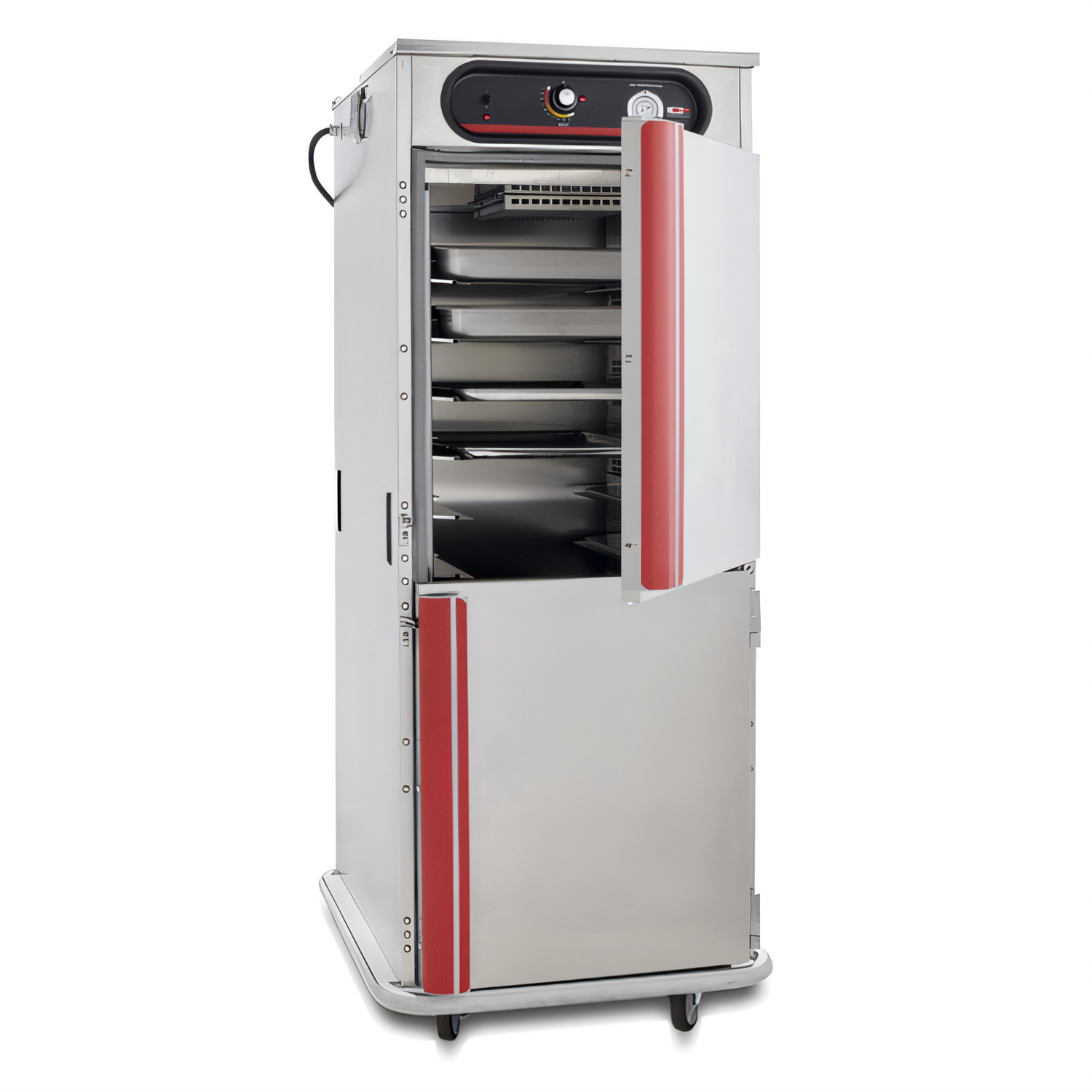

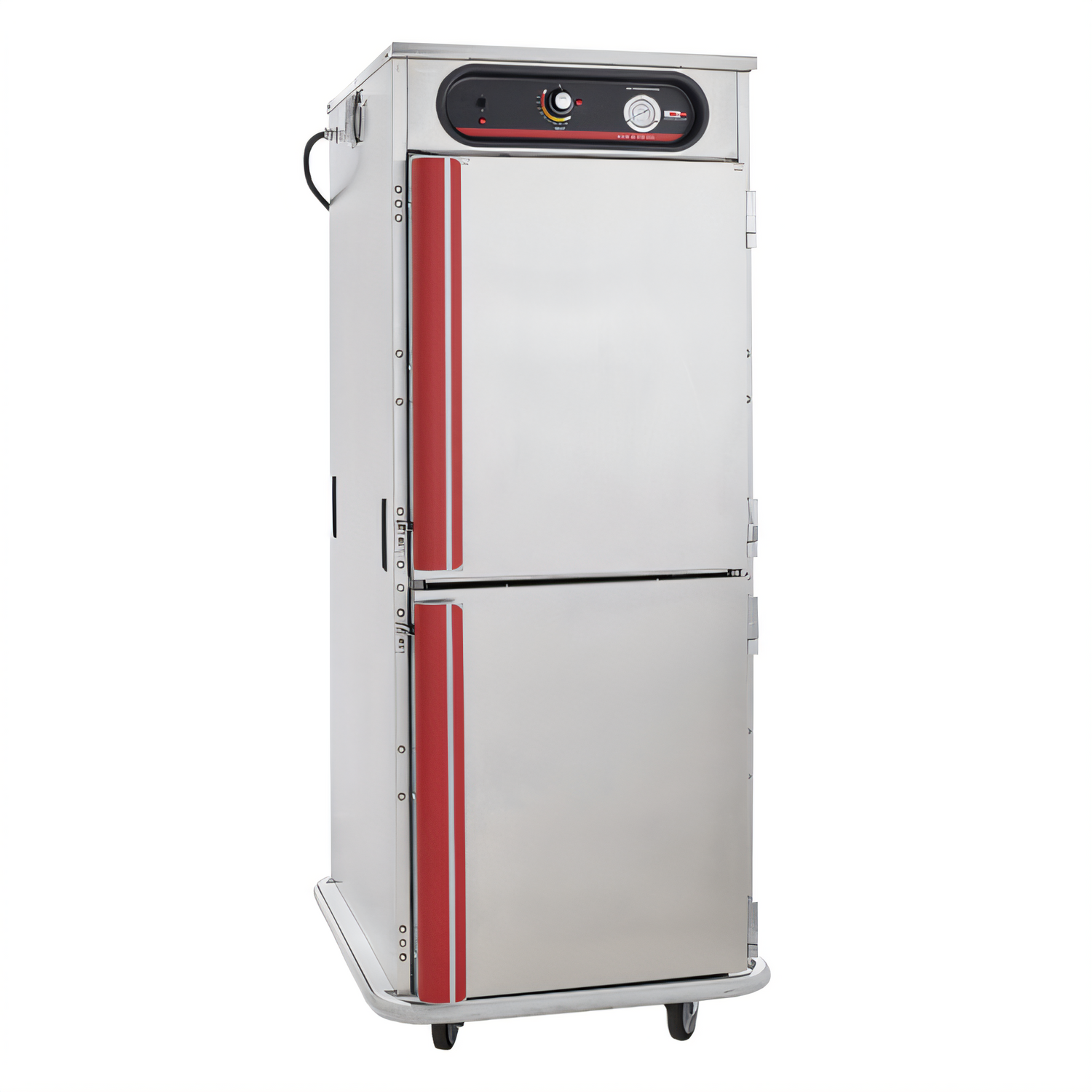

Carter-Hoffmann hotLOGIX® HL7-1812 Full-Height Heated Holding & Transport Cabinet
24 × 12" × 20" or 12 × 18" × 26" Pan Capacity | Insulated Stainless Steel | Mechanical ControlsBuilt for busy kitchens that refuse to compromise on food quality, the hotLOGIX HL7-1812 keeps menu items hot, safe and table-ready for hours while providing the rugged mobility you need for catering, banquets and tray service.
Why You’ll Love It

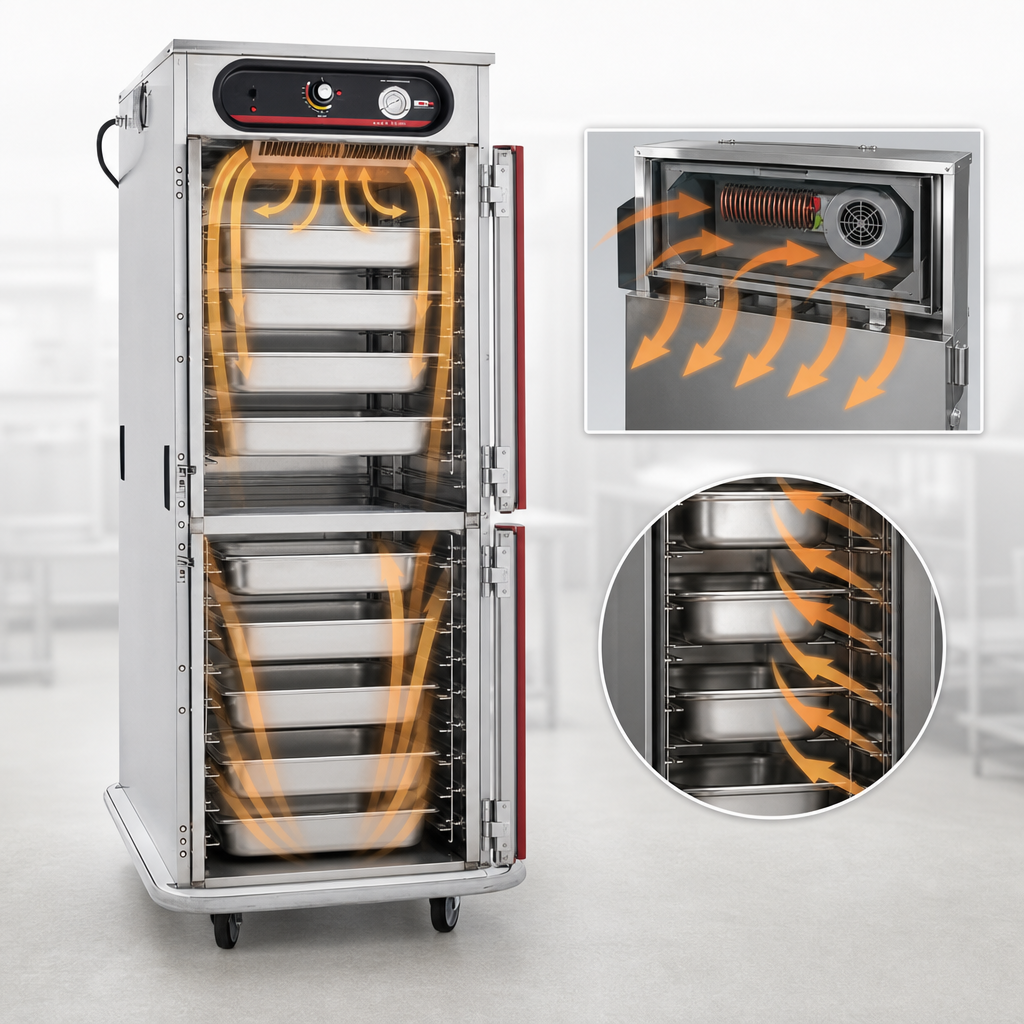

- Top-mounted forced-air heater reaches 200 °F (93 °C) and pre-heats to 160 °F (71 °C) in about 25 minutes.

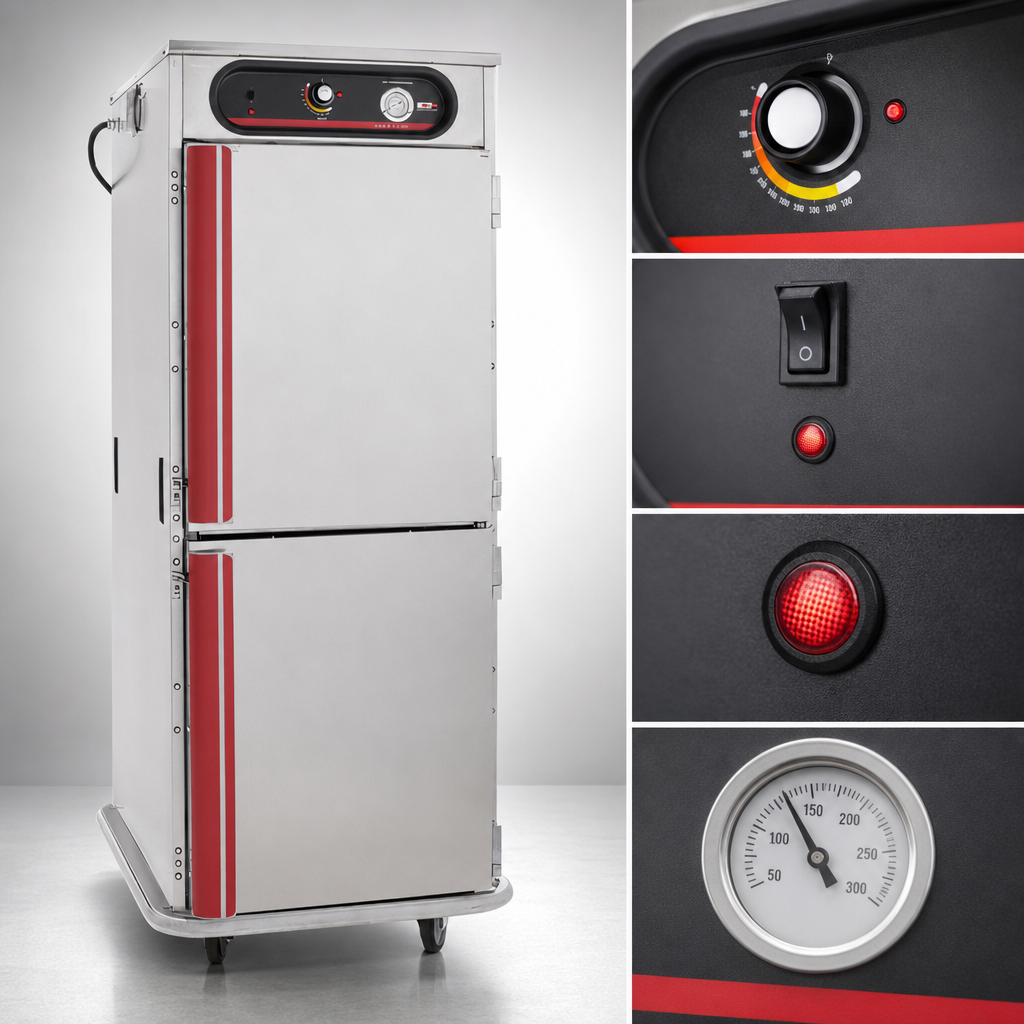

- Simple dial thermostat with remote-bulb thermometer, on/off switch and power indicator light.
- Universal stainless-steel slides accept:
- (24) full-size hotel pans 12" × 20"
- (12) full-size sheet pans 18" × 26"
- GN 2/1 or 1/2 pans
- Slides set on 4.5" spacing and adjust in 1.5" increments for ultimate flexibility.
- Double-wall 20 ga. stainless-steel body filled with 2" high-density fiberglass insulation.
- (2) solid Dutch doors with full-length ergonomic handles, high-temp magnetic gaskets and transport latches.
- Full-perimeter non-marking bumper protects walls, doors and the cabinet itself during moves.
- (4) 5" all-swivel rubber casters—two lock for secure parking.
- cULus listed and UL EPH Classified; backed by a 3-year parts & labor warranty.
Perfect For
• Banquet plating lines • QSR holding stations • Off-site catering • Healthcare & school meal delivery • Commissary kitchens
Specification Snapshot
| Model | HL7-1812 |
|---|---|
| Compartments | 1, full height |
| Pan Capacity | (24) 12" × 20" or (12) 18" × 26" |
| Temperature Range | Ambient to 200 °F (93 °C) |
| Exterior Dimensions | 76-3⁄8" H × 31-3⁄8" W × 36-5⁄8" D (1 940 × 797 × 930 mm) |
| Inside Working Height | 57-1⁄2" (1 461 mm) |
| Electrical | 120 V / 1-ph / 60 Hz, 2 100 W, 17.5 A, 10-ft cord, NEMA 5-20P |
| Shipping Weight | 468 lb (199 kg) |
| Casters | (4) 5" swivel, (2) with brakes |
| Construction | 20 ga. stainless-steel, double-wall, 2" insulation |
| Certifications | cULus, UL EPH Classified |
Factory Options
- Additional slide pairs
- Digital temperature controls
- Alternate electrical configurations (consult factory)
Installation note: Provide 2" clearance from combustible surfaces and 36" clearance in front of the cabinet for full door swing. Unit must rest on a level floor.
