Description

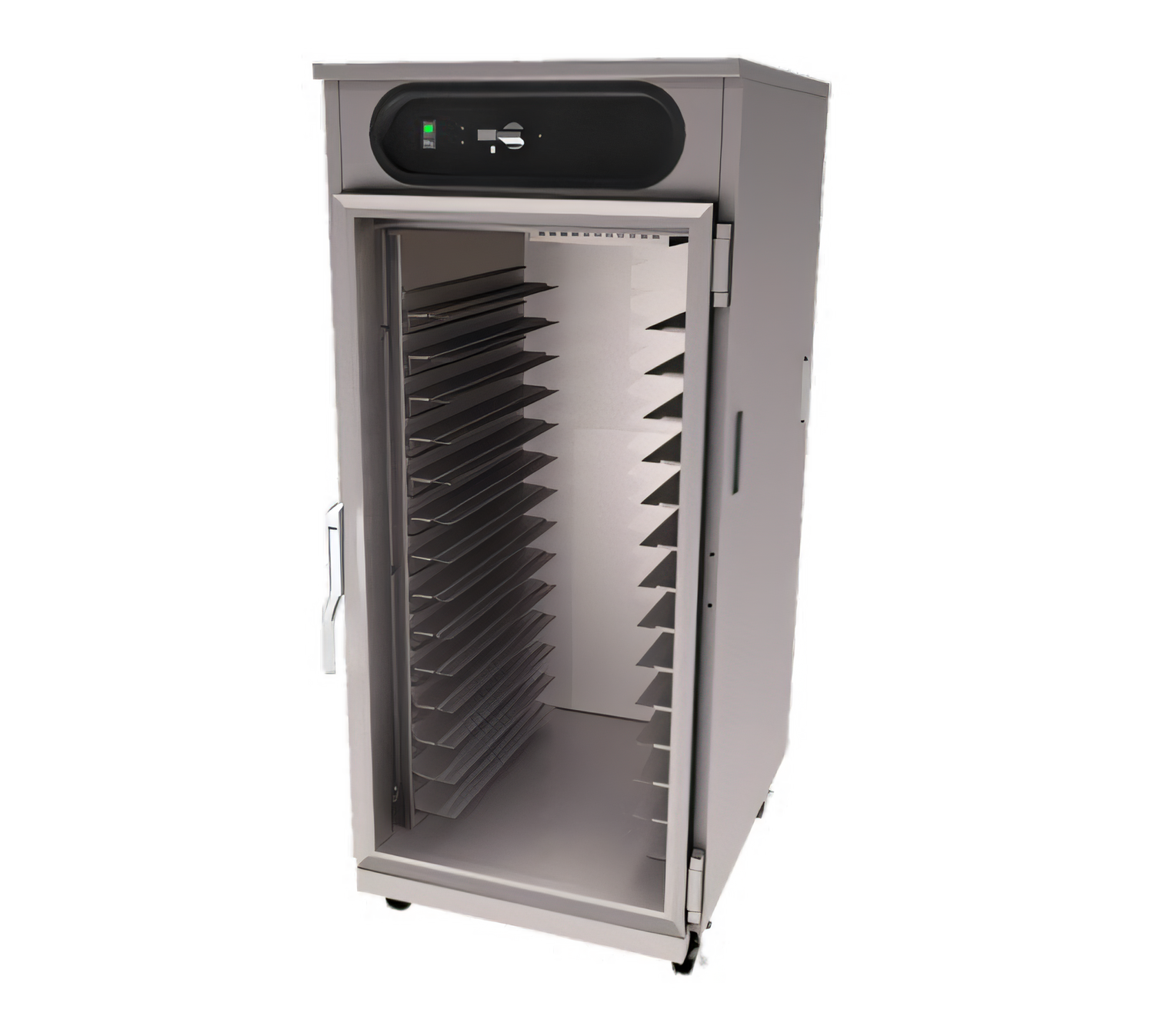

Carter-Hoffmann hotLOGIX HL7-14 Heated Holding Cabinet

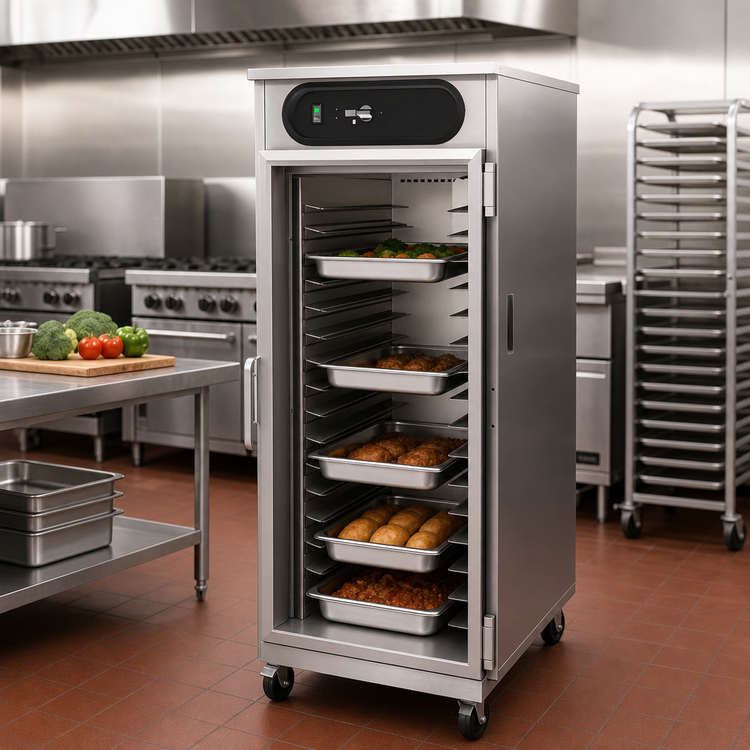

3/4-Height • 28 × 12"×20" Pan Capacity • Stainless SteelKeep plated, panned or sheet-tray foods hot, safe and “just-cooked” fresh—right up to the moment of service. The hotLOGIX HL7-14 combines rugged all-stainless construction with a top-mounted forced-air heating system so every rack position stays within a few degrees of set-point, even with frequent door openings.
Key Features & Benefits
- Generous 3/4-height capacity—holds (28) 12"×20" steam-table pans or (14) 18"×26" sheet pans.

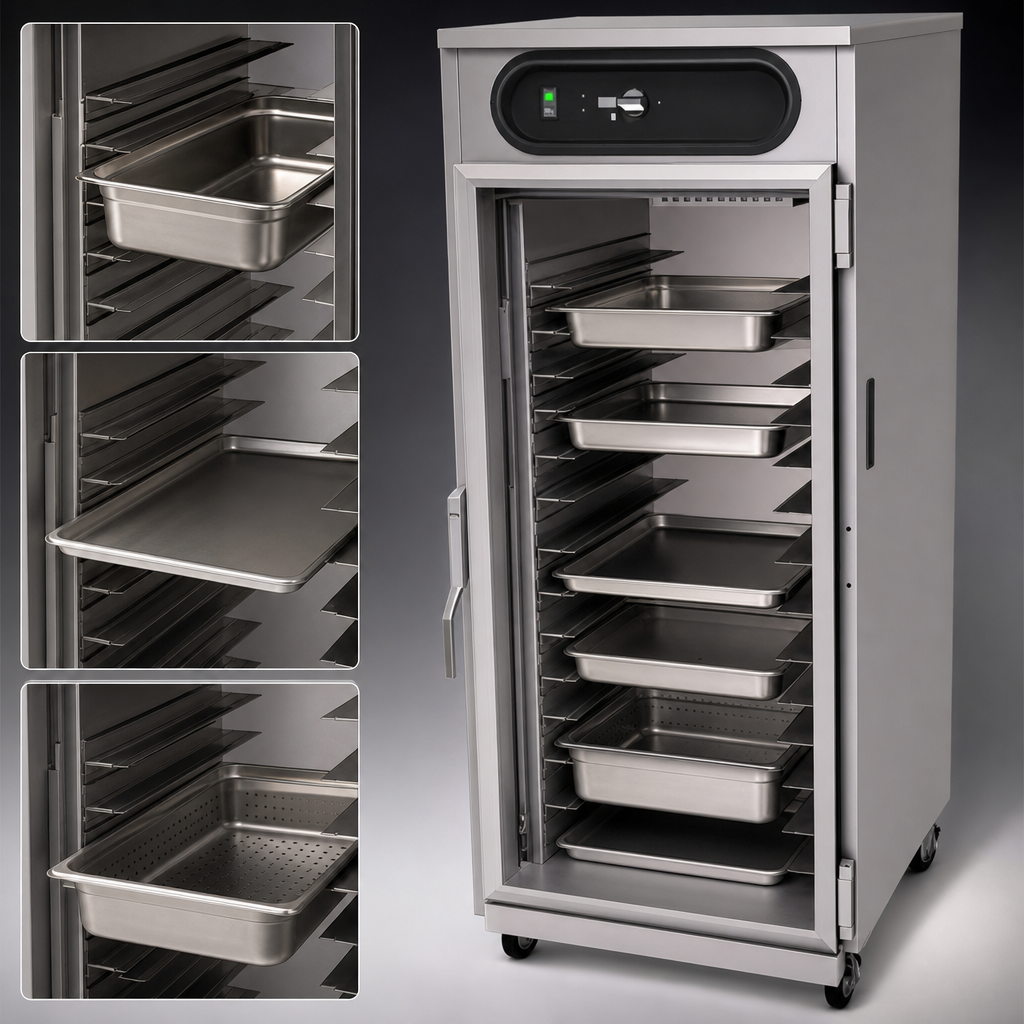

- Universal, removable slides adjust on 1.5" centers; standard 3" spacing ships ready to work out of the box.

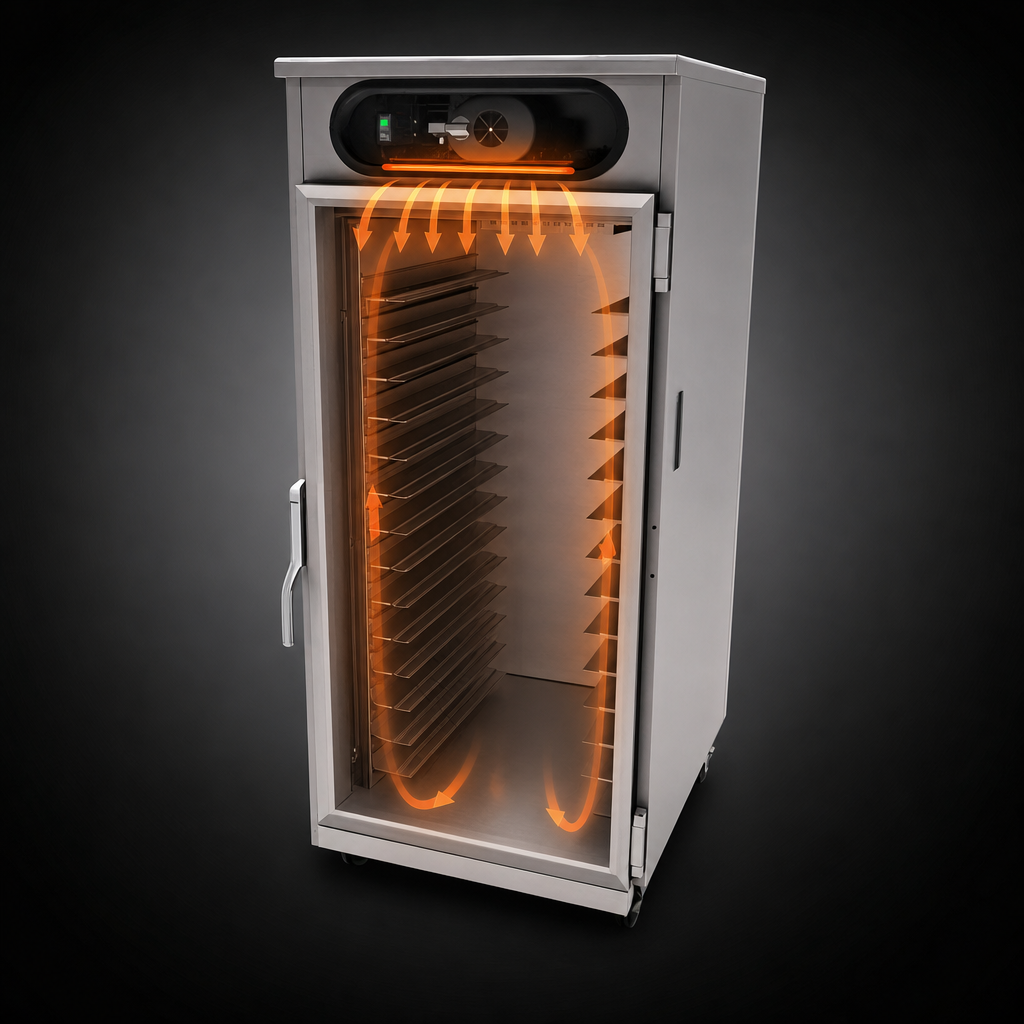

- Top-mount blower heat to 200 °F (93 °C) with dial thermostat, remote-bulb thermometer and low-temp alarm for worry-free holding.
- Fast heat-up—pre-heats to 160 °F (71 °C) in about 25 minutes to minimize wait time at shift change.
- Double-wall, 2" insulated stainless cabinet & door delivers energy efficiency and consistent cavity temperatures.
- Field-reversible solid door with heavy-duty chrome latch and high-temp magnetic gasket for a tight seal.
- Easy mobility on four 5" all-swivel casters; two front casters lock for rock-solid plating stations.
- Simple mechanical controls—no complicated menus; operators dial in the exact temperature they need.
- Three-year parts & labor warranty backed by Carter-Hoffmann’s nationwide service network.
- cULus & UL EPH Classified for electrical and sanitation peace of mind.
Specifications at a Glance
| Model | HL7-14 (single compartment) |
|---|---|
| Pan Capacity | (28) 12" × 20" GN 1/1 pans • (14) 18" × 26" sheet pans |
| Temperature Range | Ambient to 200 °F (93 °C) |
| Pre-heat Time | to 160 °F (71 °C) in ≈25 min |
| Overall Dimensions (H × W × D) | 64 3⁄8" × 28" × 33 1⁄16" (1635 × 711 × 840 mm) |
| Inside Working Height | 45 1⁄2" (1156 mm) |
| Electrical | 120 V, 1-phase, 2100 W, 17.5 A, 60 Hz, NEMA 5-20P |
| Construction | 20 ga. stainless interior & exterior, double-wall, 2" fiberglass insulation |
| Door | Solid, double-panel, field-reversible, chrome latch, high-temp gasket |
| Casters | (4) 5" all-swivel, 2 with brakes |
| Shipping Weight | ≈ 413 lb (189 kg) |
| Warranty | 3 years parts & labor |
| Certifications | cULus, UL EPH Classified |
Factory Options & Accessories
- Dutch doors (upper & lower) – suffix “-D”
- Pass-through configuration – suffix “-P”
- Glass door(s) – suffix “-G”
- Fixed-angle pan racks (sheet-pan only)
- Menu card holder (solid door only)
- Electronic control upgrade
