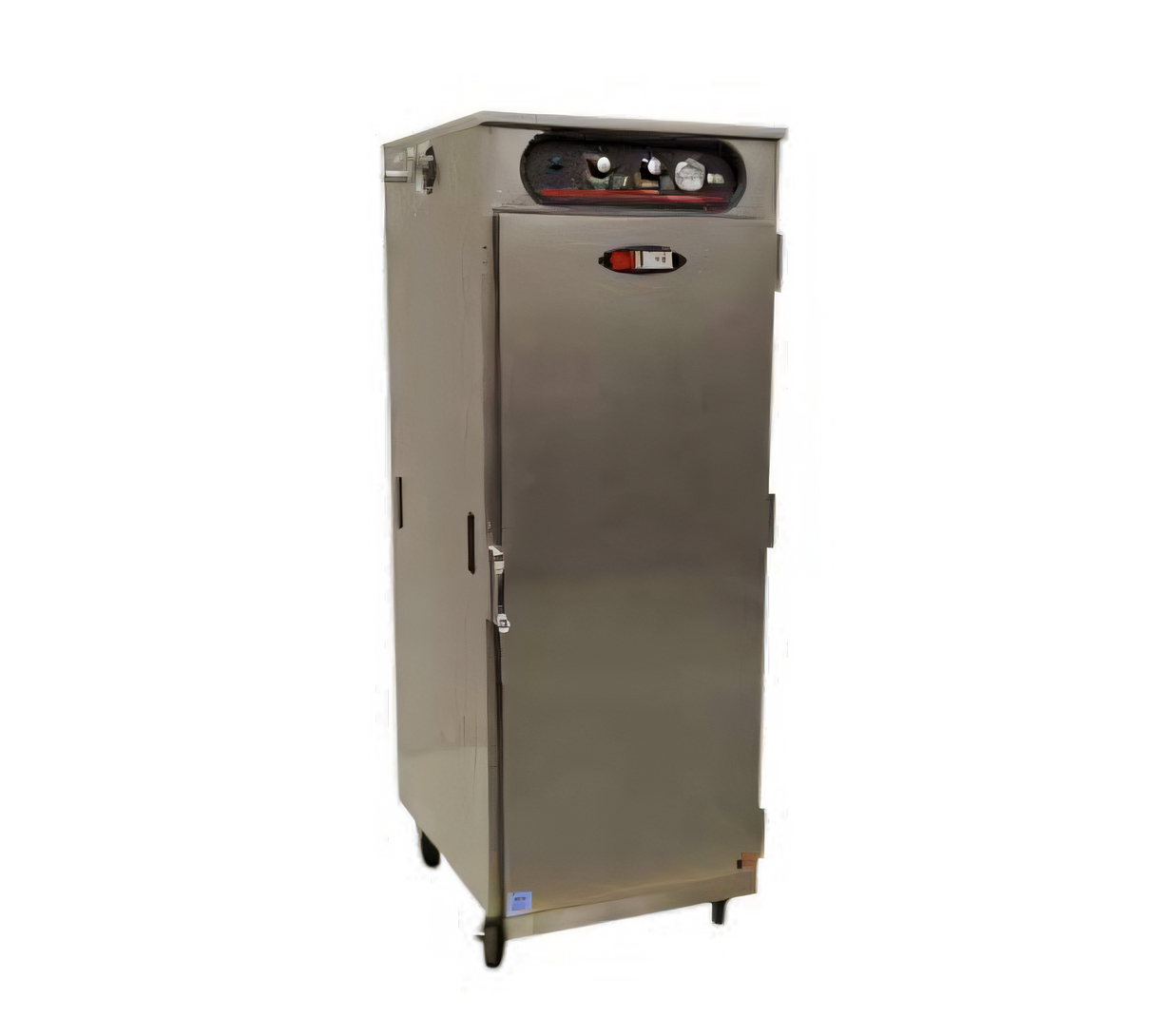

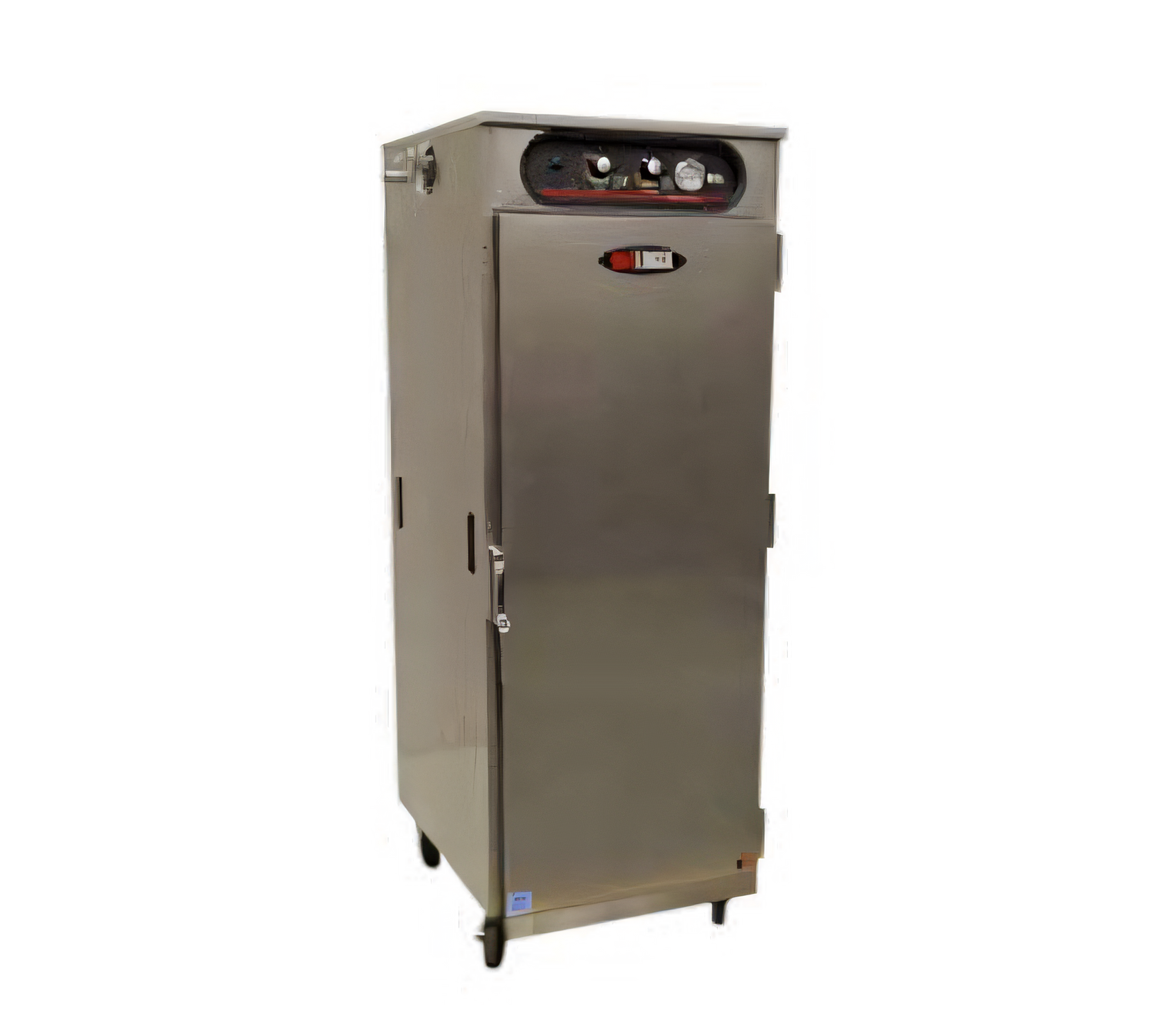

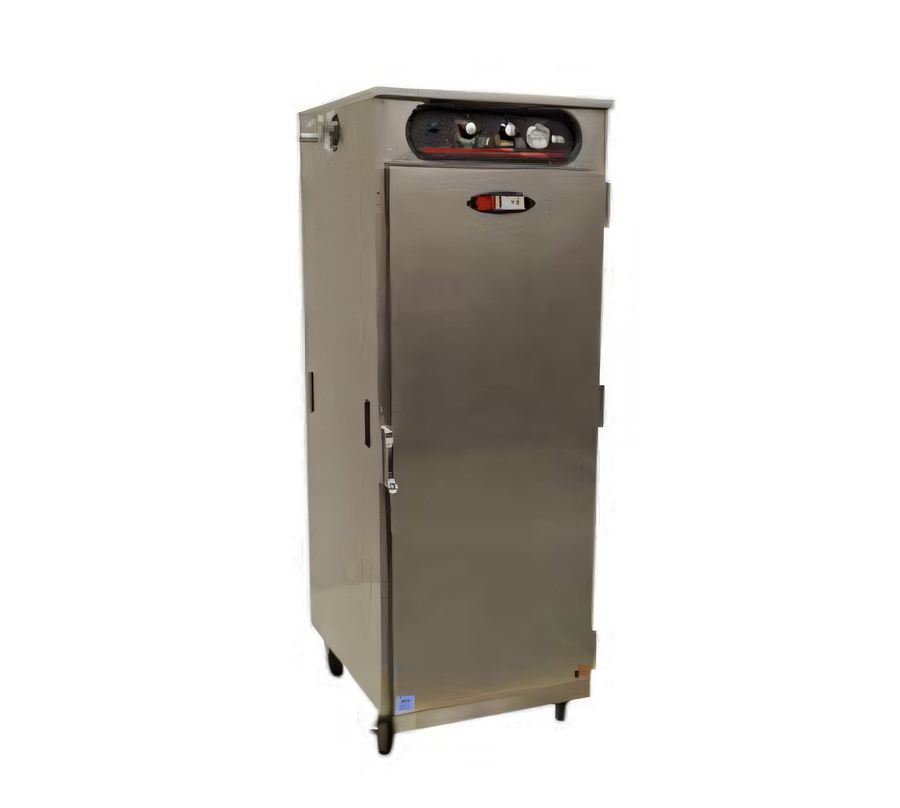

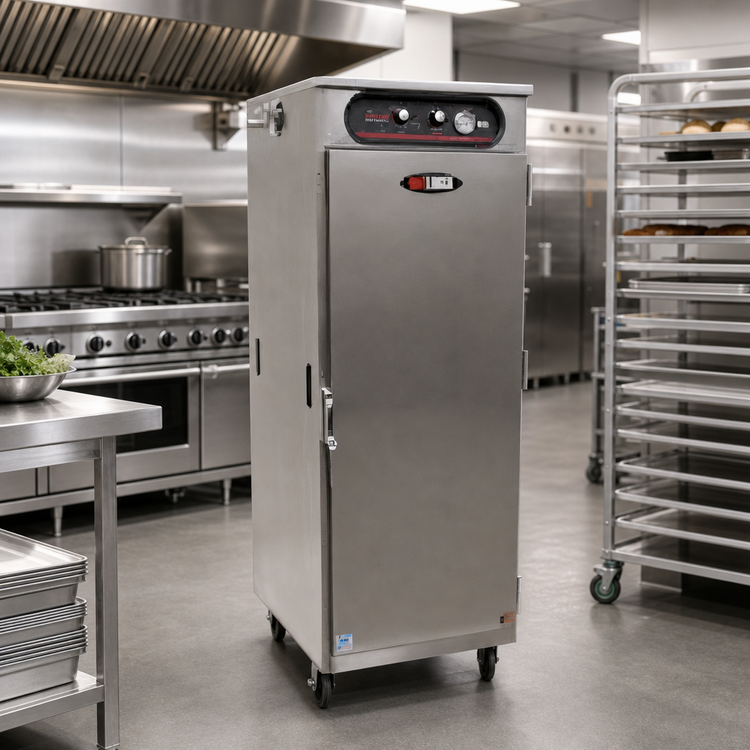

Carter-Hoffmann hotLOGIX HL6-14 Humidified Holding Cabinet

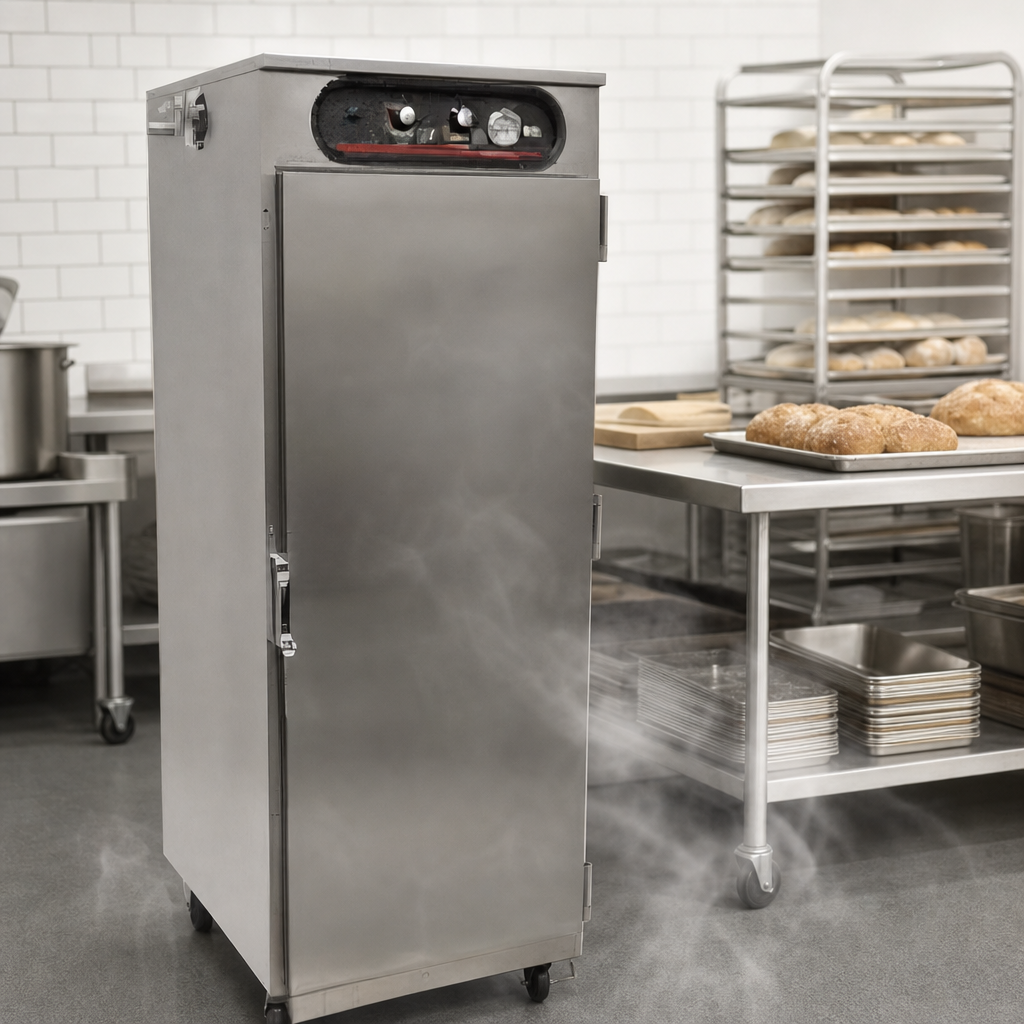

3/4-Height • Insulated Aluminum • Universal SlidesKeep every pan tasting “just-cooked.” The HL6-14 pairs a 1 kW forced-air heater with a 1 kW water reservoir to deliver up to 200 °F (93 °C) heat and 90 % relative humidity—ideal for moisture-sensitive items from pasta and veggies to burgers and chicken. Lightweight yet rugged, it rolls easily wherever service demands.
Performance Highlights
- Active humidity prevents food from drying and shrinking.
- Rapid recovery – pre-heats to 160 °F in about 25 minutes and rebounds quickly after door openings.
- Universal capacity – holds 28 × 12" × 20" pans or 14 × 18" × 26" sheet pans.
- Simple mechanical controls – dial in temperature & humidity; remote-bulb thermometer and power light provide at-a-glance status.
- Energy-saving insulation – 2" fiberglass throughout the double-wall aluminum cabinet and door.
- Top-mounted reservoir stays away from the food zone for cleaner, faster refills.
- Kitchen-ready mobility – four 5" all-swivel casters, front two locking.
- Built to last – chrome-plated latch, field-reversible door, high-temp magnetic gasket & stainless slides.
- Safety & compliance – cULus and UL EPH Listed; backed by a 3-year parts & labor warranty.
Capacity & Operating Range
- 28 full-size 12" × 20" × 2.5" steam-table pans
- 14 full-size 18" × 26" sheet pans
- Standard 3" spacing; slides adjust in 1.5" increments
- Temperature: ambient to 200 °F (93 °C)
- Humidity: ambient to 90 % RH
Technical Specifications
| Model | HL6-14 (one compartment, ¾-height) |
|---|---|
| Construction | Double-wall insulated aluminum; 2" fiberglass; high-temp magnetic gasket |
| Door | 1 solid, hinged, field-reversible door with chrome-plated latch & magnetic catch |

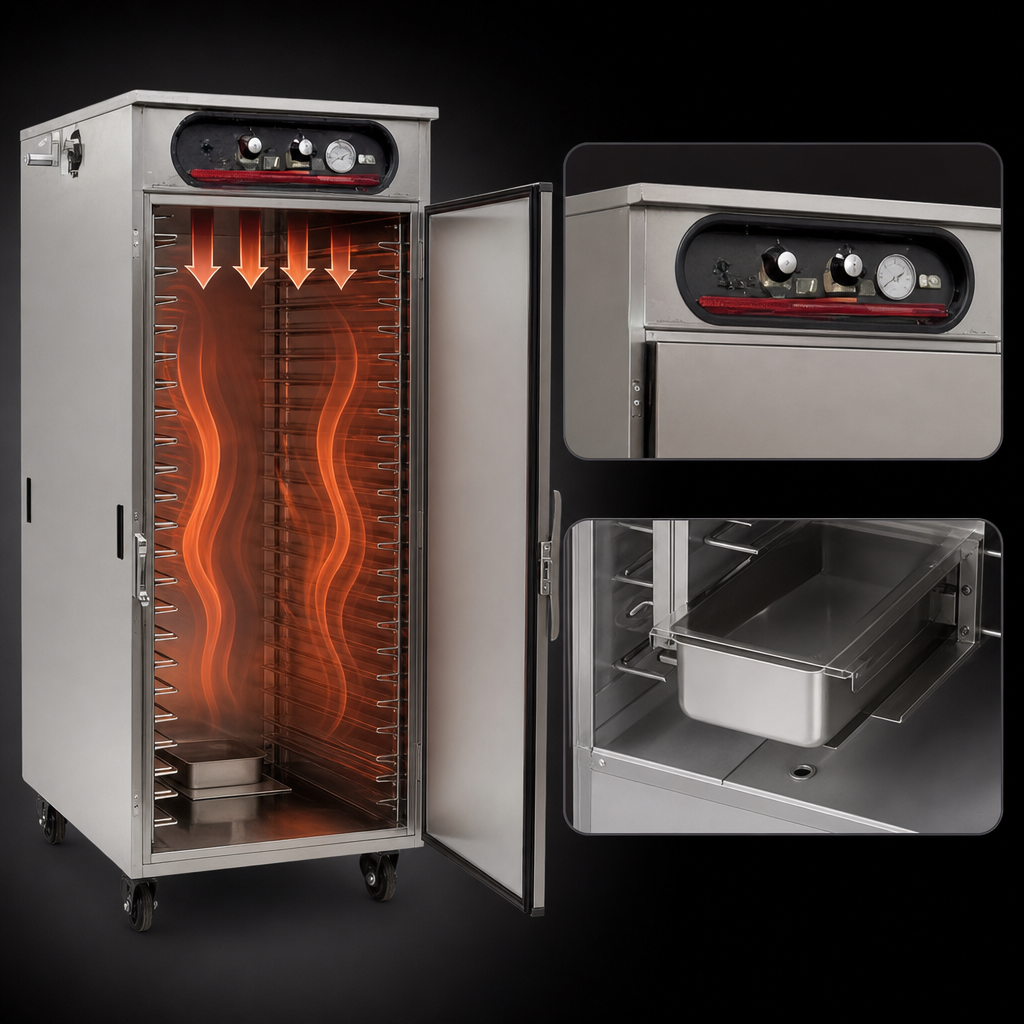

| Heating System | Top-mounted 1 kW forced-air heater + 1 kW immersed water element |
| Controls | Mechanical dials for heat & humidity, on/off switch, remote-bulb thermometer |
| Exterior Dimensions (W × D × H) | 28" × 33-1/16" × 64-3/8" (711 × 840 × 1635 mm) |
| Inside Working Height | 45-1/2" (1156 mm) |
| Casters | 4 × 5" all-swivel (2 locking) |
| Electrical | 120 V, 2100 W, 17.5 A, 60 Hz, 1-ph, NEMA 5-20P (10 ft cord) |
| Shipping Weight | ≈ 413 lb (189 kg) |
| Certifications | cULus, UL EPH |
| Warranty | 3 years parts & labor |
Factory Options & Accessories
- Dutch doors (upper & lower)
- Pass-through or Dutch pass-through configuration
- Double-pane tempered glass door
- Electronic control package
- Autofill water connection
- Fixed-angle pan racks for 18" × 26" pans
- Menu card holder (solid-door models)
