Carter-Hoffmann (Middleby)

hotLOGIX HL5-5 Undercounter Heated Holding Cabinet, Insulated Aluminum, Solid Door

SKU: HL5-5
$5,930.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Carter-Hoffmann (Middleby) Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets New Arrivals Restaurant Equipment

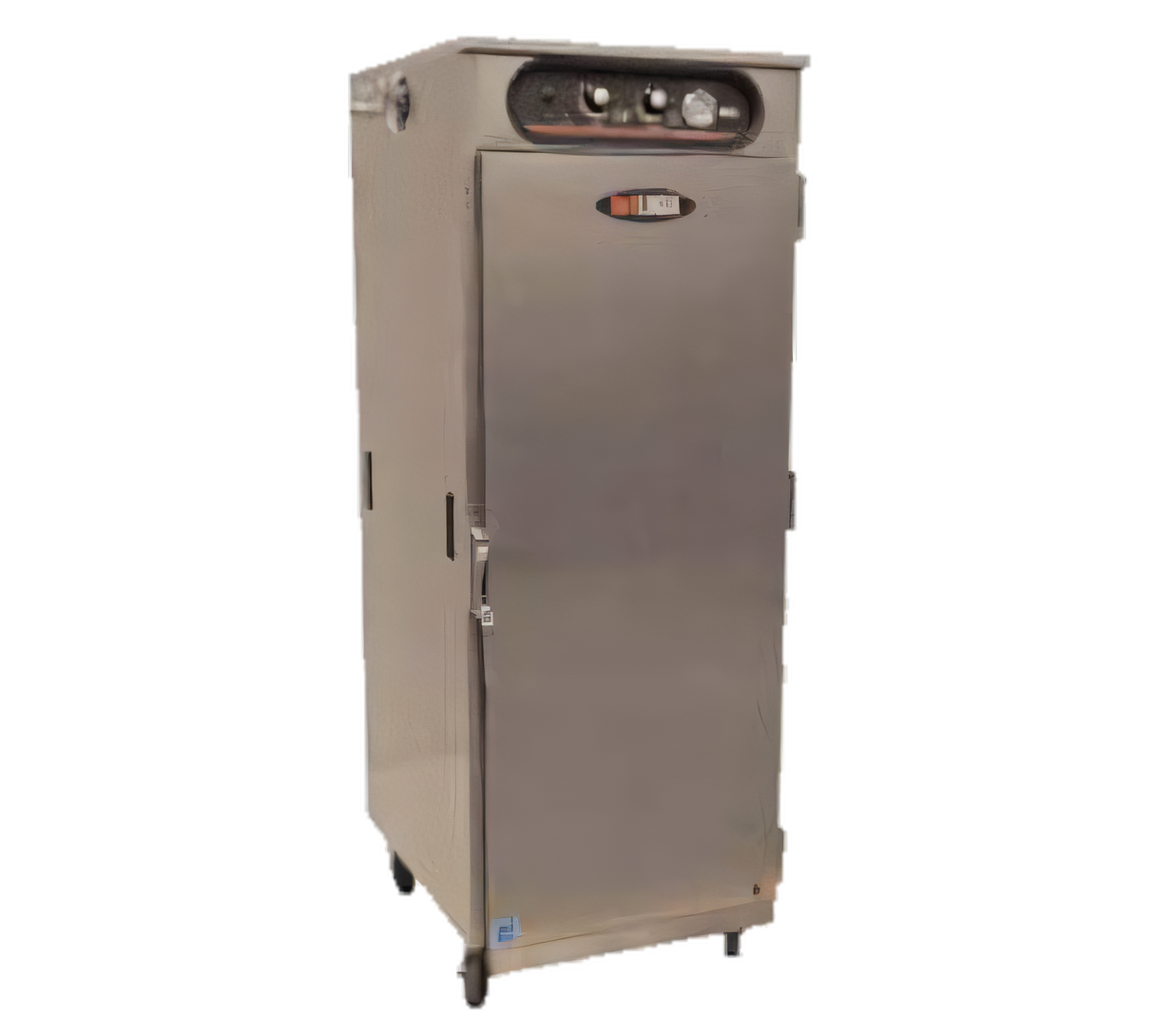

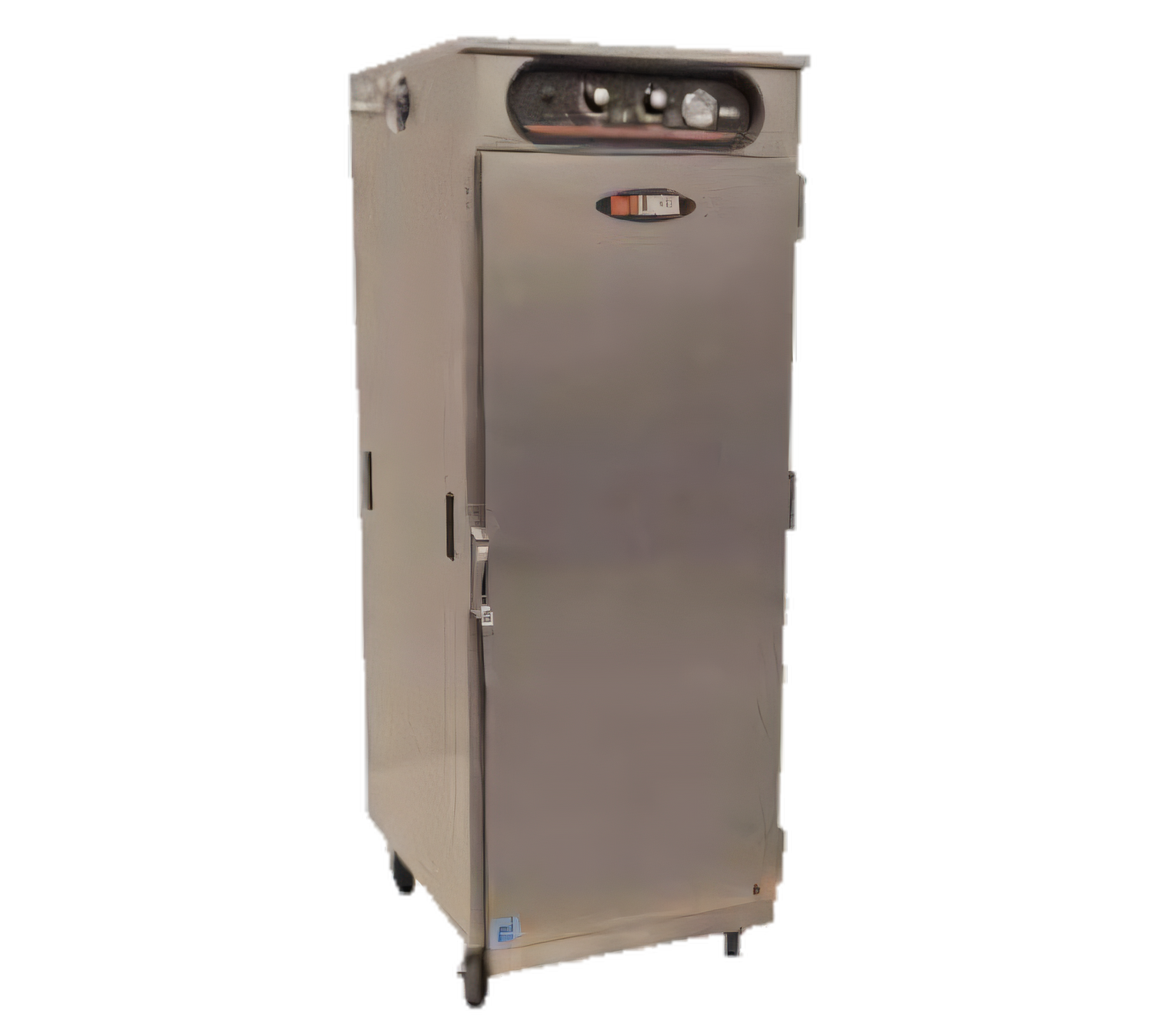

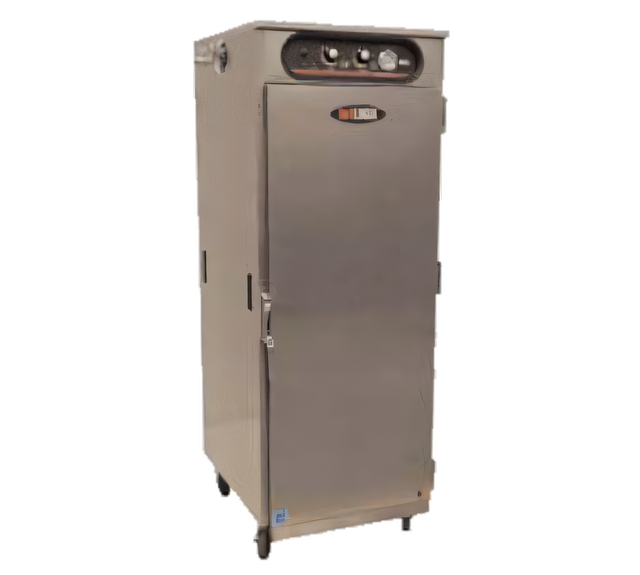

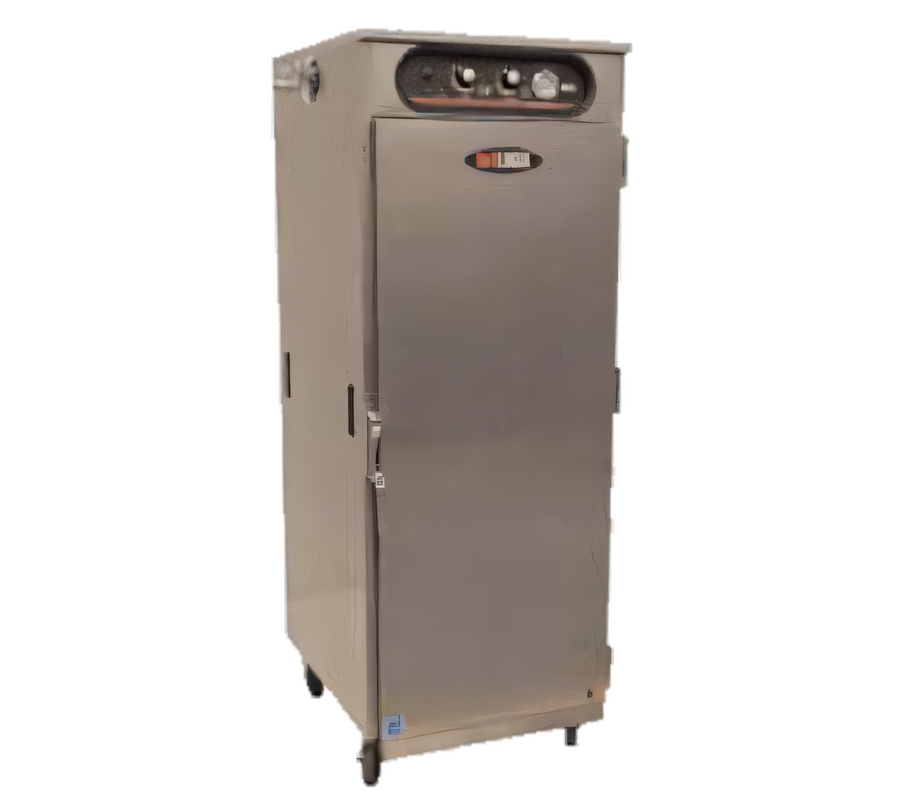

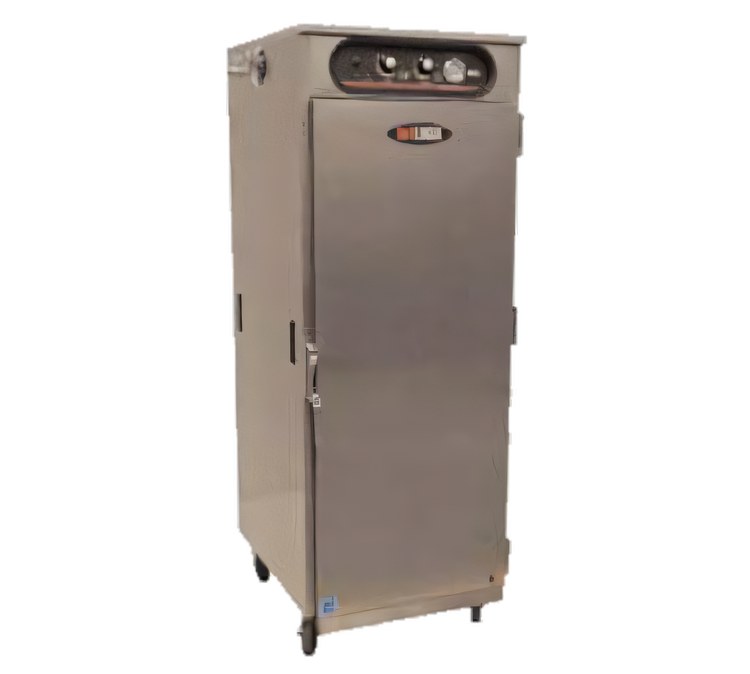

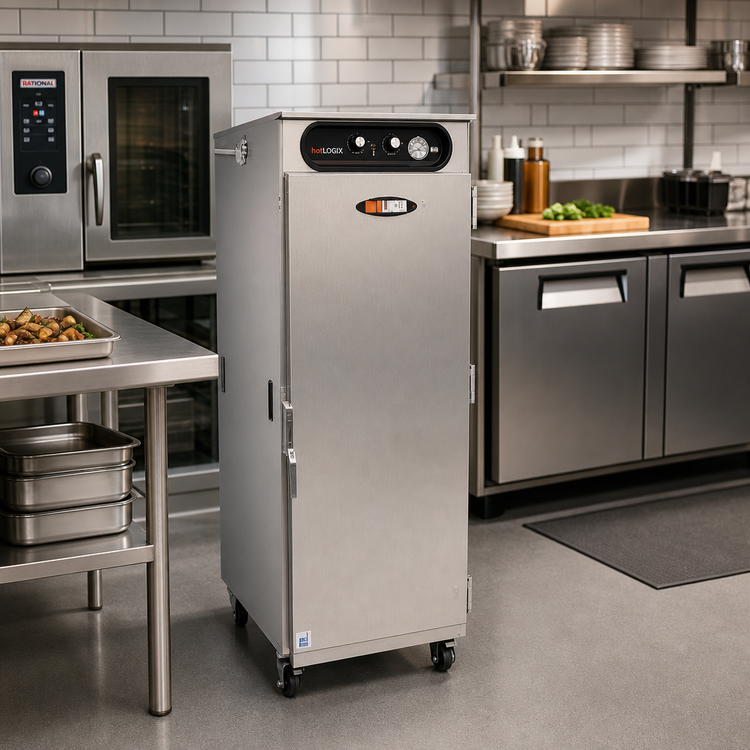

hotLOGIX HL5-5 Undercounter Heated Holding Cabinet, Insulated Aluminum, Solid Door

1 Compartment, Mechanical Controls, 10 Full-Size 12 x 20 Pans or 5 Full-Size 18 x 26 Pans

Keep prepared foods hot and service-ready in a compact undercounter cabinet with even top-mounted forced-air heat and rugged insulated aluminum construction.

  • Compact undercounter footprint is ideal for tight kitchen lines and holding stations.
  • Top-mounted forced-air heating promotes even airflow throughout the cabinet.
  • Universal pan slides hold 10 full-size 12 x 20 pans or 5 full-size 18 x 26 sheet pans.
  • Mechanical dial controls make temperature adjustment simple and include a thermometer and power light.
  • Solid insulated door with magnetic latch and gasket helps retain heat during service.
  • 3-inch swivel casters, including brakes on two casters, support easy repositioning.

Overall Dimensions:

28.0"W x 33.06"D x 33.5"H

Product Weight:

203.0 lb

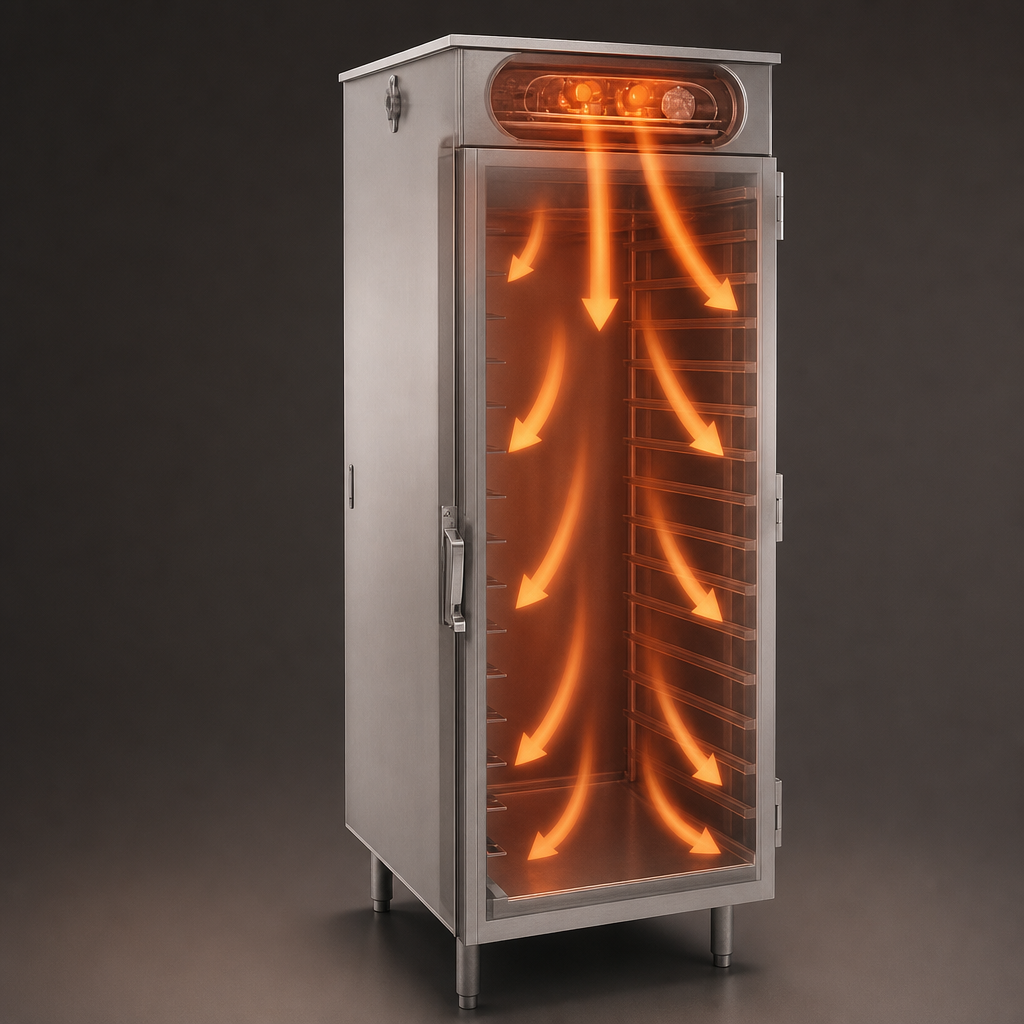

Top-Mounted Forced-Air Heating

Self-contained top heat and engineered ducting help distribute heat evenly throughout the cabinet.

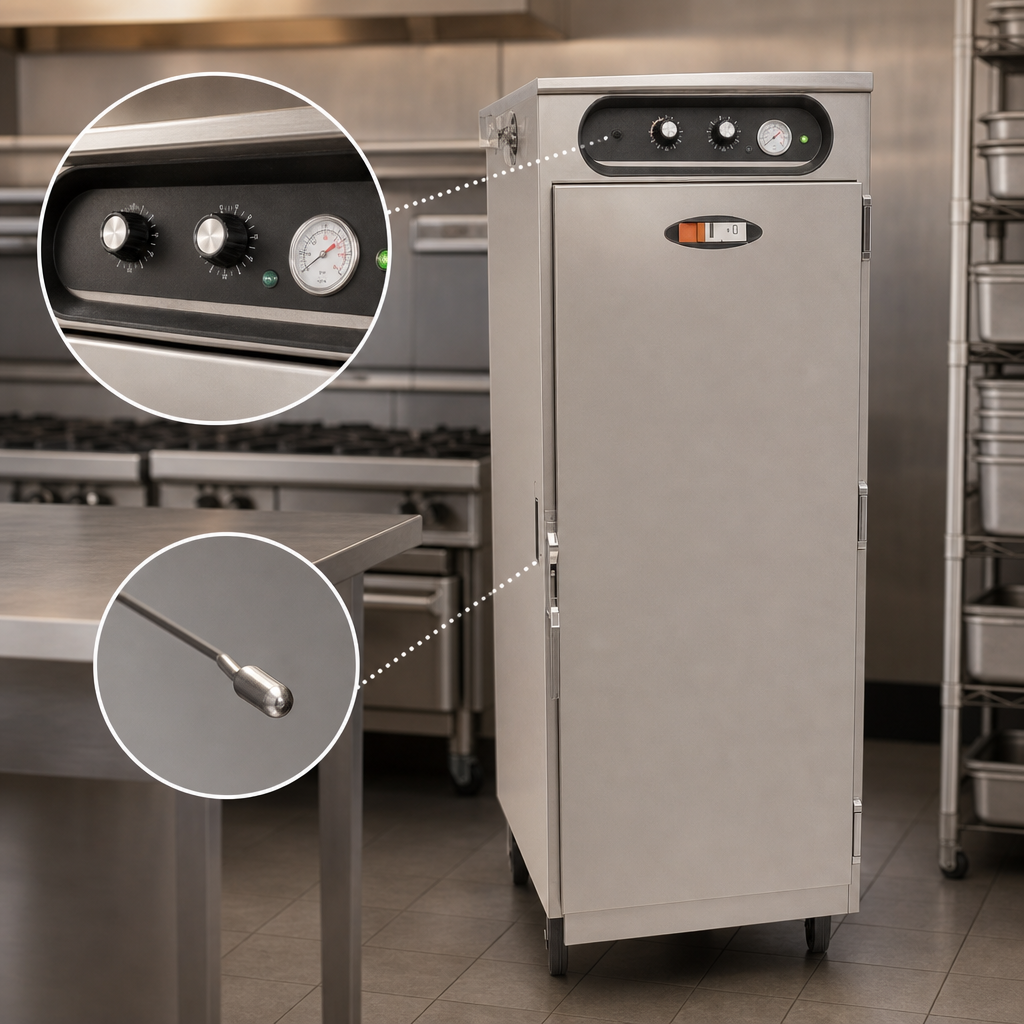

Mechanical Dial Controls

Dial temperature control includes an on/off switch, power indicator light, and remote-sensing bulb thermometer.

High Temperature Holding

Cabinet can hold food up to 200°F and preheats to 160°F in about 25 minutes.

Insulated Aluminum Construction

Lightweight double-wall insulated aluminum construction helps retain heat and improve durability.

Universal Pan Slides

Removable tray racks with universal stainless steel slides accept 12 x 20 steam table pans or 18 x 26 sheet pans.

Solid Insulated Door

Double-panel door with magnetic latch and high-temperature gasket helps seal in heat.

Mobile Caster Base

3-inch swivel casters make the cabinet easy to move; two casters include brakes.

120V Corded Connection

Single electrical connection with a 10-foot cord and NEMA 5-15P plug.

Type Heated Holding Cabinet
Style Insulated
Installation Type Undercounter
Controls Mechanical
Capacity 10 Full-Size 12 x 20 Pans / 5 Full-Size 18 x 26 Pans
Material Aluminum
Finish 2V Finish
Temperature Range Up to 200°F
Voltage 120 Volts
Watts 1.15 kW
Amps 9.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 28 Inches
Shipping Depth 34 Inches
Shipping Height 34 Inches
Shipping Weight 203 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds up to 10 full-size 12 x 20 pans or 5 full-size 18 x 26 sheet pans on universal slides.
The cabinet can hold food up to 200°F and preheats to 160°F in about 25 minutes.
It uses 120 Volts, 9.2 Amps, 60 Hz, single-phase power with a NEMA 5-15P plug.
It comes standard with a solid, double-panel insulated door with a magnetic latch and high-temperature gasket.
Allow at least 2 inches from walls or combustible materials, 36 inches at the front to open the door, and place the cabinet on a solid level floor.
Yes. It is mounted on 3-inch swivel casters, and two of the casters have brakes.
