Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL5-18

Carter-Hoffmann (Middleby) HL5-18 hotLOGIX Heated Cabinets & Holding Shelves

$6,941.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Middleby financial flyer Terms & conditions Owner's manual
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

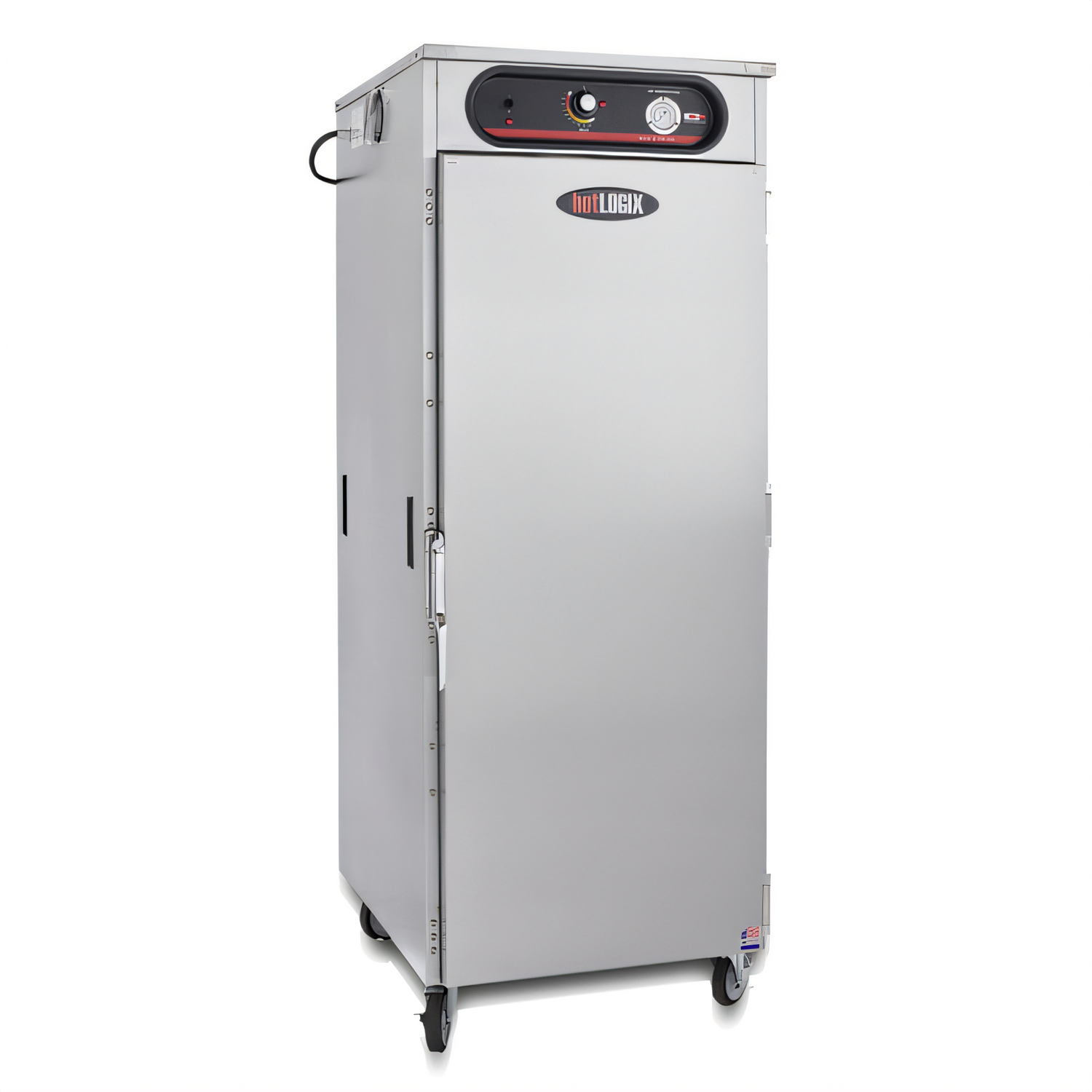

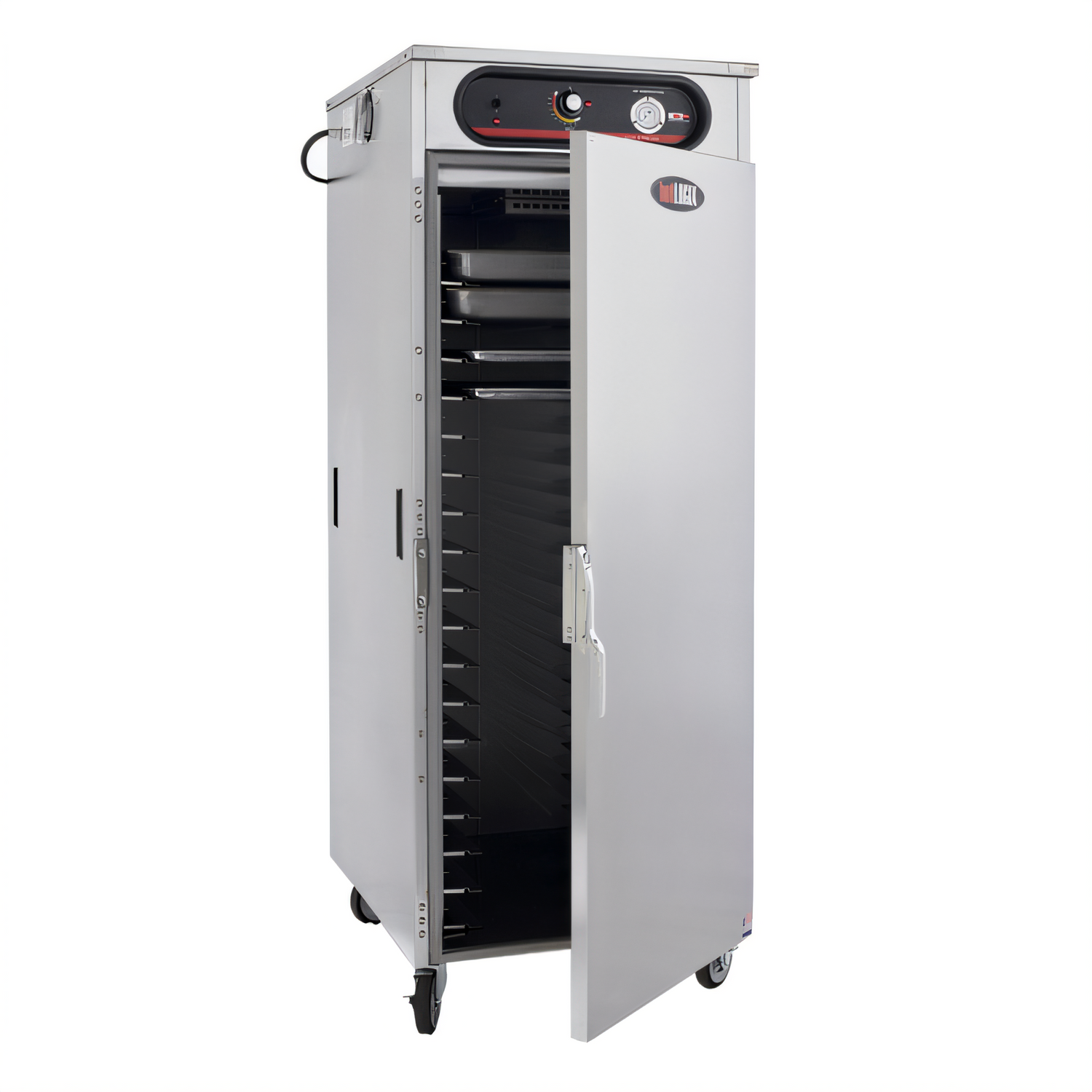

Carter-Hoffmann hotLOGIX HL5-18 Full-Height Heated Holding Cabinet

36 × 12" × 20" or 18 × 18" × 26" pans | Top-Mounted Forced-Air Heat | 120 V

From prep line to service window, keep every tray tasting “just-finished.” The hotLOGIX HL5-18 combines high-performance heating, durable insulated construction and an ultra-simple dial interface, giving you bullet-proof food quality with Carter-Hoffmann’s legendary reliability.

Key Advantages

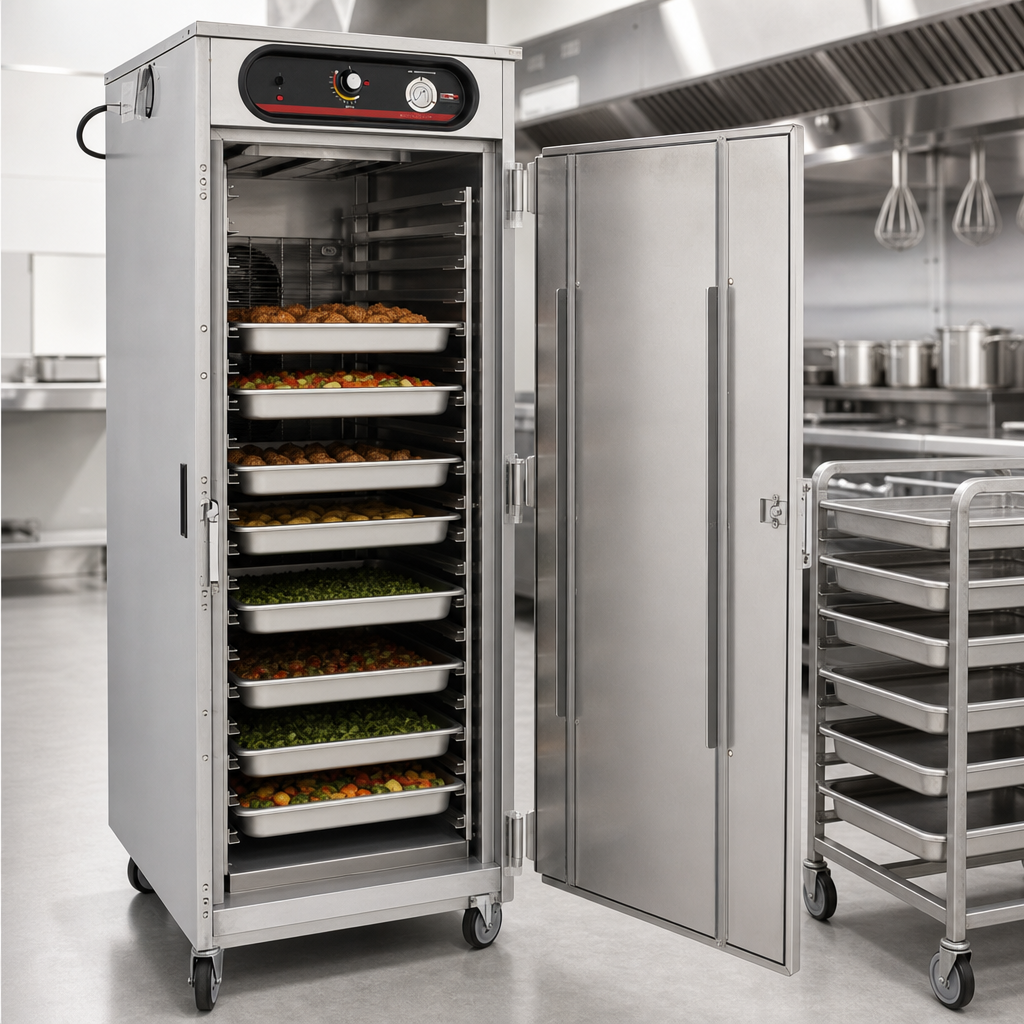

  • Massive capacity – stores 36 steam-table pans (12" × 20" × 2.5") or 18 full-size sheet pans.
  • Even, gentle heat – top-mounted blower system heats to 200 °F (93 °C) and reaches 160 °F (71 °C) in about 25 minutes.
  • No-nonsense mechanical dial controls with remote-bulb thermometer for real-time cabinet temp.
  • Energy-saving 2" fiberglass insulation plus high-temperature magnetic gasket to lock in heat.
  • Lightweight yet rugged double-wall aluminum body and solid insulated door with chrome latch.
  • Universal stainless-steel slides adjust on 1.5" centers for mixed pan loading.
  • Four 5" all-swivel rubber casters—two with brakes—for smooth, quiet mobility.
  • cULus & UL EPH listed and protected by a 3-year parts & labor warranty.

Specification Snapshot

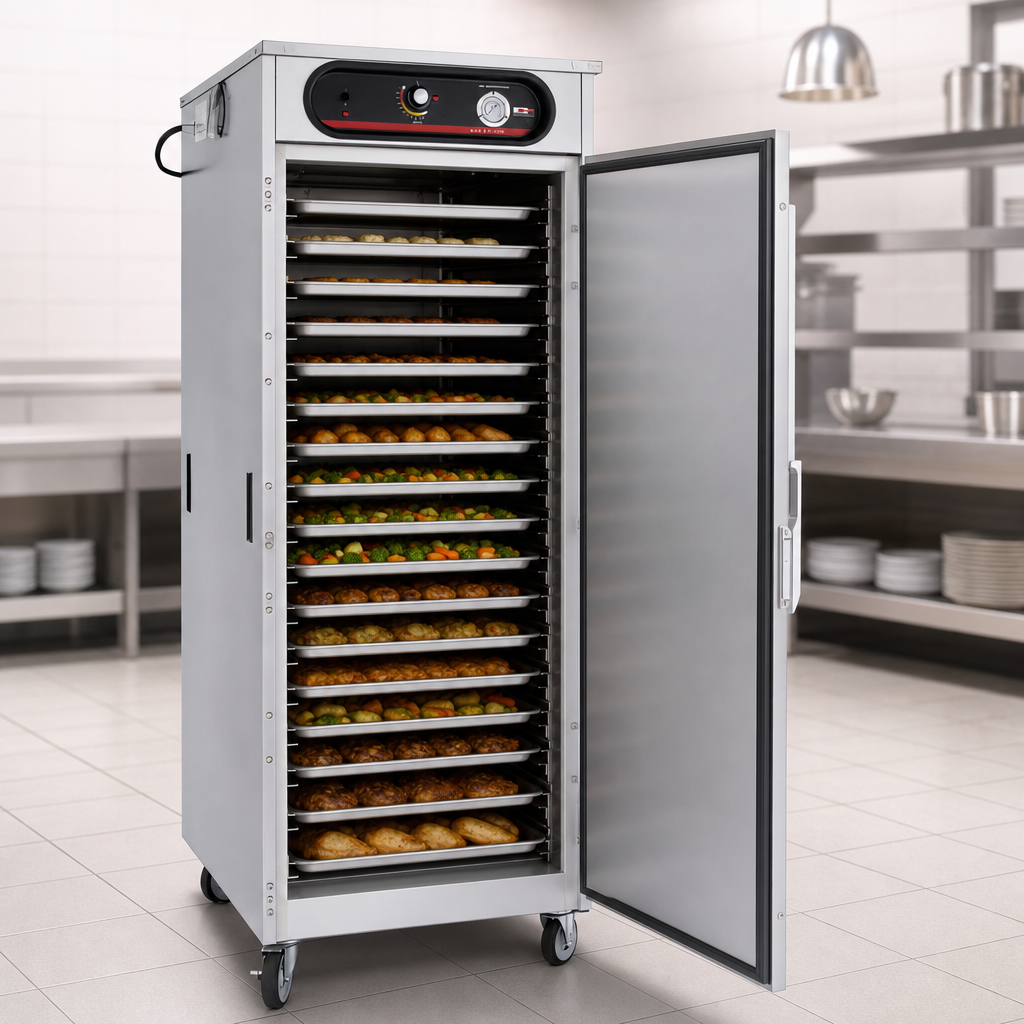

Model HL5-18 (full height, single compartment)
Pan capacity 36 × 12" × 20" × 2.5" OR 18 × 18" × 26"
Inside working height 57 ½" / 1461 mm
Overall dimensions (H × D × W) 76 ⅜" × 33 ⅛" × 28" (1940 × 840 × 711 mm)
Temperature range Ambient to 200 °F (93 °C)
Construction Insulated aluminum cabinet & solid hinged door
Electrical 120 V, 2100 W, 17.5 A, 60 Hz, 1 φ, NEMA 5-20P plug (10 ft cord)
Casters 4 × 5" swivel (2 braked)
Shipping weight 485 lb / 220 kg
Warranty 3 years parts & labor

Ideal Applications

  • Quick-service & fast-casual chains
  • High-volume catering & commissary kitchens
  • Buffet, banqueting & hotel room-service lines
  • Schools, healthcare & corporate dining

Factory Options

  • Dutch or pass-through door configurations
  • Double-pane tempered glass door
  • Fixed-angle pan racks (18" × 26")
  • Electronic digital controls

Ask your sales rep to add options before placing your order.

Installation Requirements

Clearance: Maintain at least 2" (51 mm) on all sides and 36" (914 mm) in front for door swing. Unit must be positioned on a solid, level floor and connected to a grounded 120 V receptacle.

Financing available through Middleby Equipment Financing—enjoy low monthly payments and keep working capital intact.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cULus, UL EPH

Height

76.38in

Width

31.38in

Depth

36.63in

Shipping Weight

370.0lbs

Full Size Hotel Pan Capacity

(36) 12" x 20" pans

Door Type

solid

Height

73" - 78"

Insulation

insulated

Full Size Sheet Pan Capacity

(18) 18" x 26" pans

Section

1 section

Door Style

full door(s)

Heater

top mounted

Slide Centers

removable on 4"

Exterior Finish

all aluminum exterior

Size

1 compartment

Specifications

hotLOGIX Holding Cabinet-HL5 Series, one compartment, full height, insulated, (36) 12" x 20" or (18) 18" x 26" pan capacity, universal pan slides, (1) solid hinged door, mechanical controls, top-mount forced air heating system, aluminum construction, (4) 5" swivel casters (2 with brakes), cULus, UL EPH
