Carter-Hoffmann (Middleby) HL4-5 hotLOGIX Proofing Cabinets
Description

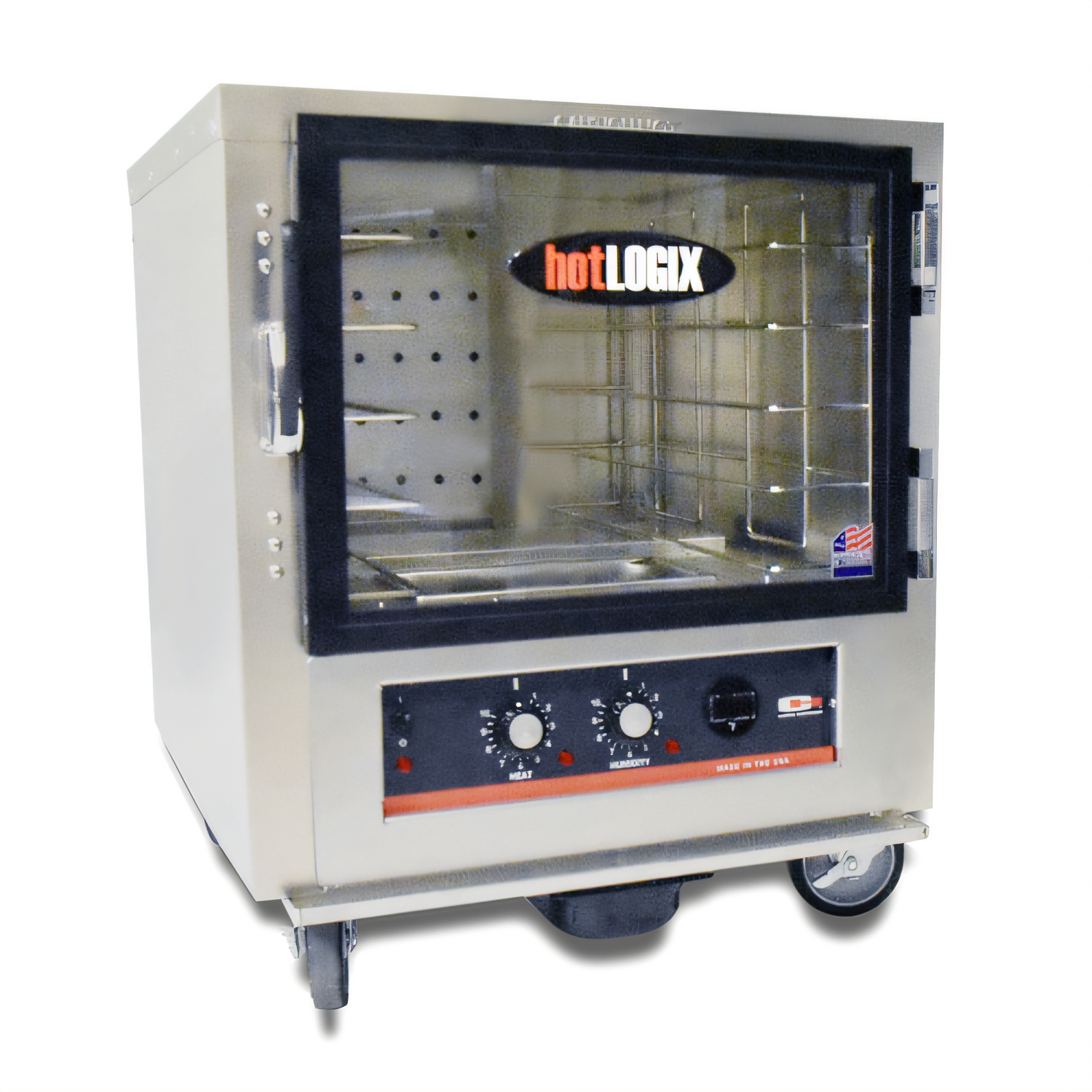

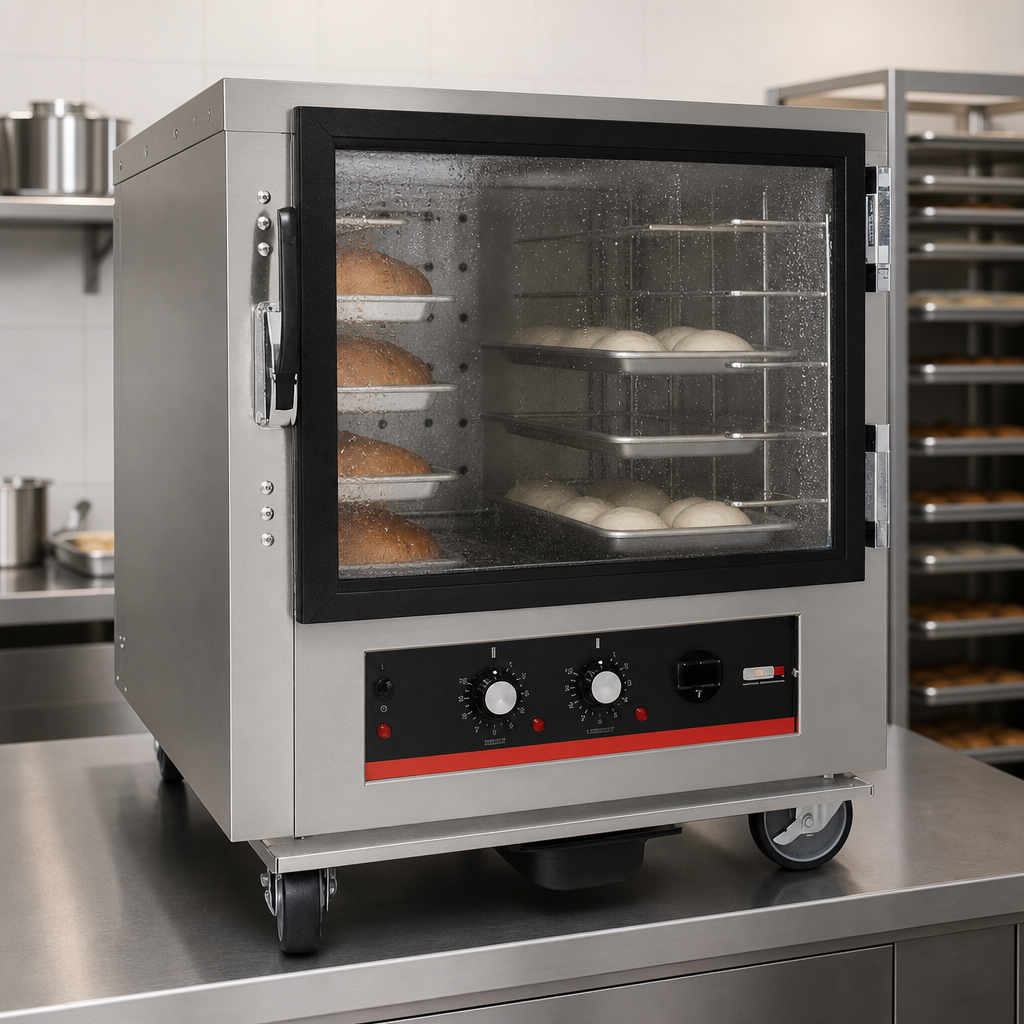

hotLOGIX® HL4-5 Humidified Holding Cabinet / Proofer
Undercounter • 10 × 12" × 20" pans or 5 × 18" × 26" sheet pans • ETL & ETL-SanitationGive every plate that just-made flavor and texture — even during the rush. Carter-Hoffmann’s hotLOGIX HL4-5 combines gentle, forced-air heat with adjustable humidity in a compact, under-counter footprint, so your kitchen can hold, stage or proof product anywhere it’s needed.
Why you’ll love it
- Active humidity & heat: separate dial controls let you fine-tune crisp or moist environments up to 190 °F (88 °C).
- Fast start-up: pre-heats to 169 °F (71 °C) in ≈30 minutes so you’re ready for service when doors open.

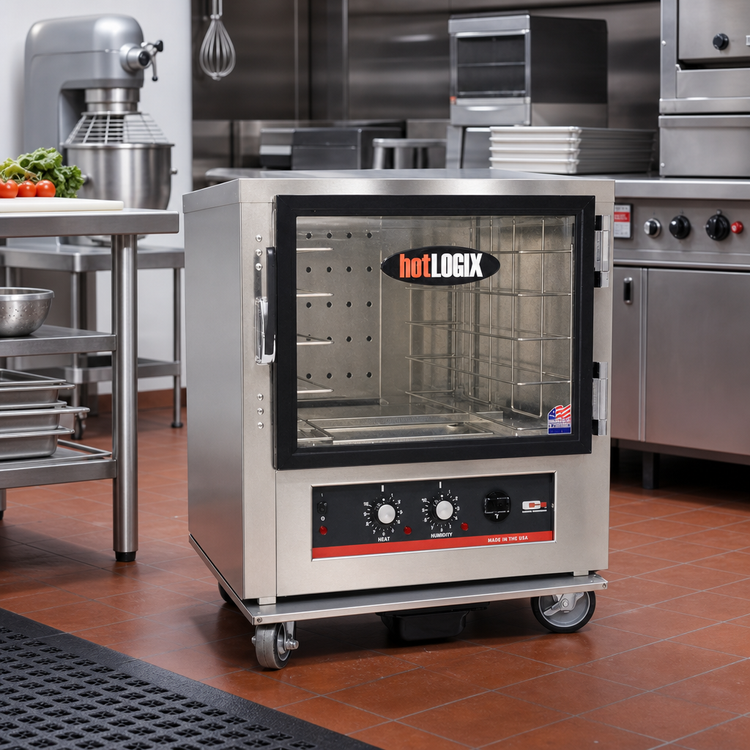

- Undercounter convenience: only 31 ⅝" tall — roll it beneath a work table or service counter.
- Durable, lightweight build: double-wall insulated aluminum cabinet with a .125" base frame stands up to daily abuse.
- Crystal-clear merchandising: single-pane tempered glass door showcases product while a chrome latch keeps a tight seal.
- Universal wire slides on 3" spacing accept steam-table pans, full-size sheet pans or GN pans without adjustments.

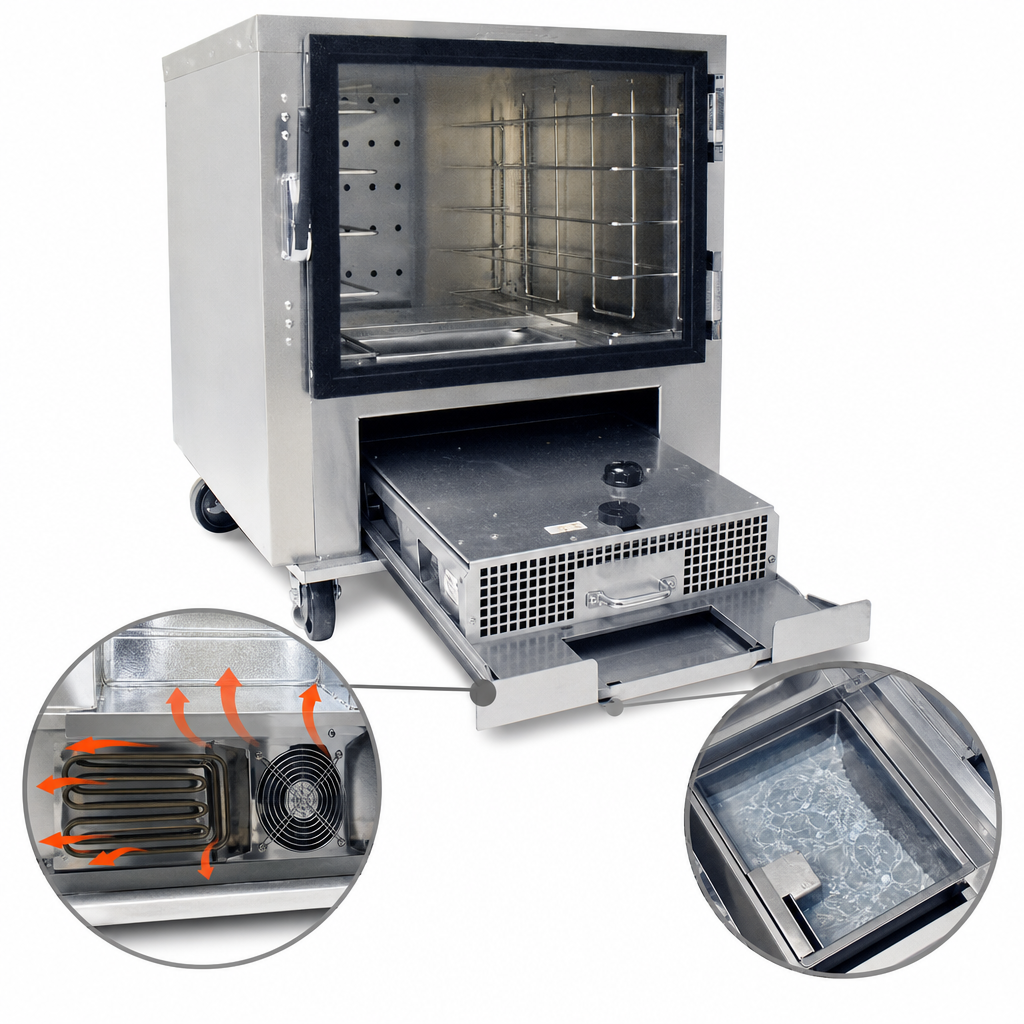

- Removable blower/heat module & manual-fill water reservoir = quick cleaning and low maintenance costs.
- Mobility included: four 5" all-swivel rubber casters (front two lock) make relocation effortless.
- Plug-and-play 120 V operation — no hardwiring required.
Technical specifications
| Model | HL4-5 (Undercounter) |
|---|---|
| Pan capacity | (10) 12" × 20" × 2.5" pans (5) 18" × 26" sheet pans 3" fixed spacing |
| Temperature range | Ambient to 190 °F / 88 °C |
| Humidity control | Manual dial, bottom-mount water reservoir |
| Overall dimensions (W × D × H) | 26 ½" × 31 ½" × 31 ⅝" (673 × 800 × 803 mm) |
| Interior working height | 15 ⅜" (389 mm) |
| Electrical | 120 V, 1-ph, 2100 W, 17.5 A NEMA 5-20P, 8 ft cord |
| Construction | Double-wall insulated aluminum; tempered glass door |
| Casters | (4) 5" swivel, front two with brakes |
| Ship weight | ≈104 lb (47 kg) |
| Certifications | ETL Listed, ETL Sanitation |
| Warranty | 1 year parts & labor |
Popular factory options (contact us to quote)
- Solid aluminum door with black anodized finish
- Stainless steel universal tray slides (adjustable at 1.5")
- Fixed angle slides for dedicated 18" × 26" pan use
- Low-wattage heater package: 120 V / 1500 W / NEMA 5-15P
- Alternate voltages or international plugs
Allow at least 2" clearance from combustible surfaces and 36" in front for full door swing. Specifications are for reference only and subject to change without notice.
