Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL3-5

Carter-Hoffmann (Middleby) HL3-5 hotLOGIX Heated Cabinets & Holding Shelves

$4,955.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Terms & conditions Middleby financial flyer Brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Carter-Hoffmann hotLOGIX HL3-5 Heated Holding Cabinet

Undercounter • Insulated Aluminum • 10-Pan Capacity

Keep entrées, sides and baked goods perfectly hot and ready to serve—without sacrificing valuable floor space. The HL3-5 slides neatly beneath a 36" counter yet delivers the same even, moisture-retaining heat as full-size cabinets, thanks to its powerful forced-air system and double-wall insulation.

Why you’ll love it

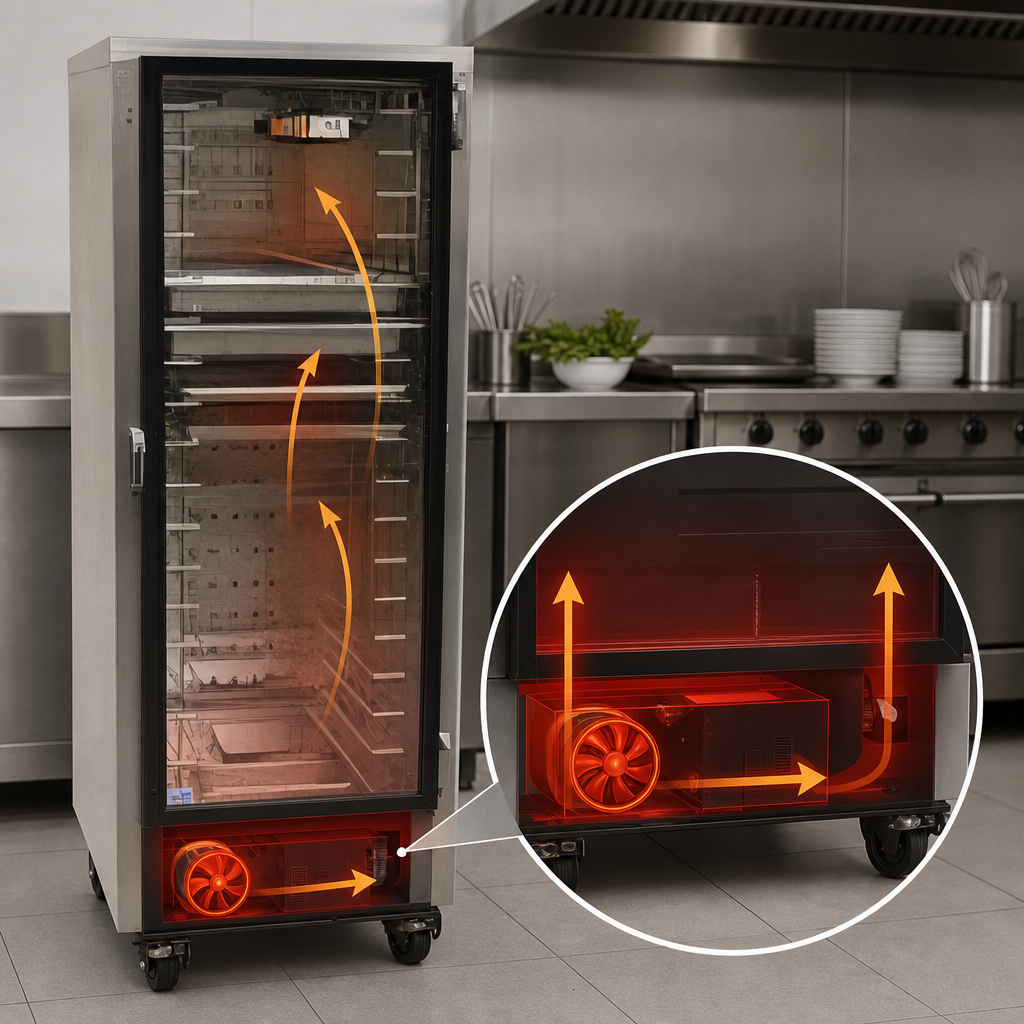

  • Bottom-mounted, removable blower heater reaches 190 °F (88 °C) and pre-heats to 160 °F in about 30 minutes.
  • Recessed mechanical dial simplifies temperature setting; digital thermometer confirms holding temp at a glance.
  • Holds (10) 12" × 20" × 2.5" hotel pans or (5) 18" × 26" sheet pans on 3" fixed wire universal slides.

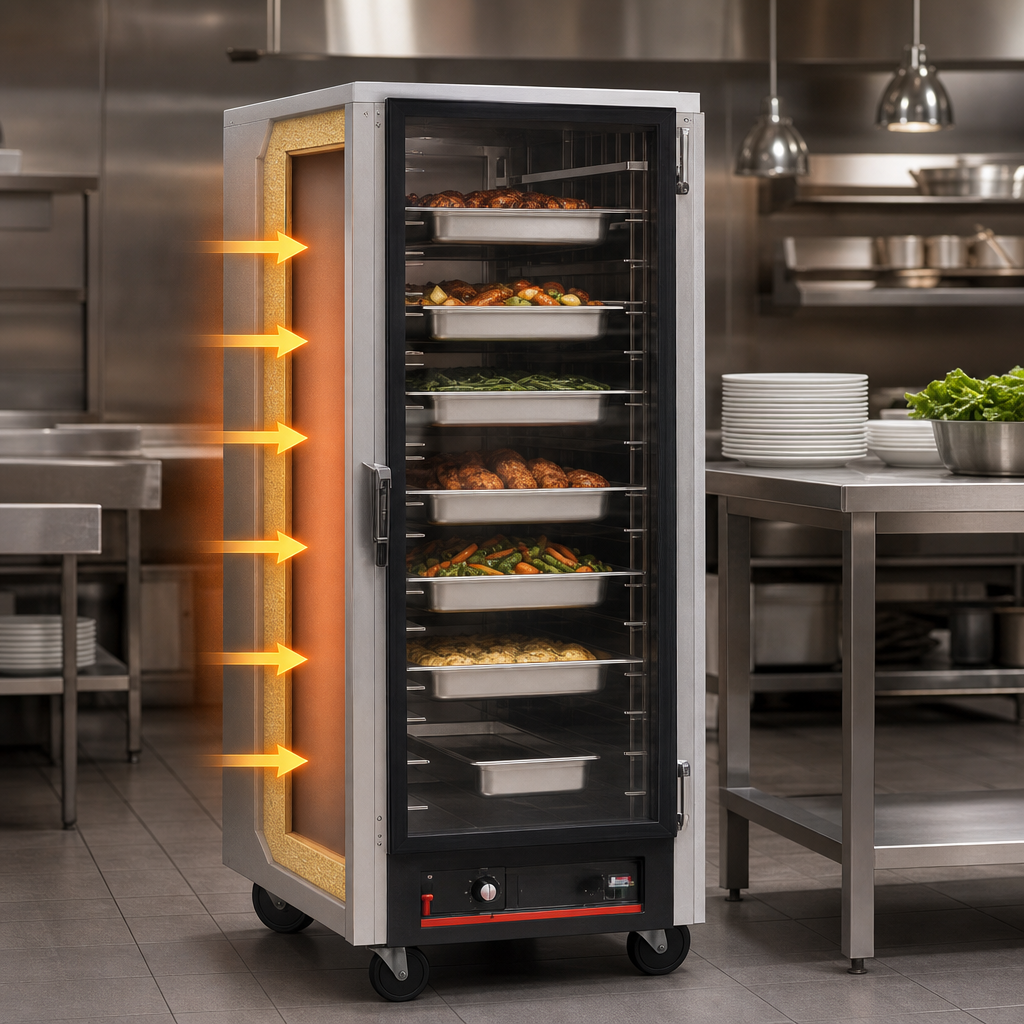

  • Energy-saving, double-wall insulated aluminum construction keeps exterior surfaces cooler.
  • WOBBLE-FREE single-pane tempered glass door with magnetic latch shows off product while maintaining heat.
  • Four 5" all-swivel rubber casters—two locking—make moving the cabinet effortless.
  • cETLus & ETL-Sanitation listed and covered by a 3-year parts & labor warranty.

Pan capacities

  • (10) 12" × 20" × 2.5" steam table pans
  • (5) 18" × 26" sheet pans
  • GN 2/1 or 1/2 pans

Detailed specifications

Model HL3-5 (hotLOGIX HL3 Series)
Compartment(s) 1
Overall size (H × W × D) 31 5⁄8" × 26 1⁄2" × 31 1⁄2"  (803 × 627 × 800 mm)
Inside working height 15 5⁄16" (389 mm)
Pan spacing 3" (76 mm) fixed
Construction .063" insulated aluminum exterior; .125" aluminum base frame
Door Field-reversible single-pane tempered glass with santoprene gasket & chrome latch
Heat source Forced-air blower heater, bottom-mounted & slide-out removable
Holding temperature Ambient to 190 °F (88 °C)
Controls Mechanical dial thermostat + digital thermometer
Electrical 120 V / 60 Hz / 1 ph, 1,750 W, 15 A, 8-ft cord, NEMA 5-20P plug
Casters (4) 5" all-swivel, rubber tread (2 braked)
Certifications cETLus, ETL-Sanitation
Warranty 3 years parts & labor
Shipping weight 104 lb (47 kg)
Installation tip: Allow at least 2" clearance on all sides and 36" in front for the door swing. Cabinet must sit on a solid, level floor.

Looking for a lower-wattage or alternate-voltage model? Factory-engineered options are available—contact us for details.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cETLus, ETL-Sanitation

Height

31.63in

Width

26.5in

Depth

31.5in

Shipping Weight

104.0lbs

Height

31" - 36"

Heater

bottom mounted

Insulation

insulated

Size

1 compartment

Section

1 section

Door Style

full door(s)

Slide Centers

fixed on 3"

Door Type

clear

Full Size Sheet Pan Capacity

(5) 18" x 26" pans

Full Size Hotel Pan Capacity

(10) 12" x 20" pans

Exterior Finish

all aluminum exterior

Specifications

hotLOGIX Holding Cabinet-HL3 Series, one compartment, undercounter height, insulated, (10) 12" x 20" or (5) 18" x 26" pan capacity, 3" fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heating system, mechanical controls, digital thermometer, aluminum construction, (4) 5" swivel casters (2 with brakes), cETLus, ETL-Sanitation
