Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL3-18

Carter-Hoffmann (Middleby) HL3-18 hotLOGIX Heated Cabinets & Holding Shelves

$5,378.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Middleby financial flyer Owner's manual Brochure
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

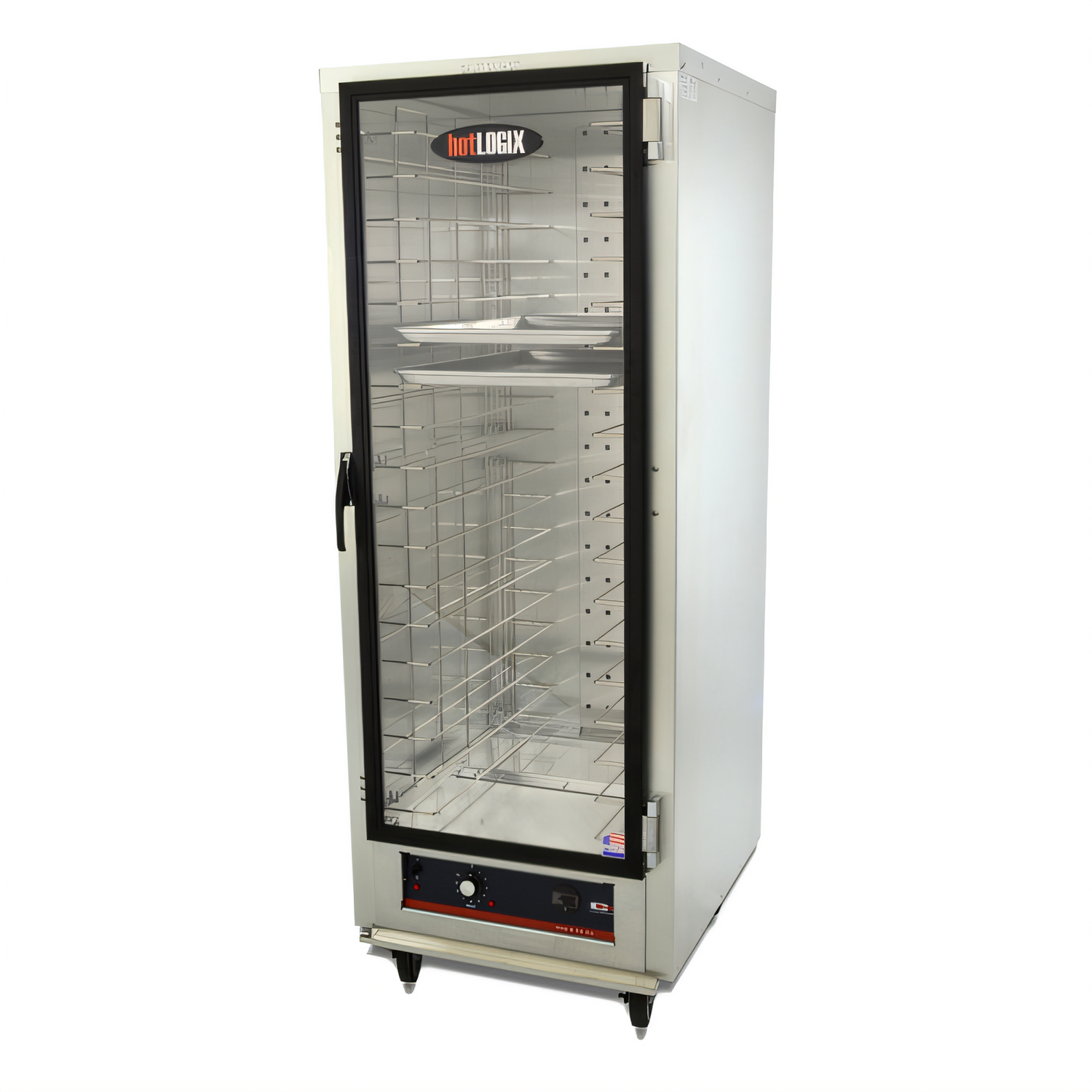

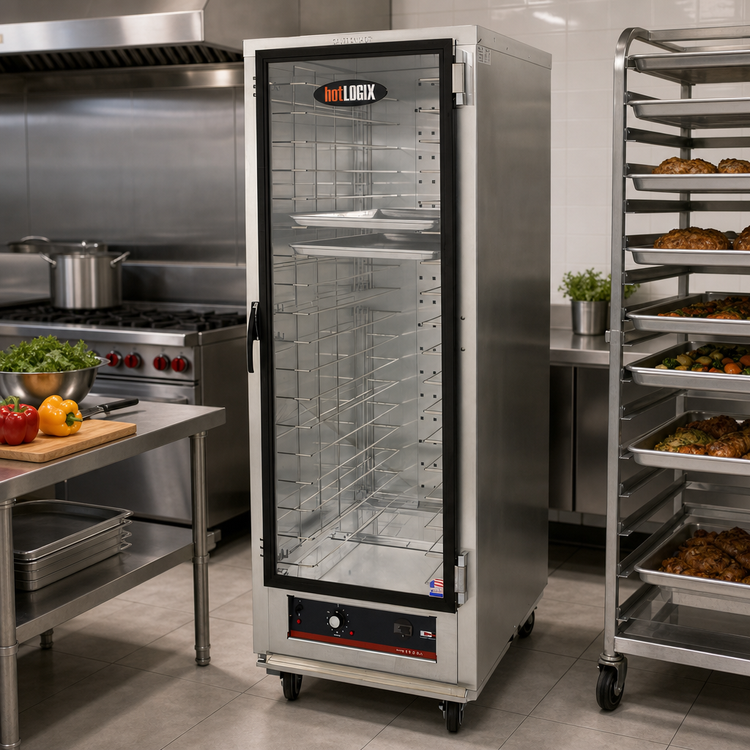

Carter-Hoffmann hotLOGIX HL3-18 Full-Height Heated Holding Cabinet

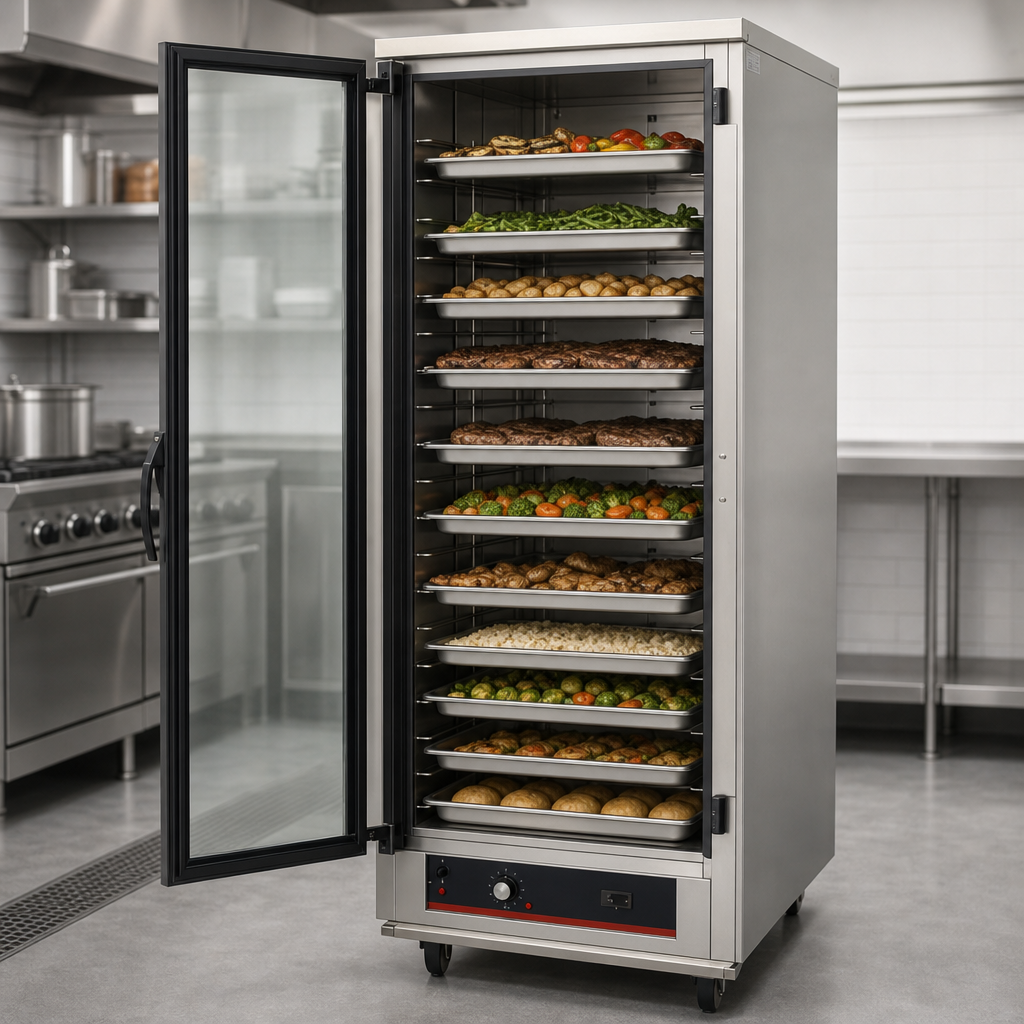

(36) 12 × 20 or (18) 18 × 26 pan capacity | RapidShip model

Keep cooked food at safe, just-made temperatures for hours—without sacrificing texture or flavor. The hotLOGIX HL3-18 combines rugged, lightweight aluminum construction with a high-performance forced-air heating system that reaches 190 °F, so every plate leaves the kitchen at its best.

Key features & benefits

  • Removable bottom-mount blower heater pre-heats to 160 °F in ≈30 min and holds up to 190 °F (88 °C).
  • Recessed manual dial temperature control with easy-read digital thermometer.

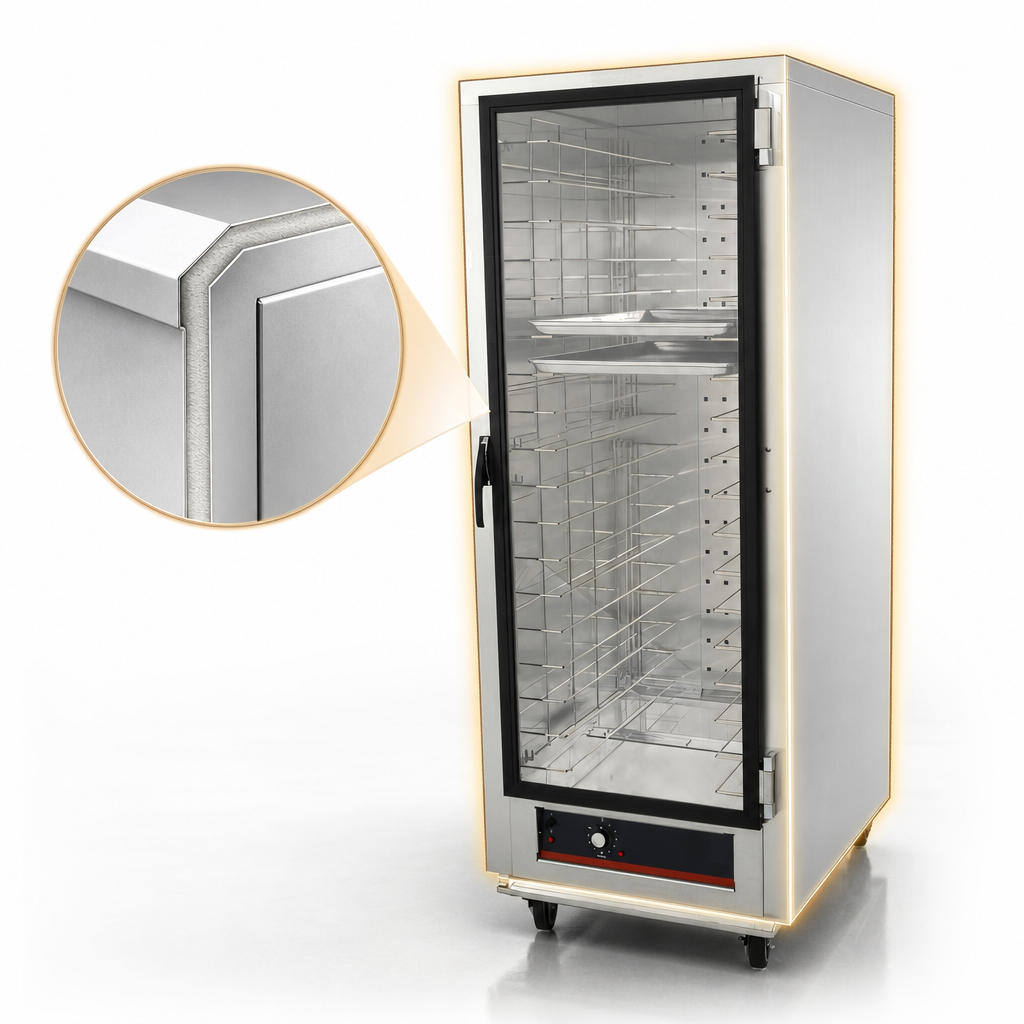

  • Double-wall insulated aluminum cabinet—35 % more energy-efficient than non-insulated units.
  • Single-pane tempered glass door for full-view merchandising; magnetic latch prevents heat loss.
  • Universal fixed wire slides at 3 " spacing fit steam-table pans, sheet pans or GN 2/1 & 1/2 pans.
  • (4) 5 " all-swivel casters (2 with brakes) for effortless mobility.
  • Single 120 V plug—no hardwiring required; ships with 8 ft cord & NEMA 5-20P.
  • cETLus & ETL-Sanitation listed; meets NSF/ANSI standards for food safety.
  • RapidShip availability and an industry-leading 3-year parts & labor warranty.

Specifications

Model HL3-18
Pan capacity (36) 12 × 20 × 2.5" hotel pans
(18) 18 × 26" sheet pans
Temperature range Ambient to 190 °F (88 °C)
Controls Mechanical dial + digital thermometer, on/off switch
Exterior dimensions 26 ½" W × 31 ½" D × 70 ⅝" H (673 × 800 × 1 795 mm)
Interior working height 54 ½" (1 384 mm)
Construction 0.063" anodized aluminum body; 0.125" aluminum base frame; double-wall insulated
Door Single-pane tempered glass, gasketed, field-reversible
Electrical 120 V / 60 Hz / 1 ph, 1 750 W, 15 A, NEMA 5-20P
Casters (4) 5 " all-swivel rubber tread; 2 locking
Clearances 2" sides/rear; 36" front for full door swing
Shipping weight 218 lb (99 kg)
Certifications cETLus, ETL-Sanitation
Warranty 3-year parts & labor

Ideal for

  • Banquet & catering operations needing extended hot-hold times
  • QSR & fast-casual concepts staging fried or grilled items
  • School, healthcare & corporate cafeterias with tray-line service

Popular factory options (contact us to customize)

  • Solid aluminum door with black anodized interior/exterior
  • Adjustable stainless-steel universal slides
  • Low-wattage heater (1 500 W, NEMA 5-15P)
  • Dutch doors (upper/lower) for minimal heat loss
Need it financed? Affordable monthly payment plans are available through Middleby Finance—ask your rep for details.

Carter-Hoffmann continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cETLus, ETL-Sanitation

Height

70.63in

Width

26.5in

Depth

31.5in

Shipping Weight

218.0lbs

Insulation

insulated

Full Size Sheet Pan Capacity

(18) 18" x 26" pans

Section

1 section

Heater

bottom mounted

Slide Centers

fixed on 3"

Door Type

clear

Height

67" - 72"

Door Style

full door(s)

Size

1 compartment

Exterior Finish

all aluminum exterior

Full Size Hotel Pan Capacity

(36) 12" x 20" pans

Specifications

(MIDDLEBY ESSENTIALS ITEM) hotLOGIX Holding Cabinet-HL3 Series, one compartment, full height, insulated, (36) 12" x 20" or (18) 18" x 26" pan capacity, 3" fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heating system, mechanical controls, digital thermometer, aluminum construction, (4) 5" swivel casters (2 with brakes), cETLus, ETL-Sanitation (RapidShip)
