Carter-Hoffmann (Middleby)  |  hotLOGIX  |  SKU: HL3-14

Carter-Hoffmann (Middleby) HL3-14 hotLOGIX Heated Cabinets & Holding Shelves

$5,417.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

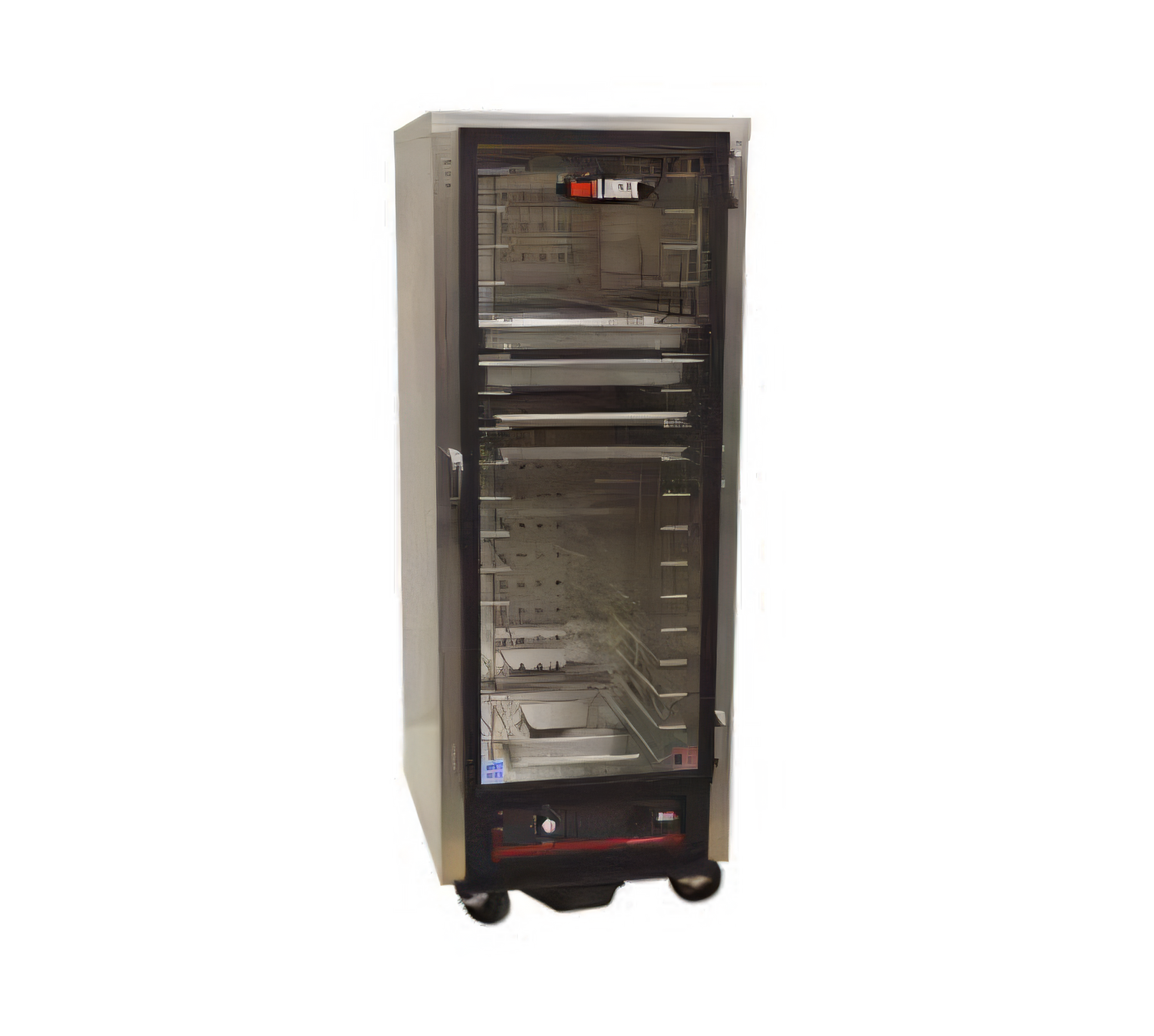

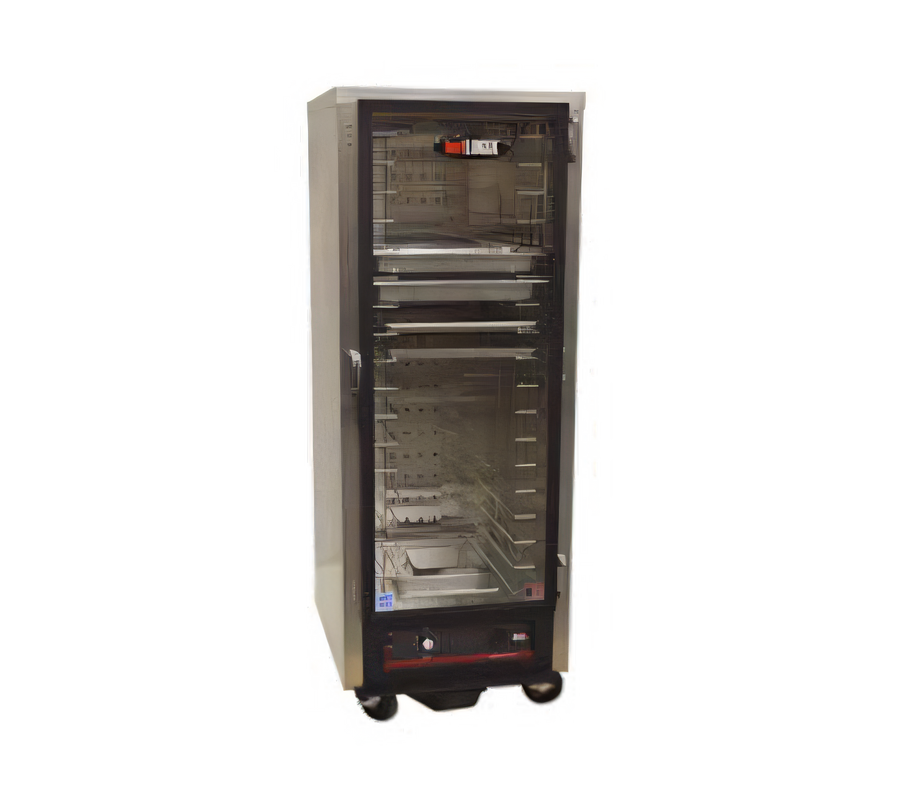

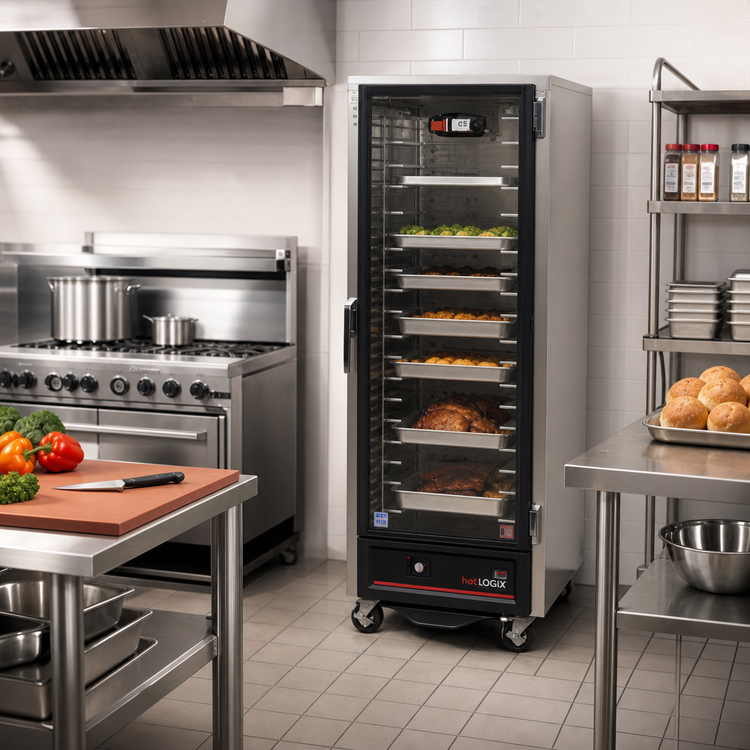

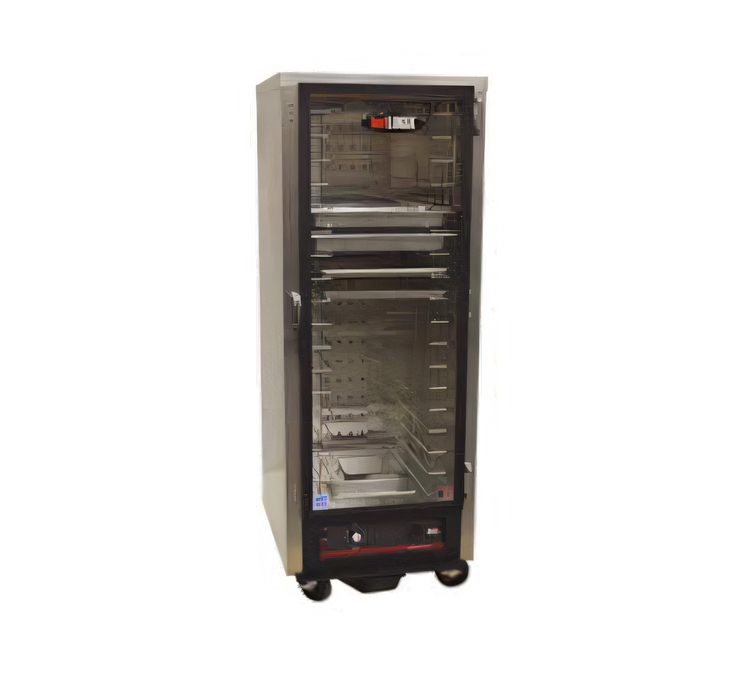

Carter-Hoffmann hotLOGIX HL3-14 Heated Holding Cabinet

3⁄4-height • one compartment • insulated aluminum

Keep entrées, sides and baked goods perfectly hot, crispy and service-ready with the hotLOGIX HL3-14. This 3⁄4-height cabinet combines quick, even heat with the durability and mobility busy commercial kitchens demand.

Why you’ll love it

  • Plenty of capacity – holds up to 28 full-size steam table pans (12" × 20" × 2½")
    or 14 full sheet pans (18" × 26") on 3" fixed-spacing universal slides.

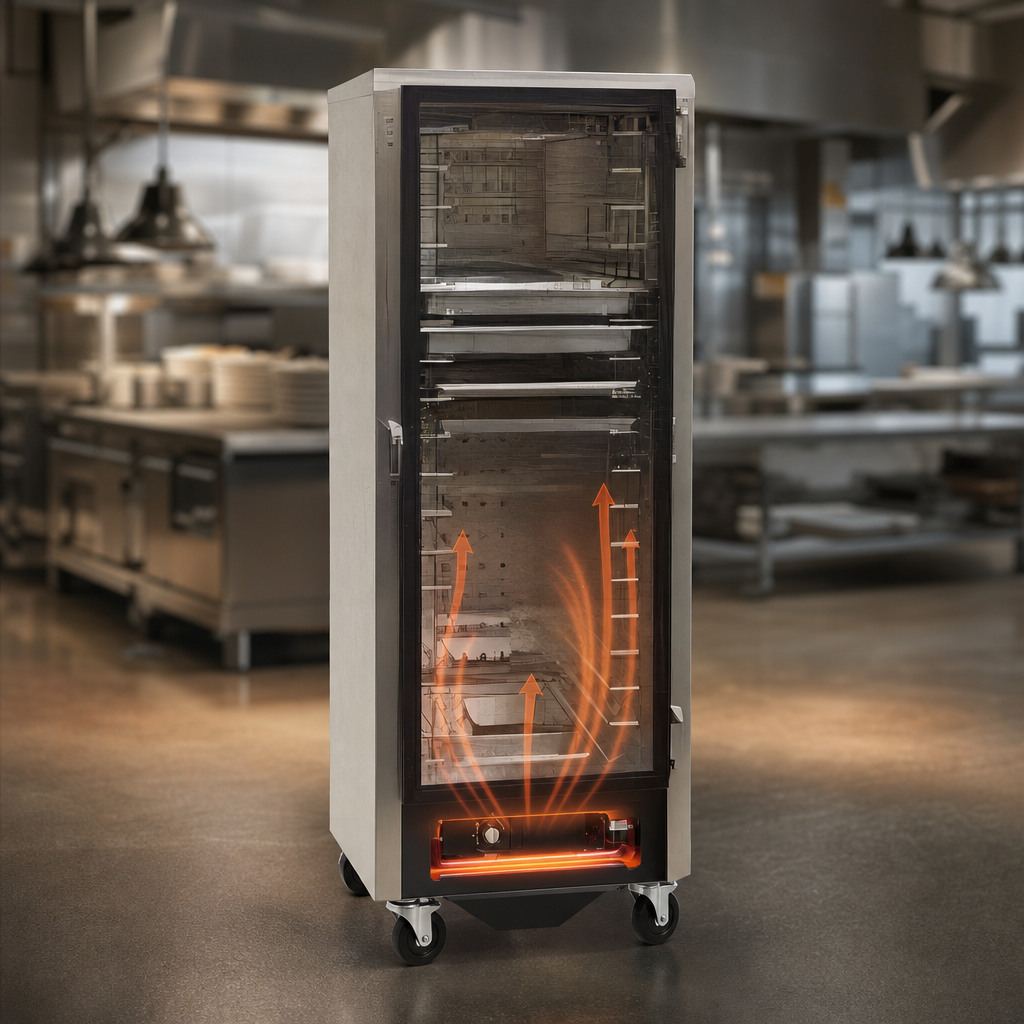

  • Fast, consistent heating – removable bottom-mounted forced-air heater reaches 190°F (88°C); pre-heats to 160°F in about 30 minutes.
  • Easy, reliable controls – recessed mechanical temperature dial with large digital thermometer eliminates guesswork.

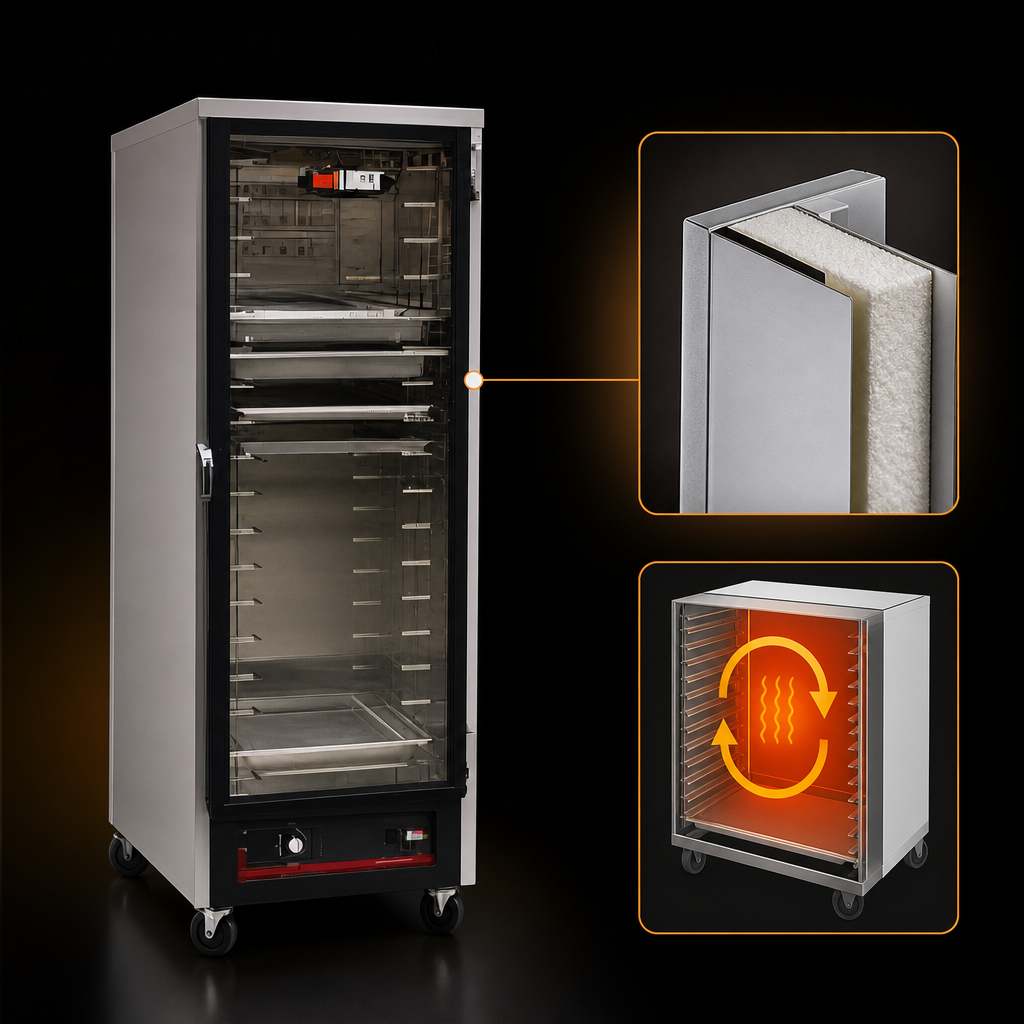

  • Energy-saving insulation – double-wall aluminum construction is up to 35 % more efficient than non-insulated cabinets.
  • Crystal-clear merchandising – single-pane tempered glass door showcases product while the magnetic latch maintains a tight seal.
  • Made to move – four all-swivel 5" casters (two with brakes) glide smoothly across kitchen floors and in/out of walk-ins.
  • Field serviceable – heater module slides out in seconds for cleaning or maintenance, keeping downtime to a minimum.

At-a-glance specs

Model HL3-14 (hotLOGIX HL3 Series)
Pan capacity (28) 12" × 20" × 2.5" pans  |  (14) 18" × 26" sheet pans
Temperature range Ambient to 190 °F (88 °C)
Controls Mechanical dial, on/off switch, digital thermometer display
Heating system Removable bottom-mount forced-air blower with 1750 W element
Construction Insulated aluminum (.063" exterior, .125" base) with extruded frame
Door Single-pane tempered glass, field-reversible, chrome latch & santoprene gasket
Slides / spacing Fixed wire universal slides on removable racks  |  3" spacing
Dimensions (H × W × D) 58 5⁄8" × 26 1⁄2" × 31 1⁄2" (1489 × 627 × 800 mm)
Inside working height 44" (1118 mm)
Casters (4) 5" all-swivel rubber tread – 2 locking
Electrical 120 V / 1-ph / 60 Hz / 1750 W / 15 A  |  NEMA 5-20P cord & plug
Certifications cETLus, ETL-Sanitation
Warranty 3-year parts & labor

Clearance: allow 2" (51 mm) from combustible walls and 36" (914 mm) at the front for full door swing. Low-wattage and alternate electrical configurations are available—contact us for details.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cETLus, ETL-Sanitation

Height

58.63in

Width

26.5in

Depth

31.5in

Shipping Weight

170.0lbs

Heater

bottom mounted

Insulation

insulated

Door Type

clear

Section

1 section

Height

55" - 60"

Slide Centers

fixed on 3"

Size

1 compartment

Full Size Hotel Pan Capacity

(28) 12" x 20" pans

Door Style

full door(s)

Full Size Sheet Pan Capacity

(14) 18" x 26" pans

Exterior Finish

all aluminum exterior

Specifications

hotLOGIX Holding Cabinet-HL3 Series, one compartment, 3/4 height, insulated, (28) 12" x 20" or (14) 18" x 26" pan capacity, 3" fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heating system, mechanical controls, digital thermometer, aluminum construction, (4) 5" swivel casters (2 with brakes), cETLus, ETL-Sanitation
