Description

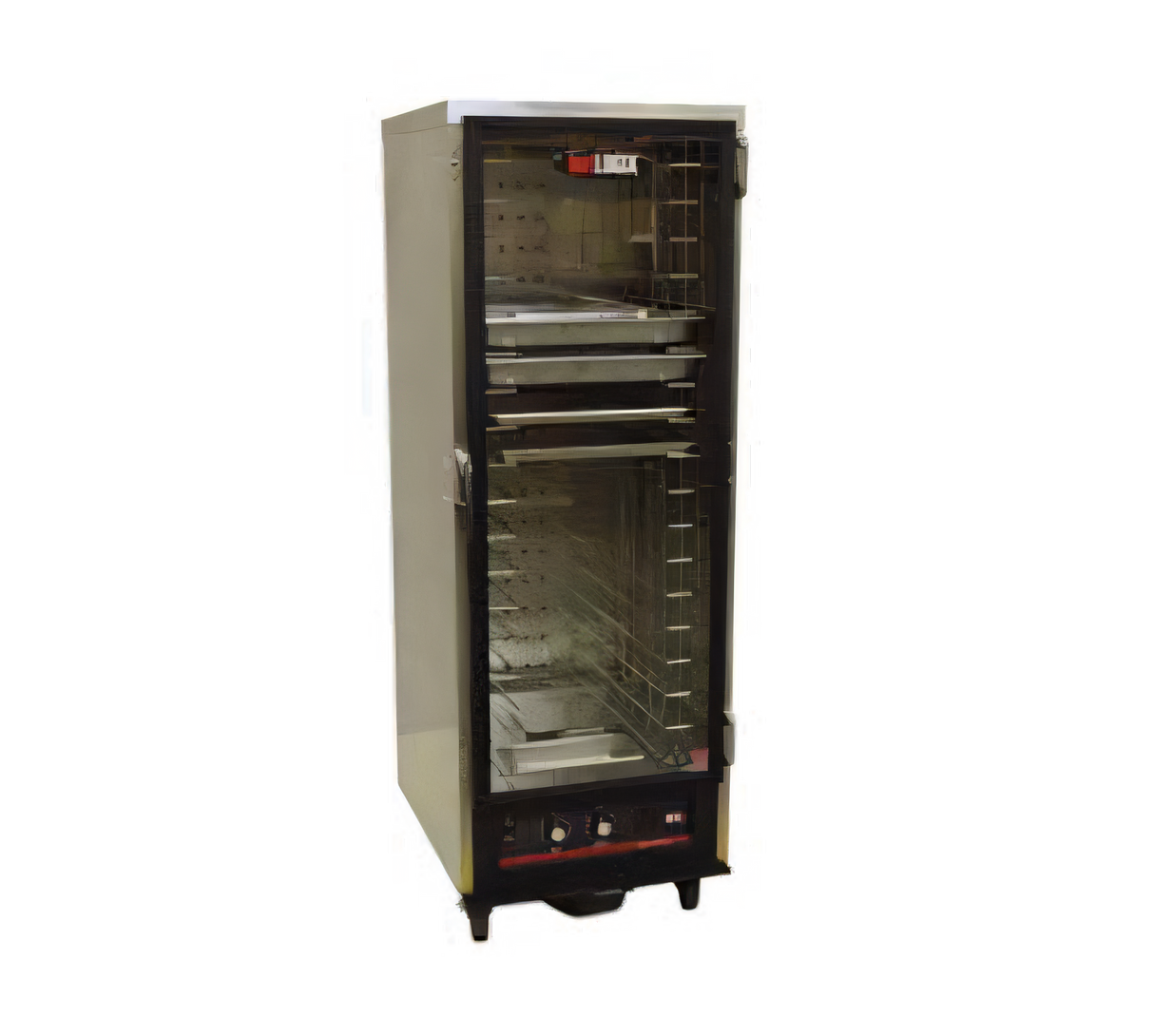

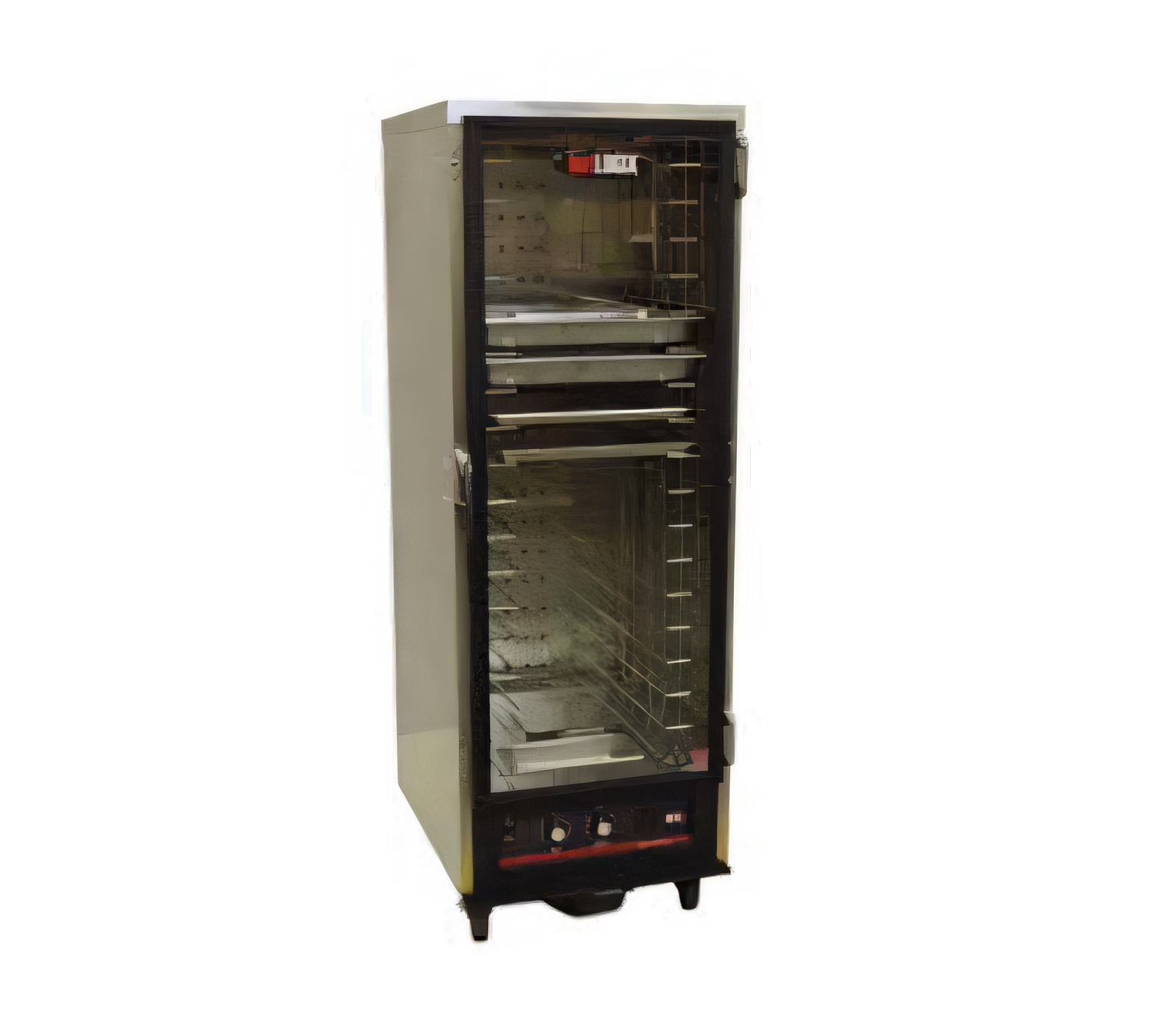

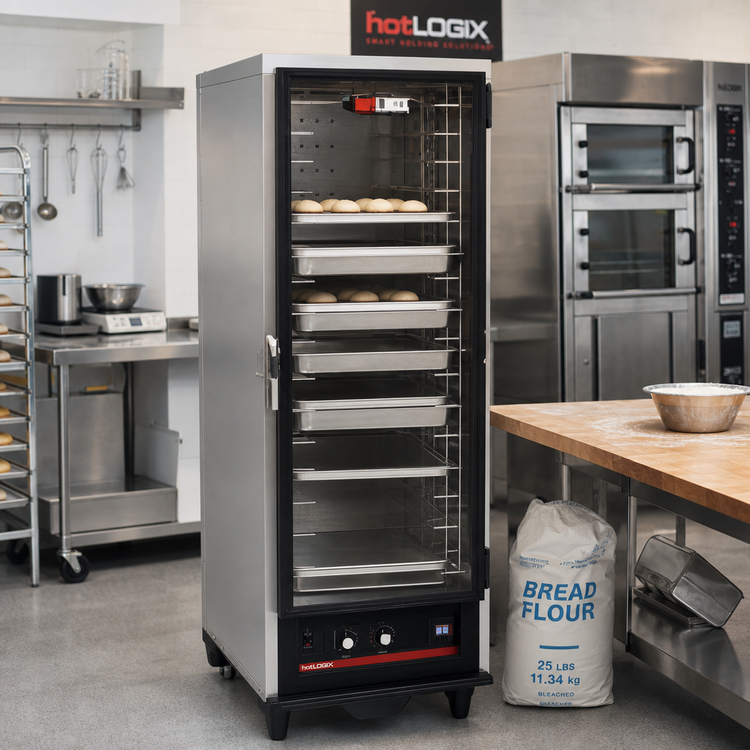

hotLOGIX HL2-14 Humidified Holding & Proofing Cabinet

Carter-Hoffmann (Middleby) • 3/4-Height • Model HL2 Series

Deliver “just-off-the-line” quality—hours after the rush—with the HL2-14. This non-insulated, 3/4-height cabinet blends rapid heat-up, active humidity and a generous 28-pan capacity into a lightweight, easy-to-maneuver package built for everyday kitchen abuse.

Key Features & Benefits

  • Dual-purpose design for both humidified holding and dough proofing.
  • Capacity: (28) 12" × 20" hotel pans or (14) 18" × 26" sheet pans on 3" fixed universal wire slides.
  • Fast heat-up—pre-heats to 169 °F (71 °C) in about 30 minutes; max 190 °F (88 °C).

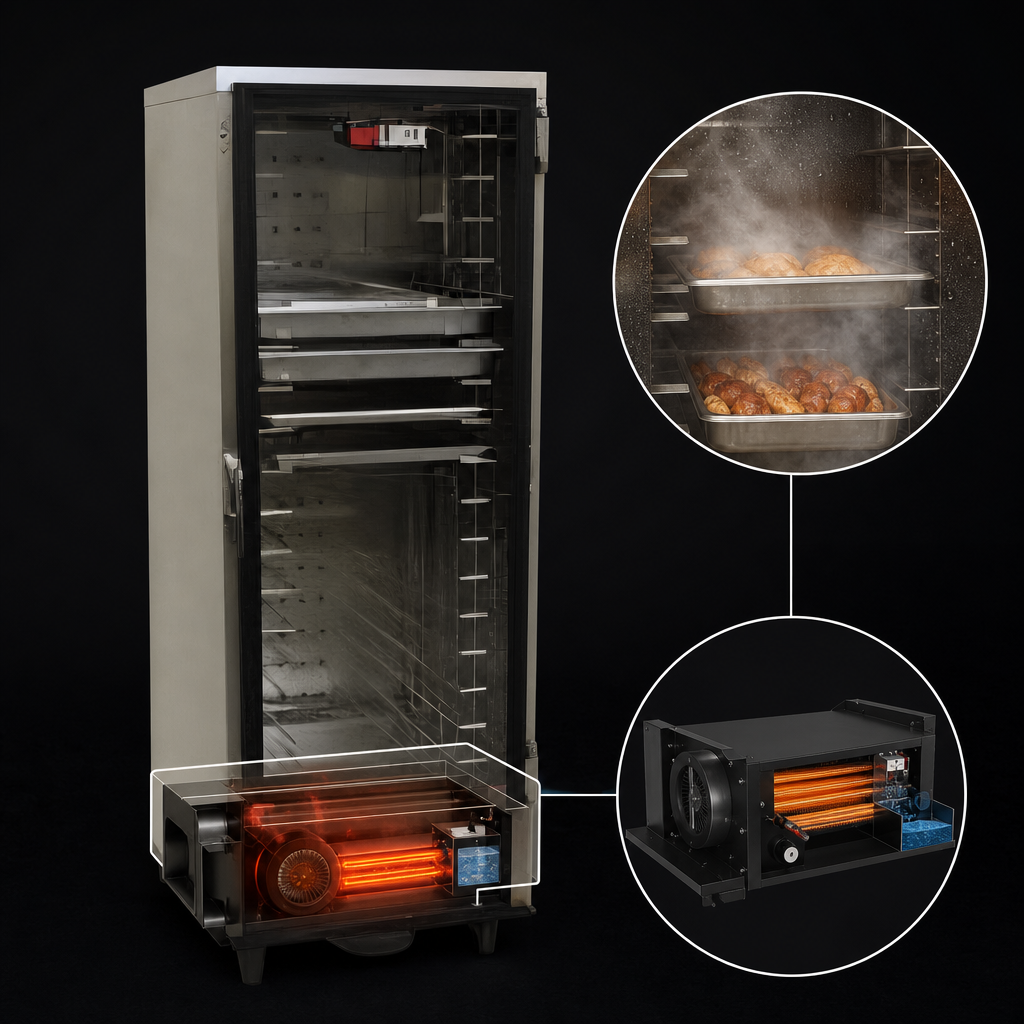

  • Bottom-mount forced-air heater with manual-fill water reservoir ensures even temperature & moisture.

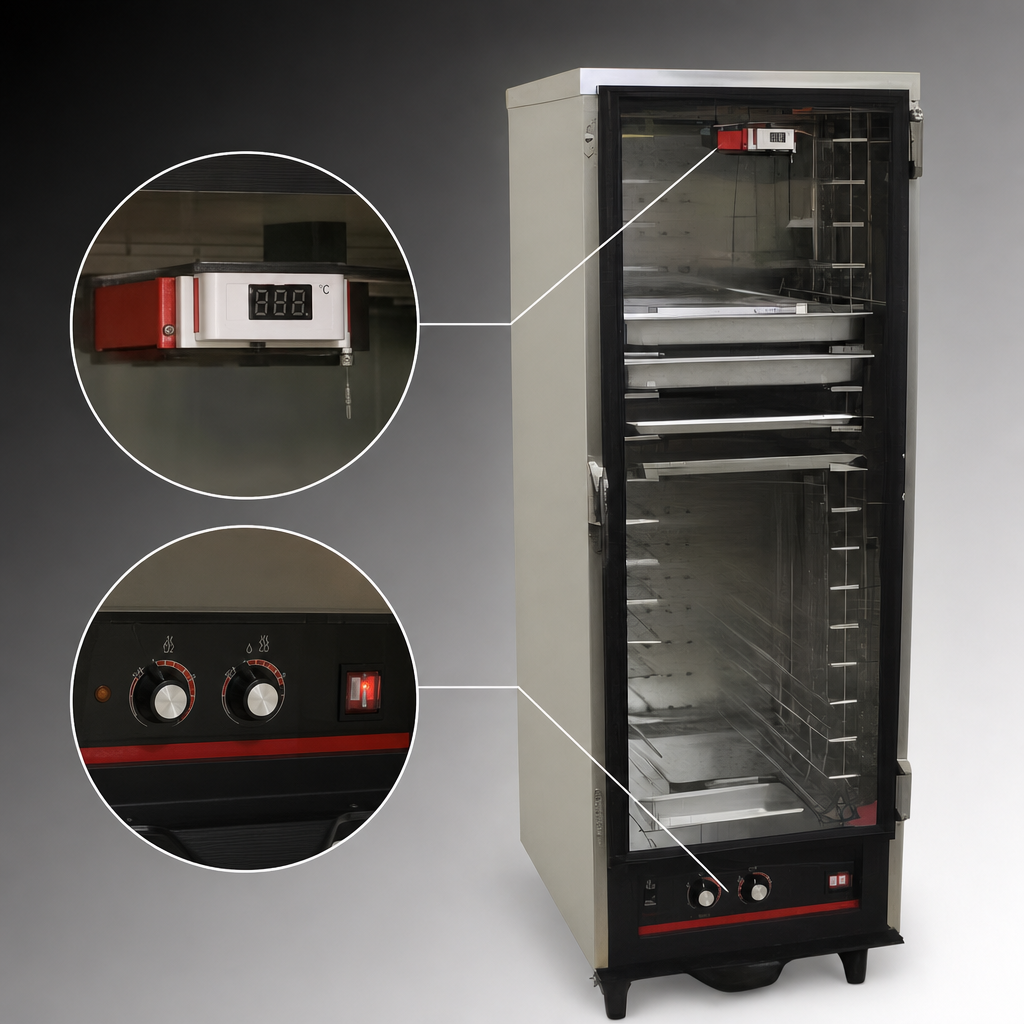

  • Recessed mechanical dials with digital thermometer—intuitive, glove-friendly controls.
  • Single-pane tempered glass door provides a clear view while keeping heat inside; magnetic latch prevents bounce-backs.
  • Lightweight, single-wall aluminum body (.063" walls, .125" base frame) resists corrosion and dents.
  • Four 5" all-swivel casters (front two locking) for effortless mobility around tight kitchens.
  • ETL & ETL-Sanitation listed; meets NSF requirements for food safety.

Technical Specifications

Model HL2-14 (3/4-height humidified cabinet)
Pan Capacity (28) 12" × 20" × 2.5" steam-table pans
(14) 18" × 26" sheet pans
Slide Spacing Fixed at 3" (76 mm) wire universal slides
Interior Working Height 44"  (1 118 mm)
Overall Height 58 5/8"  (1 489 mm)
Overall Depth 29 1/2"  (749 mm)
Overall Width 24 3/4"  (627 mm)
Electrical 120 V / 60 Hz / 1-ph, 2 100 W, 17.5 A
10 ft cord, NEMA 5-20P plug
Temperature Range Ambient to 190 °F (88 °C)
Casters (4) 5" diameter, all-swivel; front brakes
Net Weight 170 lb (77 kg)
Construction Single-wall, non-insulated aluminum
Certifications ETL, ETL-Sanitation
Warranty 1-year parts & labor

Factory Options & Accessories

  • Solid aluminum door with black anodized finish.
  • Stainless-steel universal slides, adjustable on 1.5" increments.
  • Fixed angle slides for 18" × 26" pans (1.5" spacing).
  • Low-wattage heater kits: 1 500 W (120 V) or 1 400 W (CSA).
  • Alternate voltage/configurations—contact us for details.

Looking to spread out the cost? Middleby Equipment Financing offers fast approvals and affordable fixed monthly payments.

Important Installation Note: Maintain at least 2" clearance from combustible walls and 36" in front of the door for safe operation and service access.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

ETL, ETL-Sanitation

Height

58.06in

Width

24.69in

Depth

29.5in

Shipping Weight

155.0lbs

Slide Centers

fixed centers on 3"

Exterior Finish

all aluminum exterior

Full Size Hotel Pan Capacity

(28) 12" x 20" pans

Heater

bottom mounted heater

Interior Finish

aluminum interior

Doors

full height doors, glass

Insulation

non-insulated

Sections

1 section w/1 compartment

Full Size Sheet Pan Capacity

(14) 18" x 26" pans

Specifications

hotLOGIX Humidified Holding Cabinet/Heater Proofer-HL2 Series, one compartment, 3/4 height, non-insulated, (28) 12" x 20" or (14) 18" x 26" pan capacity, 3" fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heat with water reservoir, mechanical controls, digital thermometer, aluminum construction, (4) 5" swivel casters (2 with brakes), ETL, ETL-Sanitation
