Description

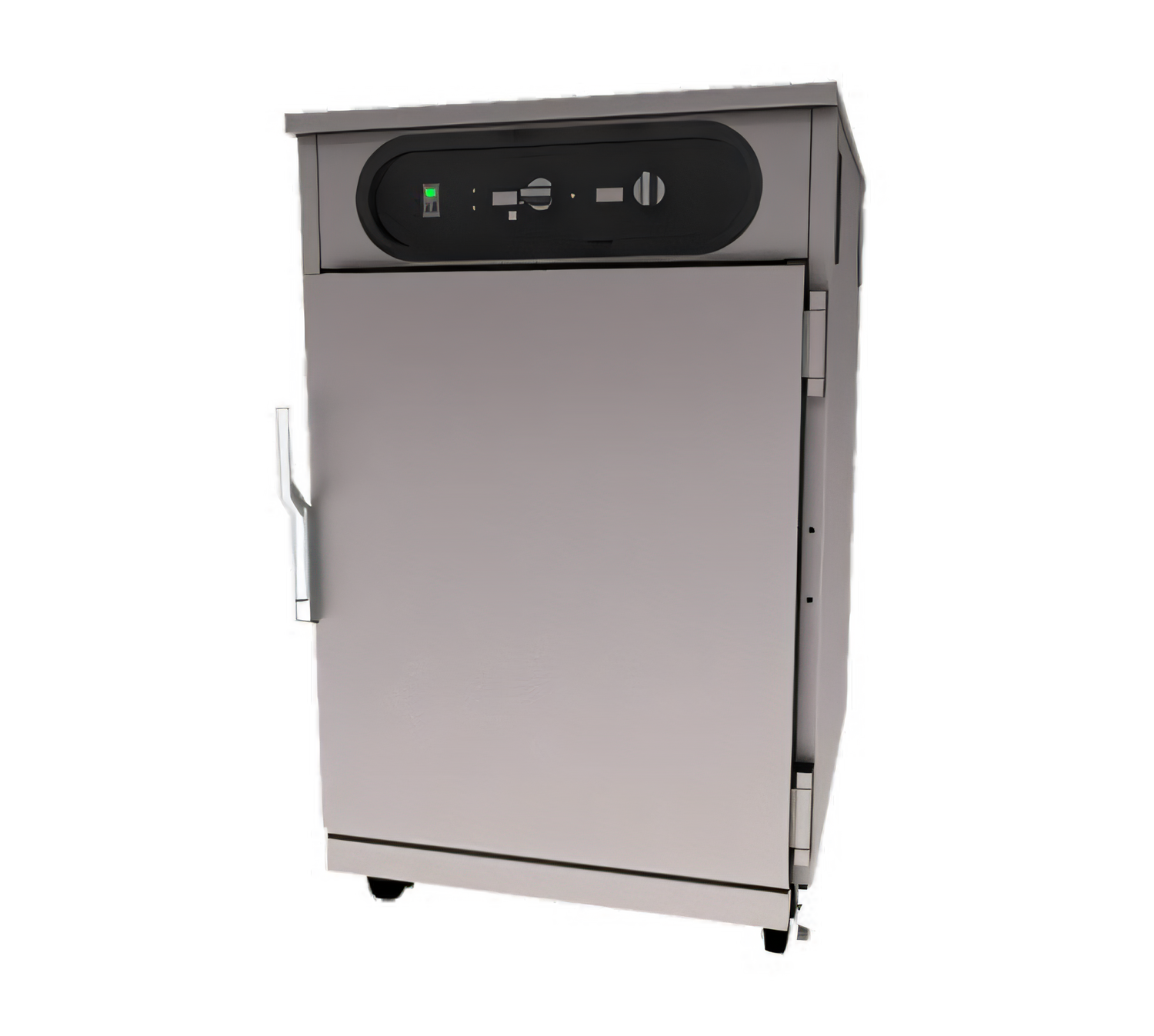

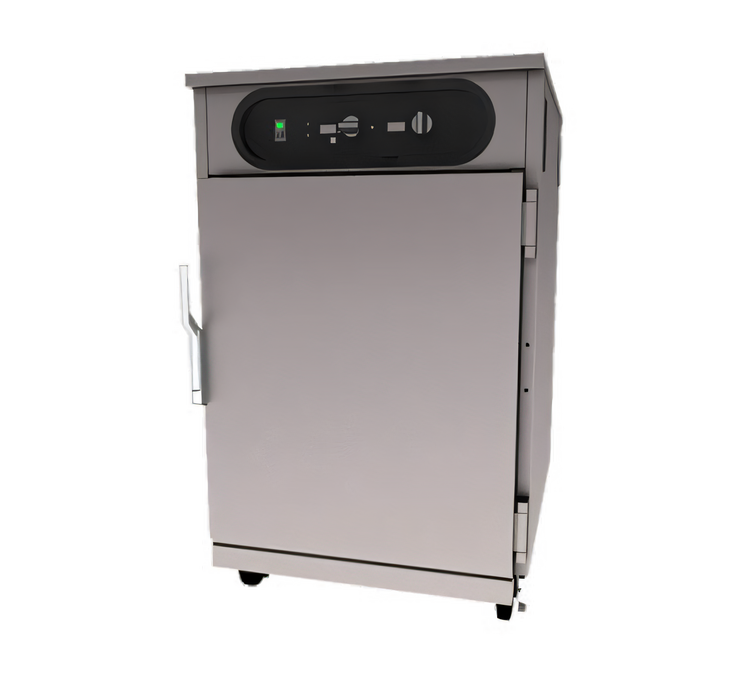

Carter-Hoffmann VaporPro™ HL10-8 Humidified Holding Cabinet

1/2-height | precise temperature & humidity control | 120 V

Deliver perfectly fresh, just-made quality long after the cook line with the VaporPro™ HL10-8. Active humidity management, a top-mounted water reservoir and rugged stainless construction make this 1/2-height cabinet an indispensable workhorse for banquets, QSRs and high-volume kitchens.

Key Features

  • Pan flexibility: holds 16 × 12" × 20" steam pans or 8 × 18" × 26" sheet pans

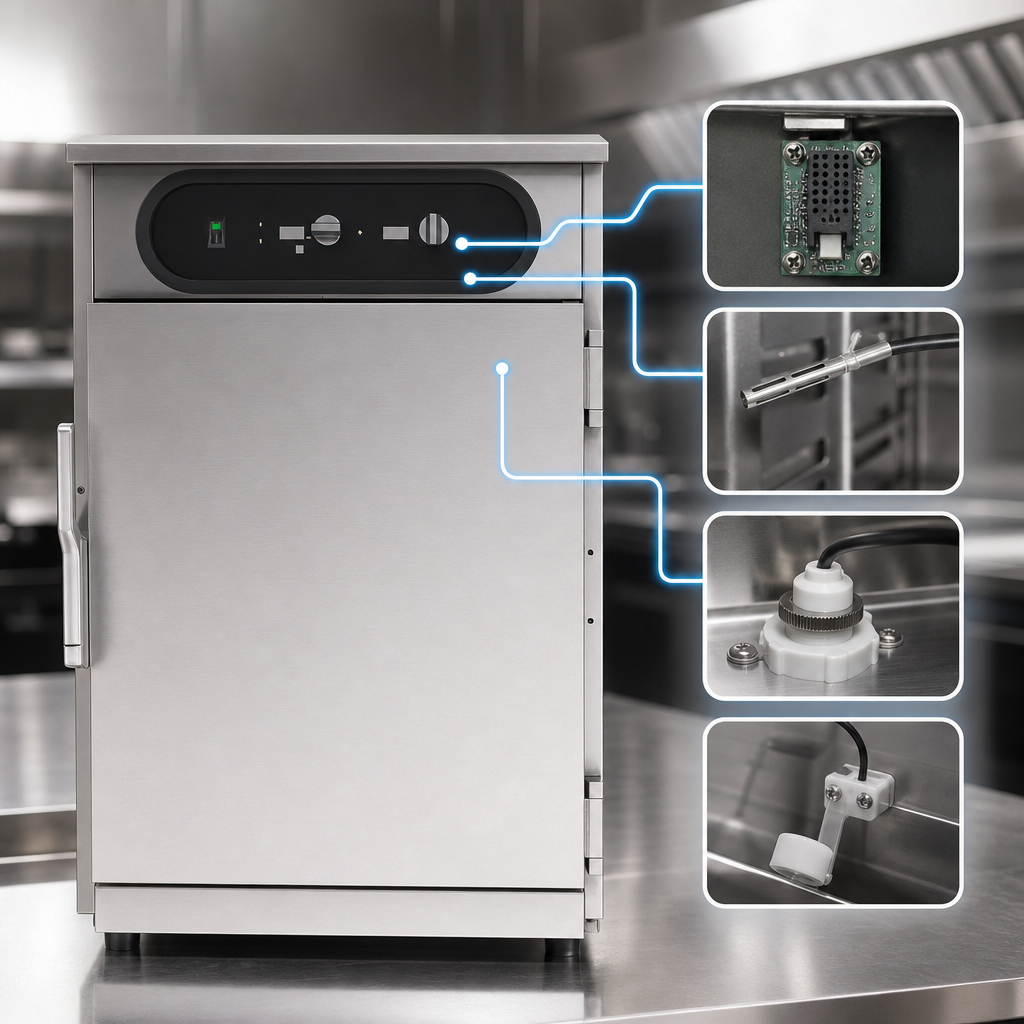

  • Independent electronic heat (85–200 °F) & humidity (up to 90 % RH) controls with digital read-out
  • 1,000 W top-mounted forced-air heating element for rapid, even recovery

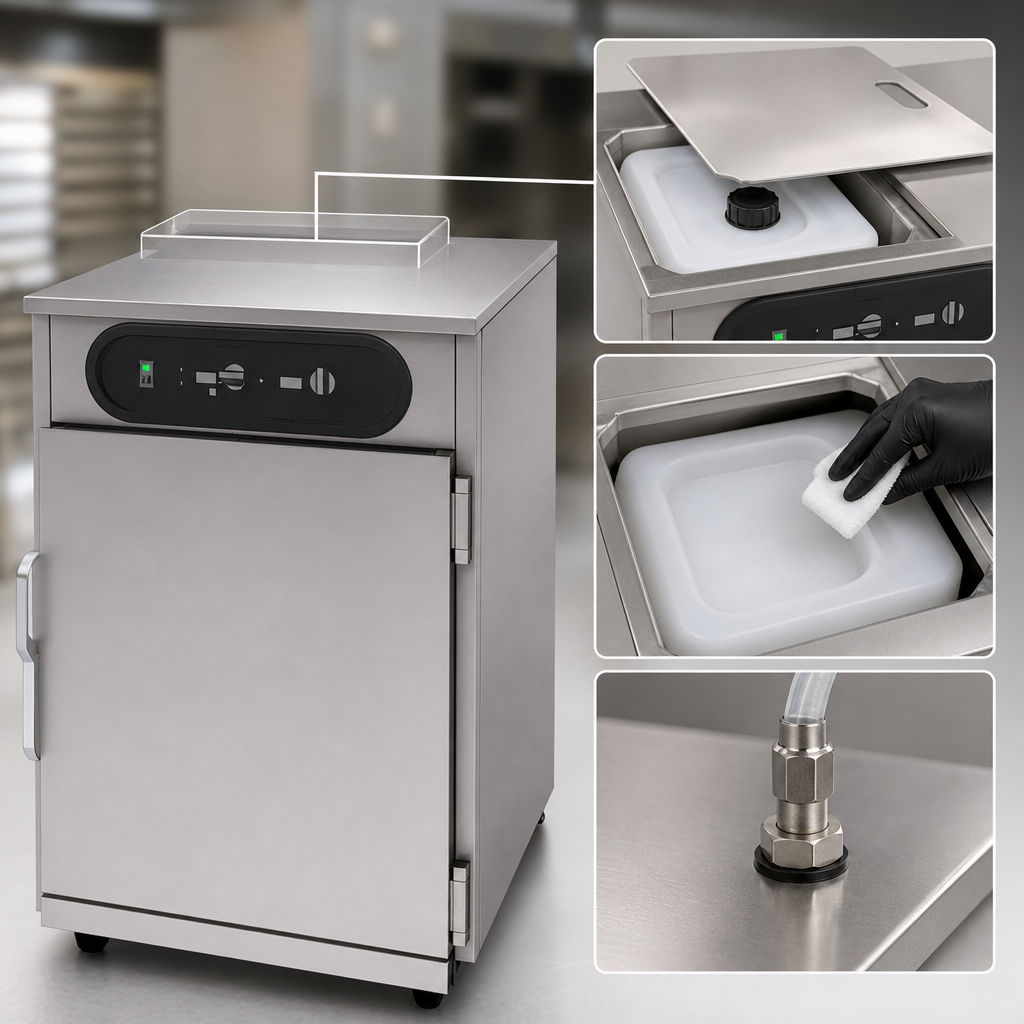

  • 3.8 qt (3.6 L) pull-out water reservoir – dishwasher-safe, only about $30 to replace, plus built-in autofill hookup
  • Fully insulated, field-reversible stainless door with magnetic latch & full-perimeter gasket
  • Universal slides adjust on 1 ½" centers to accept mixed pan sizes
  • 2" wrap-around fiberglass insulation keeps heat in and exterior cool
  • Four 5" swivel casters (2 locking) for effortless mobility
  • cULus listed & UL EPH Classified for sanitation and safety

At-a-Glance Specs

Capacity 16 × 12" × 20" pans
8 × 18" × 26" sheet pans
Pan spacing 3" standard (slides adjust in 1 ½" increments)
Interior working height 24 15⁄16" (634 mm)
Overall dimensions (H × W × D) 45 ½" × 33 1⁄16" × 28"
(1 156 × 840 × 711 mm)
Electrical 120 V / 60 Hz / 1 ph, 2 100 W, 17.5 A, NEMA 5-20P
Temperature range 85 °F – 200 °F (29 °C – 93 °C)
Relative humidity Up to 90 %
Shipping weight ≈ 322 lb (146 kg)

Why Operators Choose VaporPro™

  • Top-mounted reservoir stays clear of food debris, eliminating corrosion and contamination risks.
  • Precision-engineered heat duct limits temperature stratification to < 2 °F – verified to NSF protocol.
  • Low-water & low-temperature alarms protect both food quality and equipment life.
  • Tool-free removable ducts and reservoir cut cleaning time to mere minutes.
Water connection note: Cabinet ships ready for manual fill and includes a ¼" OD autofill hookup for continuous operation. Use potable tap water.

Need a different footprint? Under-counter, ¾-height and full-size VaporPro™ HL10 models are also available.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

VaporPro

Certifications

cULus, UL EPH Classified

Height

45.5in

Width

28.0in

Depth

33.06in

Shipping Weight

322.0lbs

Size

1 compartment

Full Size Sheet Pan Capacity

(8) 18" x 26" pans

Slide Centers

adjustable on 3"

Height

43" - 48"

Door Style

full door(s)

Door Type

solid

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Section

1 section

Exterior Finish

all stainless steel exterior

Heater

top mounted

Insulation

insulated

Specifications

hotLOGIX Humidified Holding Cabinet-HL10 Series, one compartment, 1/2 height, insulated, (16) 12" x 20" or (8) 18" x 26" pan capacity, universal slides, (1) solid field reversible door, electronic controls, top-mount forced air heat with water reservoir, autofill water connection, stainless steel construction, (4) 5" swivel casters (2 with brakes), cULus, UL EPH Classified
