Carter-Hoffmann (Middleby) HL10-5 VaporPro Heated Cabinets & Holding Shelves
Carter-Hoffmann (Middleby) HL10-5 VaporPro Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Carter-Hoffmann (Middleby) HL10-5 VaporPro Heated Cabinets & Ho...
Description

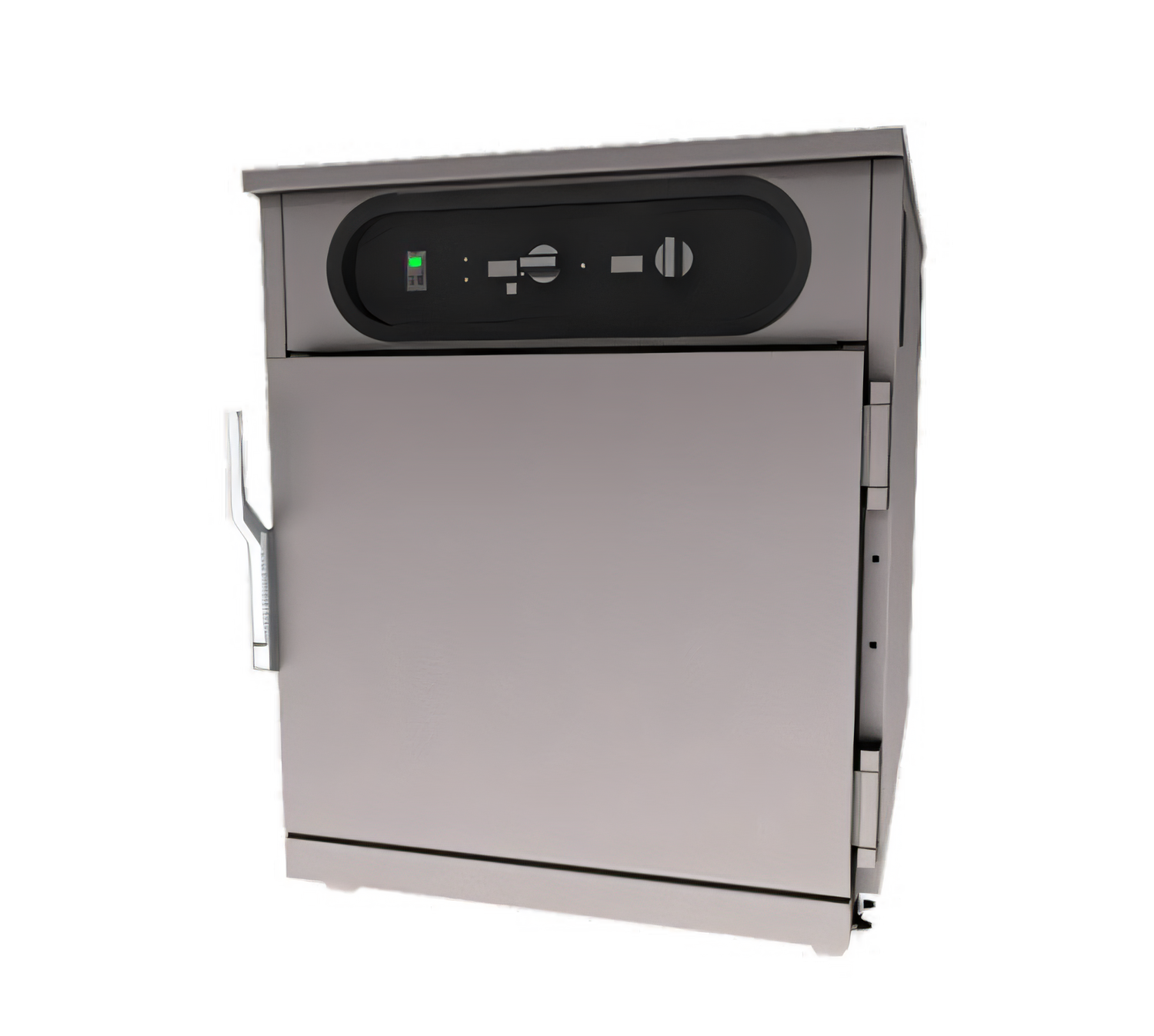

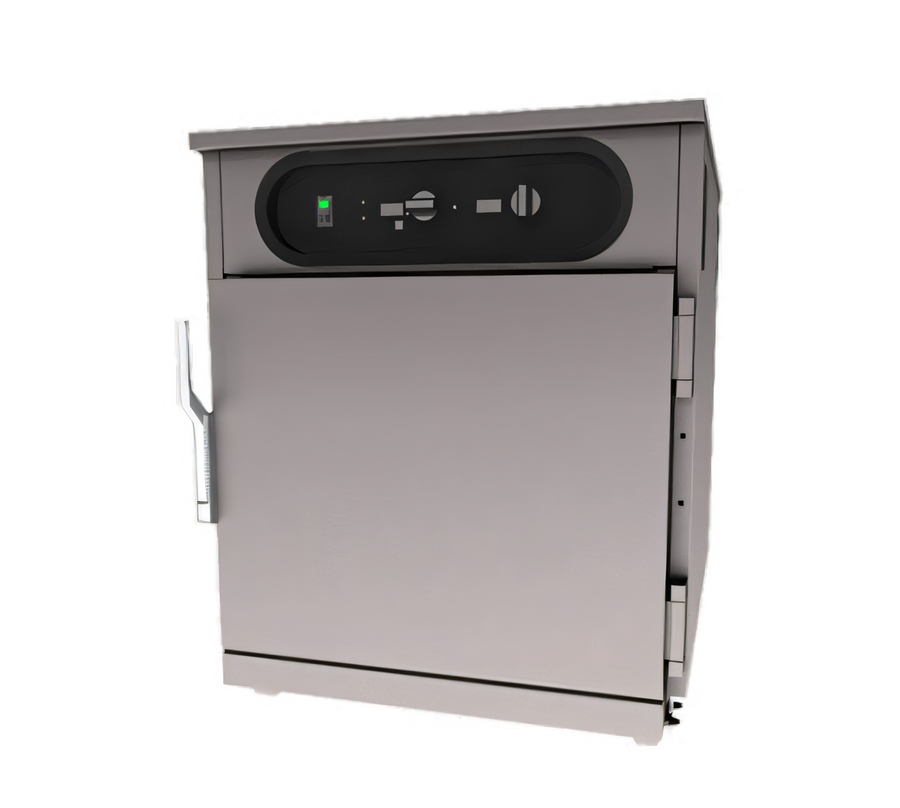

Carter-Hoffmann VaporPro™ HL10-5 Undercounter Humidified Holding Cabinet
Precise heat & humidity control in a compact, under-counter footprintDeliver every plate at its peak. The VaporPro HL10-5 maintains foods at the exact temperature and moisture level you set—protecting textures and flavors for service that shines.
Engineered on the hotLOGIX platform, this stainless-steel workhorse slips beneath a standard 34" counter yet matches the performance of full-size cabinets. Top-mounted forced-air heat, an auto-fill water reservoir and independent electronic controls create an environment so even that temperature stratification never exceeds 2 °F.
Why choose VaporPro HL10-5?

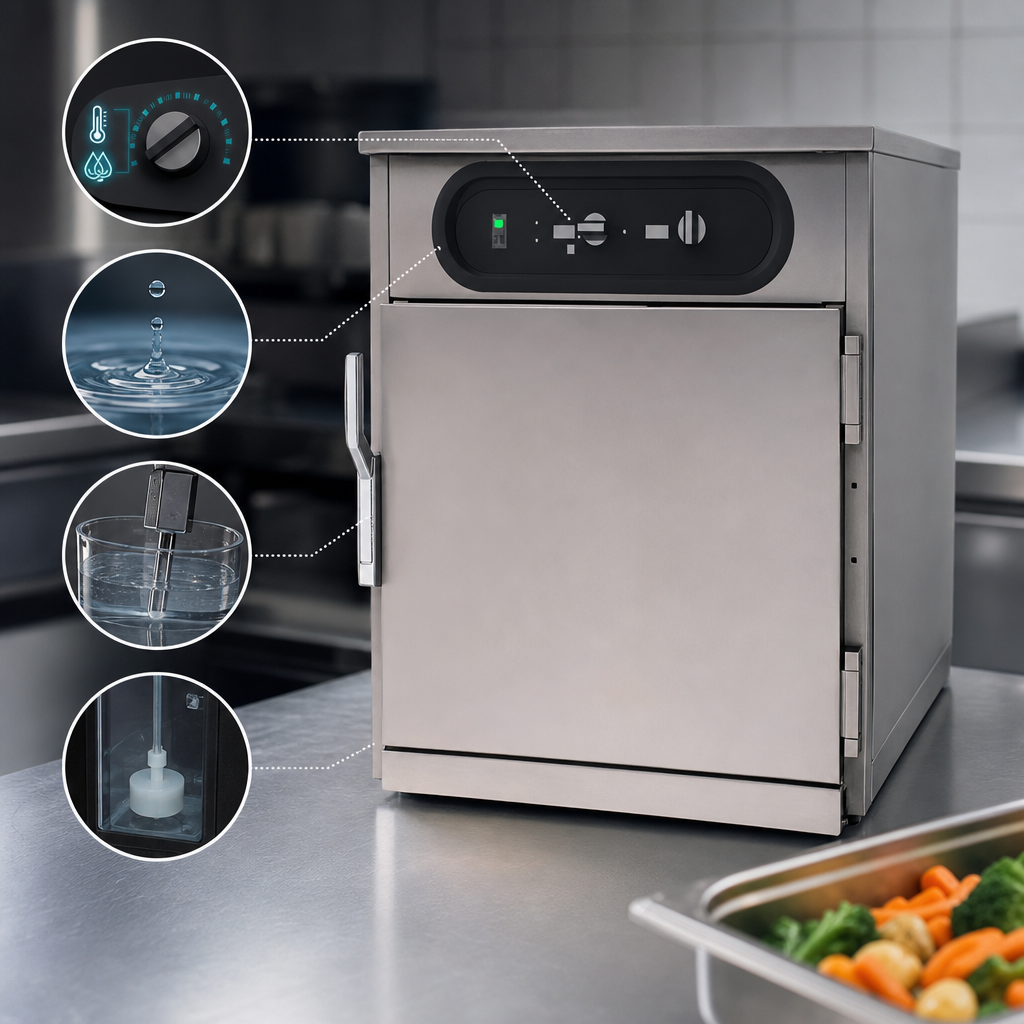

- Separate digital set-points for heat (85-200 °F) and humidity (up to 90 % RH)

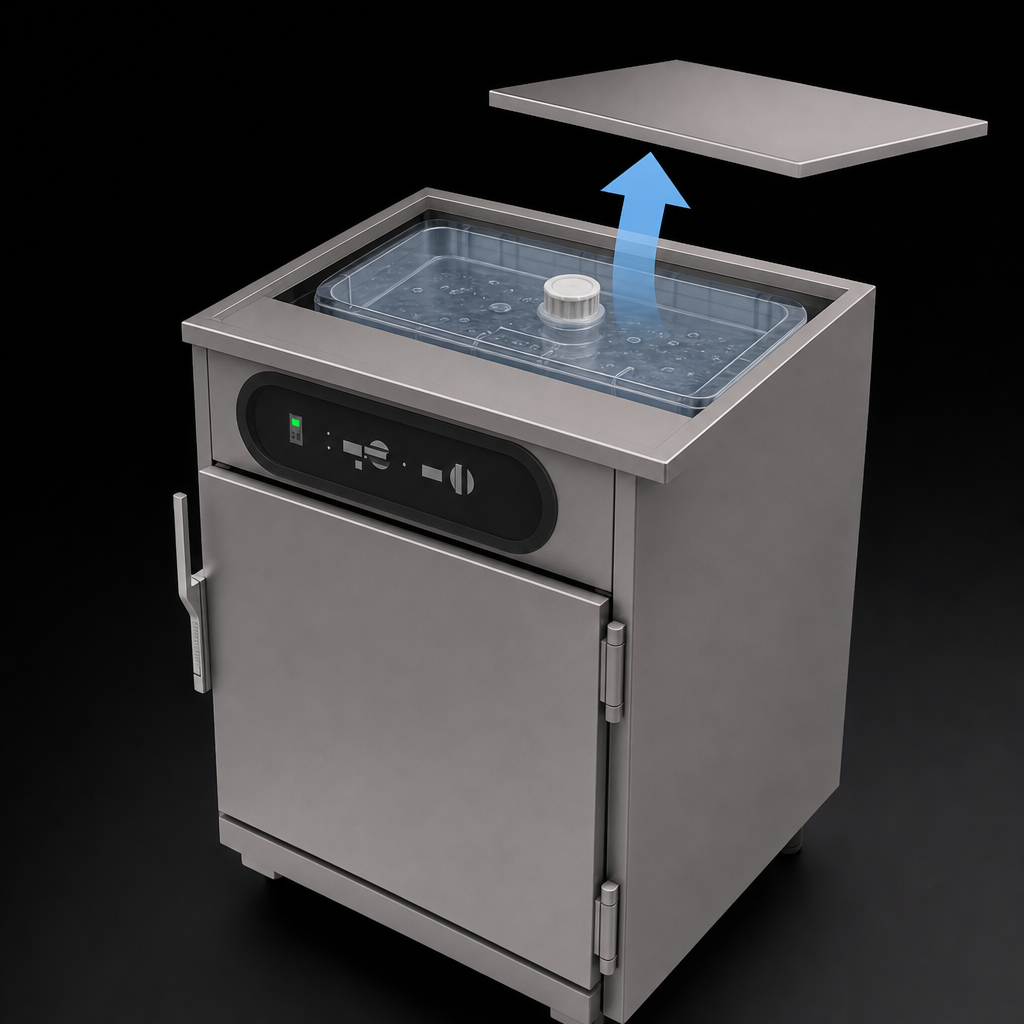

- Clear, slide-out 3.8 qt (3.6 L) reservoir positioned on top—away from food debris—with standard auto-fill hook-up
- Universal slides hold 10 × 12" × 20" hotel pans or 5 × 18" × 26" sheet pans; adjust on 1 ½" centers
- Field-reversible, fully-insulated solid door with magnetic latch and full-perimeter gasket
- Stainless heat duct system for fast recovery after door openings
- Fully welded 20 ga. exterior, 18 ga. interior & 2" high-density fiberglass insulation
- 3" non-marking swivel casters (front two locking) for effortless mobility
- cULus & UL EPH Classified; meets NSF 4 for sanitation
Perfect for
- Pasta, rice and steamed vegetables
- Fried or smoked chicken pieces
- Sauces, soups and chilis
- BBQ meats, burgers & sliders
- Breakfast items—pancakes, bacon & eggs
Technical specifications
| Model | HL10-5 (Undercounter) |
|---|---|
| Pan capacity | 10 × 12" × 20" hotel pans 5 × 18" × 26" sheet pans |
| Slide spacing (standard) | 3" (76 mm) |
| Inside working height | 15 5⁄16" (389 mm) |
| Overall dimensions (H × W × D) | 33 1⁄2" × 28" × 33 1⁄16" (851 × 711 × 840 mm) |
| Water reservoir | 3.8 qt (3.6 L) clear polycarbonate; slide-out; auto-fill ready |
| Temperature range | 85 °F – 200 °F (29 °C – 93 °C) |
| Max. humidity | Up to 90 % RH |
| Preheat time | 160 °F (71 °C) in ≈ 25 min |
| Electrical | 120 V / 60 Hz / 1 ph / 2100 W / 17.5 A NEMA 5-20P (USA) cord & plug, 10 ft |
| Construction | All-stainless, fully welded; 2" wrap-around fiberglass insulation |
| Casters | 3" swivel (2 with brakes) |
| Shipping weight | 271 lb (123 kg) |
Certifications
- cULus listed
- UL EPH Classified
- ANSI/NSF 4 compliant
Looking for more capacity? Half, three-quarter and full-height VaporPro cabinets are also available.
