Carter-Hoffmann (Middleby)  |  VaporPro  |  SKU: HL10-18

Carter-Hoffmann (Middleby) HL10-18 VaporPro Heated Cabinets & Holding Shelves

$10,384.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

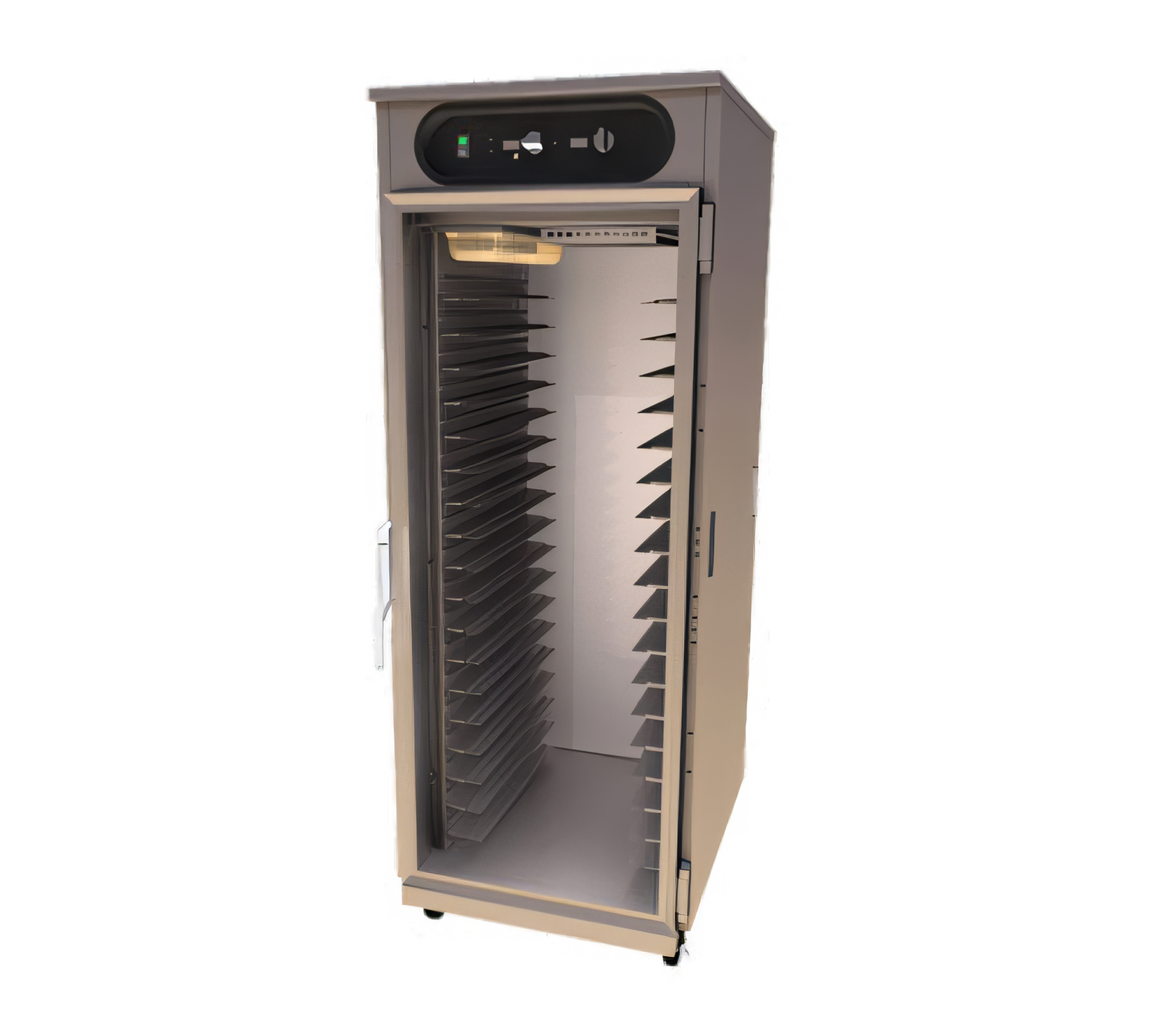

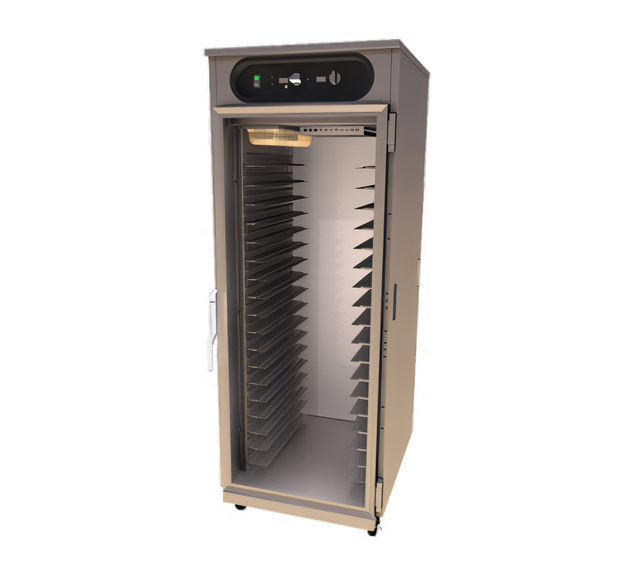

Carter-Hoffmann VaporPro Humidified Holding Cabinet

Model HL10-18  •  Full-height  •  36 × 12"×20" pan capacity

Deliver perfectly held, moisture-sensitive foods for banquets, catering, grab-and-go lines and more. The VaporPro HL10-18 actively controls both heat and humidity, maintaining up to 90 % relative humidity at temperatures as high as 200 °F (93 °C) so every portion reaches the customer just-cooked fresh.

Why operators choose VaporPro

  • Large Capacity – Holds 36 hotel pans (12" × 20") or 18 sheet pans (18" × 26") on adjustable universal slides.

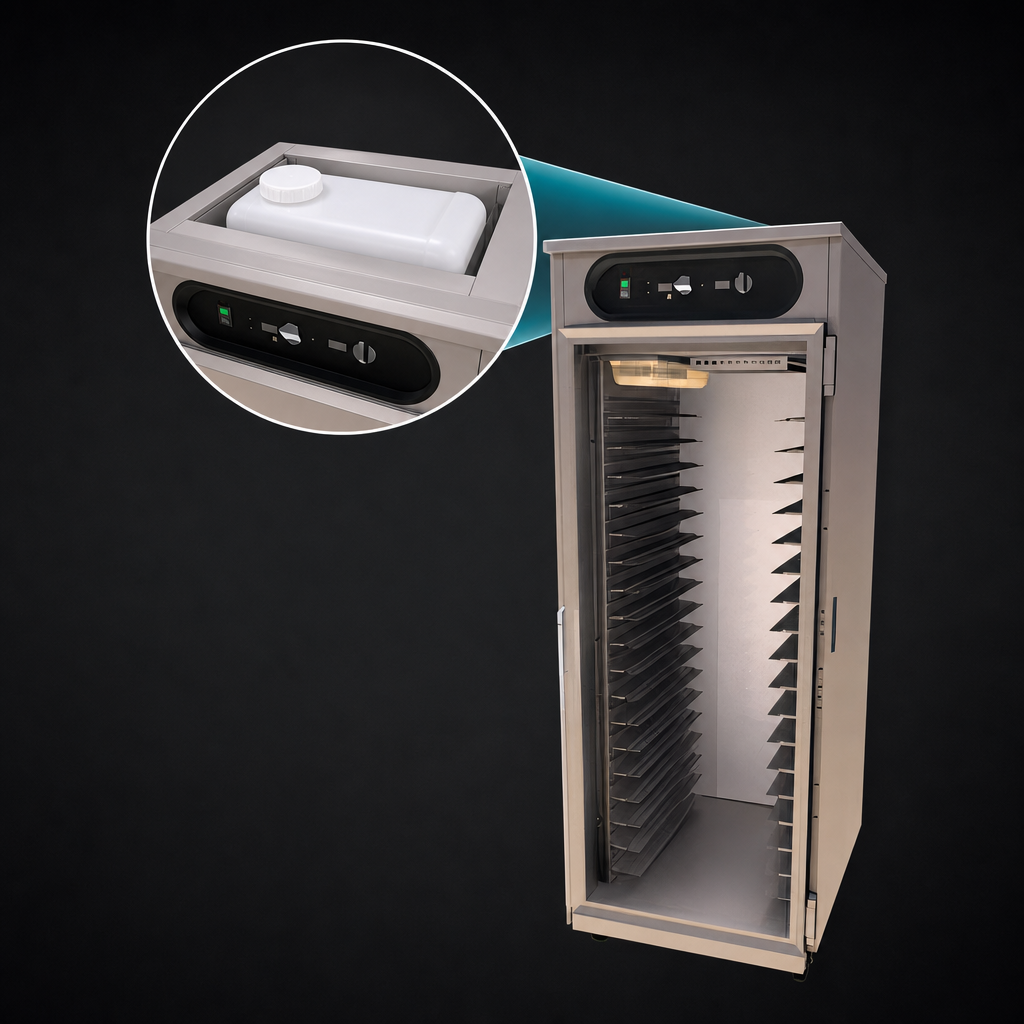

  • Top-Mounted 5.7 qt (5.4 L) Reservoir – Stays clear of food debris, slides out for cleaning, costs under $30 to replace and includes an autofill connection.

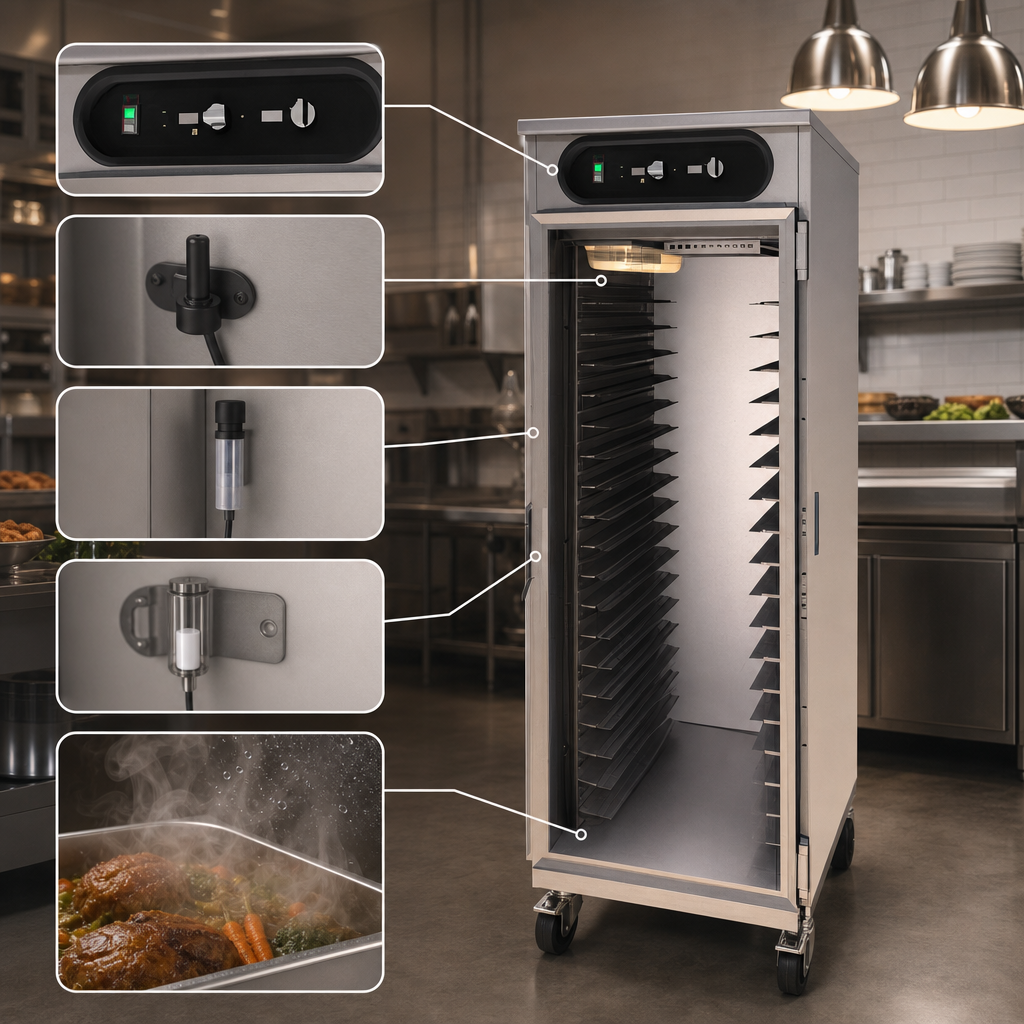

  • Independent Digital Controls – Separate, sensor-driven heat and humidity dials with low-water warning & audible alarms.
  • Even Heat Distribution – Precision-engineered stainless heat duct keeps temperature stratification under 2 °F during pre-heat and hold.
  • Rugged & Efficient – All-stainless construction, 2" wraparound insulation and fully welded frame for years of heavy-duty service.
  • Field-Reversible Solid Door – Double-panel, magnetically latched and gasketed to lock in heat and moisture.
  • Mobilize Your Kitchen – Four 5" swivel casters (two locking) glide smoothly over thresholds and into catering vans.

Perfect for

  • Pasta, vegetables and delicate sauces
  • Burgers, fried chicken and breaded proteins
  • Banquet trays & off-site catering
  • Low-temperature dough proofing

Performance highlights

  • Temperature range: 85 °F – 200 °F (29 °C – 93 °C); pre-heats to 160 °F in ≈ 25 min.
  • Humidity range: 10 % – 90 % RH, independent of air temperature.
  • 2100 W top-mounted forced-air system with Incoloy heating element and internally cooled fan motor for rapid recovery.

Specifications

Pan Capacity 36 × 12"×20" OR 18 × 18"×26"
Slide Spacing 3" centres; slides adjustable in 1 ½" increments
Overall Dimensions (H × W × D) 76 ⅜" × 33 ¹⁄₁₆" × 28"  (1 940 × 840 × 711 mm)
Interior Working Height 54 ½" (1 384 mm)
Water Reservoir 5.7 qt (5.4 L) pull-out polycarbonate; manual fill or autofill
Electrical 120 V / 60 Hz / 1-ph, 2 100 W, 17.5 A, NEMA 5-20P (USA) / 5-30P (Canada)
Construction 20 ga stainless exterior, 18 ga interior, 12 ga base frame with full-depth caster bolsters
Insulation 2" high-density fiberglass, wraparound
Casters 4 × 5" swivel (2 with brakes)
Listings cULus, UL EPH Classified, ANSI/NSF 4
Shipping Weight Approx. 495 lb (225 kg)

Optional upgrades include Dutch or pass-through doors, clear tempered glass doors and fixed-angle sheet-pan slides. Ask our team for a customized quote.

Electrical notice: Unit draws 17.5 A. Confirm a dedicated 120 V, 20 A (USA) or 30 A (Canada) receptacle before installation.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

VaporPro

Certifications

cULus, UL EPH Classified

Height

76.38in

Width

28.0in

Depth

33.06in

Shipping Weight

495.0lbs

Slide Centers

adjustable on 3"

Door Type

solid

Size

1 compartment

Exterior Finish

all stainless steel exterior

Door Style

full door(s)

Section

1 section

Full Size Hotel Pan Capacity

(36) 12" x 20" pans

Insulation

insulated

Height

73" - 78"

Heater

top mounted

Full Size Sheet Pan Capacity

(18) 18" x 26" pans

Specifications

hotLOGIX Humidified Holding Cabinet-HL10 Series, one compartment, full height, insulated, (36) 12" x 20" or (18) 18" x 26" pan capacity, universal slides, (1) solid field reversible door, electronic controls, top-mount forced air heat with water reservoir, autofill water connection, stainless steel construction, (4) 5" swivel casters (2 with brakes), cULus, UL EPH Classified
