Description

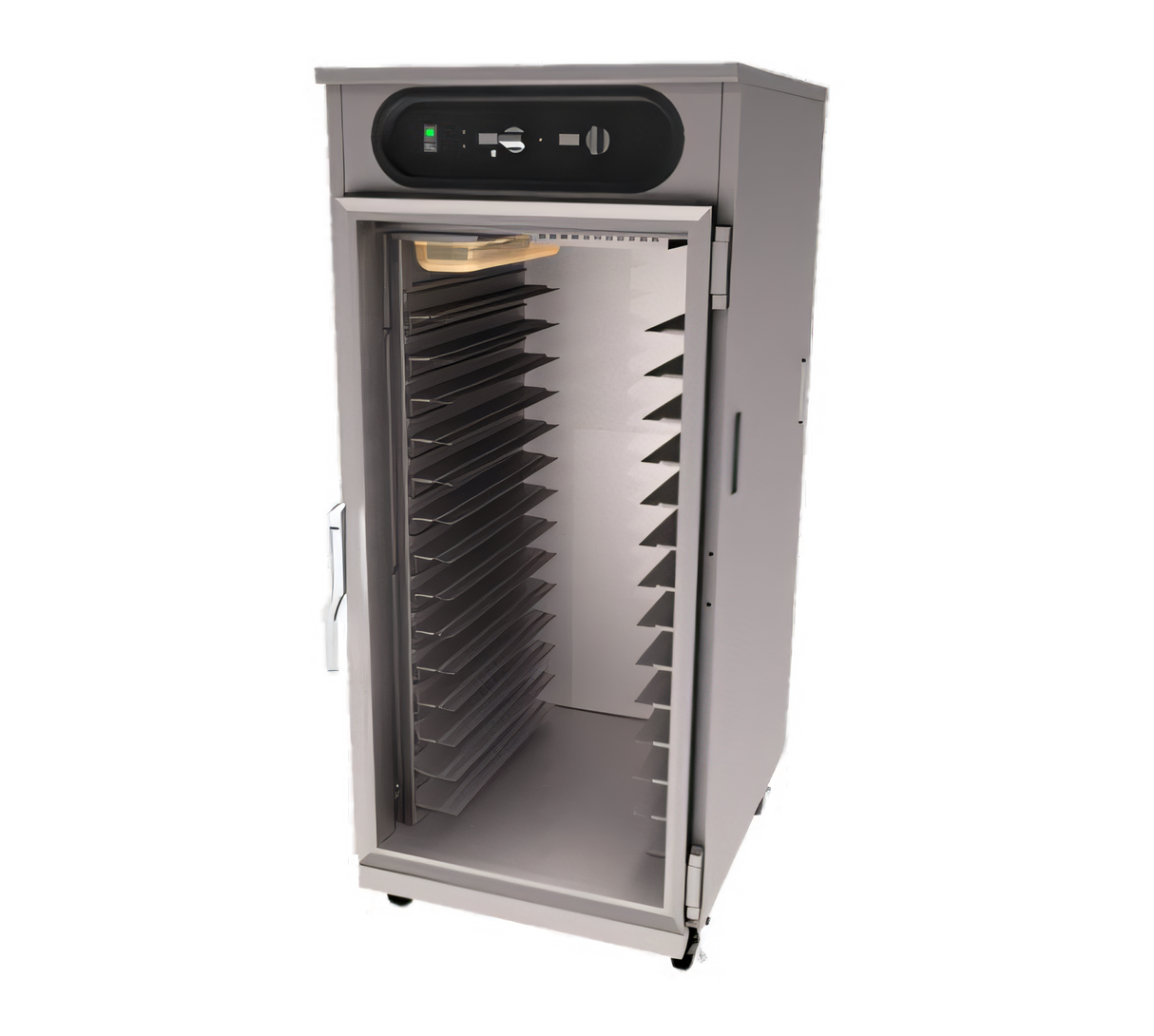

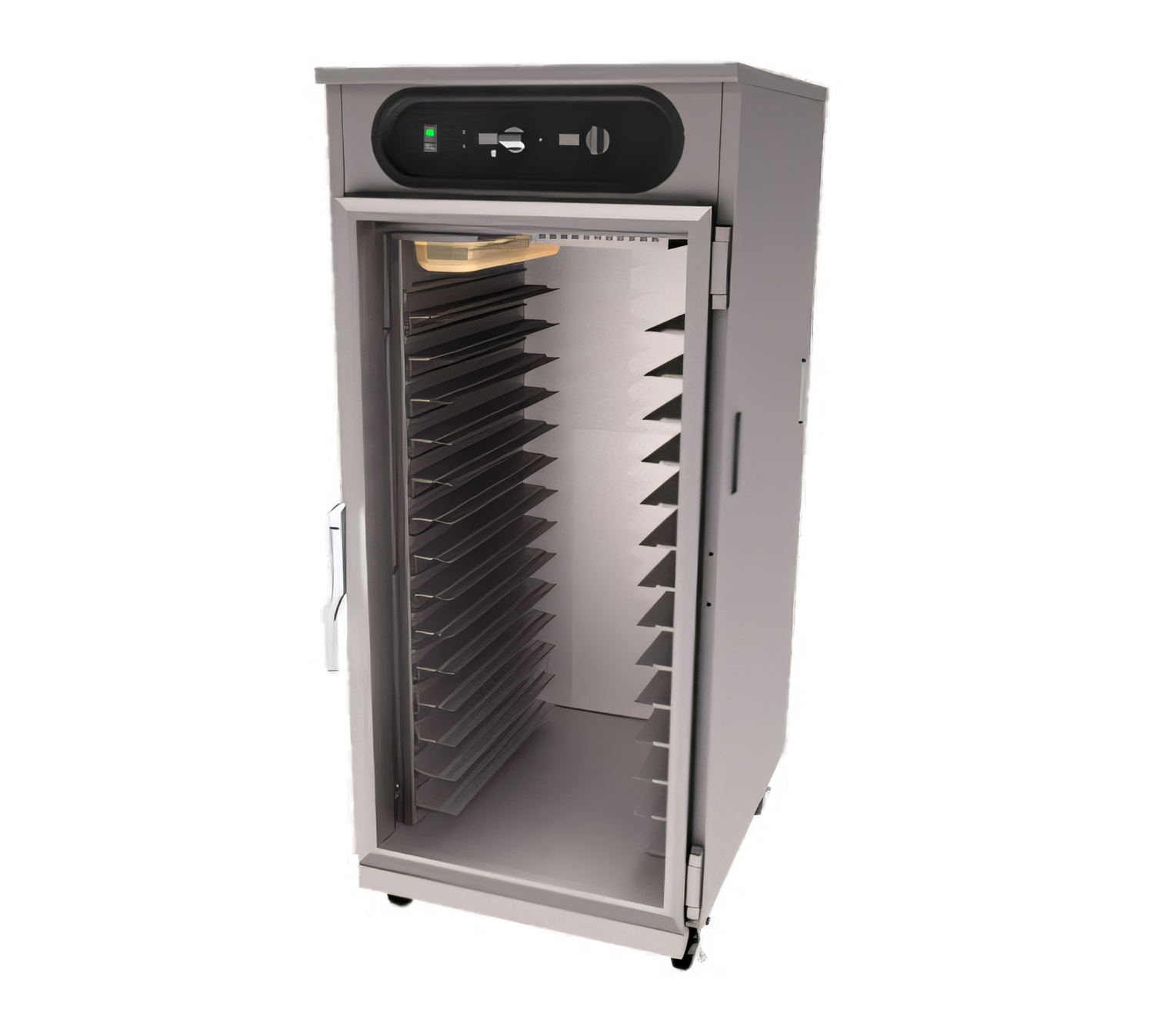

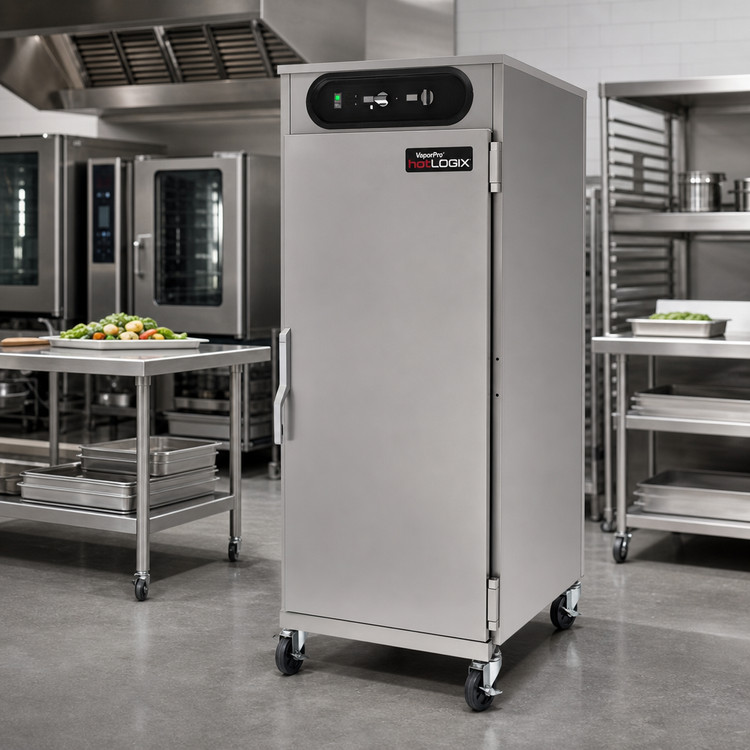

Carter-Hoffmann VaporPro™ HL10-14 Humidified Holding Cabinet

3/4-Height • 28-Pan Capacity • Autofill & Electronic Controls

Give every plate the “just-finished” taste guests expect. The VaporPro HL10-14 pairs precise temperature with up to 90 % relative humidity, so pasta stays silky, chicken stays crispy and veggies stay vibrant—hour after hour.

Built for Demanding Kitchens

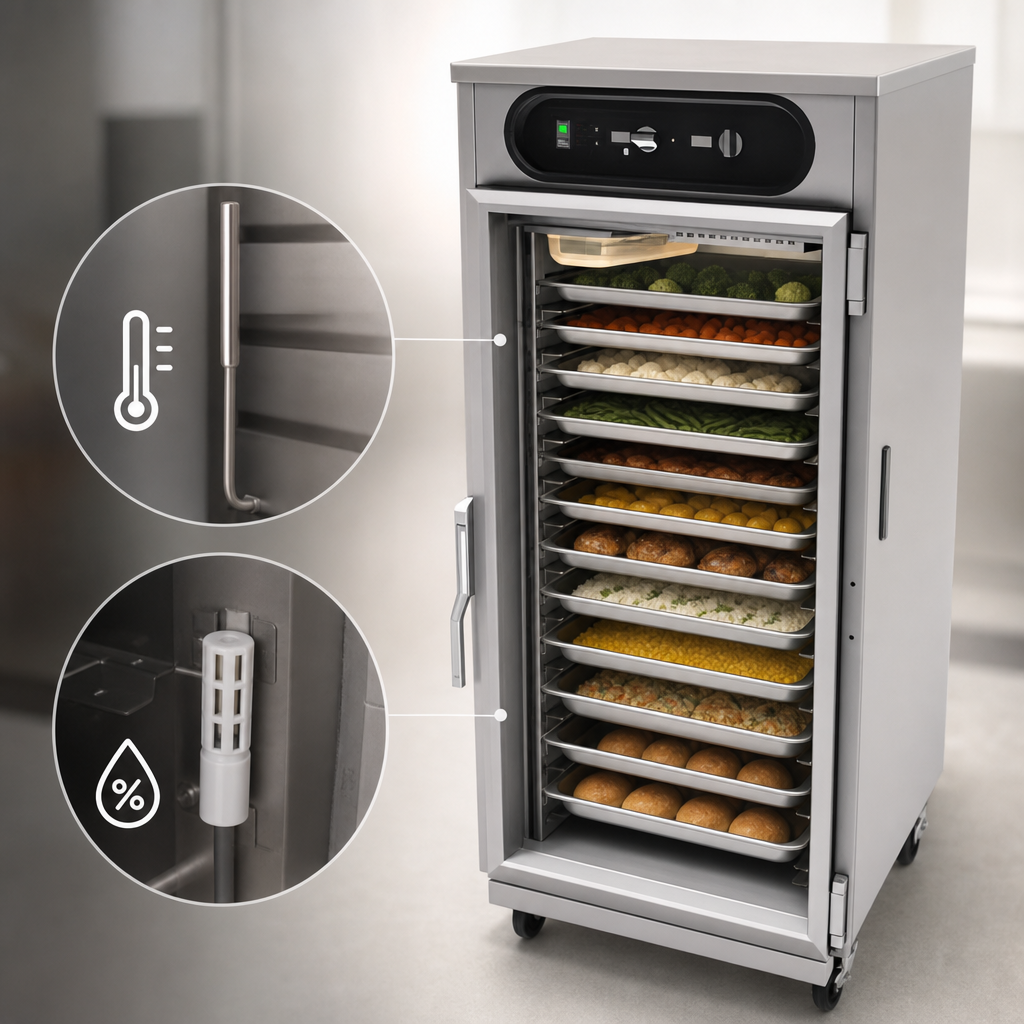

  • Active heat & humidity control maintains up to 200 °F (93 °C) and 90 % RH with separate digital set-points.

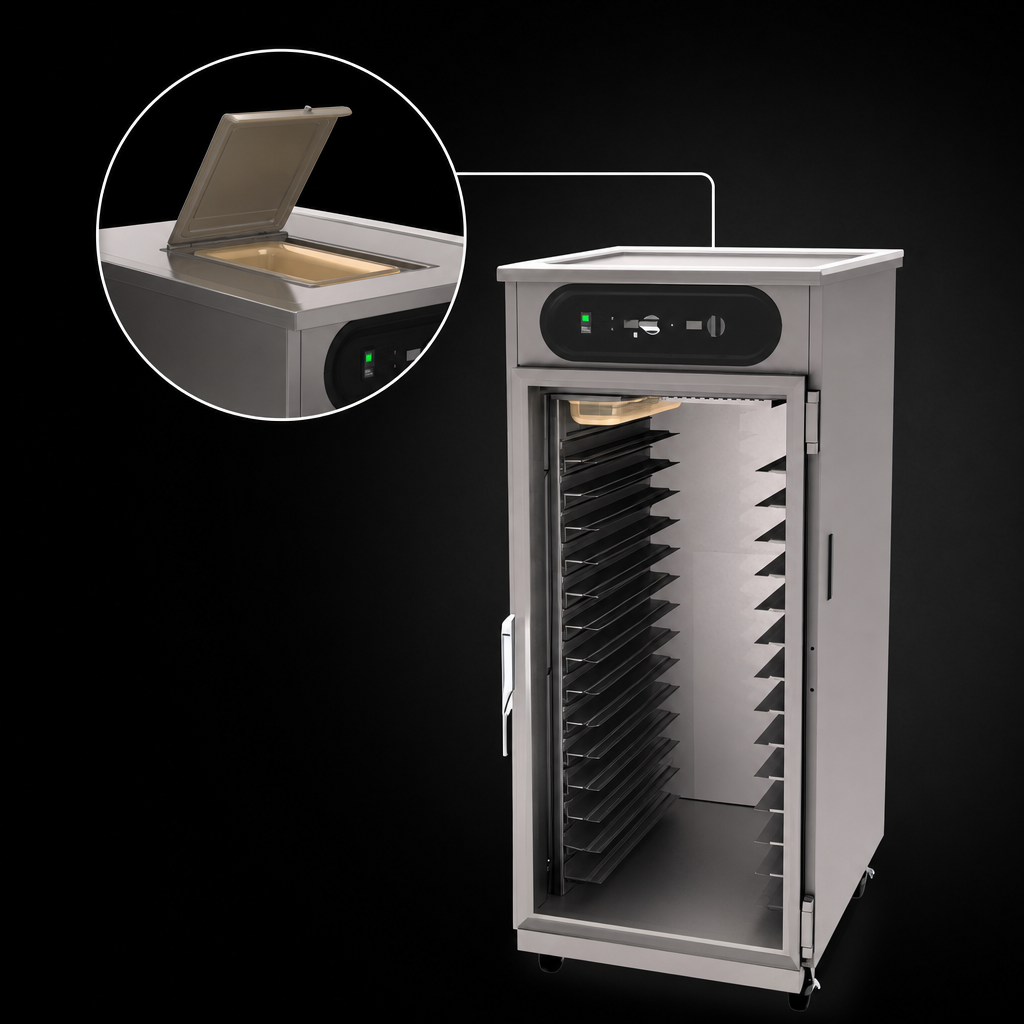

  • Top-mounted 5.7 qt (5.4 L) water reservoir is removable, dishwasher-safe and includes a standard autofill connection.
  • Stainless steel heat-duct system delivers even air flow—less than 2 °F temperature variation throughout the cabinet.
  • Universal slides adjust on 1 ½" centers to accept (28) 12" × 20" pans or (14) 18" × 26" sheet pans.
  • Field-reversible, fully insulated solid door with magnetic latch and full-perimeter gasket.
  • All-stainless, fully welded cabinet with 2" fiberglass insulation for durability and energy savings.
  • Four 5" swivel casters (two locking) plus recessed side grips for effortless mobility.
  • cULus & UL EPH Classified; ANSI/NSF 4 compliant.
Perfect For
  • Pasta, rice and steamed vegetables
  • Breaded or grilled chicken & burgers
  • Sauces, gravies and moist proteins
  • Catering, banquets, QSR staging and off-site service
Pan Capacity
  • 28 × 12" × 20" hotel pans (2 ½" deep)
  • 14 × 18" × 26" full-size sheet pans
  • Standard 3" spacing (adjustable in 1 ½" increments)
Technical Specifications
Model HL10-14
Temperature Range 85 °F – 200 °F  (29 °C – 93 °C)
Humidity Range Ambient to 90 % RH
Interior Working Height 42 ½" / 1080 mm
Overall Dimensions (H × W × D) 64 ⅞" × 28" × 33 1⁄16"  (1635 × 711 × 840 mm)
Electrical 120 V, 60 Hz, 1-ph, 2100 W, 17.5 A, 10 ft cord, NEMA 5-20P (USA)
NEMA 5-30P (Canada)
Water Connection ¼" NPT autofill (manual fill capable)
Reservoir Capacity 5.7 qt / 5.4 L, removable polycarbonate pan
Casters (4) 5" swivel, 2 with brakes
Shipping Weight ≈ 423 lb / 192 kg

Need a pass-thru, glass door or alternate voltage? Factory-configured options are available for the HL10 series—just ask!

Installation note: A dedicated 120 V/20 A circuit and potable water line are required. Always follow local codes and the manufacturer’s installation manual.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

VaporPro

Certifications

cULus, UL EPH Classified

Height

64.88in

Width

28.0in

Depth

33.06in

Shipping Weight

423.0lbs

Full Size Sheet Pan Capacity

(14) 18" x 26" pans

Door Type

solid

Slide Centers

adjustable on 3"

Section

1 section

Size

1 compartment

Height

61" - 66"

Door Style

full door(s)

Insulation

insulated

Exterior Finish

all aluminum exterior

Heater

top mounted

Full Size Hotel Pan Capacity

(28) 12" x 20" pans

Specifications

hotLOGIX Humidified Holding Cabinet-HL10 Series, one compartment, 3/4 height, insulated, (28) 12" x 20" or (14) 18" x 26" pan capacity, universal slides, (1) solid field reversible door, electronic controls, top-mount forced air heat with water reservoir, autofill water connection, stainless steel construction, (4) 5" swivel casters (2 with brakes), cULus, UL EPH Classified
