Carter-Hoffmann VaporPro™ HL10-10-RW Humidified Holding Cabinet + 2-Drawer Warmer
Full-height • 20-Pan Capacity • Precise Heat & Humidity ControlElevate the quality of every plate with the VaporPro™ HL10-10-RW. This hotLOGIX dual-mode system combines an active humidified holding cabinet with two independent narrow drawer warmers, giving you three distinct holding zones in one rugged, stainless-steel chassis.
Performance advantages

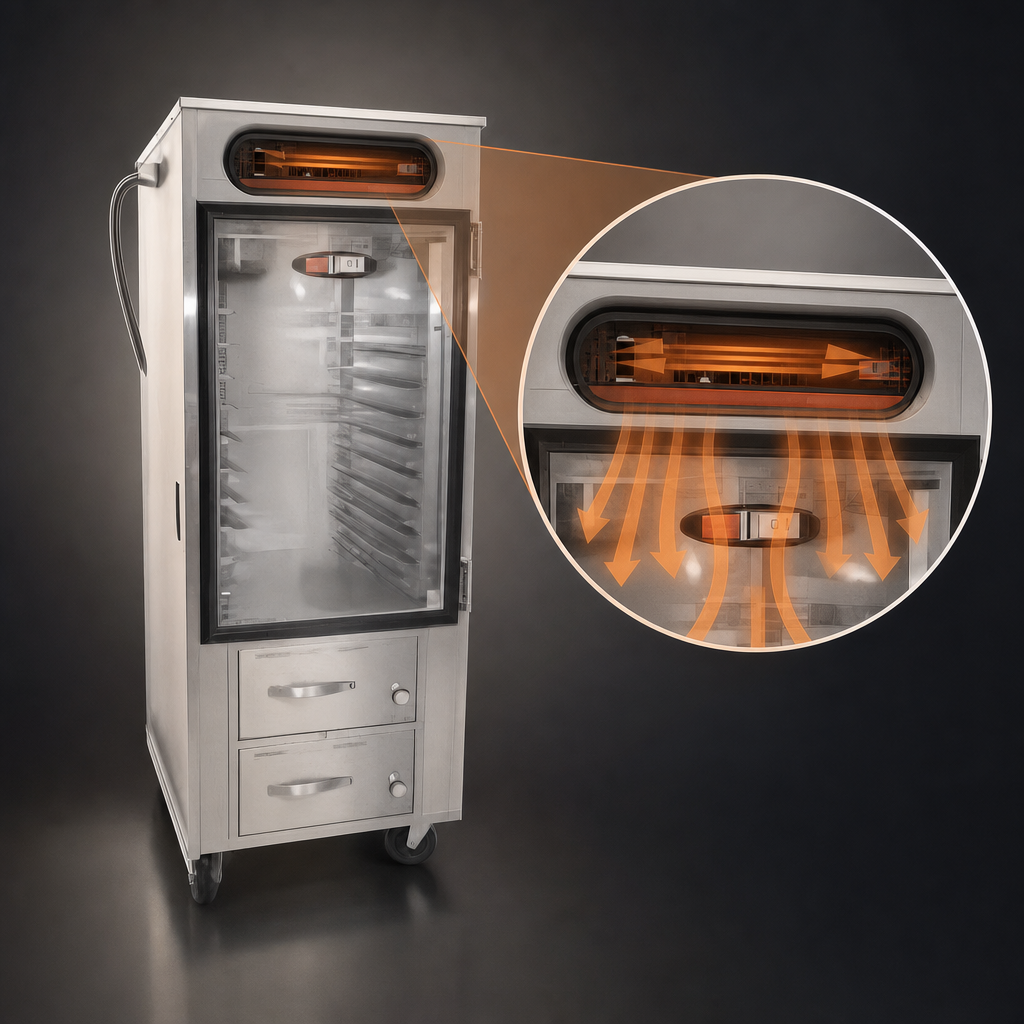

- Top-mounted forced-air heater plus 5.7 qt water reservoir delivers up to 90 % relative humidity from 85 °F to 200 °F.

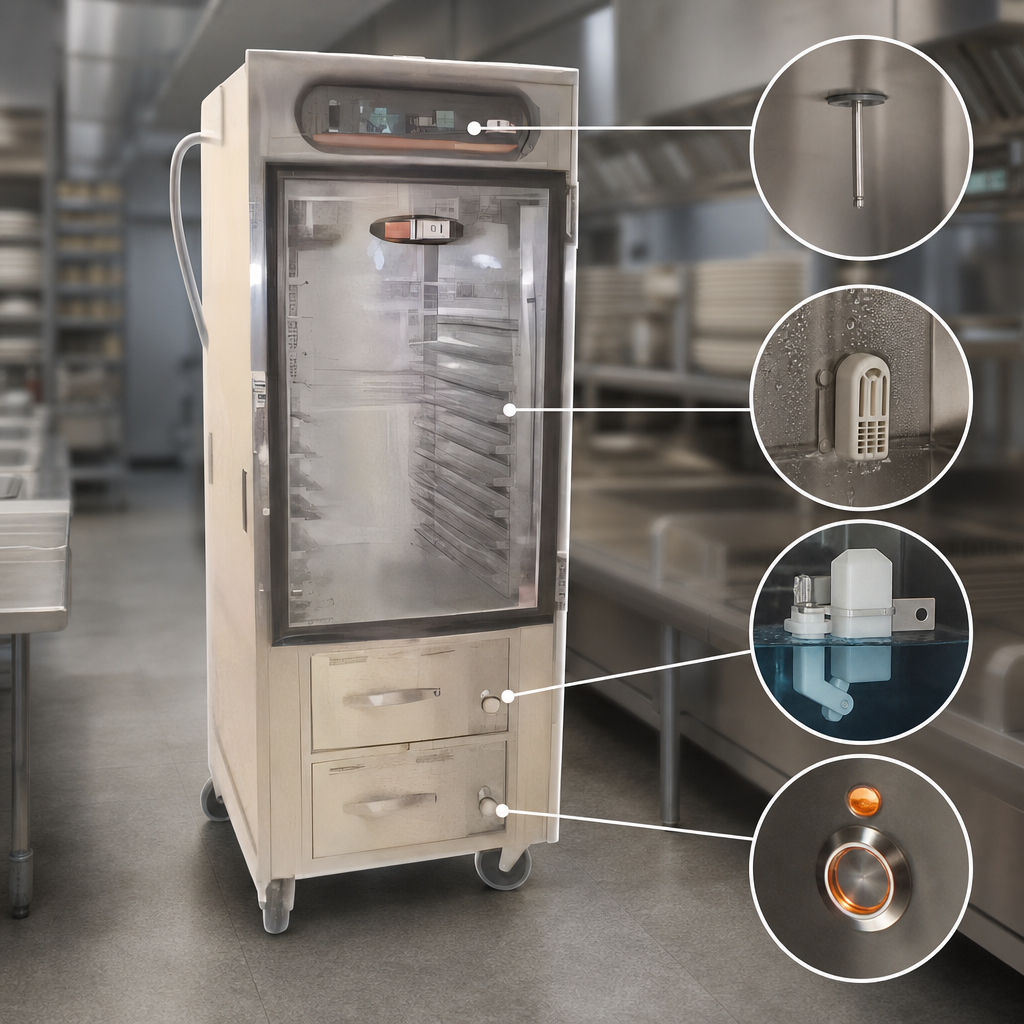

- Digital controls with separate heat and humidity set-points; flashing display during preheat turns solid when ready.
- Precision heat duct keeps cabinet stratification under 2 °F for consistent top-to-bottom results.
- Field-reversible, fully insulated stainless door with one-touch magnetic latch.
- (2) self-latching drawer warmers with individual thermostats (90 – 210 °F) & adjustable vents—keep one drawer crispy, the other moist.
- Holds (20) 12 " × 20 " steam-table pans or (10) full sheet pans on tool-free universal slides adjustable on 1½ " centers.
- All-welded stainless construction, 2 " fiberglass insulation and 5 " swivel casters (2 locking) built for daily commercial abuse.
- cULus, UL EPH Classified & ANSI/NSF 4 compliant.
Perfect for
- Batch cooking & staging during peak service
- Moisture-sensitive items—pasta, vegetables, sauces, burgers, fried chicken & more
- Ghost kitchens, QSRs & high-volume catering operations
- Operators who need maximum holding power in a narrow footprint
Technical specifications
| Model | HL10-10-RW |
|---|---|
| Pan capacity | (20) 12 " × 20 " hotel pans (or) (10) 18 " × 26 " sheet pans • up to 6 " deep |
| Drawer capacity | (2) drawers, each fits (1) 12 " × 20 " pan up to 6 " deep |
| Temperature range | Cabinet 85 – 200 °F • Drawers 90 – 210 °F |
| Humidity range | Up to 90 % RH |
| Heat input | Cabinet 2 kW forced-air + 1 kW reservoir heater Drawer warmer 900 W static |
| Electrical | 120 V / 1-ph / 24.2 A • 2.9 kW • NEMA 5-30P (10 ft cord) |
| Exterior dimensions | 32 5⁄8 " W × 28 1⁄4 " D × 76 3⁄8 " H (829 × 718 × 1 940 mm) |
| Shipping weight | 458 lb (208 kg) |
| Casters | (4) 5 " swivel (2 with brakes) |
