Description

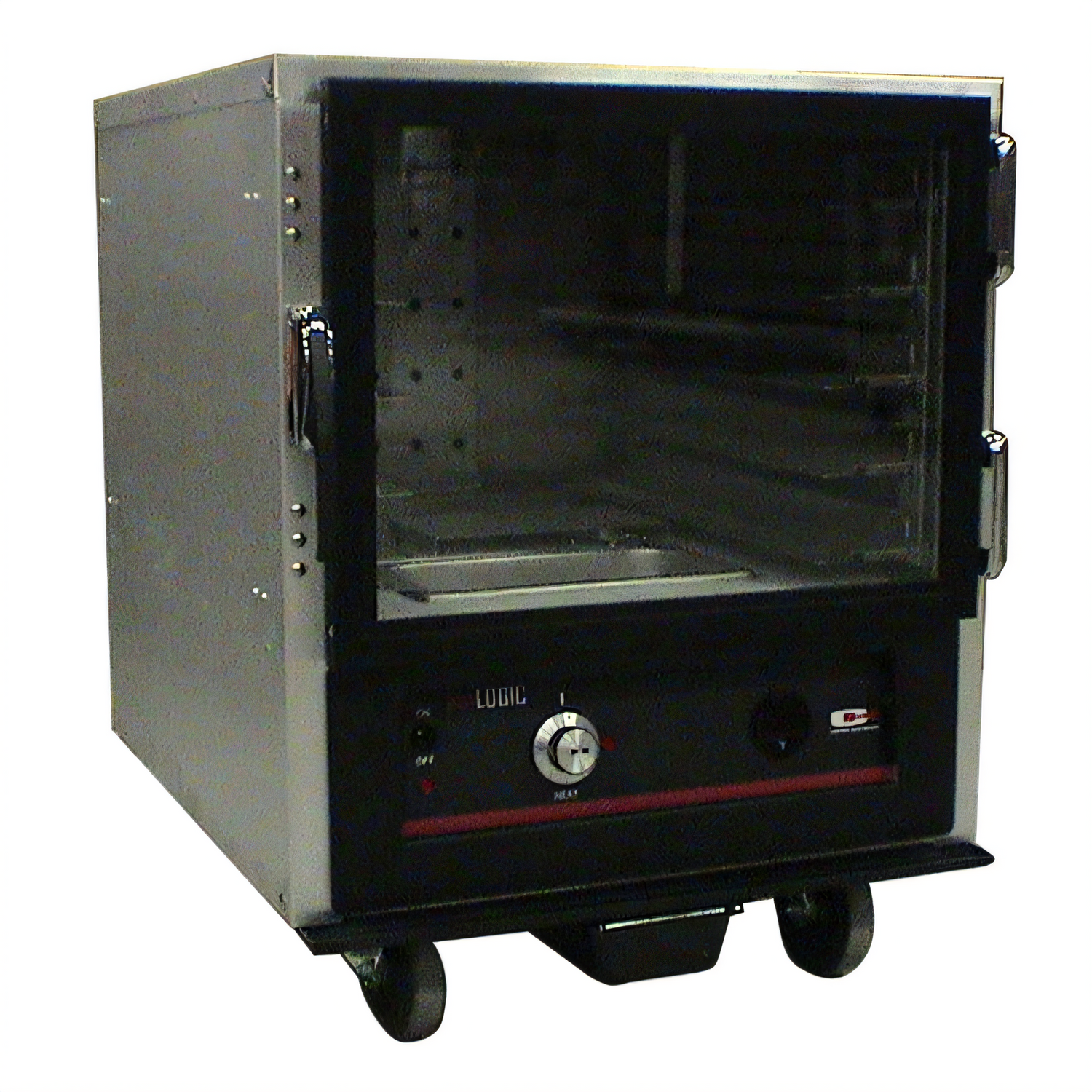

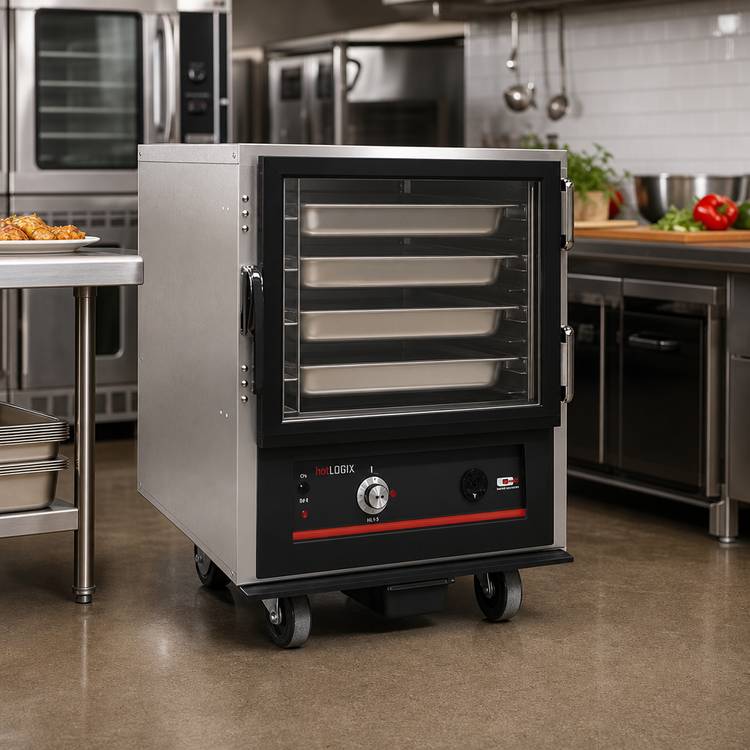

Carter-Hoffmann hotLOGIX HL1-5 Undercounter Heated Holding Cabinet

10 x 12" × 20" pan capacity  |  Non-insulated aluminum  |  120 V, 1 ph

Keep your menu items hot, safe and “just-made” fresh—right where you need them. The Carter-Hoffmann hotLOGIX HL1-5 fits under the counter yet delivers full-size performance with gentle forced-air heat, easy dial controls and the durability busy kitchens demand.

Key advantages

  • Undercounter height (31 ⅝") slips beneath standard work tables for a seamless workflow.

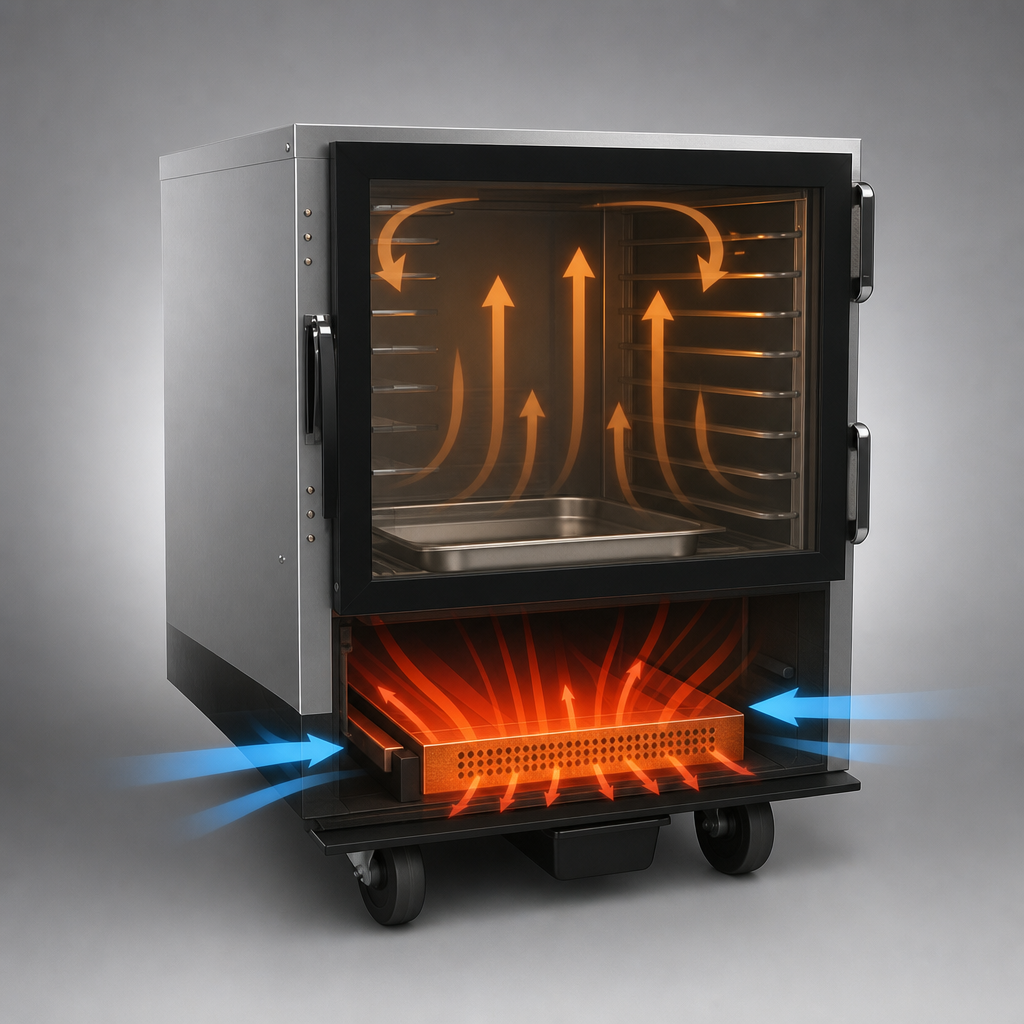

  • Removable bottom-mounted blower system heats to 190 °F (88 °C) and preheats to 160 °F in about 30 min.
  • Accommodates up to (10) 12" × 20" × 2.5" steam-table pans or (5) 18" × 26" sheet pans on 3" fixed universal wire slides.
  • Single-pane tempered glass door offers fast visual checks while the magnetic latch prevents heat loss.
  • Mechanical dial plus digital thermometer—simple, intuitive and no complicated programming.

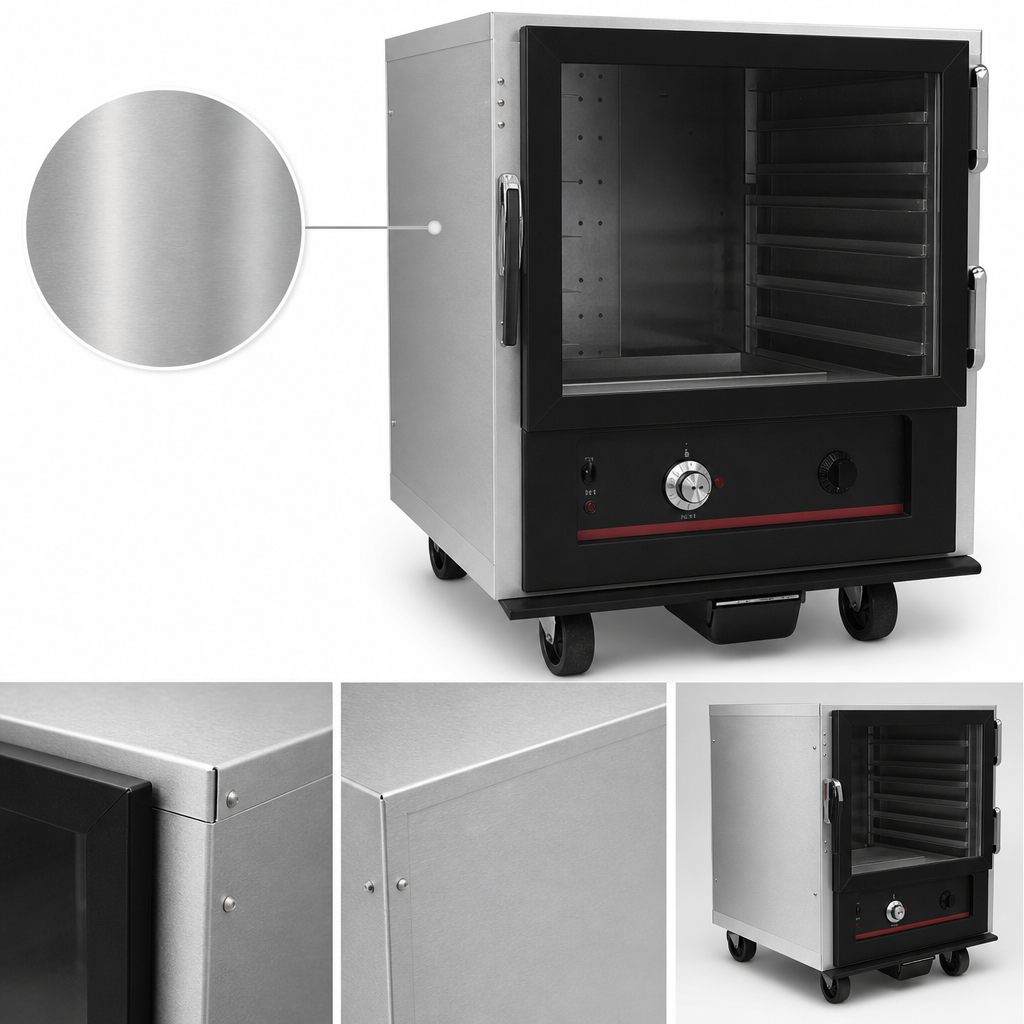

  • Lightweight, single-wall aluminum construction (.063" exterior) for easy maneuverability and rust-free service life.
  • (4) 5" all-swivel casters (2 with brakes) make positioning and cleaning a breeze.
  • cETLus & ETL Sanitation listed for worry-free code compliance.
  • One-year parts & labor warranty backed by Carter-Hoffmann.

At-a-glance specs

Series / Model hotLOGIX HL1-5 (undercounter)
Capacity (10) 12" × 20" pans • (5) 18" × 26" pans  (3" spacing)
Overall dimensions (H × W × D) 31 ⅝" × 24 11⁄16" × 29 ½" (803 × 627 × 749 mm)
Interior working height 15 5⁄16" (389 mm)
Construction Non-insulated aluminum cabinet & base frame
Door Single-pane tempered glass, anodized aluminum frame, edge-mounted latch
Heat system Removable bottom-mount forced-air blower heater
Temperature range Ambient to 190 °F (88 °C)
Electrical 120 V / 1 ph / 60 Hz, 1,750 W, 15 A, NEMA 5-20P cord & plug
Casters (4) 5" swivel, rubber tread – 2 locking
Shipping weight 99 lb (45 kg)
Certifications cETLus, ETL-Sanitation
Warranty 1-year parts & labor

Perfect for

  • Quick-service & fast-casual restaurants
  • Catering & banquet staging areas
  • Convenience stores & ghost kitchens
  • Any operation needing point-of-service hot holding in a compact footprint
Note: Allow at least 2" of clearance on all sides and 36" in front for door swing.
Cabinet must rest on a solid, level surface.

Looking to spread out the cost? Ask about Middleby Equipment Financing—fast approvals and flexible monthly payments.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

hotLOGIX

Certifications

cETLus, ETL-Sanitation

Height

31.63in

Width

24.69in

Depth

29.5in

Shipping Weight

99.0lbs

Height

31" - 36"

Heater

bottom mounted

Insulation

non-insulated

Size

1 compartment

Section

1 section

Door Style

full door(s)

Slide Centers

fixed on 3"

Door Type

clear

Full Size Sheet Pan Capacity

(5) 18" x 26" pans

Full Size Hotel Pan Capacity

(10) 12" x 20" pans

Exterior Finish

all aluminum exterior

Specifications

hotLOGIX Holding Cabinet-HL1 Series, one compartment, undercounter height, non-insulated, (10) 12" x 20" or (5) 18" x 26" pan capacity, 3" fixed wire universal slides, (1) single pane tempered glass door, bottom-mount forced air heating system, mechanical controls, digital thermometer, aluminum construction, (4) 5" swivel casters (2 with brakes), cETLus, ETL-Sanitation
