Carter-Hoffmann (Middleby) EPDHT3S12 Dish & Tray Dispensers
Description
Carter-Hoffmann EPDHT3S12 Enclosed Heated Plate Dispenser
3-Silo • Fits 12" (305 mm) plates • 120 V / 1-phaseServe every guest on a perfectly warmed plate. The Carter-Hoffmann EPDHT3S12 is a fully-enclosed, banquet-ready plate dispenser that gently heats, stores and transports up to 150 plates (≈ 50 per silo) while shielding them from dust and kitchen traffic. A rugged stainless-steel cabinet, wrap-around bumper and easy-rolling 5" locking casters make it as tough as it is convenient—ideal for hotels, catering kitchens and high-volume restaurants.
Why you’ll love it
- Three independent, 500 W heaters—one per silo—deliver consistent warmth without overheating plates.
- Illuminated rocker switches with guards let staff power each silo on/off separately and check status at a glance.
- Field-adjustable spring mechanisms accommodate varying plate weights & heights; simply add or remove springs to fine-tune lift tension.

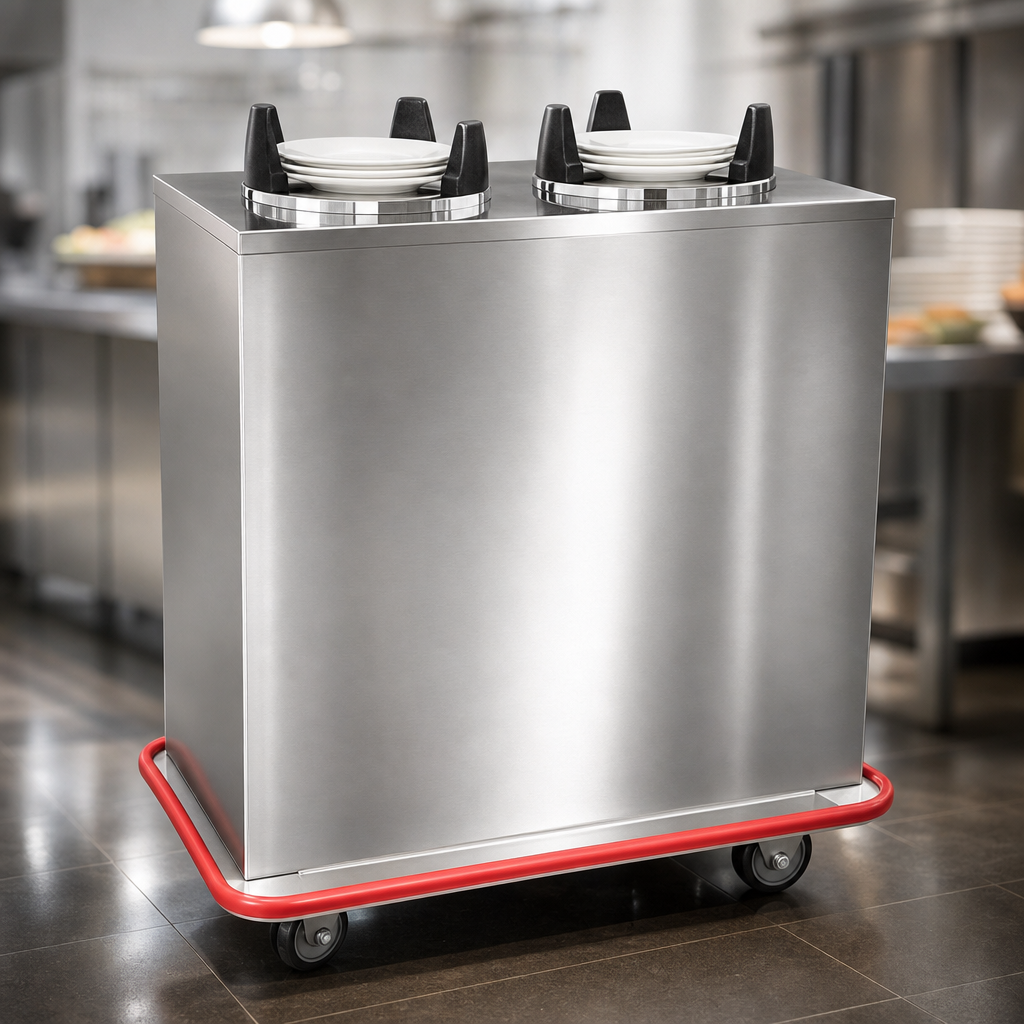

- Completely welded, all-stainless construction with turned-in seams—no raw edges, easier to clean.
- Heavy-duty 12-ga. stainless base frame and 5" all-swivel casters (with brakes) stand up to rough transport.
- Non-marking red vinyl bumper set in a 3/16" extruded aluminum frame defends walls, doors and other equipment.
- Black dish guides keep stacks centered to prevent chipping.
- cULus & UL EPH CLASSIFIED for electrical and sanitation peace of mind.
Technical specifications
| Model | EPDHT3S12 |
|---|---|
| Plate size range | Up to 12" (305 mm) Ø dinner plates |
| Total capacity | Approx. 150 plates (≈ 50 per silo) |
| Number of silos | 3 (individually heated) |
| Overall dimensions | Width 53 1/8" (1349 mm) × Depth 23 1/8" (587 mm) × Height 41 7/8" (1064 mm) |
| Construction | All-stainless cabinet & frame, welded seams, turned-in edges |
| Mobility | Four 5" all-swivel casters, each with brake; rubber tread, sealed bearings |
| Electrical | 120 V / 60 Hz / 1-ph, 1500 W, 12.5 A, 8 ft cord with NEMA 5-20P plug |
| Certifications | cULus, UL EPH CLASSIFIED |
| Shipping weight | ≈ 247 lb (112 kg) |
Popular accessories (sold separately)
- Aluminum silo covers (matching 12")
- Full perimeter wrap-around bumper
- Four-corner protective bumpers
