Carter-Hoffmann (Middleby)

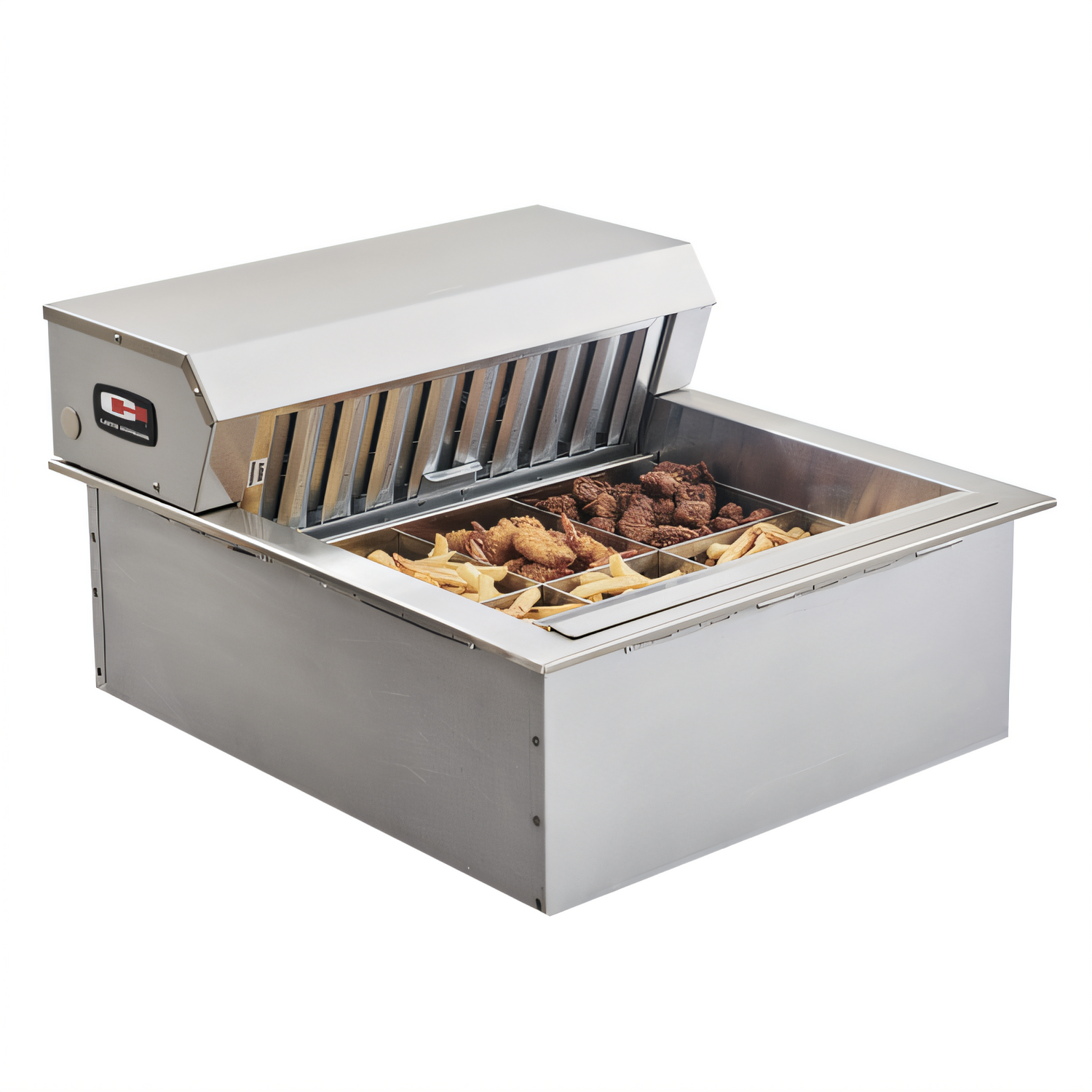

Crisp 'N Hold Stainless Steel Drop-In Fried Food Station with Removable Forced-Air Heating System

SKU: CNH12LP
$5,078.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Crisp 'N Hold Stainless Steel Drop-In Fried Food Station with Removable Forced-Air Heating System

910 Cu. In. Capacity, 120 Volts, 1-Phase

Keep fried foods crisp and ready to serve with circulated forced-air heat, removable dividers, and built-in oil management.

  • Drop-in design installs into a countertop cutout and helps eliminate the need for heat lamps.
  • Circulated forced-air heating helps maintain crisp texture while holding fried foods at serving temperature.
  • All-stainless-steel construction is built for durability and easy cleanup.
  • Removable dividers let you create multiple holding sections or a single larger bay; two dividers are included.
  • Integrated filter and bottom collection pan help remove excess oil for cleaner presentation.
  • Factory preset to 190°F and preheats in about 10 minutes.

Overall Dimensions:

25.0"W x 21.75"D x 5.5"H

Product Weight:

67.0 lb

Removable Forced-Air Heating System

Self-contained rear-mounted heating module circulates warm air through the food grate to help fried foods stay crisp longer and extend holding time.

All Stainless Steel Construction

Durable stainless steel cabinet with a polished stainless interior is designed for heavy use and easier cleaning.

Drop-In Countertop Design

Built to fit into a countertop cutout and provide a complete fried food holding station without using heat lamps.

Removable Product Dividers

Included dividers let you split the food bay into multiple holding sections or remove them to create one larger bay.

Textured Food Grate

Removable stainless steel grate uses an embossed, perforated design to promote even airflow and reduce direct hot-metal contact with food.

Integrated Oil Management

A removable filter traps oils and vapors, while the bottom-mounted collection pan lifts out to remove excess oil for cleaning.

Simple Service Controls

Factory preset internal mechanical thermostat holds at 190°F, and the on/off toggle switch includes a protective guard.

Type Fried Food Station
Style Bin Style
Installation Type Drop-In
Capacity 910 Cubic Inches
Compartments 3
Material Stainless Steel
Interior Finish Polished Stainless Steel
Controls Mechanical Thermostat
Temperature Range 190° F
Voltage 120 Volts
Amps 15.1 Amps
Watts 1.82 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 6 Feet
Shipping Width 25 Inches
Shipping Depth 22 Inches
Shipping Height 6 Inches
Shipping Weight 67 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It fits a 24.25 Inches wide x 20.75 Inches deep counter cutout.
It uses a removable modular forced-air heating system with electrical resistance heaters and blowers to circulate warm air through the grate.
The standard configuration operates on 120 Volts, 15.1 Amps, 60 Hz, single phase, and uses a NEMA 5-20P plug with a 6-foot cord.
The thermostat is factory preset to 190°F, and the unit preheats to 190°F in about 10 minutes.
CNH12LP includes two dividers. With all dividers installed, the food bay is divided into three sections.
Yes, the documentation lists an optional 240 volt electrical configuration.
