Carter-Hoffmann (Middleby)

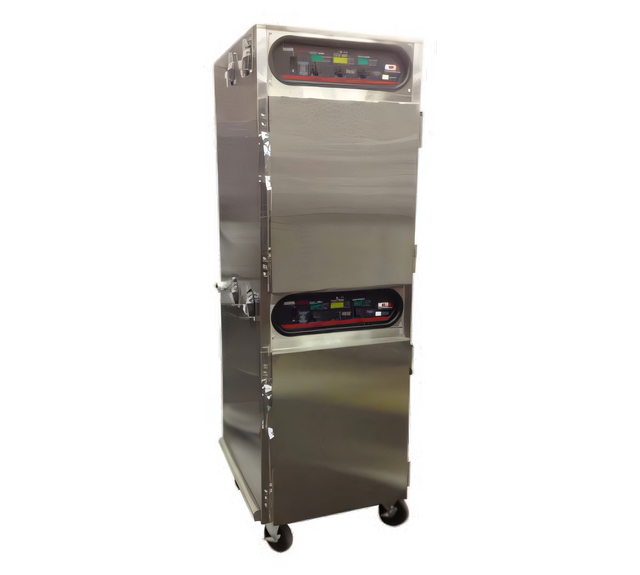

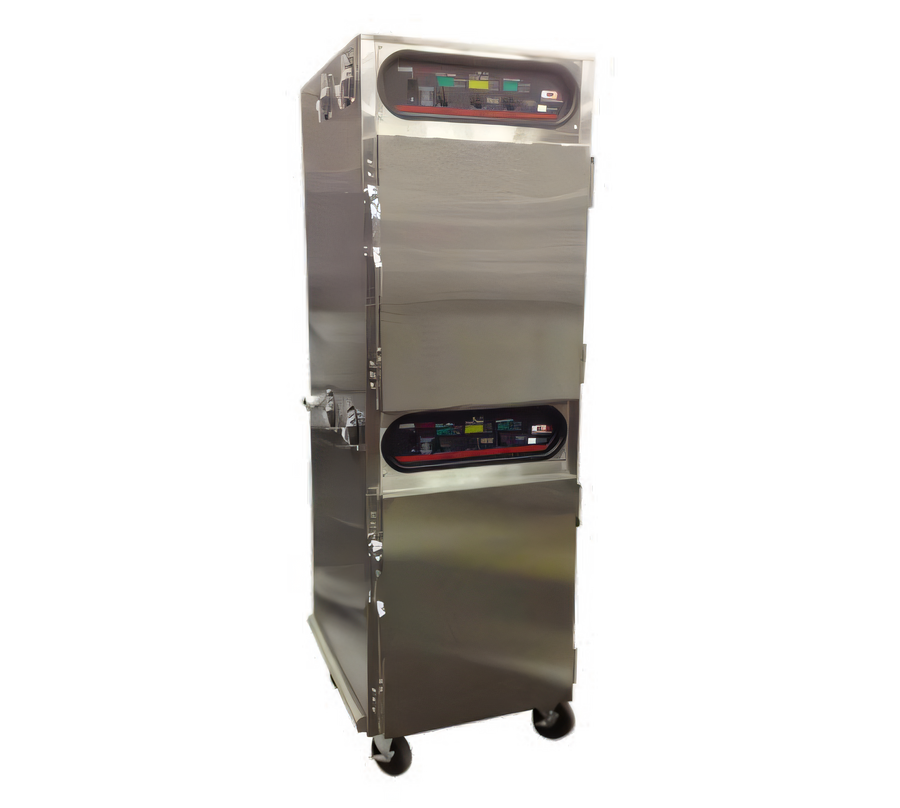

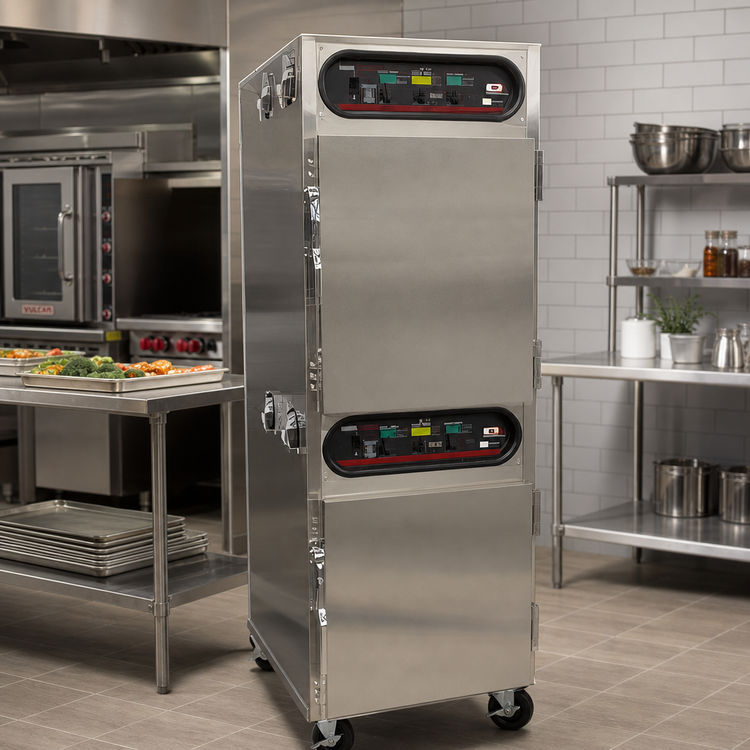

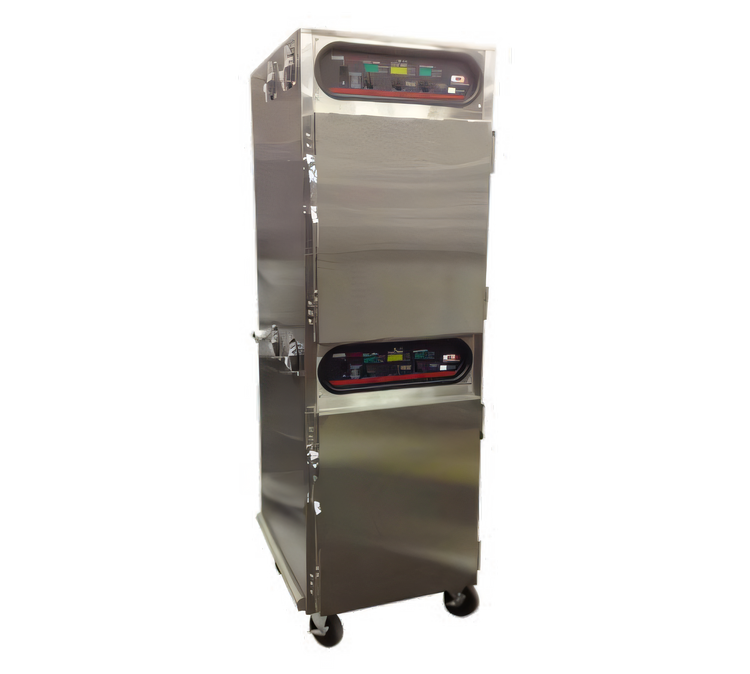

Carter-Hoffmann CH1600 Electric Dual-Cavity Cook & Hold Cabinet, 16 Full-Size Sheet Pan Capacity

SKU: CH1600
$16,861.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Carter-Hoffmann CH1600 Electric Dual-Cavity Cook & Hold Cabinet, 16 Full-Size Sheet Pan Capacity

240V, Digital Controls, Stainless Steel, Full-Height

Slow-cook and hold large batches with dual-cavity digital control, even blower heat, and an included meat probe for precise results.

  • Dual-cavity cabinet holds 16 full-size 18-inch x 26-inch sheet pans, 8 per cavity, with about 240 lb. meat capacity.
  • Digital controls let operators cook by time or product temperature and automatically switch to hold mode.
  • Included meat probe supports precise roasting and consistent results.
  • All-stainless steel, double-wall insulated construction is built for durability and easy cleaning.
  • Top-mounted blower heat and side ducting promote even circulation and caramelization with less shrinkage.
  • Five-inch casters with two brakes make positioning easier; low-temperature cooking may eliminate the need for a hood, subject to local codes.

Overall Dimensions:

26.13"W x 32.75"D x 76.38"H

Product Weight:

420.0 lb

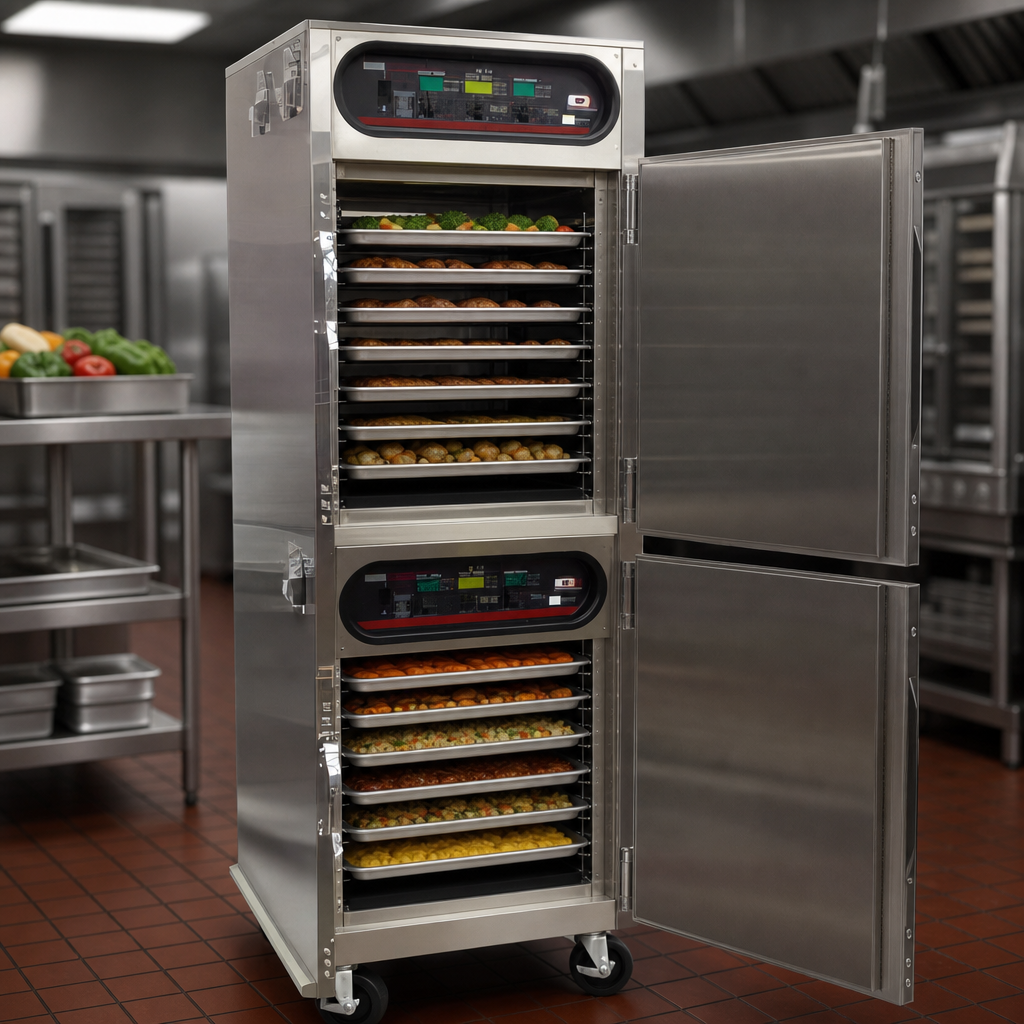

Dual-Cavity Design

Two cavities with separate controls provide flexible batch cooking and holding, with 8 sheet pans per cavity.

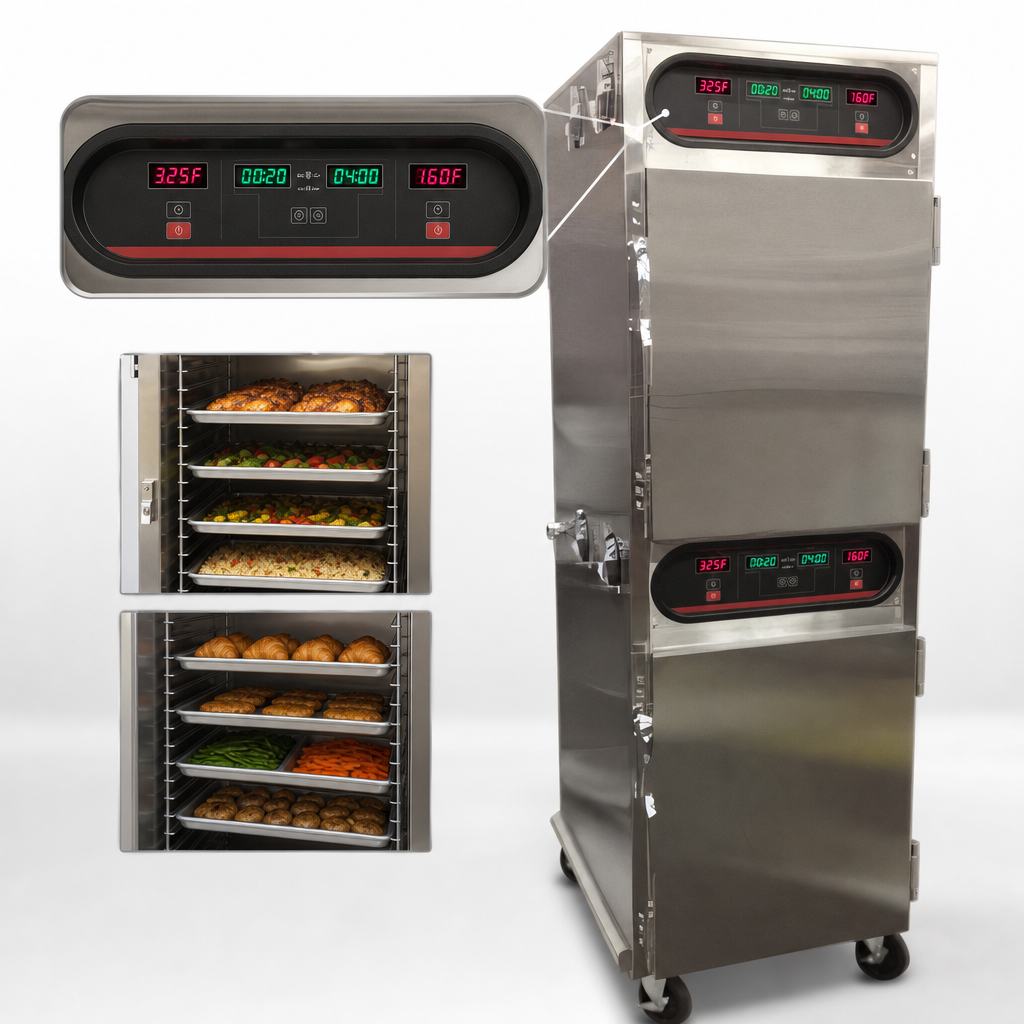

Digital Cook-And-Hold Controls

Separate digital cook and hold settings with readouts make it easy to manage each cycle and automatically switch to hold mode.

Time Or Temperature Cooking

Cook to time or product temperature using the included meat probe for greater accuracy.

Stainless Steel, Insulated Construction

Welded stainless steel cabinet construction with double-wall, 2-inch fiberglass insulation supports durability and heat retention.

Even Heat Distribution

A top-mounted blower heater and side-mounted heat ducts circulate heat gently for more even cooking and caramelization.

Reversible Doors

Field-reversible, double-panel stainless steel doors include self-closing hinges and a magnetic-catch latch.

Mobile Base

Four 5-inch casters, including two with brakes, make the cabinet easier to move and position.

Low-Temperature Hood Advantage

The cabinet is designed for low-temperature cooking and may not require a ventilation hood, subject to local codes.

Type Cook & Hold Cabinet
Style Full Height
Installation Type Floor Model
Compartments 2
Pan Capacity 16 Full-Size Sheet Pans
Pan Size 18 Inches x 26 Inches
Capacity 240 lb. Approximate Meat Capacity
Controls Digital
Temperature Range 100°F to 325°F
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Voltage 240 Volts
Watts 6.2 kW
Amps 25.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-30P
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 33 Inches
Shipping Height 77 Inches
Shipping Weight 420 lb.

Frequently Asked Questions

It holds 16 full-size 18-inch x 26-inch sheet pans, with 8 pans per cavity.
Yes. The digital controls allow cooking to time or to product temperature.
Yes. A meat probe is included for temperature-based cooking.
Cook mode ranges from 100°F to 325°F, and hold mode ranges from 100°F to 200°F.
It runs on 240 Volts, 60 Hz, single-phase power and uses a NEMA 6-30P plug.
Yes. It includes an 18-hour digital timer that counts down during cook mode and counts up during hold mode.
