Carter-Hoffmann (Middleby) BH3S Dish & Tray Dispensers
Description
Carter-Hoffmann BH3S 3-Silo Convection Base / Plate Heater
180 Wax Bases or 225 Plates • 208 V / 1-Phase • cULus & UL EPH ClassifiedBuilt for high-volume patient meal and banquet operations, the BH3S keeps your china, induction bases or plateware evenly heated and ready for service. Three self-leveling silos, rugged stainless construction and simple “Base-Off-Plate” toggle control make this mobile heater a dependable workhorse on any tray line.
Key Benefits

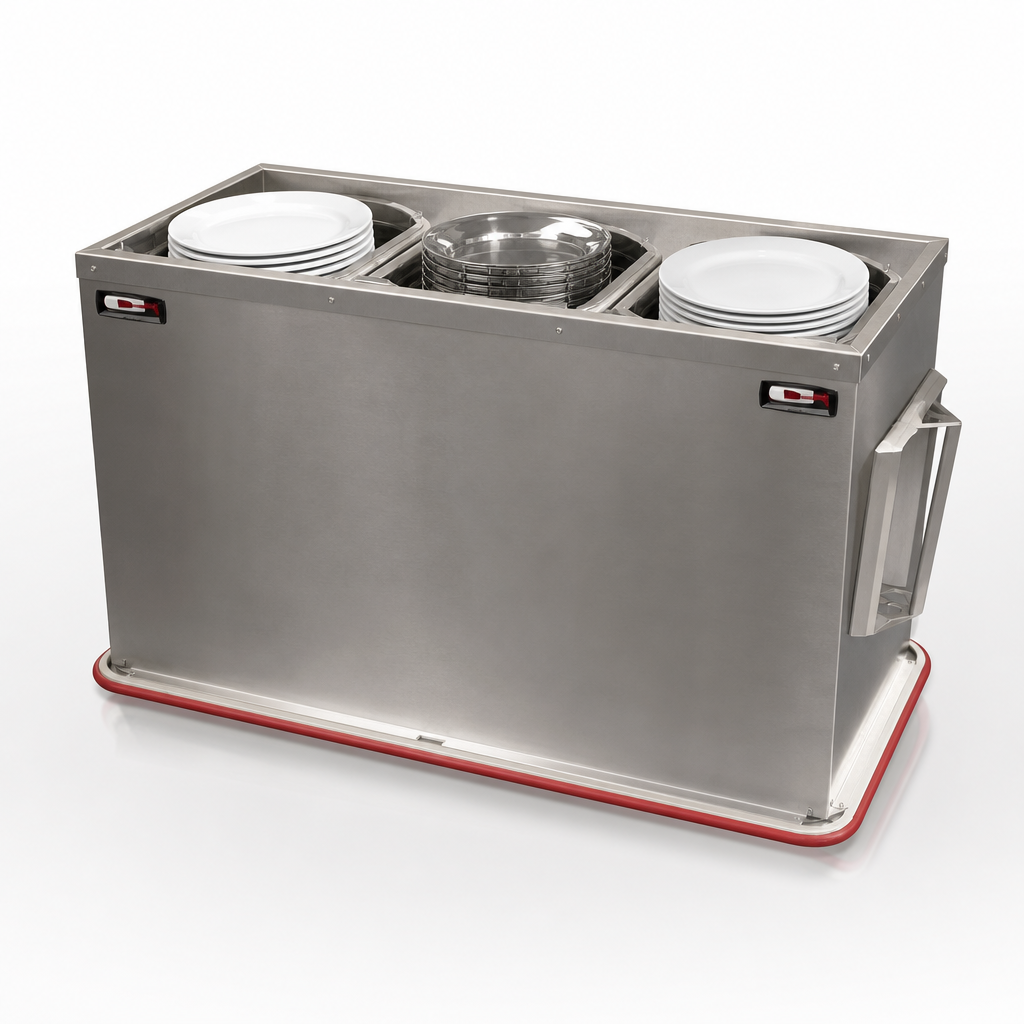

- 3 individual silos hold up to 180 Carter-Hoffmann wax bases (60 per silo) or field-convert to warm up to 225 plates.
- High-velocity blower air system rapidly and evenly circulates heat for consistent plate temperatures.
- Factory-preset thermostats: 325 °F (162 °C) for bases, 230 °F (110 °C) for plates—no on-site calibration required.
- All-stainless, wrap-around single-piece exterior with turned-in seams for a sanitary, snag-free finish.
- Heavy-duty 12-gauge base frame and 5 in. all-swivel casters (2 with brakes) for smooth transport over thresholds.
- Self-leveling dispenser platforms with field-adjustable springs keep stacks at the right height as the load changes.
- Removable, gasket-free silo lids hang safely on built-in hooks while dispensing—no misplaced covers, no burns.
- 10-ft cord with NEMA 6-20P plug and integral cord wrap keeps the cable tidy between uses.
Technical Specifications
| Model | BH3S |
|---|---|
| Configuration | 3 self-leveling silos; factory set for bases, field convertible for plates |
| Capacity * | 180 wax bases (7 – 10.25 in) | 225 plates (75 per silo) |
| Overall Dimensions | 45 in H × 46 ⅜ in W × 23 in D (1143 × 1178 × 584 mm) |
| Caster Diameter | 5 in (plate-mounted, all swivel, 2 braked) |
| Electrical | 208 V / 60 Hz / 1-phase, 4,800 W, 23.1 A |
| Power Connection | 10 ft cord with NEMA 6-20P plug |
| Controls | Base-Off-Plate toggle switch with guard, power indicator light, high-limit safety |
| Construction | 18-gauge 300 series stainless body, 12-gauge stainless base frame, foamed-in insulation |
| Certifications | cULus Listed, UL EPH Classified |
| Shipping Weight | Approx. 345 lb (156 kg) |
*Capacities are approximate and may vary with plate/base thickness.
Ideal Applications
- Hospital patient tray assembly lines
- Long-term care and senior living meal service
- Banquet kitchens and hotel room-service operations
- University or corporate dining where hot holding speed matters
Optional Accessories
- Wrap-around extruded aluminum bumper with non-marking vinyl insert (red or grey)
- Soft-durometer cushioned corner bumpers
