Carter-Hoffmann (Middleby) BB1600 Equaheat Banquet Carts
Description

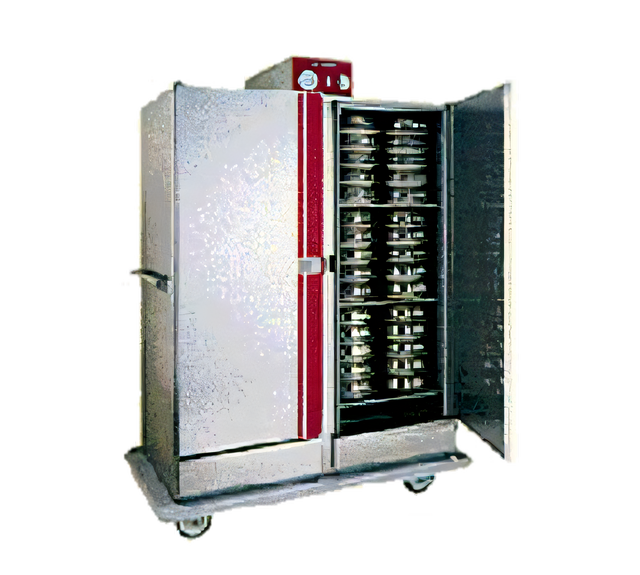

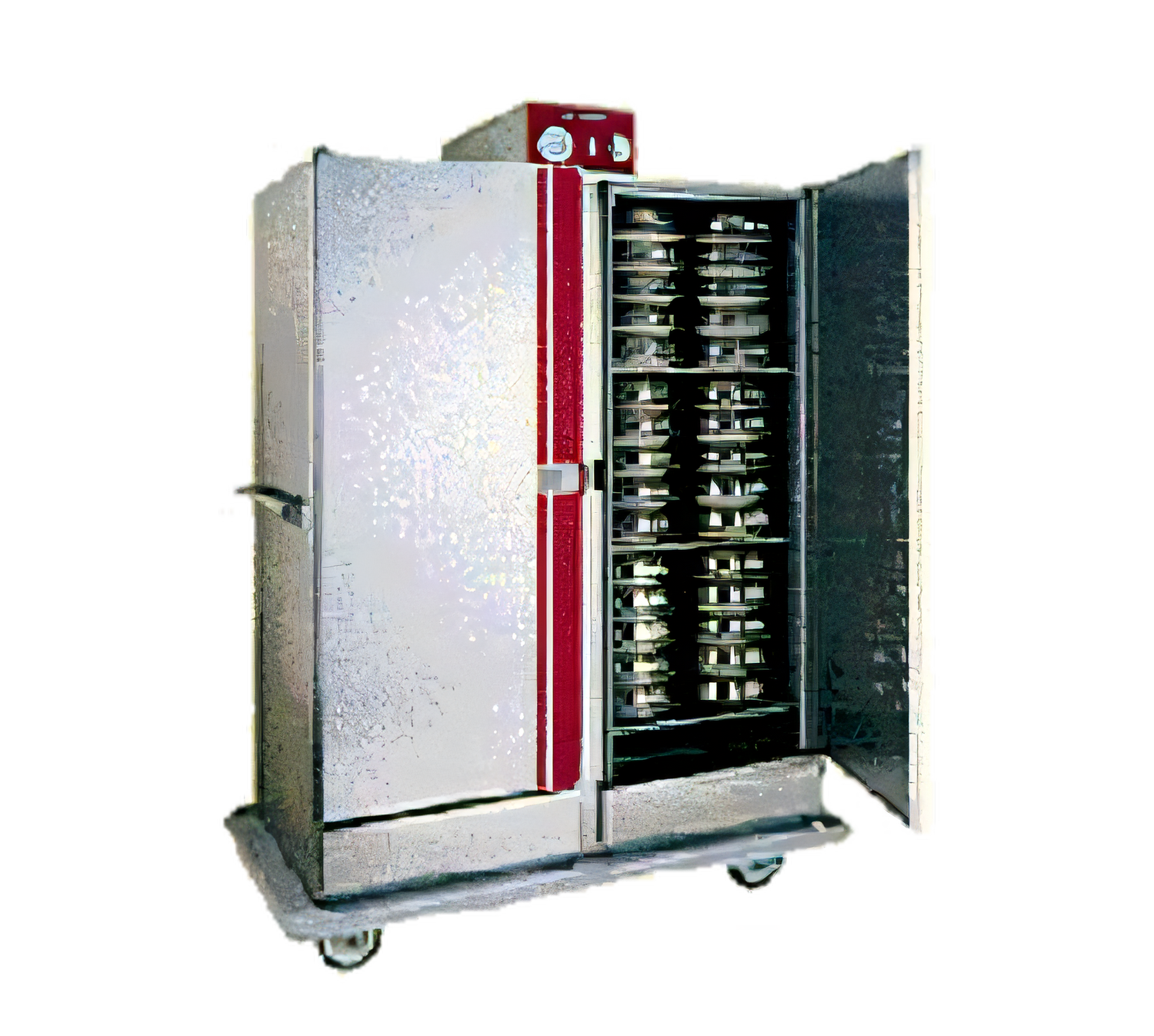

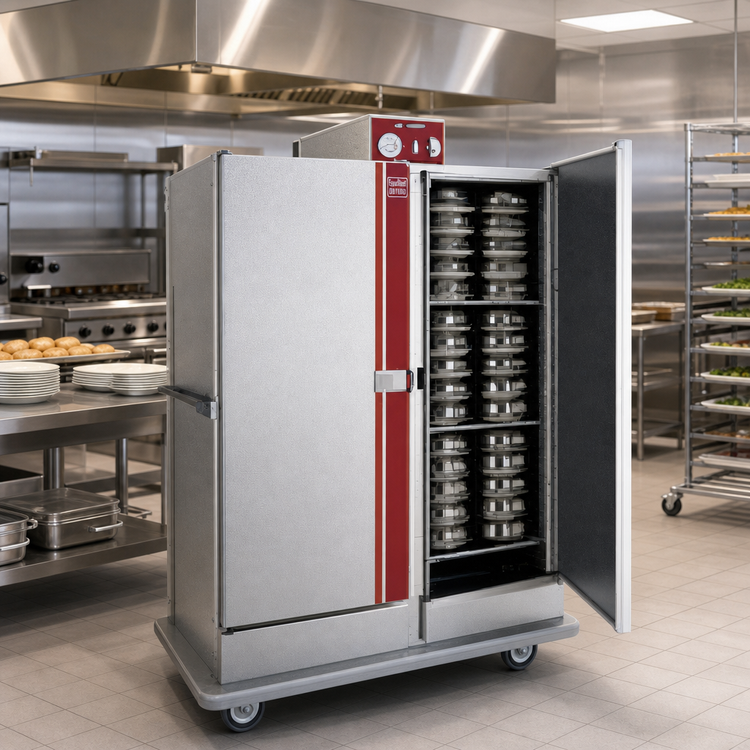

Carter-Hoffmann EquaHeat BB1600 Mobile Banquet Cabinet
150-Plate Capacity • Electric or Canned Fuel • RapidShipServe every guest at the perfect temperature. The EquaHeat BB1600 keeps up to 150 pre-plated meals hot, safe and ready for flawless banquet service thanks to Carter-Hoffmann’s double-wall insulation, high-performance forced-air heating and rock-solid stainless-steel construction.
Key Benefits

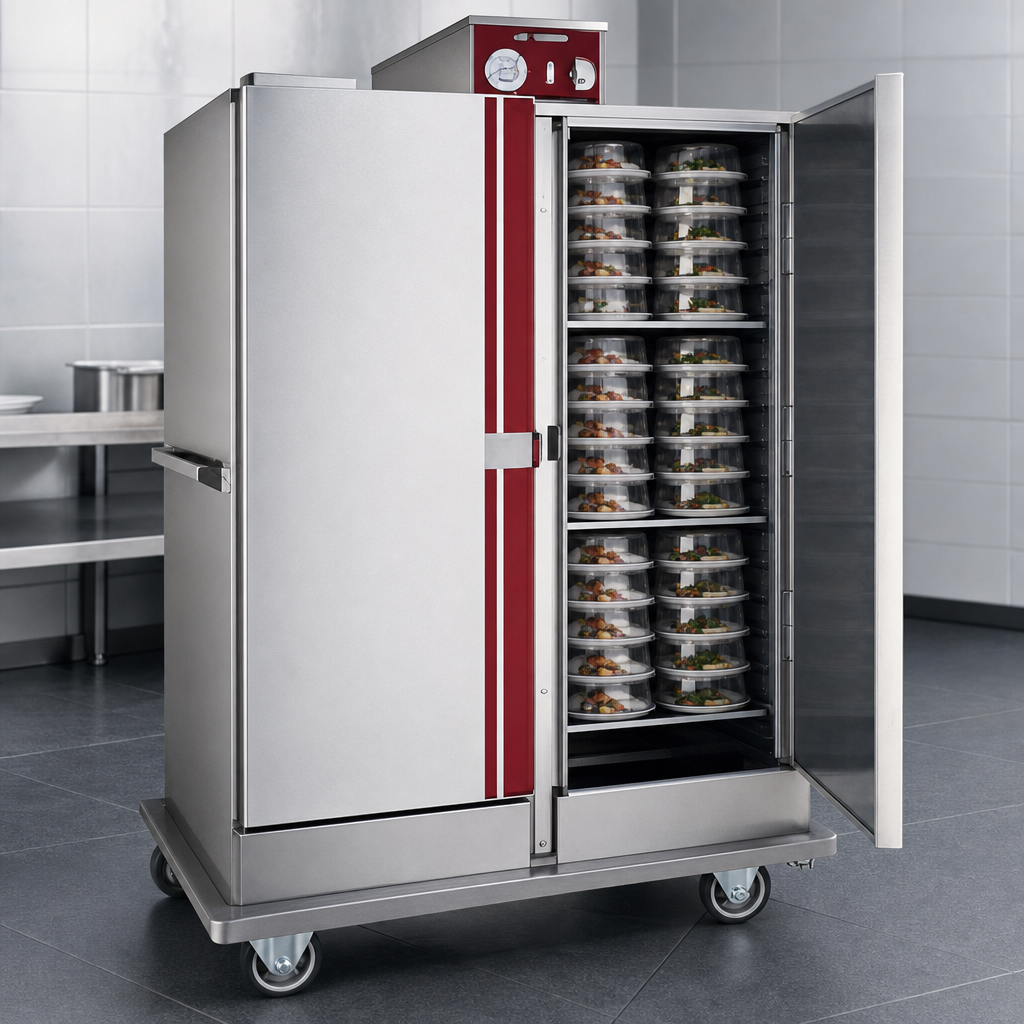

- Holds 150 covered plates (8 ¾"–11" Ø) on three spacious shelves.
- Dual heat source flexibility—use the 1,500 W electric heater or slide in canned fuel drawers when power isn’t available.
- Forced-air blower delivers fast preheat (to 160 °F in ≈20 min), even heat distribution and quick recovery after door openings.

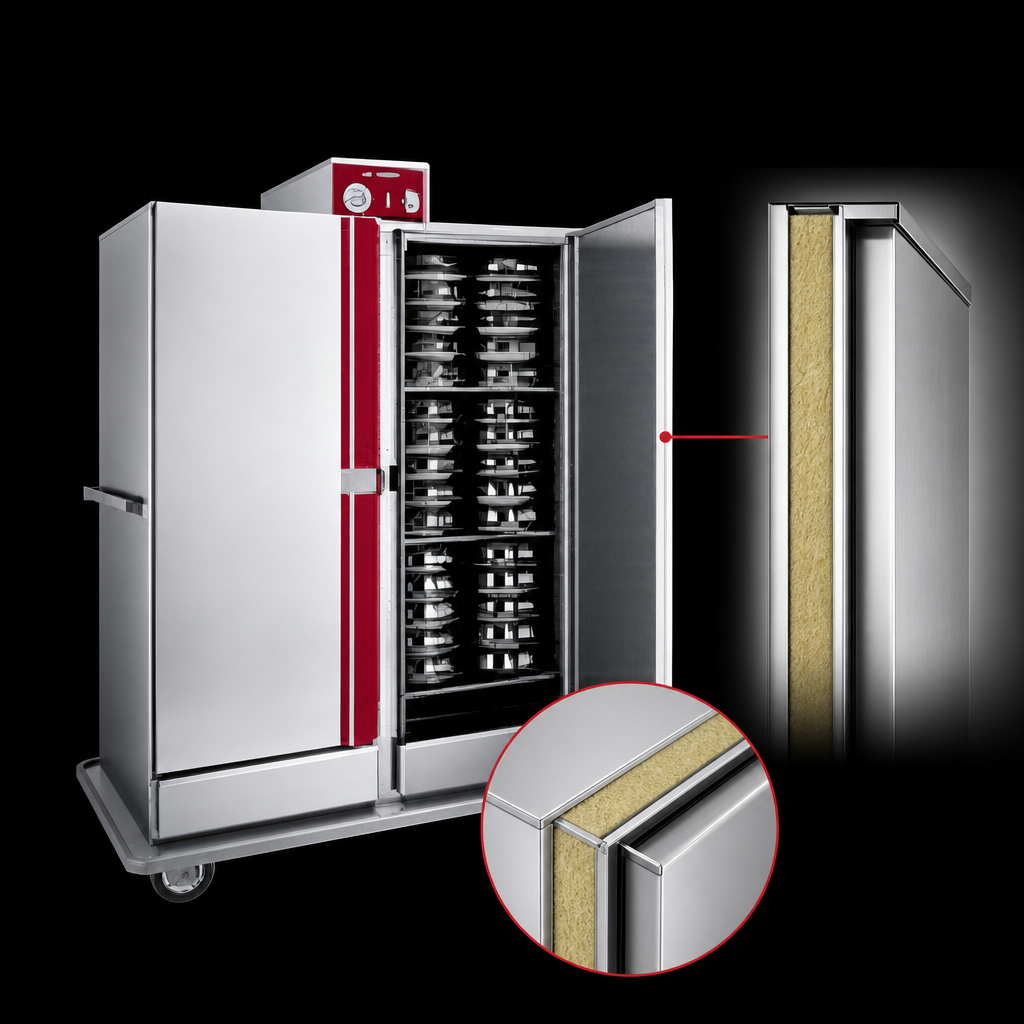

- Completely welded, double-wall stainless cabinet with 1" fiberglass insulation (1 ½" on top) for maximum heat retention.
- Removable heater and nickel-plated wire shelves—no tools required—for effortless cleaning and service.
- 6" industrial casters (2 swivel w/ brakes, 2 rigid) in wheel-ahead pattern plus full-perimeter non-marking bumper for smooth, damage-free transport.
- Flush sliding latch, concealed hinges and heavy-duty 12-ga base frame withstand rigorous daily use.
- cULus, UL EPH and NSF/ANSI 4 listed for food-safe operation in any professional kitchen.
Ideal For
- Hotels & resorts
- Convention & event centers
- Off-site catering
- Country clubs
- Healthcare & institutional dining
Technical Specifications
| Model | BB1600 EquaHeat |
|---|---|
| Plate capacity | 150 covered plates (≤2.5" combined plate/cover height) |
| Number of shelves | 3 removable wire shelves |
| Shelf size (W × D) | 58" × 22 ⅛" (1,486 × 546 mm) |
| Clearance between shelves | 16 ½" (419 mm) |
| Overall dimensions (H × W × D) | 74 ¾" × 67 ⅛" × 32" (1,899 × 1,705 × 813 mm) |
| Electrical | 120 V / 60 Hz / 1-ph, 1,500 W, 13 A, NEMA 5-15P, 10 ft cord |
| Heating range | Ambient to 200 °F (94 °C) |
| Alternate heat | Integrated canned-fuel drawers with safety latches |
| Casters | 6" Ø polyurethane—2 swivel w/ brakes, 2 rigid |
| Construction | 20-ga stainless exterior, 24-ga interior; double-wall, fully welded |
| Shipping weight | 658 lb (298 kg) |
| Certifications | cULus, UL EPH, NSF/ANSI 4 |
Actual capacity may vary with plate height and cover style. Verify clearance before loading.
