Carter-Hoffmann (Middleby)  |  Equaheat  |  SKU: BB1100

Carter-Hoffmann (Middleby) BB1100 Equaheat Banquet Carts

$11,894.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Terms & conditions
Related Searches
Banquet Carts Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

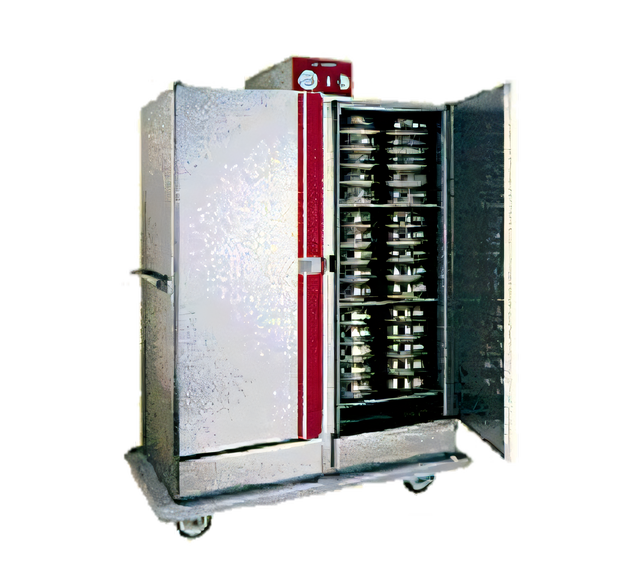

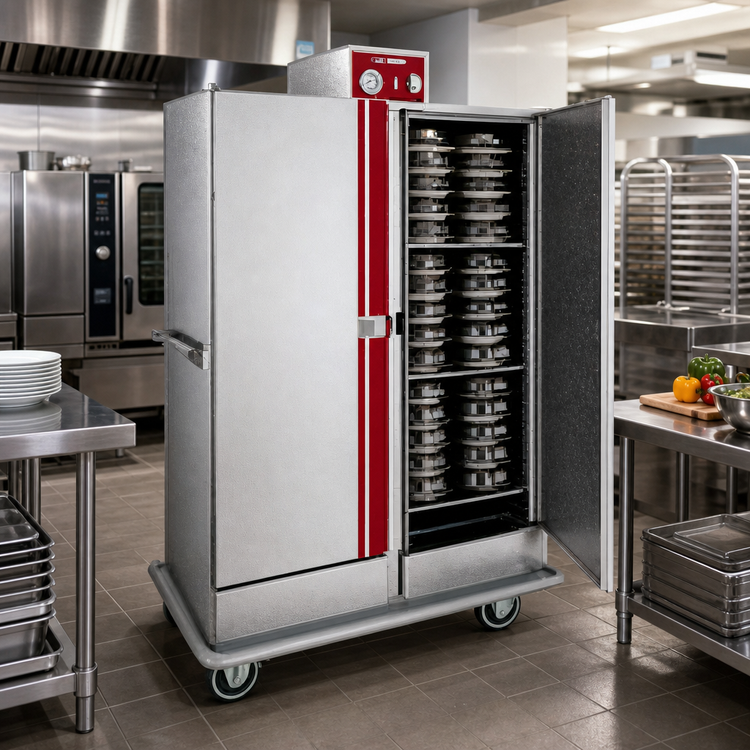

Carter-Hoffmann EquaHeat™ BB1100 Banquet Cabinet

96-plate, mobile & insulated – electric or canned-fuel heat

Serve every guest at the ideal temperature. The EquaHeat™ BB1100 holds up to 96 pre-plated meals (8¾"–11" dia.) and delivers fast, even heat in a rugged, easy-to-maneuver cabinet that’s built for life on the banquet room floor.

Key performance advantages

  • Dual heat flexibility – plug into a standard 120 V outlet or slide in canned fuel drawers without opening the doors.
  • 20-minute preheat to 160 °F and a 200 °F max cabinet temperature from a 1,500 W top-mounted removable heater with high-flow blower.
  • 1" thick high-density fiberglass insulation (1½" on top) locks in heat and slashes recovery times during service.

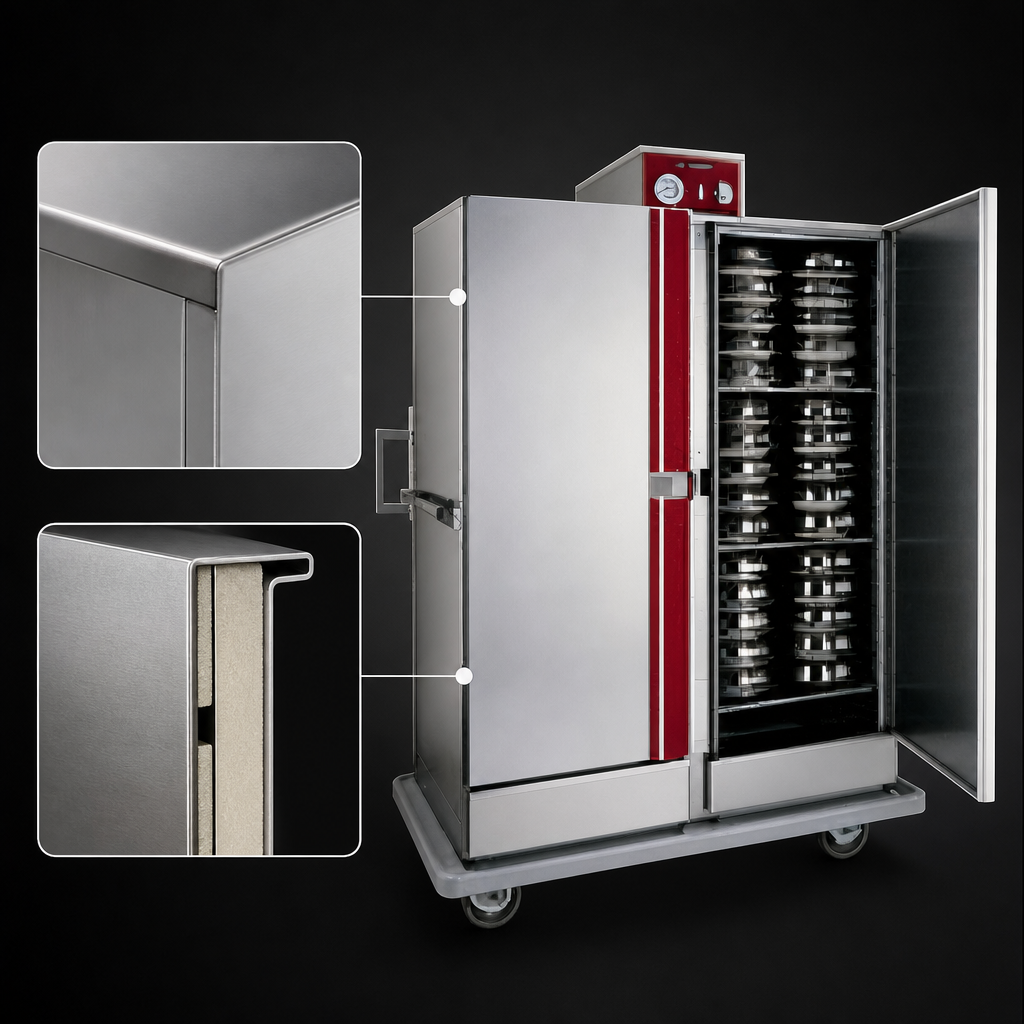

  • Fully welded 20 ga. stainless steel construction with turned-in seams – no raw edges to trap food soil.
  • Three removable, nickel-plated wire shelves support heavy plate loads and clean up in seconds.
  • 6" industrial-grade casters (2 swivel with brakes, 2 rigid) in “wheel-ahead” pattern plus dual full-width push handles for effortless steering.
  • Wrap-around non-marking bumper and concealed stainless hinges protect doorways, walls and the cabinet itself.
  • NSF/ANSI 4 listed and cULus/UL EPH certified for dependable, code-compliant operation.

Technical specifications

Model BB1100 EquaHeat™

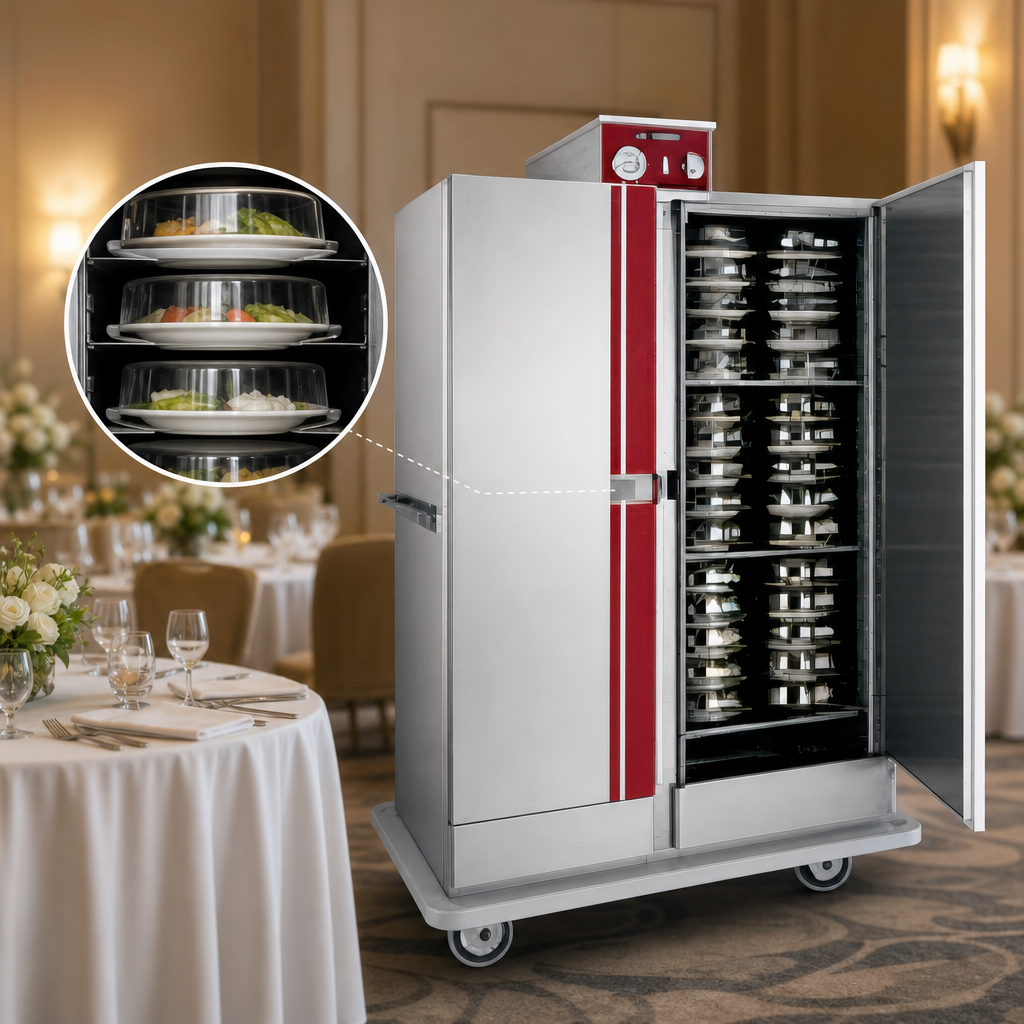

Plate capacity 96 covered plates, 8.75 – 11 in (222 – 279 mm) diameter
Number of shelves / clearance 3 shelves / 13 in (337 mm) between shelves
Shelf size (W × D) 47 × 22 1/8 in (1,194 × 546 mm)
Overall dimensions (H × D × W) 65 × 32 × 55 5⁄8 in (1,651 × 813 × 1,413 mm)
Electrical 120 V / 60 Hz / 1-phase, 1,500 W, 13 A, NEMA 5-15P, 10 ft (3 m) cord
Heat range Ambient to 200 °F (94 °C)
Preheat time 160 °F (71 °C) in approx. 20 min
Casters 6 in (152 mm) – 2 swivel (with brakes) & 2 rigid
Construction Double-wall 20 ga. stainless steel, 1" fiberglass insulation
Shipping weight 498 lb (226 kg)
Certifications cULus, UL EPH, NSF/ANSI 4

Capacity is based on a combined plate and cover height of 2.5 ". Actual capacity may vary with plate and cover style.

Popular factory options

  • Top-mounted transport latch with padlock hasp
  • 4-wheel brakes or alternative caster styles
  • Cord wrap with reinforced strain relief
  • Menu card holder for banquet ID
  • Key-locking door latch
  • Tow hitch for multi-cabinet trains

Looking for payment flexibility? Ask us about Middleby Equipment Financing for fast approvals and fixed monthly payments.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Brand_name

Equaheat

Certifications

UL EPH

Height

65.0in

Width

55.63in

Depth

32.0in

Shipping Weight

498.0lbs

Doors

double doors

Height

61" - 66"

Plate Capacity

(96) covered plates

Construction

stainless steel

Heat

electric

Controls

thermostatic controls

Specifications

EquaHeat™ Banquet Cabinet, mobile, insulated, double door for pre-plated food, electric or canned heat, (96) covered 8-3/4" to 11" diameter covered plates, 2 swivel, 2 rigid 6" casters, stainless steel construction, cUL, UL EPH
